Description
Models & Specifications

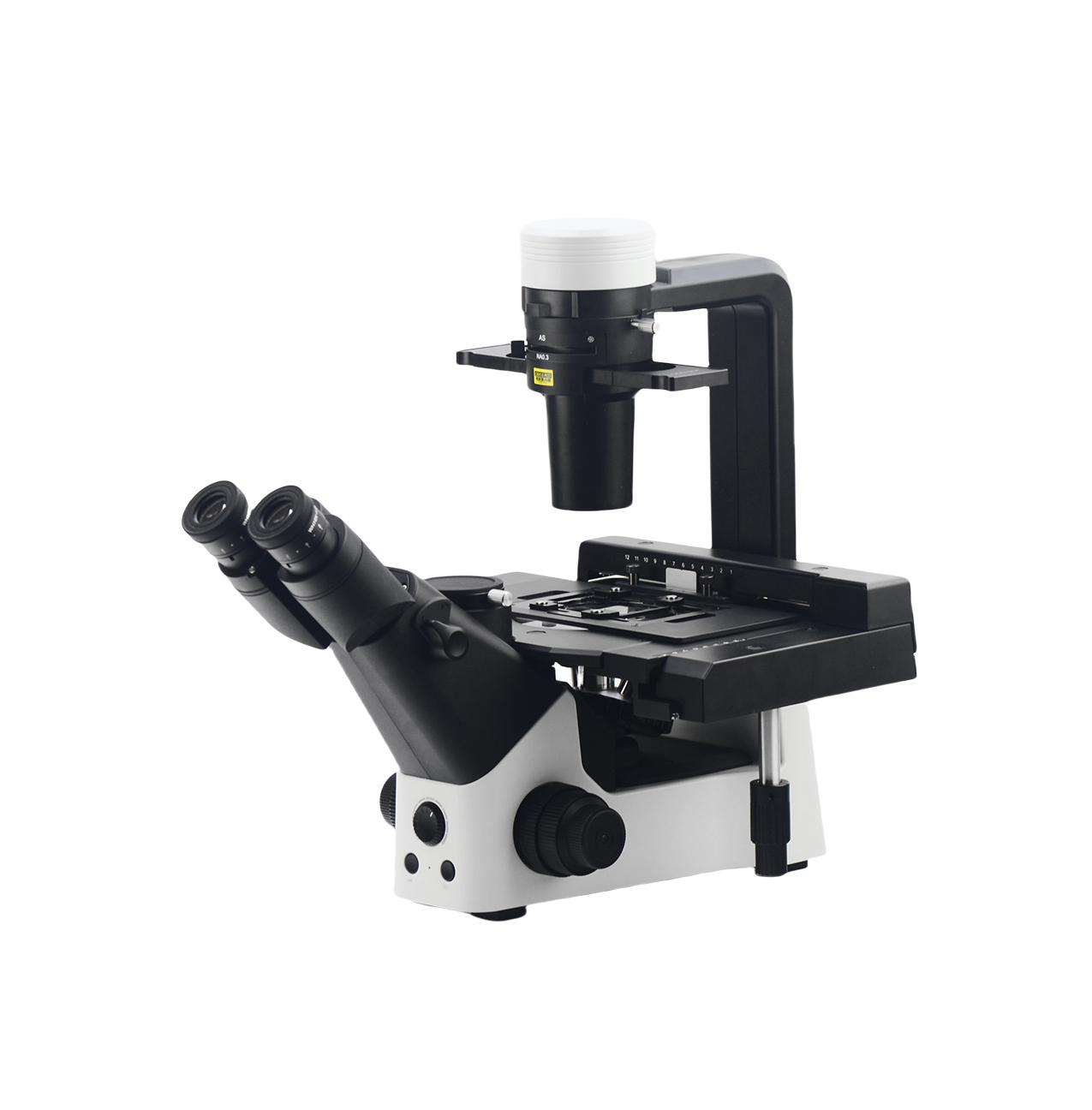

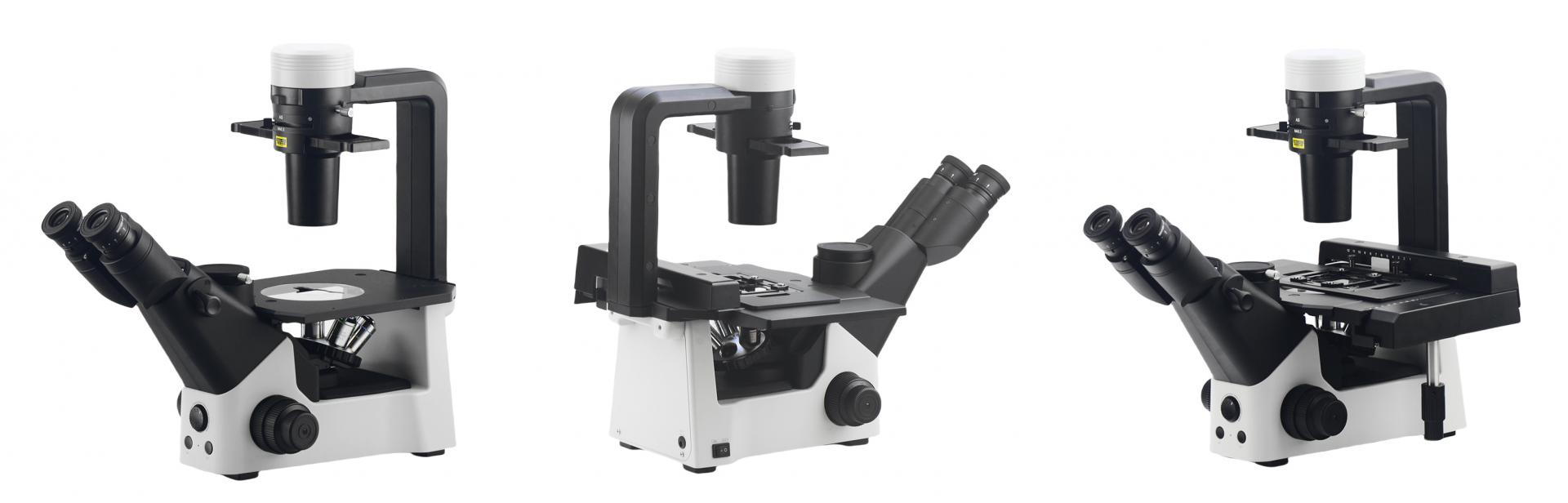

| Model | XB5000PT | |
| Optical System: | Infinity Corrected Optical System | • |
| Viewing head: | Seidentopf trinocular head inclined at 45°, interpupillary distance 48-75mm; 360° rotatable eyetube, camera port: eyepiece/port 100:0, 0:100 | • |
| Nosepiece: | Objective coding converter with 5 positions | • |
| Eyepiece: | High-point, Wide Field Eyepiece WF10×/22mm, with diopter adjustable +/-8°, with a folding silicone eyecups | • |
| Objective | Infinite Plan Semi-apochromatic Phase Contrast Objective 4×/0.15, WD: 16mm | • |
| Infinite Plan Semi-apochromatic Phase Contrast Objective 10×/0.30, WD: 14.8mm | • | |
| Infinite Plan Semi-apochromatic Phase Contrast Objective 20×/0.45, WD: 8.6mm | • | |
| Infinite Plan Semi-apochromatic Phase Contrast Objective 40×/0.60, WD: 4.9mm | • | |
| Stage: | Long-handle mechanical stage, plain stage 260×200mm, glass insert, moving stages 110×75mm, | • |
| various optional holders for a optimal working condition are optional, such as holder for glass slide, universal holder, terasaki holder, petri dish holder Φ35mm-Φ58mm, petri dish holder Φ90mm, well clamper, culture flasks stage clip. | ○ | |
| Detachable stage extension plate is optional, protecting samples from falling, 70mm in length X 180mm in width | ○ | |
| Focusing: | Coaxial coarse and fine adjustment, the function of coarse tightness adjustment, fine division 1um, fine stroke 0.2mm per rotation, coarse stroke 36.8mm per rotation, focusing stroke is 20mm, focusing scale accuracy: 2µm per division | • |
| Condenser: | Long working distance condenser, numerical aperture 0.30, working distance 72 mm. The condenser can be removed in order to increase the working distance to 190 mm | • |
| Phase contrast: | Universal phase contrast slider for all phase contrast objectives, which is unnecessary to switch the phase contrast slide plate when changing the objective lens, which is more convenient for observation | • |
| illumination: | 5W High-power blue light-free eye-protecting LED light, with long life time, not less than 60,000 hours, color tempeature is about 4400k-4600k, including phase contrast and bright field mode; Intelligent adaptive adjustment of light intensity. Equipped with a detachable 45mm filter slot, which is compatible with filters ranging from 2mm to 6mm in thickness, such as green high-contrast filters. Equipped with a manually switchable blade-type aperture diaphragm | • |
| Supplied with: | Dust cover | • |
Optional Accessories
| Order Code | Descriptions |
| XB5000001 | XB5000 microscope body |
| XB5000002 | Wide field eyepiece WF10x/22mm, high eye point, -5～+5 diopter adustable |
| XB5000003 | Wide field eyepiece WF15x/16mm, high eye point, -5～+5 diopter adustable |
| XB5000004 | Wide field eyepiece WF20x/12mm, high eye point, -5～+5 diopter adustable |
| XB5000005 | Eyecups for eyepieces |
| XB5000006 | Infinity plan objective 2x/0.06 |
| XB5000007 | Infinity plan objective 4x/0.1 |
| XB5000008 | Infinity plan objective 10x/0.25 |
| XB5000009 | Infinity plan objective 20x/0.4 |
| XB5000010 | Infinity plan objective 40x/0.6 |
| XB5000011 | Infinity phase contrast objective 4x/0.1 |
| XB5000012 | Infinity phase contrast objective 10x/0.25 |
| XB5000013 | Infinity phase contrast objective 20x/0.4 |
| XB5000014 | Infinity phase contrast objective 40x/0.6 |
| XB5000015 | Infinity plan semi-apochromatic phase contrast objective 4x/0.15 |
| XB5000016 | Infinity plan semi-apochromatic phase contrast objective 10x/0.3 |
| XB5000017 | Infinity plan semi-apochromatic phase contrast objective 20x/0.45 |
| XB5000018 | Infinity plan semi-apochromatic phase contrast objective 40x/0.60 |
| XB5000019 | Plain stage 260mm x 200mm |
| XB5000020 | Attchable mechanical stage 110mm x 75mm, compatible with various holders |
| XB5000021 | Stage extension plate 70x180mm |
| XB5000022 | Universal holder for teraski plate holder, glass slide, Ø35-65 dish and hemocytometer. Designed for use with mechanical stage |
| XB5000023 | Stage clip |
| XB5000024 | Rround glass insert stage plate |
| XB5000025 | Terasaki plate holder |
| XB5000026 | Φ35mm petri dish holder |
| XB5000027 | Φ58mm petri dish holder |
| XB5000028 | Φ65mm petri dish holder |
| XB5000029 | Φ90mm petri dish holder |
| XB5000030 | Heating stage |
| XB5000031 | Condenser: Long working distance condenser, NA 0.3, WD 72mm |
| XB5000032 | unverisal phase contrast sliders 4x-40x |
| XB5000033 | 45mm Green filter, increases contrast in a specimen image |
| XB5000043 | 1X C mount |
| XB5000044 | 0.5X C mount |
