Description
Descriptions

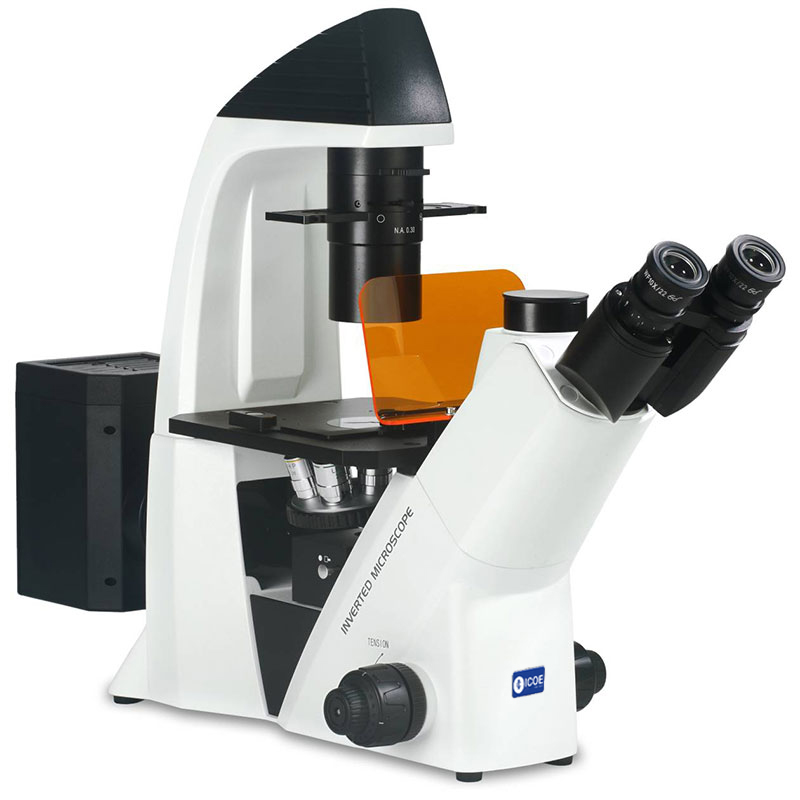

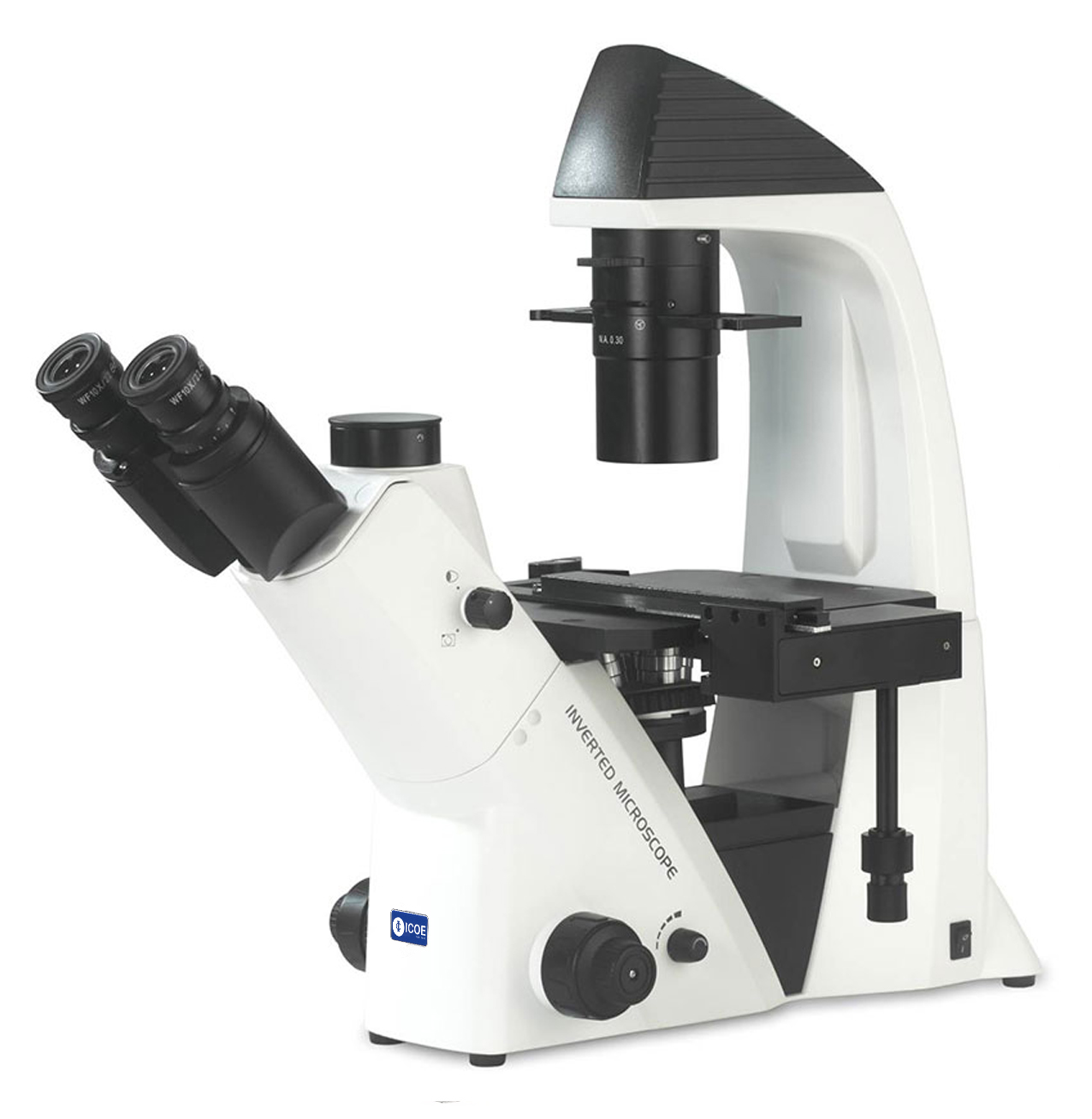

IE5600 Inverted Biological Microscopes with Infinite Optical System is sued by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be sued for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
Product Details
1. The F.O.V. (field of view) of IE5600 is based on a very comfortable diameter of 22 mm. A natural and easy view is ensured, especially when typically required in a laboratory environment.
2. Featuring vivid, infinity-corrected optics, the IE5600 Inverted Microscopes provide life science professionals high performance fortissue culture applications. Bright-field LWD & Phase Contrast models feature infinity-corrected plan achromatic objectives.
3. With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens

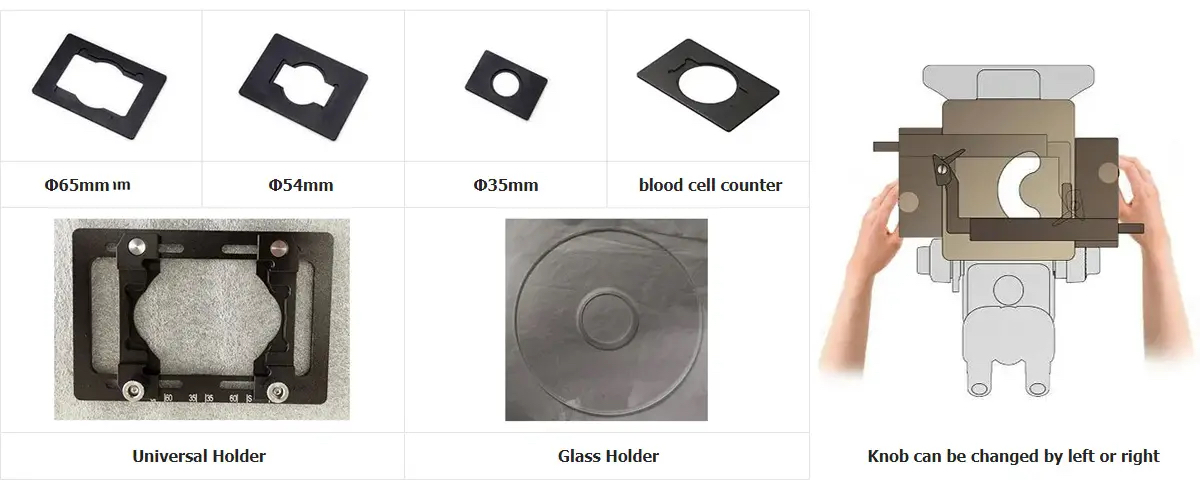

4. A wide selection of stage inserts are optional including universal holder, glass holder, for blood cell counter and 65/54/35mm Petri dishes etc.

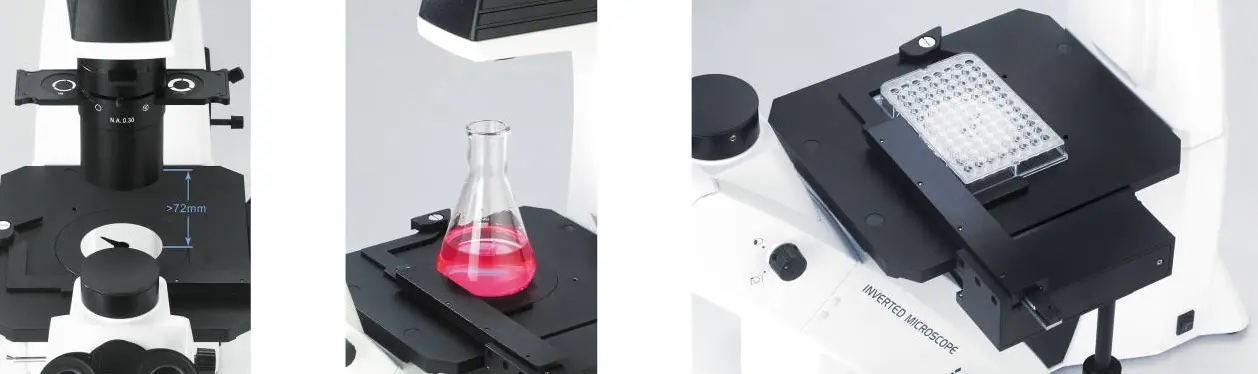

5. Built around an industry-leading, high-performance frame, the IE5600 Series models eliminate the fatigue and strain associated with working long hours over a microscope. Low-position focusing controls and long drop-down X-Y controls ensure simple, consistent, and comfortable use. Stage size: X×Y: 210×241mm, Round slide size: Φ110mm, Attached mechanical stage, available for 96 holes plate, moving range X×Y: 128×80mm.
6. Fluorescence models available
Model & Specifications
|
Item |
Specification | IE5600PU | |
|
Eyepiece |
WF10×／22mm |
●● | |
|

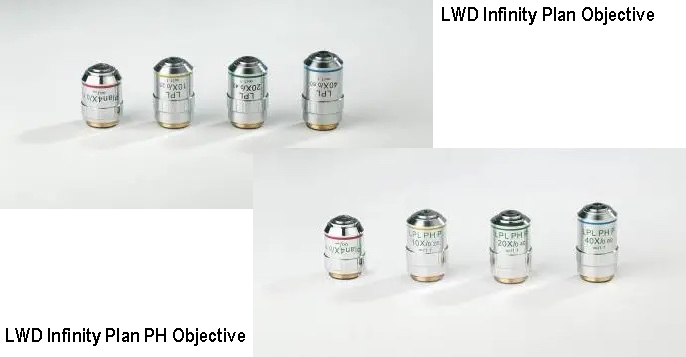

LWD Infinity Plan Objectives |
L Plan FL 4X／0.11 | W.D.=12.1mm |
● |
|
L Plan FL 10X／0.25 |
W.D.=10.3mm |
○ |
|
| L Plan FL 20X／0.45 |
W.D.=5.8mm |
○ |
|
| L Plan FL 40X／0.65 |
W.D.=5.1mm |
● |
|
| LWD Infinity Plan Phase Contrast Objectives
|
L Plan FL PHP 4X／0.10
(Both for Bright Field & Phase Contrast) |
W.D.=9.2mm |
○ |
|
L Plan FL PHP 10X／0.25 (Both for Bright Field & Phase Contrast) |
W.D.=10.3mm |
● |
|
| L Plan FL PHP 20X／0.45
(Both for Bright Field & Phase Contrast) |
W.D.=5.8mm |
● |
|
|
L Plan FL PHP 40X／0.65 (Both for Bright Field & Phase Contrast) |
W.D.=5.1mm |
○ |
|
| Annular Spot |
10×/20×/ 40× annular |
● |
|
|
4× annular |
○ |
||
|
Viewing Head |
Inclined 45°, interpupilary distance: 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece) |
● |
|
| Viewing Head |
Inclined 45°, interpupilary distance: 48-76mm, Light distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) |
○ | |
|
Nosepiece |
Quintuple |
● |
|
| Mechanical Stage |
Stage size: X×Y: 210×241mm， Round slide size：Φ110mm,Attached mechanical stage (available for 96 holes plate, moving range X×Y：128×80mm.) |
● | |
|
Culture Dish Holder |
65mm |
○ |
|
| 54mm |
● |
||
| 35mm |
○ |
||
| blood cell counter |
○ |
||
| Glass Holder |
○ |
||
| Universal Holder |
○ |
||
| Condenser | Long working distance, Quickly detachable , N.A.0.3, Working distance: 72mm (with condenser),195mm(without condenser). |
● |
|
| Koehler Illumination | 6V/30W （input voltage：100V～240V） |
● |
|
| 5WLED (input voltage：100V～240V) |
○ |
||
| Filter | Blue |
● |
|
| Green |
● |
||
| Amber /Grey |
○ |
||
| C-mount | 1 X /0.5X /0.75X C-Mount (focus adjustable) |
○ |
|
| Epi Fluorescence Illumination | Epi fluorescence media unit , field diaphragm，center adjustable. |
○ |
|
| 100W mercury lamp ,5WLED(input voltage:100V～240V) |
○ |
||
| B, G, V, UV fluorescence filters can be chosen |
○ |
||
| Infinity Fluorescence objective | L Plan Fluor 10X/0.3 W.D.=10mm |
○ |
|
| L Plan Fluor 20X/0.45 W.D.=6.6mm |
○ |
||
|
L Plan Fluor 40X/0.6 W.D.=3.5mm |
○ |
||
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

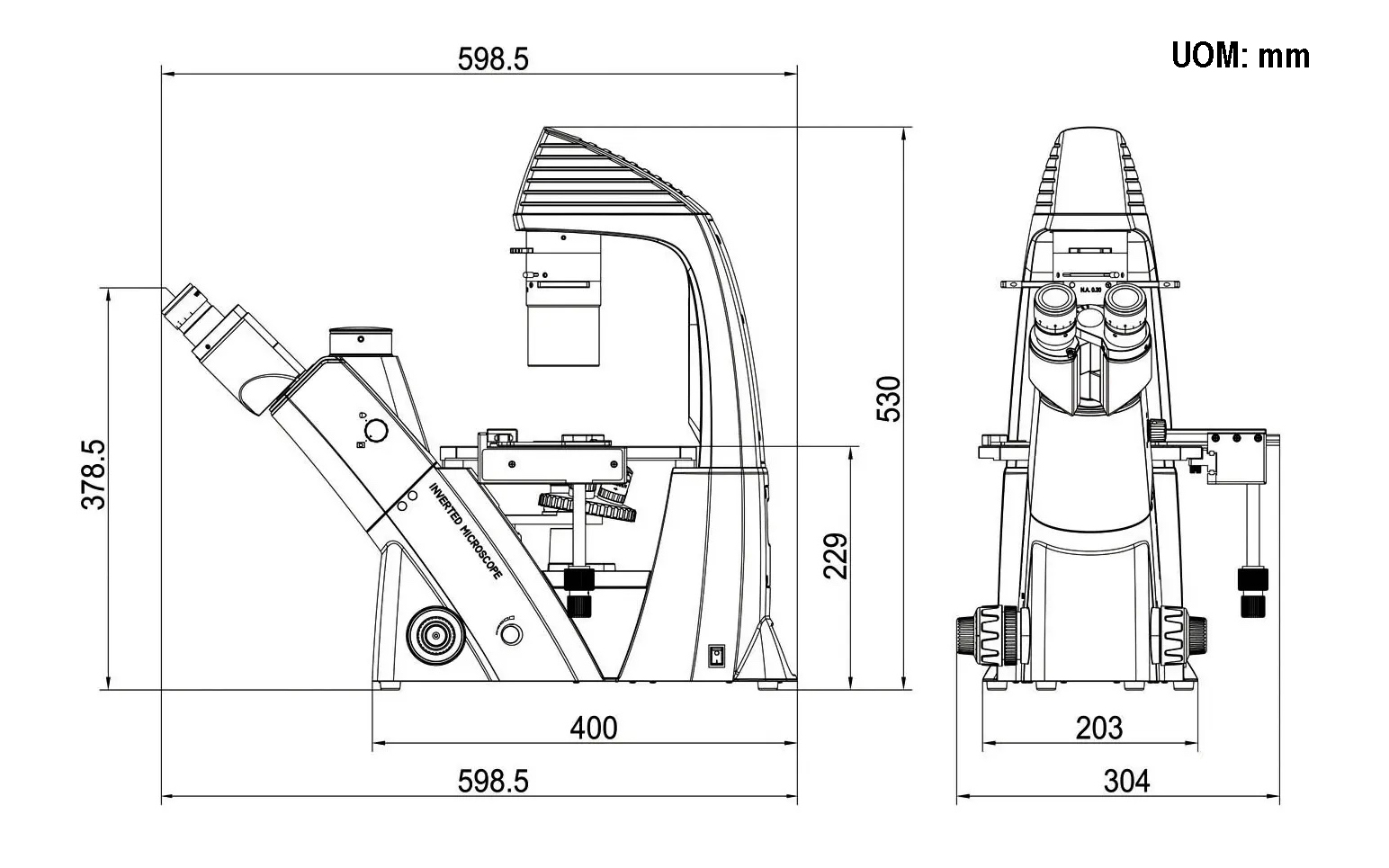

Product Dimensions

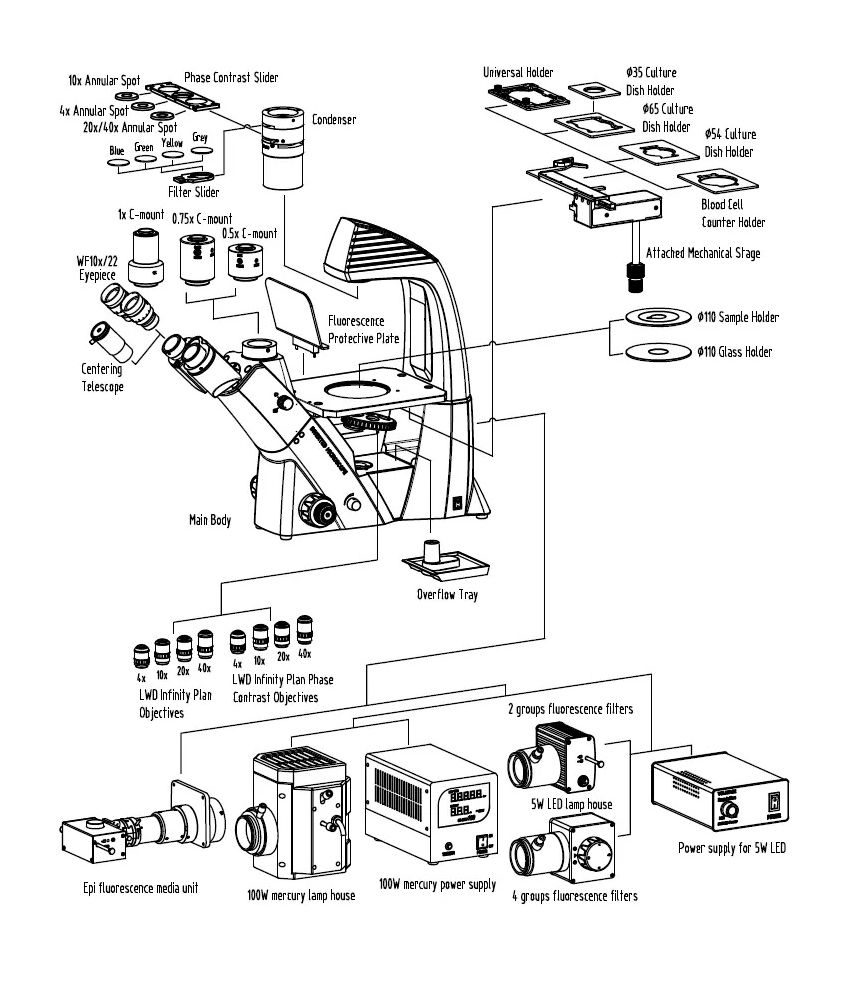

Structure Diagram
