IV5100 Series Inverted Biological Microscope

Home Microscopy Biological Microscopes Inverted Microscopes IV5100 Series Inverted Biological Microscope

IV5100 Series Inverted Biological Microscope

Inverted Microscopes2018-11-20n50

Description

Descriptions

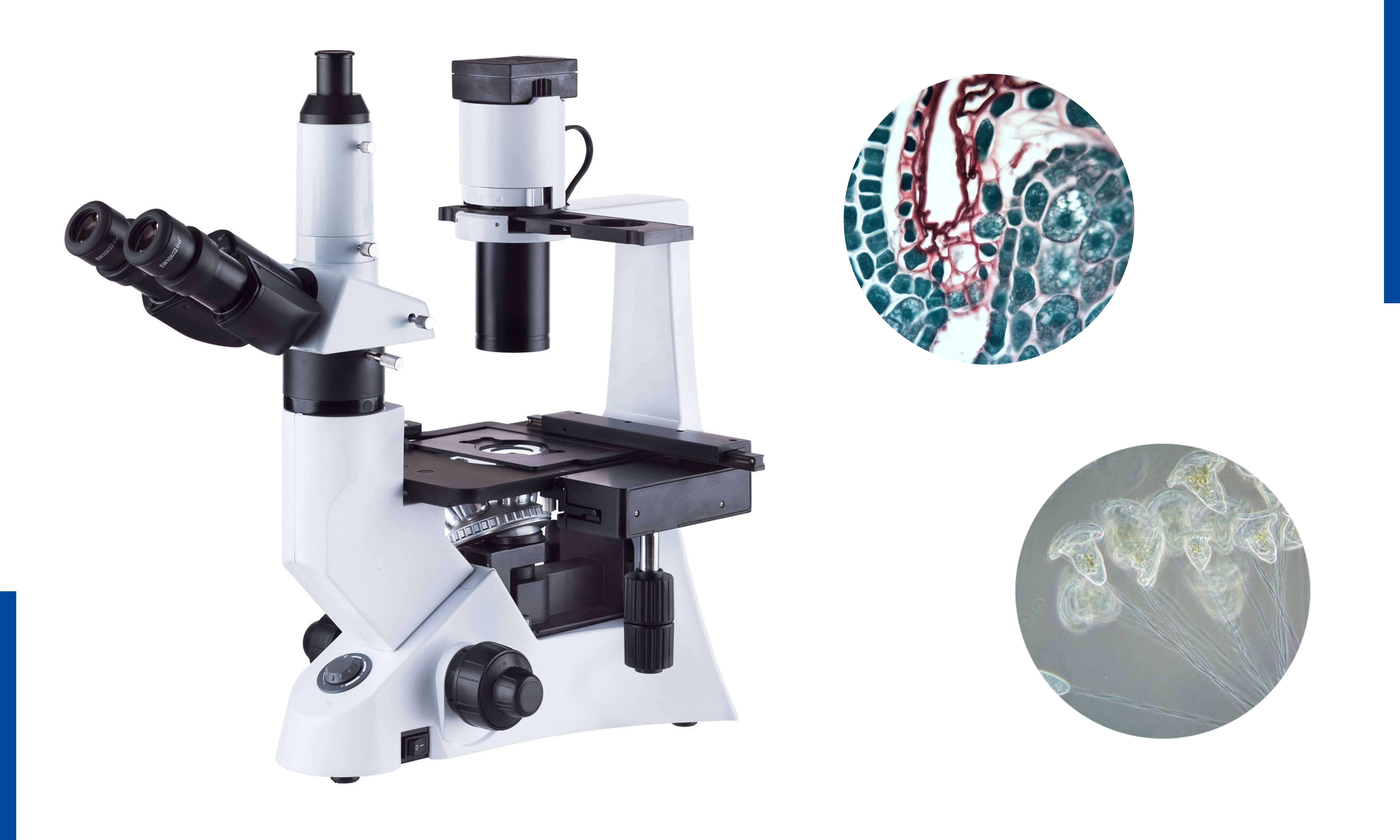

IV5100 Inverted Biological Microscopes with Infinite Optical System is sued by medical and health units, universities, research institutes for observations of micro-organisms, cells, bacteria and tissue cultivation. It can be sued for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.



Product Details

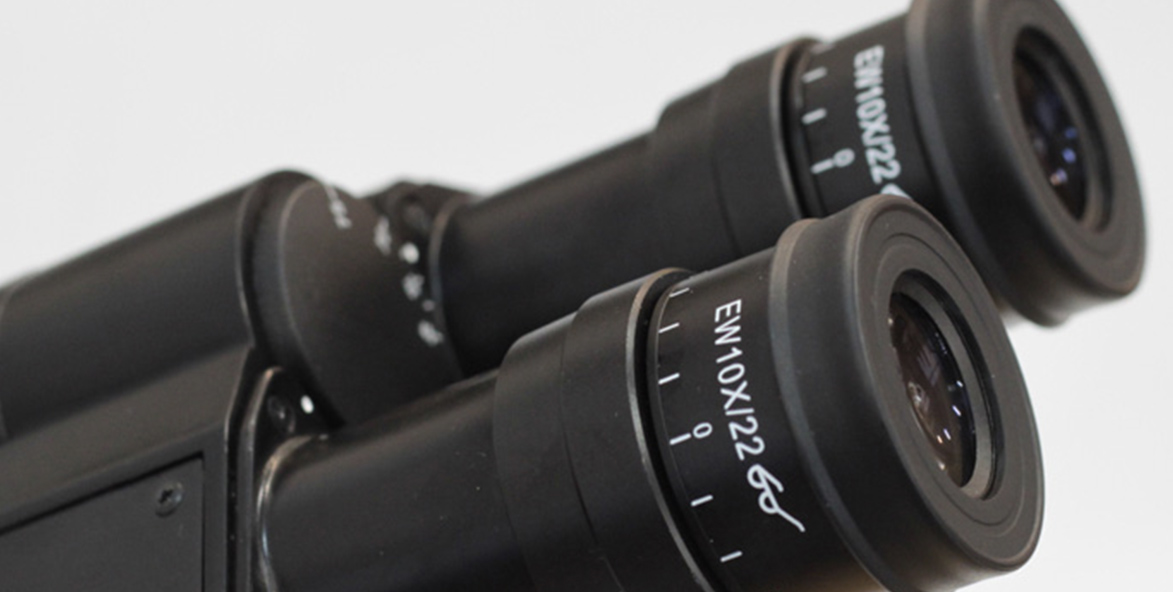

The F.O.V. (field of view) of IV5100 is based on a very comfortable diameter of 22 mm. A natural and easy view is ensured, especially when typically required in a laboratory environment.

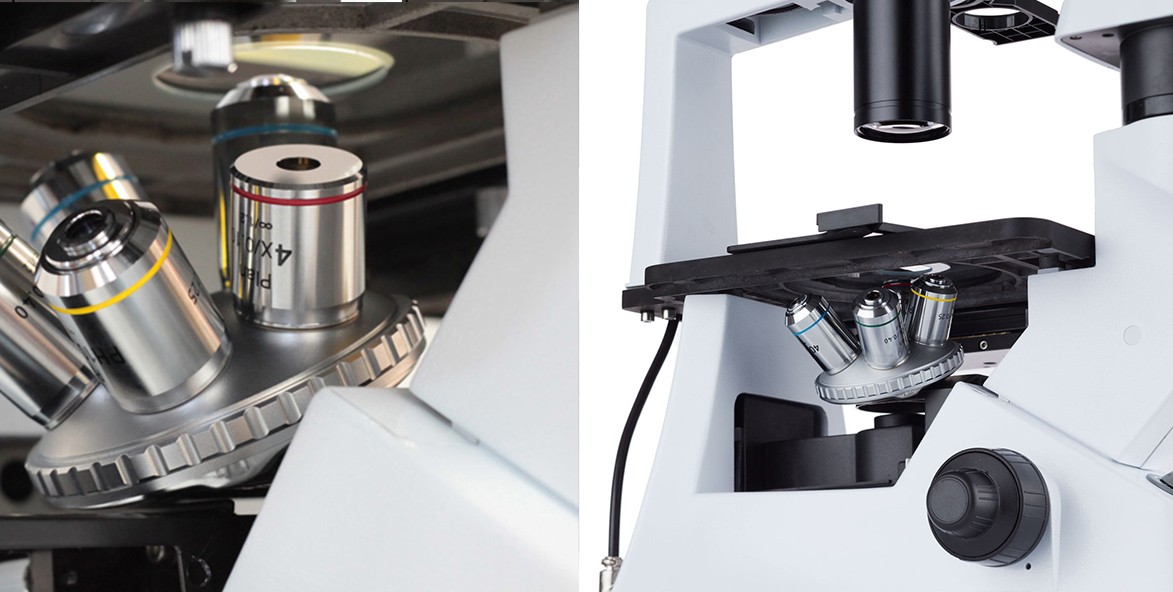

Featuring vivid, infinity-corrected optics, the IV5100 Inverted Microscopes provide life science professionals high performance fortissue culture applications. Bright-field LWD & Phase Contrast models feature infinity-corrected plan achromatic objectives. Fluorescence upgrade packages are available as options.

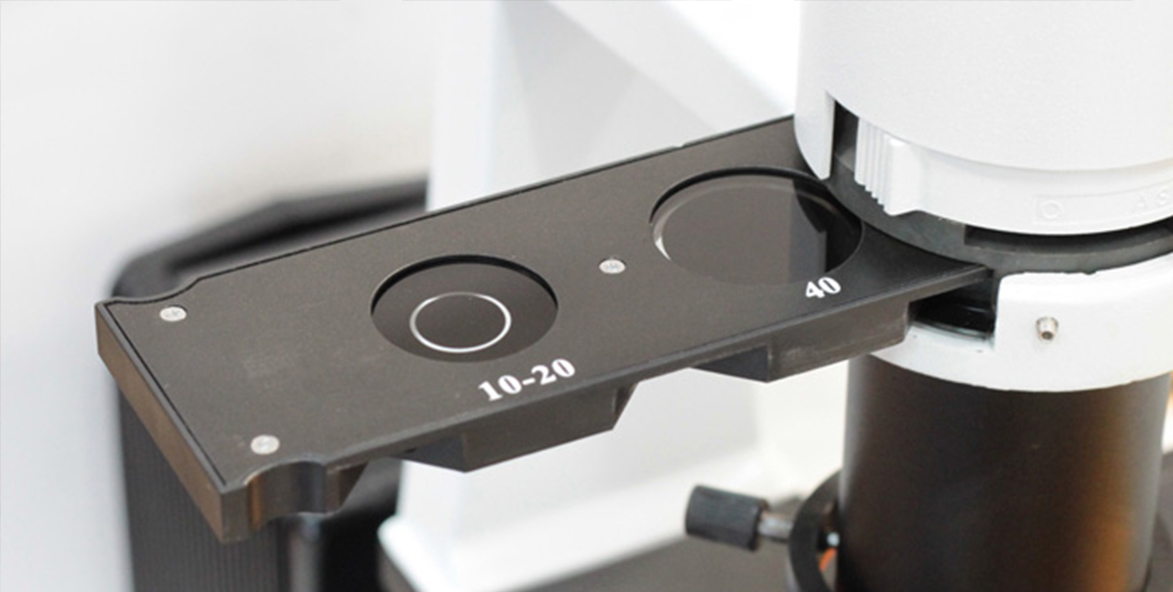

With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens

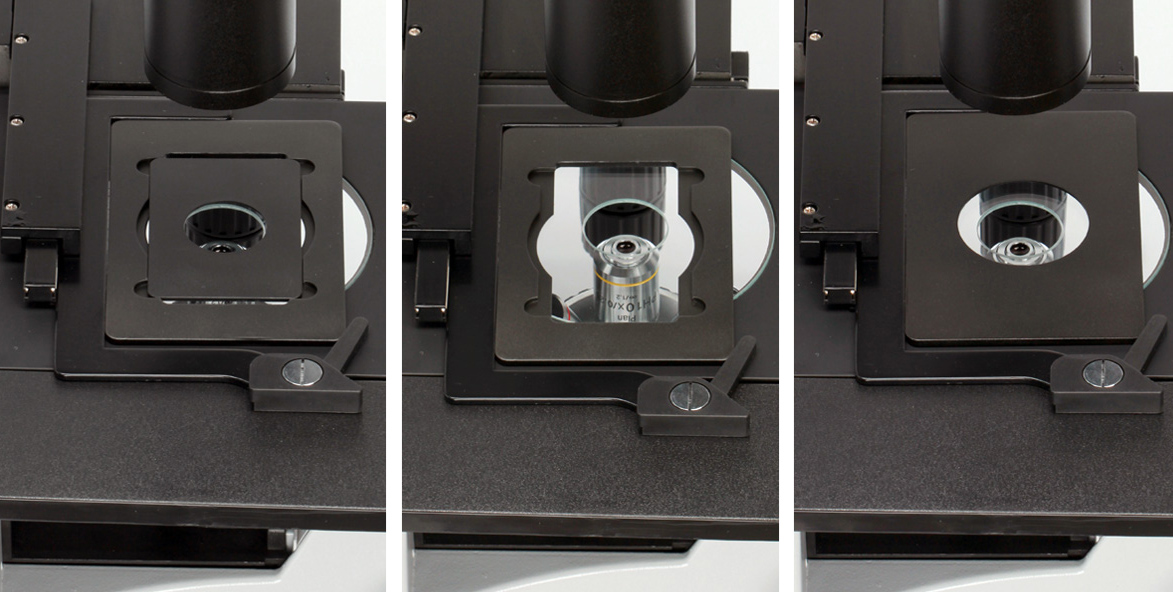

A wide selection of stage inserts come standard to support 96-well plates, HLA/Terasaki plates, 3×1” glass slides, and 65/54/35mm Petri dishes.

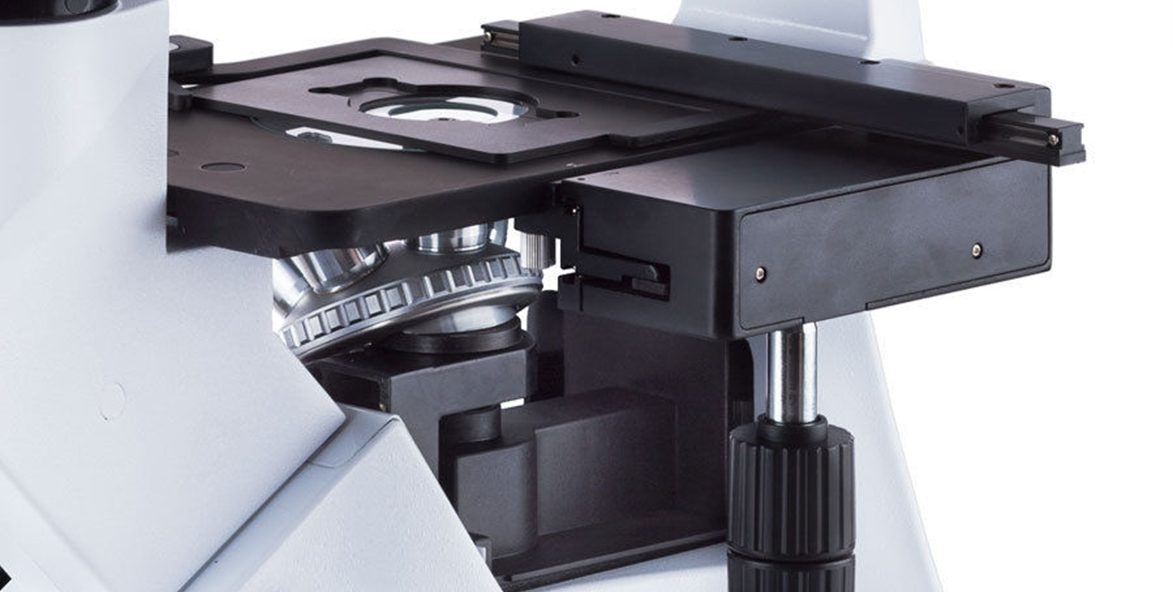

Built around an industry-leading, high-performance frame, the IV5100 Series models eliminate the fatigue and strain associated with working long hours over a microscope. Low-position focusing controls and long drop-down X-Y controls ensure simple, consistent, and comfortable use. Attachable Mechanical Stage (with feature 250x230mm, translator with lowered ergonomic coaxial controls. X-Y 120×78mm) is optional.



Specifications

Model IV5100T IV5100PT
Viewing head Trinocular Head Inclined at300, Interpupillary Distance48-75mm
Nosepiece 5 positions, with bidirectional rotation on ball bearings and click stop
Eyepiece High-point, Extra Wide Field Eyepiece EW10×/22mm
Objective Objective

—

LWD Infinite Plan Objective 4×/0.1, WD 17.3mm,

LWD Infinite Plan Objective 10×/0.25, WD 10mm,

LWD Infinite Plan Objective 20×/0.4, WD 5.1mm,

LWD Infinite Plan Objective 40×/0.6, WD 2.1mm

Objective

—

LWD Infinite Plan Objective 4×/0.1, WD 17.3mm,

Infinite Plan Phase Objective PH10×/0.25, WD10mm,

Infinite Plan Phase Objective PH20×/0.4, WD5.1mm,

LWD Infinite Plan Objective 40×/0.6, WD 2.1mm

Stage Plain Stage 160×250mm, Glass Insert, Auxiliary Stages70×180mm
Focusing Coaxial Coarse and Fine Adjustment, Vertical Objective Movement, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation
Condenser Long working distance condenser, numerical aperture 0.30, working distance 72 mm. The condenser can be removed in order to increase the working distance to 150 mm
Illumination Halogen Lamp 6V/30W

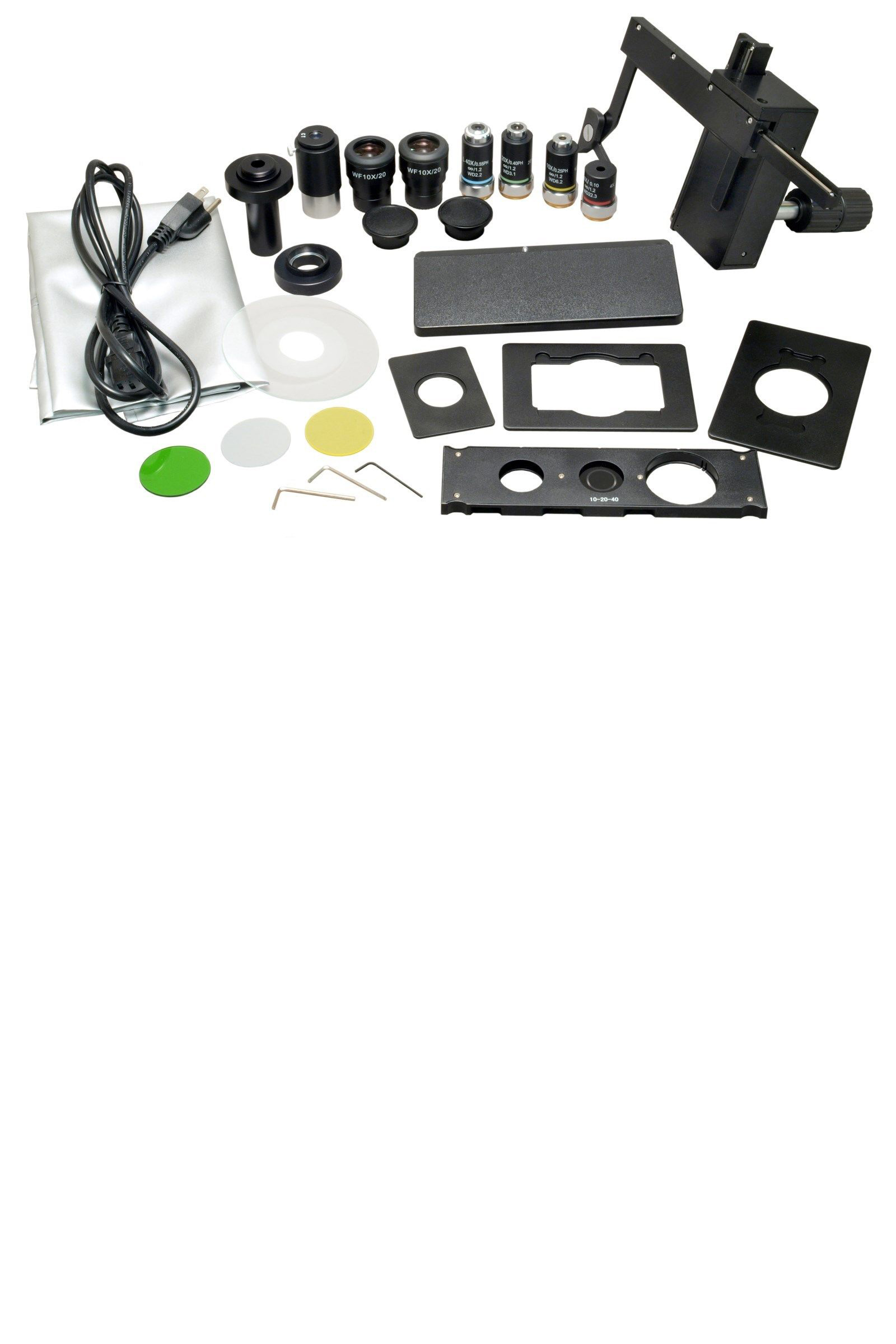

Options

Cat. Number Descriptions Picture
M11301001 Ergonomic Titable Binocular head 5~35° (white)
M11301002 Ergonomic Titable Binocular head 5~35° (white) with Trinocular adapter
M11301003 Infinite Plan Phase Objective PH10×/0.25, WD10mm
M11301004 Infinite Plan Phase Objective PH20×/0.4, LWD5.1mm
M11301005 Infinite Plan Phase Objective PH40×/0.65, LWD2.1mm
M11301006 Centering: Centering Telescope (Φ30MM)
M11301007 Phase Annulus: 10×-20×, 40× Phase Annulus Plate (Fixed)
M11301008 Phase Annulus: 10×-20×, 40× Phase Annulus Plate (Adjustable)
M11301009 Stage: Attachable Mechanical Stage 250x230mm, Translator with lowered ergonomic coaxial controls. X-Y 120×78mm.
M11301010 Interchangeable metallic inserts holder for Terasaki
M11301011 Interchangeable metallic inserts holder for Φ35mm Petri Dish
M11301012 Interchangeable metallic inserts holder for Φ54mm Slide Glass
M11301013 3W LED illumination, Brightness Adjustable
M11301014 FL-100 Epi-fluorescent Attachment
M11301015 1X C mount
M11301016 0.5X C mount
