Description

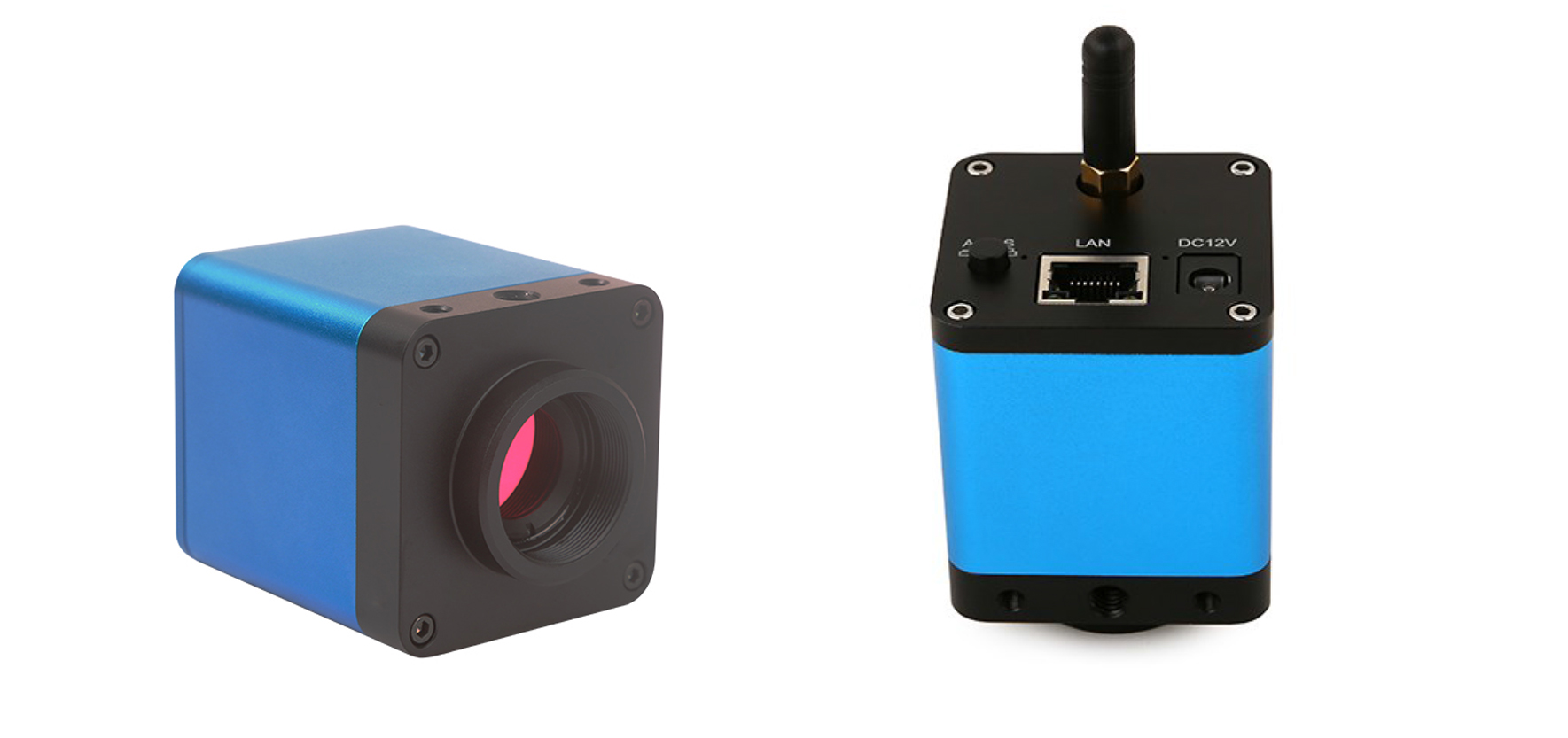

The WE Series WiFi+Ethernet C-mount CMOS Camera
The WE series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching. The basic characteristics are listed as below:
- Sony Exmor back illuminated CMOS sensor
- LAN, WLAN(AP/STA mode) multiple video outputs
- Powerful ISP functions
- ImageView/ToupLite software for PC
- iOS/Android app for smart phones or tablets
Model Details
| Order Code | Sensor & Size
(mm) |
Pixel
(μm) |
G Sensitivity
Dark Signal |
FPS/Resolution | Binning | Exposure (ms) |
| WE-5PA | 5M/Sony IMX178(C)
1/1.8″(6.22×4.67) |
2.4×2.4 | 425mv with 1/30s
0.15mv with 1/30s |
30@2592*1944 | 1×1 | 0.03ms~918ms |
Other Hardware Configuration
| Interface | Function Description |
| WLAN Antenna | Antenna for the WLAN signal |
| LED | LED status indicator
When the power adapter is inserted into the power slot, the LED light will be on and the starting process will last about 8 seconds; WLAN AP mode: the LED flashes fast; WLAN STA mode: the LED flashes slowly; LAN mode: the Ethernet indicator and the LED light will be on; |
| DC12V | Power jack (12V/1A). |
| AP/STA Switch Button | Press to switch between AP and STA mode; |
| LAN | 100M Ethernet port to connect to the router or computer to transfer video. Video can be transmitted via LAN or WLAN. LAN and WLAN cannot be used at the same time. The priority of LAN connection is higher than WLAN; |
| Video Output Interface | Function Description |
| LAN Interface | 30fps@2592*1944 H264 encoded video and Jpeg image capture |
| WLAN Interface | Support 802.11ac protocols in AP/STA mode; 30fps@2592*1944 H264 encoded video and Jpeg image capture |
Software Environment under LAN/WLAN/Output
| White Balance | Auto White Balance |
| Color Technique | Ultra-Fine Color Engine |
| ISP | Exposure(Automatic/Manual Exposure)/ Gain， White Balance(Manual / One Push), Sharpening，3D Denoise， Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment，50HZ/60HZ Anti-flicker， Mirror/Flip， Network Bandwidth Adjustment |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
| Recording System | Still Picture or Movie |
| Operating System | Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)
OSx(Mac OS X) Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 4GB or More | |
| Ethernet RJ45 Interface: : 100M bps or more | |
| WiFi Adaptor: Support 802.11 b/g/n/ac | |
| Display:19” or Larger | |
| CD-ROM |
Operating Environment
| Operating Temperature (in Centidegree) | -10°~ 50° |
| Storage Temperature (in Centidegree) | -20°~ 60° |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 12V/1A Adapter |
