Description

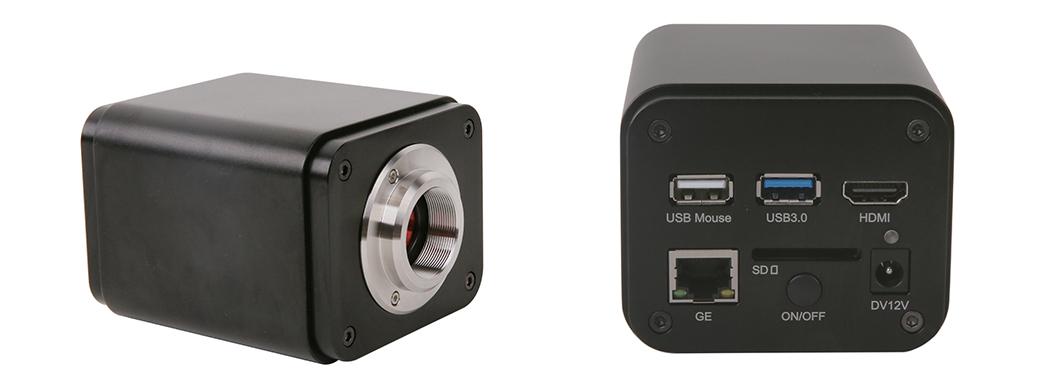

HCO4K Series HDMI/GE/WLAN Multi-outputs C-mount CMOS Camera
The HCO4K series camera is the next-generation live-view imaging-system with 4K resolution(Video) at 60 FPS. It comes with Sony Exmor CMOS sensor with high sensitivity, low dark current and no smear achieved through the adoption of R, G and B primary color mosaic filters.
The camera uses a standard C-mount interface for maximum compatibility with various microscopy-systems. It can be used as a stand-alone recorder when used with an HDMI monitor or television, or live-streamed to a PC via Gigabit Ethernet (GE) for image-capture and video-recording.
Hardware 3D denoising, sharpness and tone mapping control functions greatly improve the image and video quality.
The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
The HDMI 4K series camera is intended to be used for the acquisition of digital images from the stereo microscope, biological microscope or online interactive teaching.
Digitalisation – 3x8bit and integrate IR filter.
Model Details
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| HCO4K-8A | 4K/Sony IMX334(C) 1/1.8″(7.68×4.32) |
2.0×2.0 | 505 mv with 1/30s 0.13 mv with 1/30s |
60@3840×2160(HDMI) 60@1920×1080(HDMI) 30@3840×2160(WiFi,GE) |
1×1 | 0.04ms~2000ms |
| HCO4K-8B | Sony IMX485(C) 1/1.2″(11.14×6.26) |
2.9×2.9 | 2188mv with 1/30s 0.39mv with 1/30s |
60@3840*2160(HDMI) 30@3840*2160(NETWORK) 30@3840*2160(USB) |
1×1 | 0.04ms~2000ms |
| HCO4K-16A | 4K/Sony IMX183(C) 1/1.06″(13.06×7.27) |
2.4×2.4 | 461 mv with 1/30s 0.21 mv with 1/30s |
30@3840×2160(HDMI) 30@1920×1080(HDMI) 30@3840×2160(WiFi,GE) |
1×1 | 0.04ms~2000ms |

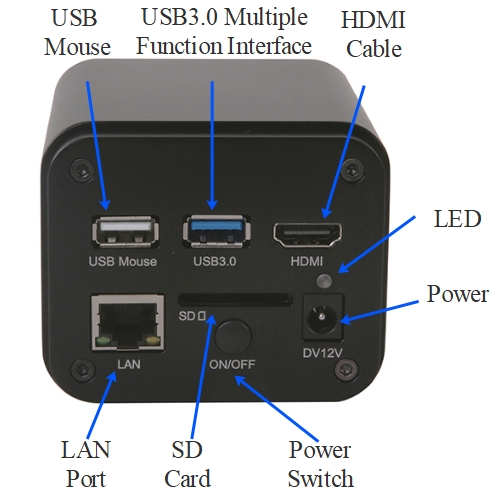

Interface & Button Functions
| USB Mouse | Connect USB mouse for easy operation of the embedded XCamView software |
| USB3.0 | Connect USB flash disk for image or video storage; Connecting 5G WLAN adapter as WLAN camera in AP or STA mode; |
| HDMI | Comply with HDMI2.0 standard. 4K/1080P format video output and supporting auto switching between 4K and 1080P format according to the connected display resolution |
| GE | Gigabit Ethernet port to connect to the peripheral for the video streaming |
| SD | Comply with SDIO3.0 standard and SD card could be inserted for the images or videos storage |
| DC12V | Power adapter connection (12V) |
| ON/OFF | Power Switch |
| LED | Camera status indicator |
Other Specification for HDMI Output
| UI Operation | With USB Mouse | ||||
| Image Capture | 8M (3840*2160) JPEG Image in SD Card or USB Flash Disk 16M (5440*3060) JPEG Image in SD Card or USB Flash Disk |
||||
| Video Record | Video Format：8M(3840*2160) H264 Encoded MP4 Format Video Recording Frame Rate：50~60FPS(XCAM4K8MPA), 26~30FPS(XCAM4K16MPA)(related with the SD card speed class and video resolution) |
||||
| Camera Control Panel | Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control | ||||
| Toolbar | Including Zoom, Mirror, Comparison(Video~image, image~image, Freeze, Cross, Browser Function | ||||
Other Specification for GE Output
| White Balance | Auto/Manual/ROI White Balance | ||||
| Color Technique | Ultra-Fine Color Engine (USB) | ||||
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) | ||||
| Recording System | Still Picture or Video | ||||
Software Environment (for USB2.0 Connection)
| Operating System | Microsoft® Windows® XP /Vista /7/8/8.1/10(32 & 64 bit) OSx(Mac OS X) Linux |
||||
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher | ||||
| Memory: 4GB or More | |||||
| Ethernet Port: RJ45 Ethernet Port | |||||
| Display: 19” or Larger | |||||
| CD-ROM | |||||
Operating Environment
| Operating Temperature(in Centidegree) | -10~ 50 | ||||
| Storage Temperature(in Centidegree) | -20~ 60 | ||||
| Operating Humidity | 30~80%RH | ||||
| Storage Humidity | 10~60%RH | ||||
| Power Supply | DC 12V/2A Adaptor | ||||
Potential Applications
- Scientific research, education (teaching, demonstration and academic exchanges);
- Digital laboratory, medical research;
- Industrial visual (PCB examination, IC quality control);
- Medical treatment (pathological observation);
- Food (microbial colony observation and counting);
- Aerospace, military (high sophisticated weapons);
