Tunnel Linear Light TLN2 Series

Home Machine Vision Machine Vision Light Line Lights Tunnel Linear Light TLN2 Series

Tunnel Linear Light TLN2 Series

Line Lights2023-05-10n50

Description

Diffused tunnel linear light, the highest illuminance up to 0.66 million lx (working distance: 10mm)



Technical Specifications

Input voltage LED light color  DC 48V
LED light color W/R/B
Color / Wavelength *1 Red: 620-630nm
Blue: 460-475nm
Color temperature (white) *2 6500-7500K
Cooling method Fan cooled
Operating environment (indoor) Temperature: 0~40℃, humidity: 20~80%, non-condensing.
Supporting controller PSC3 / PSC4 series controller

* The wavelenght is different due to the different lots,please see the specification for details

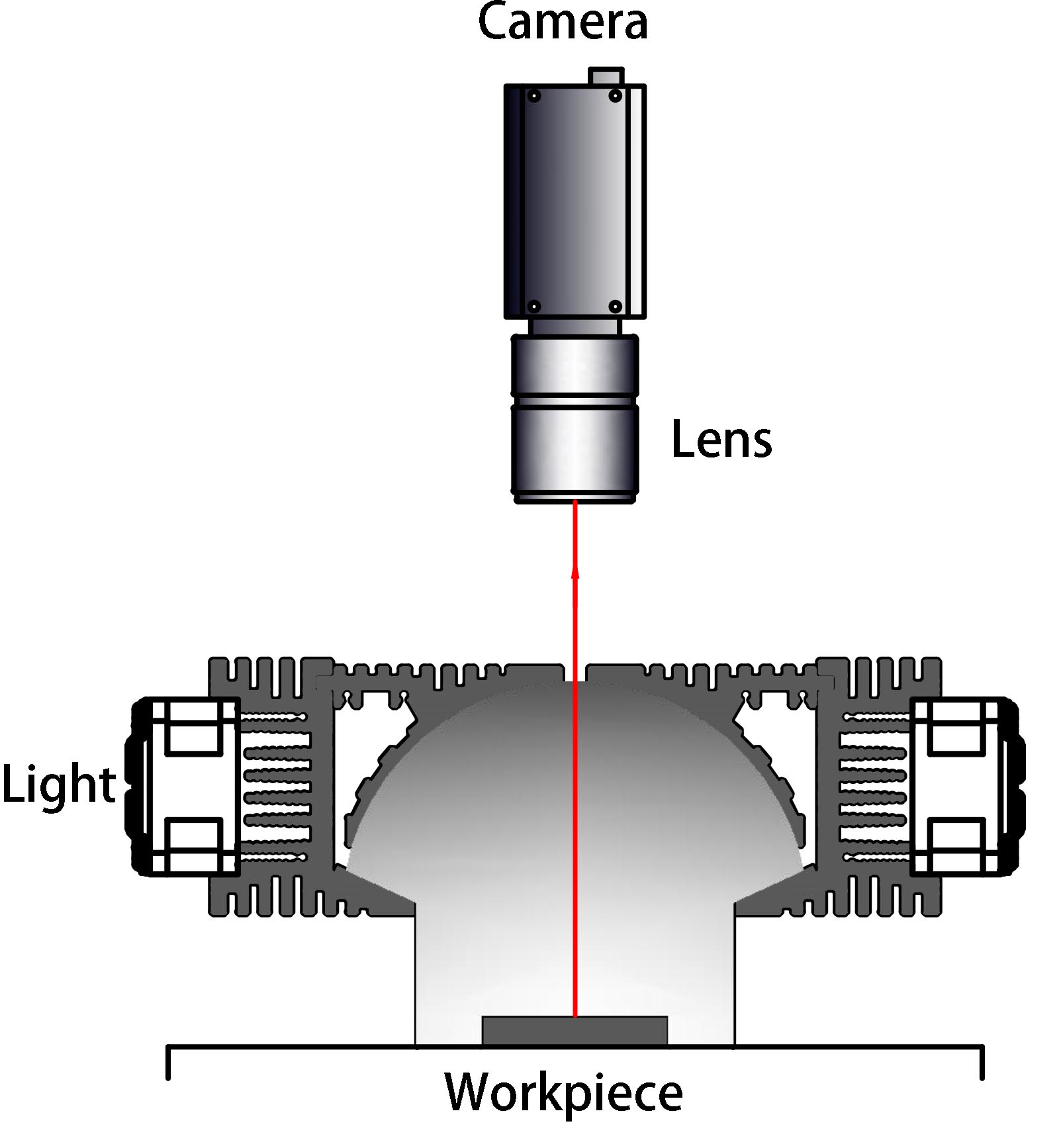

Lighting structure drawing



Models & Specifications

Model Color Recommeded W.D. (mm) Power (w)*3 Current (A) Voltage (V) LxWXH(mm) Weight(kg) Compatible Extension Cable Compatible Controller
TLN2-100W-FN White 10-50 2X37 2X0.77 48 110X204X58 1.3 FCB-LN3-4P-3 PSC4-15048-2
TLN2-200W-FN White 10-50 2X75 2X1.565 48 210X204X58 2 FCB-LN3-4P-3 PSC4-30048-2
 TLN2-300W-FN White 10-50 2X112 2X2.335 48 310X204X58 2.7
 TLN2-400W-FN White 10-50 2X150 2X3.125 48 410X204X58 3.4  FCB-LN3-4P-3 PSC4-55048-2
 TLN2-500W-FN White 10-50 2X205 2X4.27 48 510X204X58 4.1
 TLN2-600W-FN White 10-50 2X225 2X4.69 48 610X204X58 4.8
 TLN2-700W-FN White 10-50 2X262 2X5.46 48 710X204X58 5.5
 TLN2-800W-FN White 10-50 2X270 2X5.625 48 810X204X58 6.2
 TLN2-900W-FN White 10-50 2X337 2X7.02 48 910X204X58 6.9 FCB-LN3-6P-3 2pcs of PSC4-60048-1
 TLN2-1000W-FN White 10-50 2X375 2X7.815 48 1010X204X58 7.6
 TLN2-1100W-FN White 10-50 2X412 2X8.585 48 1110X204X58 8.3
 TLN2-1200W-FN White 10-50 2X448 2X9.335 48 1210X204X58 9
 TLN2-1300W-FN White 10-50 2X460 2X9.585 48 1310X204X58 9.7
 TLN2-1400W-FN White 10-50 2X480 2X10 48 1410X204X58 10.4
 TLN2-1500W-FN White 10-50 2X500 2X10.415 48 1510X204X58 11.1

*3: The normal tolerance is +/-10% between the actual product power and power table content

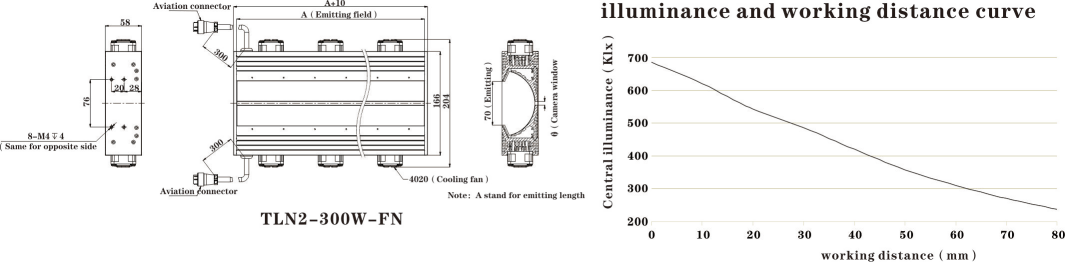

Product Dimensions



Applications

1. Printed character defects inspection

2. PCB surface defects inspection

3. Lithium battery polarity defects inspection
