High Power Line Lights LNH Series

Home Machine Vision Machine Vision Light Line Lights High Power Line Lights LNH Series

High Power Line Lights LNH Series

Line Lights2023-05-11n50

Description

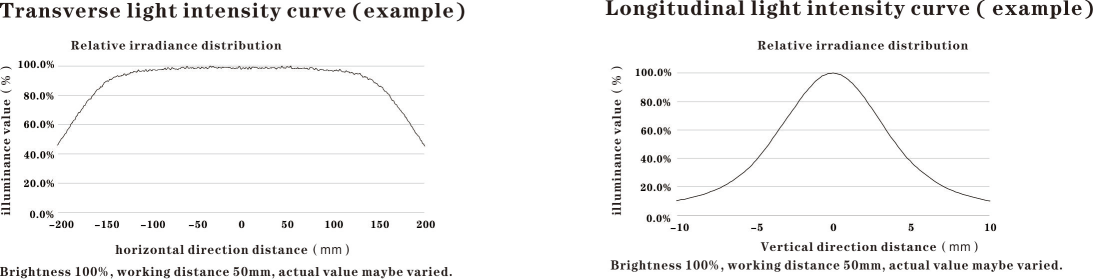

Highlighted linear lighting
LNH2 series light source maximum illumination up to 2.7 million lx,
LNH series light source maximum illumination up to 2.4 million lx (working distance: 50mm)



Technical Specifications

Input voltage LED light color  DC 48V
LED light color W/R/B
Color / Wavelength *1 Red: 620-630nm
Blue: 460-475nm
Color temperature (white) *2 6500-7500K
Cooling method Fan cooled
Operating environment (indoor) Temperature: 0~40℃, humidity: 20~80%, non-condensing.
Supporting controller PSC3 / PSC4 series controller

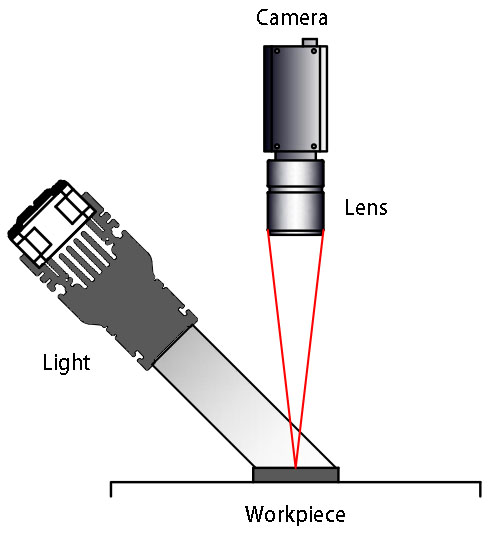

Lighting structure drawing



Models & Specifications

1. LNH2/LNHP2 Series

Model*3 Color Recommeded W.D

(mm)

Power

(w)*4

Current

(A)

Voltage

(V)

LxWxH

(mm)

Weight

(Kg)

Compatible Extension Cable Compatible Controller
 LNH2/LNHP2-100W-FN White 50-100/100-200 52 1.08 48 110X46.8X99.5 0.5 FCB-LN3-4P-3 PSC3-7548-1
LNH2/LNHP2-200W-FN White 50-100/100-200 105 2.19 48 210X46.8X99.5 0.8 FCB-LN3-4P-3 PSC4-15048-2
 LNH2/LNHP2-300W-FN White 50-100/100-200 158 2.19 48 310X46.8X99.5 1.1 FCB-LN3-4P-3 PSC4-30048-2
 LNH2/LNHP2-400W-FN White 50-100/100-200 210 4.38 48 410X46.8X99.5 1.4
 LNH2/LNHP2-500W-FN White 50-100/100-200 264 5.5 48 510X46.8X99.5 1.7
 LNH2/LNHP2-600W-FN White 50-100/100-200 316 6.58 48 610X46.8X99.5 2 FCB-LN3-6P-3 PSC4-60048-1



2. LNH/LNHP Series

Model*3 Color Recommeded W.D.

(mm)

Power

(w)*4

Current

(A)

Voltage

(V)

LxWxH

(mm)

Weight

(Kg)

Compatible Extension Cable Compatible Controller
 LNH/LNHP-700W-FN White 50-100/100-200 267 5.27 48 710X50X98 3.1  FCB-LN3-4P-3 PSC4-60048-2
 LNH/LNHP-800W-FN White 50-100/100-200 310 6.45 48 810X50X98 3.5  FCB-LN3-6P-3 PSC4-60048-1
 LNH/LNHP-900W-FN White 50-100/100-200 341 7.1 48 910X50X98 3.9
 LNH/LNHP-1000W-FN White 50-100/100-200 375 7.8 48 1010X50X98 4.3
 LNH/LNHP-1100W-FN White 50-100/100-200 412 8.58 48 1110X50X98 4.7
 LNH/LNHP-1200W-FN White 50-100/100-200 446 9.28 48 1210X50X98 5.1
 LNH/LNHP-1300W-FN White 50-100/100-200 484 10 48 1310X50X98 5.5
 LNH/LNHP-1400W-FN White 50-100/100-200 508 10.5 48 1410X50X88 5.9
 LNH/LNHP-1500W-FN White 50-100/100-200 520 10.8 48 1510X50X88  6.3

*3 Optional diffuser plate (model: OT-LNH2-XXX-A0-006,XXX refer to luminous length), to achieve uniform lighting of highly reflective workpiece, or backlight use, complete product model plus-DF, for example, diffuser plate model: OT-LNH2-500-A0-006, complete product model: LNH2-500W-FN-DF;

*4 The normal tolerance is +/-10% between the actual product power and power tablet content

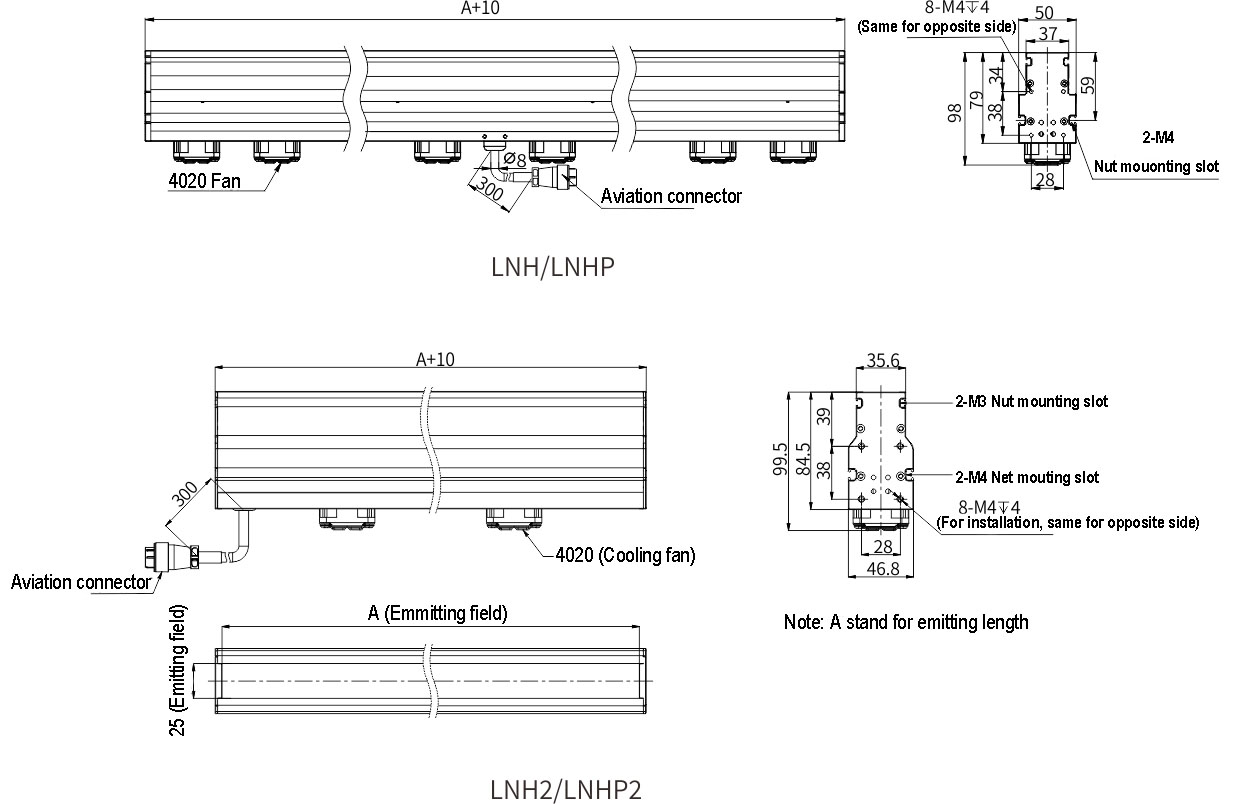

Product Dimensions

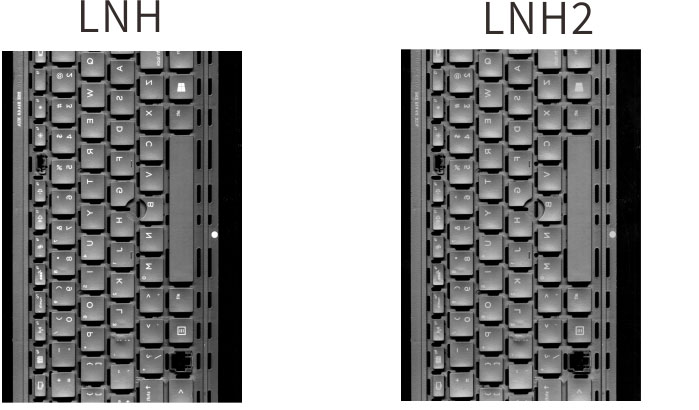

Lighting Effect Comparison

At 50mm working distance, the brightness of the second generation of high light source is about 10% higher than that of the first generation



Applications

1. Appearance inspection of glass cover plate

2. Printed character inspection

3. Defect detection of parts on the bottom of car

4. More high-speed large-format inspection applications to be developed
