Multi-Angle Line Lights LNMA Series

Home Machine Vision Machine Vision Light Line Lights Multi-Angle Line Lights LNMA Series

Multi-Angle Line Lights LNMA Series

Line Lights2023-05-08n50

Description

Different angle, high brightness, more reflective lighting incident angles. Central highest illuminance up to 5 million lx. *1



Technical Specifications

Input voltage LED light color  DC 48V
LED light color W/R/B
Color / Wavelength *1 Red: 620-630nm
Blue: 460-475nm
Color temperature (white) *2 5800-7000K
Cooling method Fan cooled
Operating environment (indoor) Temperature: 0~40℃, humidity: 20~80%, non-condensing.
Supporting controller PSC4 series controller
Custom length Emitting length within ≤700mm

*1 Not include diffuser. Data for reference only. Actual data maybe varied.

*2 Wavelength and CCT for different batches maybe differed.

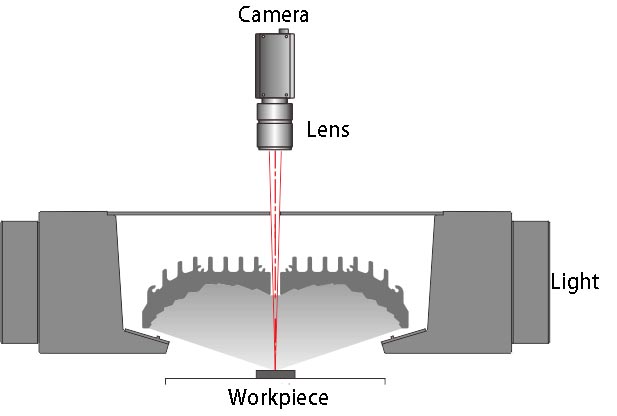

Lighting Structure Drawing



Models & Specifications

Model Color WD

(mm)

Emitting Angle

(°)

Emitting Area

(mm)

Power (w)*3 LXWXH

(mm)

Weight

(Kg)

Compatible Extension Cable Compatible Controller
  LNMA-250W/B-GFN-A White, Blue 11-12 143 250X6 580.0  266X360X93 7.7  FCB-LN3-6P-3   PSC4-60048-1
  LNMA-250R-GFN-A Red 11-12 143 250X6 262.5  266X360X93 7.7  FCB-LN3-4P-3  PSC4-30048-1
  LNMA-250W-GWC-A White 11-12 143 250X6 580.0  266X315X93 6.8  FCB-LN3-6P-3  PSC4-60048-1
   LNMA-400W-GFN-A White 11-12 143 400X6 735.0  416X360X93 10.5  FCB-LN3-6P-3 2pcs of PSC4-60048-1
   LNMA-600W-GFN-A White 11-12 143 600X6 840.0  616X360X93 18.0

*3: The normal tolerance is +/-10% between the actual product power and power table content

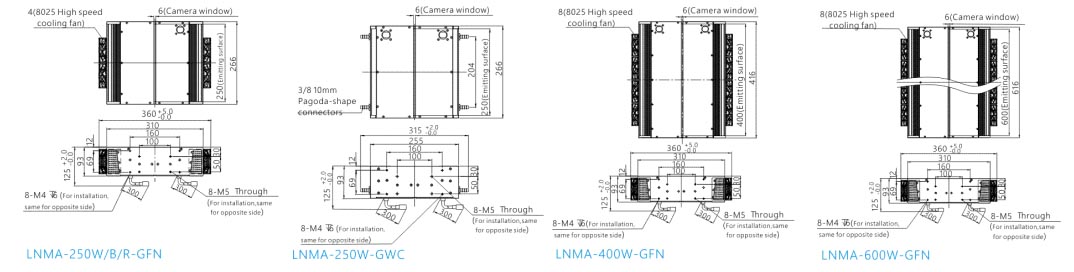

Product Dimensions



Applications

1. Cell phone glass cover appearance inspection

2. LCD substrate appearance inspection

3. PCB bare board appearance inspection

4. More industry applications to be explored.
