Product Models & Specifications

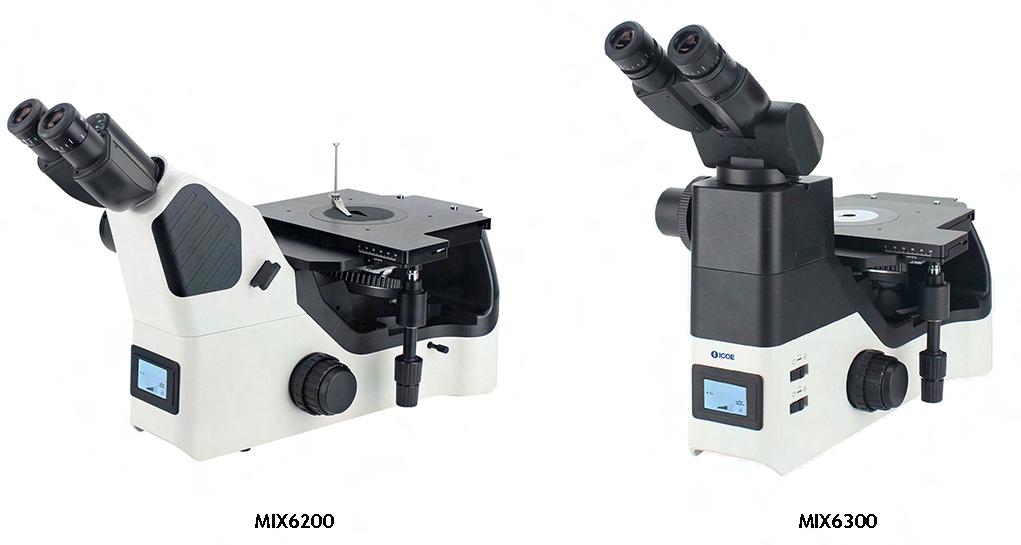

| Model | MIX6200 | MIX6300 | |
| Optical System: | Infinite optical system | • | • |
| Observation methond: | Bright field, polarization | • | |
| Bright field, dark field, polarization | • | ||
| Microscope body | MIX6200 microscope body | • | |
| MIX6300 microscope body | • | ||
| Viewing head: | Seidentopf Binocular Head Inclined 45°, interpupilary distance: 48-75mm | • | / |
| Seidentopf Binocular Head Inclined 5°~35°, interpupilary distance: 48-75mm | / | • | |
| Digital port: | Digital port on the left side of the body, the light distribution eyepiece:trinocular port is 100/0 or 0/100 | • | • |
| Light distribution 50/50 | ○ | ○ | |
| Light distribution 80/20 | ○ | ○ | |
| C mount: | 1x C mount adapter | ○ | ○ |
| 0.5x C mount adapter | ○ | ○ | |
| 0.7x C mount adapter | ○ | ○ | |
| Nosepiece: | Quintuple Coding Nosepiece (for bright field objective) | • | / |
| Quintuple Coding Nosepiece (for BD objective) | / | • | |
| Eyepiece: | Wide field eyepiece WF10X/22, diopter adjustable | •• | •• |
| WF10x/22mm eyepiece with reticle 0.1mm | ○○ | ○○ | |
| Wide field WF 15x/16mm eyepiece | ○○ | ○○ | |
| Wide field WF 20x/12mm eyepiece | ○○ | ○○ | |
| Objectives: | Infinity Metallurgical LWD Plan Objectives 4×/0.10, WD: 20.7mm | ○ | / |
| Infinity Metallurgical LWD Plan Objectives 5×/0.12, WD: 11.56mm | • | / | |
| Infinity Metallurgical LWD Plan Objectives 10×/0.25, WD: 7.00mm | • | / | |
| Infinity Metallurgical LWD Plan Objectives 20×/0.40, WD: 6.50mm | • | / | |
| Infinity Metallurgical LWD Plan Objectives 50×/0.80(S), WD: 0.53mm | • | / | |
| Infinity Metallurgical LWD Plan Objectives 80×/0.80(S), WD: 0.85mm | ○ | / | |
| Infinity Metallurgical LWD Plan Objectives 100×/0.90, WD: 0.7mm | • | / | |
| Infinity BF/DF Metallurgical LWD Plan Objectives 5×/0.12, WD: 20mm | / | • | |
| Infinity BF/DF Metallurgical LWD Plan Objectives 10×/0.30, WD: 11mm | / | • | |
| Infinity BF/DF Metallurgical LWD Plan Objectives 20×/0.45, WD: 3.1mm | / | • | |
| Infinity BF/DF Metallurgical LWD Plan Objectives 50×/0.80, WD: 1mm | / | • | |
| Infinity BF/DF Metallurgical LWD Plan Objectives 80x/0.80, WD: 0.85mm | / | ○ | |
| Infinity BF/DF Metallurgical LWD Plan Objectives 100×/0.90, WD: 1mm | / | ○ | |
| Infinity Plan BF/DF Semi-APO Metallurgical Objective 5x/0.15, W.D.20mm | / | ○ | |
| Infinity Plan BF/DF Semi-APO Metallurgical Objective 10x/0.3, W.D.11mm | / | ○ | |
| Infinity Plan BF/DF Semi-APO Metallurgical Objective 20x/0.45, W.D.3mm | / | ○ | |
| Infinity Plan BF/DF APO Metallurgical Objective50x/0.8, W.D.1mm | / | ○ | |
| Infinity Plan BF/DF APO Metallurgical Objective 100x/0.9, W.D.1mm | / | ○ | |
| Stage: | Mechnical stage, three layers, stage size: 226mm×180mm, moving range: 50×50mm , with scale : 0.1mm, with specimen clamp, with insert metal plate (φ10mm), with insert metal plate (φ15mm), with insert metal plate (φ25mm) | • | • |
| Plain stage 250×170mm, glass insert, with mechnical ruler, moving stages 128x80mm, offering a optimal working condition for 5 types of optional holders (Slide glass holder Φ65mm, universal holder, terasaki holder, perti dish holder Φ54mm, perti dish holder Φ90mm) & optional extended plate | ○ | ○ | |
| Focusing: | Coaxial coarse & fine adjustment, the right hand has the function of tension adjustment of coarse focusing, coarse stroke: 6mm, fine stroke per rotation: 0.2mm, fine division 2μm. Coarse knob 37.7mm/rotation | • | • |
| Illumination: | 3W LED lamp, with color temperature adjustable, and intensity adjustable | • | • |
| LCD front panel: | Function display magnifications, timing sleep, brightness indication, brightness memory, color temperature and lock, etc |
• | • |
| ECO: | No operator, turn off the light source automatically in 15 minutes (time can be set by operator) | • | • |
| Polarizing Unit: | Rotatable Polarizer & Analyzer | • | • |
| Filter: | Blue, Green, yellow and grey glass | • | • |
| Power: | 100V-240V, 50/60Hz | • | • |
