BM35AM Series Infinity Metallurgical Microscopes

Home Microscopy Metallurgical Microscopes BM35AM Series Infinity Metallurgical Microscopes

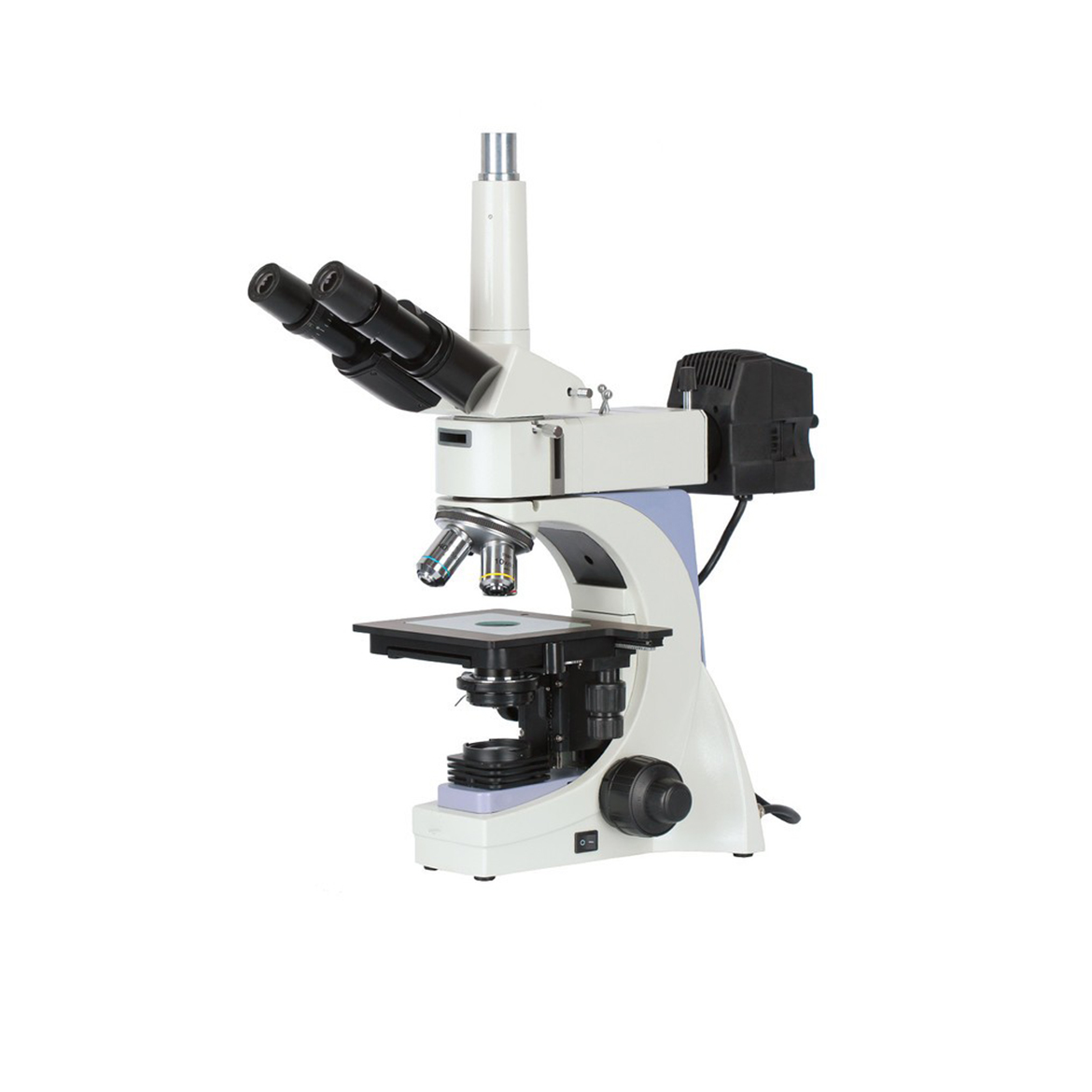

BM35AM Series Infinity Metallurgical Microscopes

Metallurgical Microscopes2018-11-26n50

Description

Descriptions

Designed for routine applications and training purposes in industry and science, BM35AM is the ideal instrument to meet the exacting demands in industry and education microscopy, Its unique design offers high stability, excellent optical performance and reliability



Features and Benefits

  • • Optics offer superb contrast and excellent resolution.
  • • Brightfield and polarized light illumiantion techniques.

Ergonomics

  • • Conveniently situated focusing and stage controls promote fatigue free operation.
  • • Low positioned illumination controls for ease and efficiency.
  • • Operator adjustable coarse focus.

Illumination

  • • Kohler illumination, with continously adjustable 20W Halogen lamp, offers optimum illumination for observation and documention techniques.

Versatility

  • • Versatility combined with an exceptional design and stability.
  • • Efficiency packed into a compact size.
  • • Powerful performance and easy operation.



Product Specifications

Model BM35AMF BM35AML
Viewing Head Seidentopf type binocular head
Eyepiece WF10×/18
Objective Infinitive plan achromatic objectives

—

4×/0.1/∞/- WD17.3mm,

10×/0.25/∞/- WD10.0mm,

40×/0.60/∞/0 WD2.9mm

Nosepiece Quadruple Nosepiece

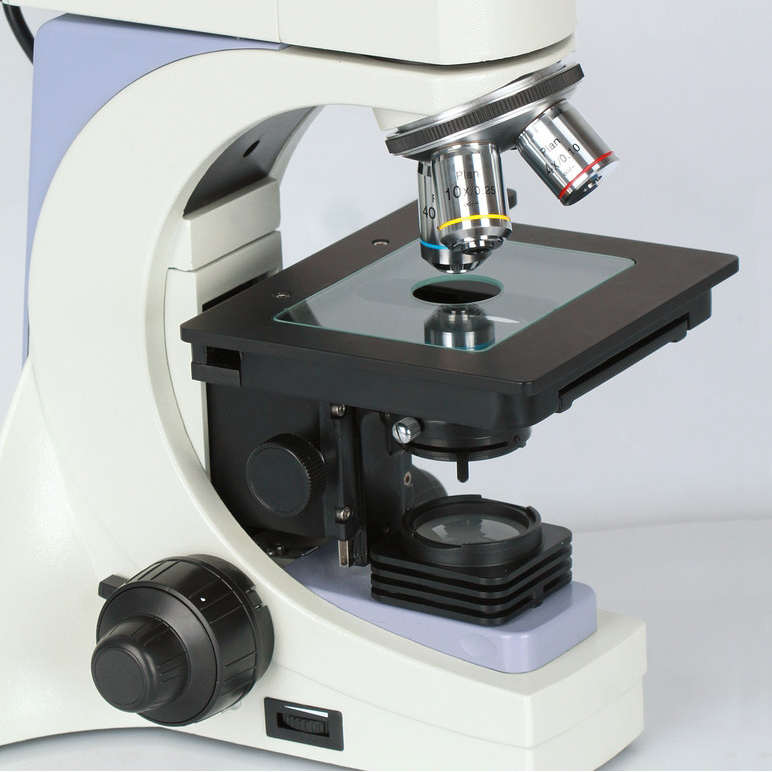

Stage Double layer mechanical stage150×140mm/75×50mm
Focusing Coaxial Fine & Coarse Adjustment

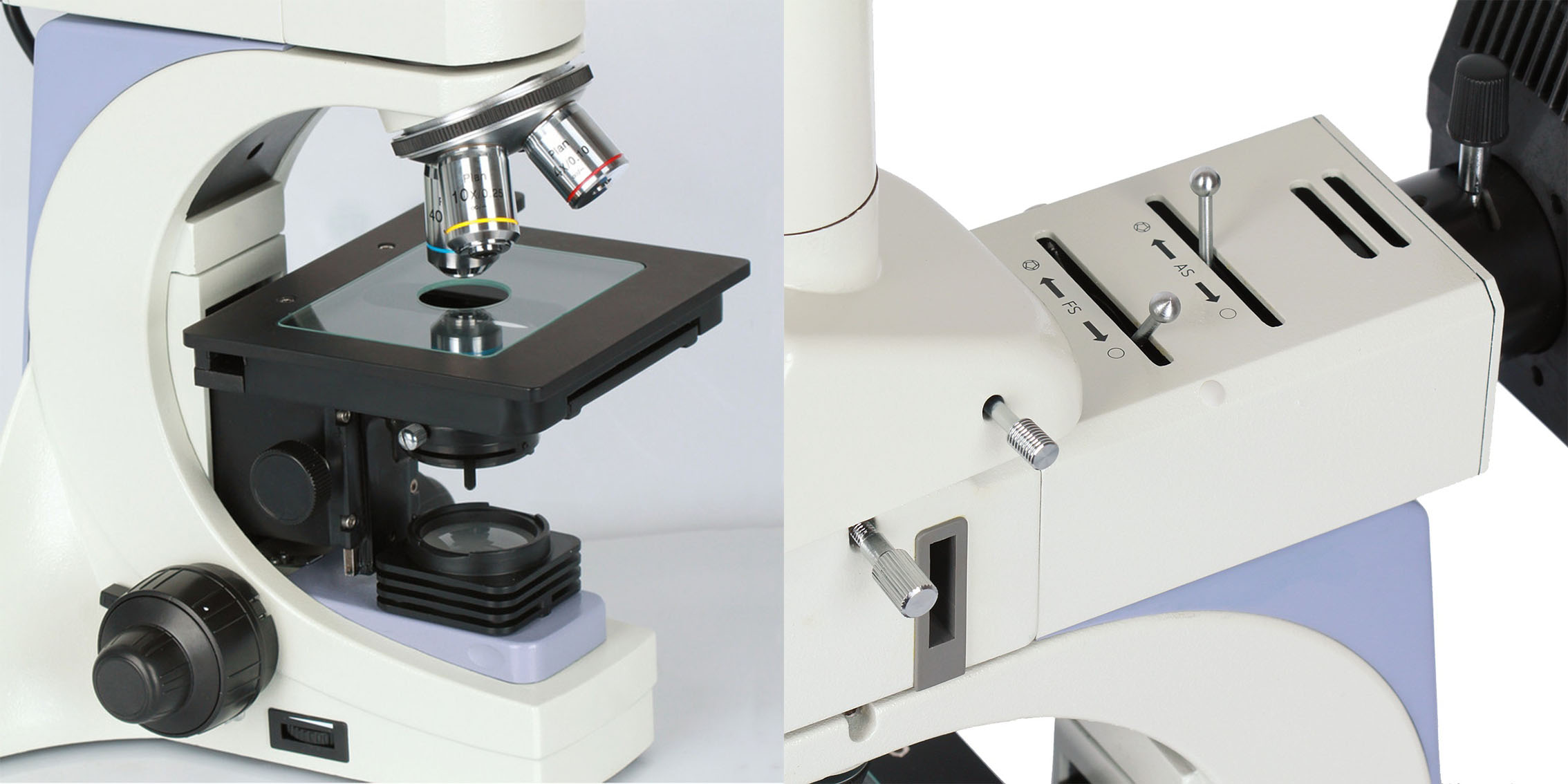

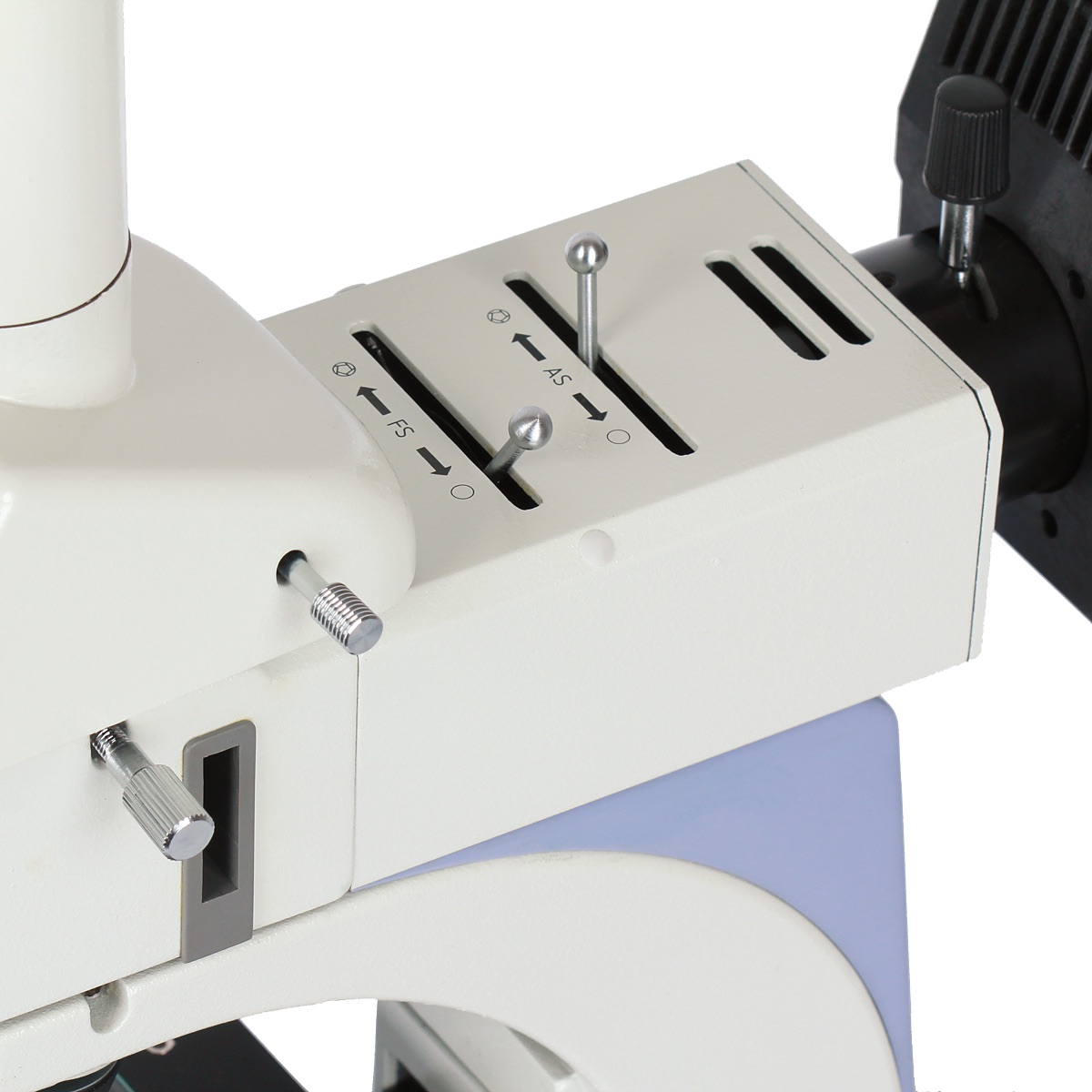

Reflected Illumination Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen Lamp, Brightness Adjustable
Trasmitted Illumiantion / 6V/20W Halogen Lamp, Brightness Adjustable
Filters Blue, Green, Yellow & Ground Glass

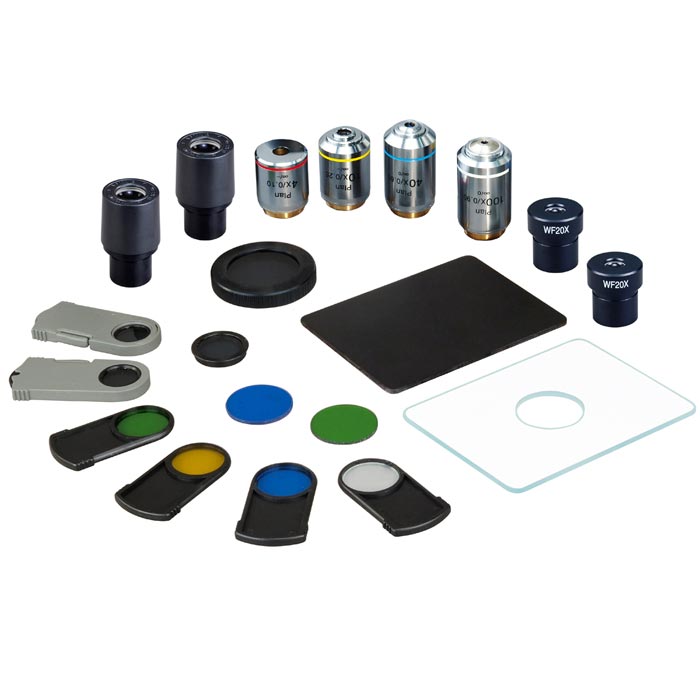

Options

Cat No. Descriptions Pictures
M401001 Seidentopf type trinocular head
M401002 WF8×/18 Eyepiece
M401003 WF10×/18 Eyepiece with 0.1mm Micrometer & Cross Hair
M401004 WF12.5×/15 Eyepiece
M401005 Infinitive plan achromatic objectives 2.5×/0.08/∞/- WD11.7mm
M401006 Infinitive plan achromatic objectives 2.5×/0.08/∞/- WD10.7mm (λ glass plate)
M401007 Infinitive plan achromatic objectives 5×/0.12/∞/- WD15.5mm
M401008 Infinitive plan achromatic objectives 20×/0.40/∞/- WD5.8mm
M401009 Infinitive plan achromatic objectives 40×/0.65/∞/- WD0.52mm
M401010 Infinitive plan achromatic objectives 50×/0.75/∞/- WD0.32mm 80×/0.90/∞/- WD0.2mm
M401011 Infinitive plan achromatic objectives 80×/0.90/∞/- WD0.2mm
M401012 Infinitive plan achromatic objectives 100×/0.80/∞/0 WD2mm
M401013 Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 3W LED illumination, Bright Adjustment
M401014 Polarization Set
M401015 Specimen Presser for metallurgical specimen preparation
