Description
Introduction

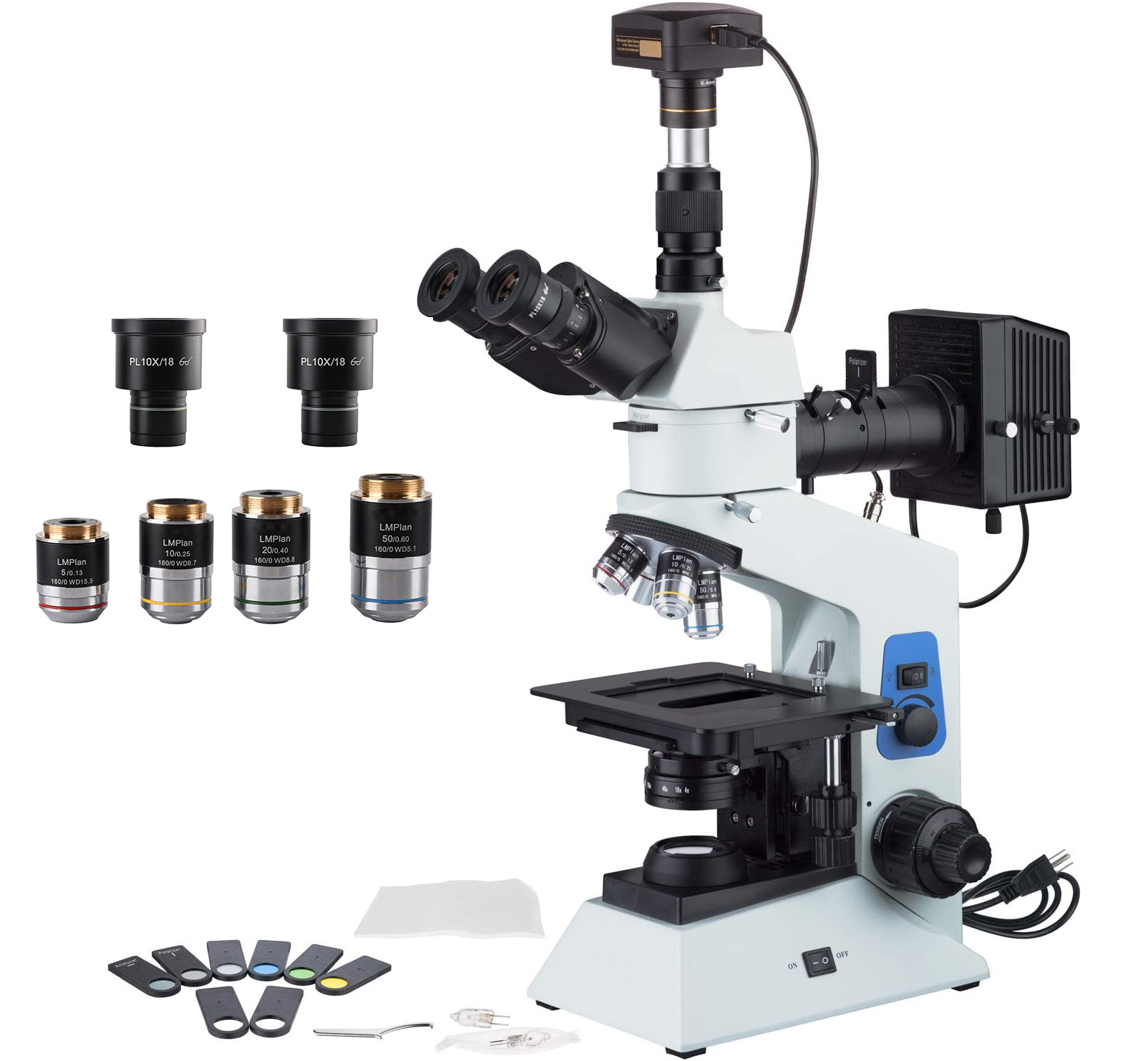

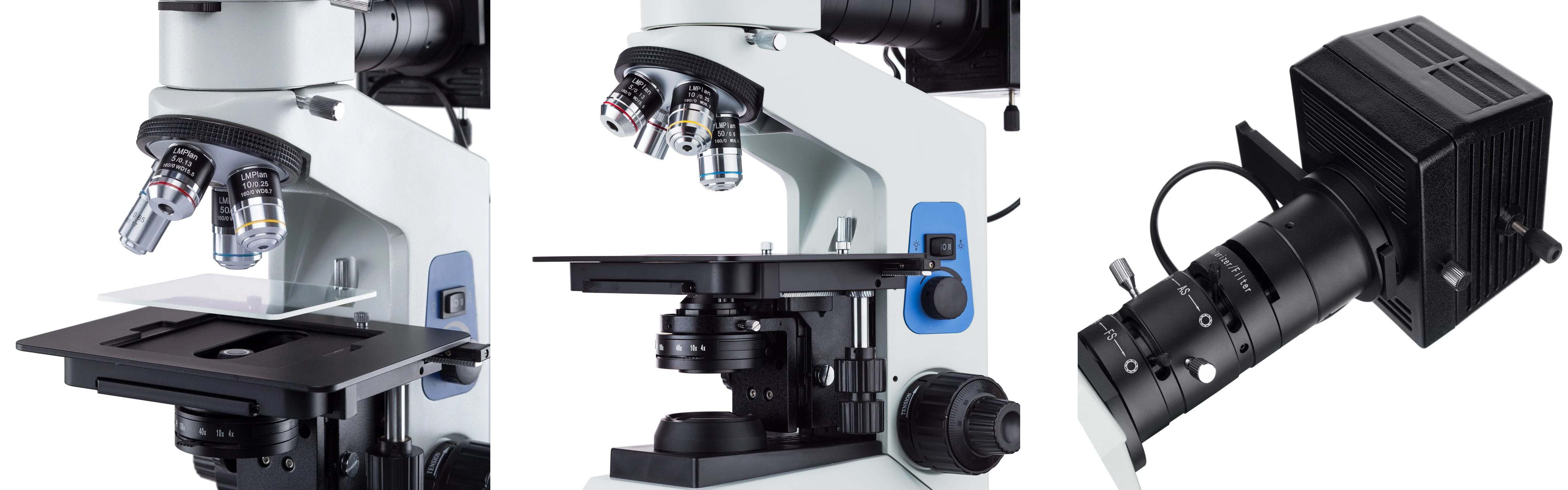

BM45MR Series Metallurgical Microscope is a feature-packed, economical metallurgical microscope with an upright design, and both transmitted and incident illumination. The episcopic illuminator includes removable polarizer and analyzer, as well as adjustable field and aperture diaphragms. The plan-achromatic optical system offers sharp, flat-field images with excellent color-correction. The Siedentopf head with dual diopters and eye-point eyepieces provides a comfortable and adjustable viewing platform. There is also a dedicated photo port for simultaneous viewing and imaging.
Change magnifications quickly using the objective turret without significant refocusing thanks to the parfocal design. Using the included 10X eyepieces and a combination of metallurgical and biological objective lenses, the magnification range spans from 40X to 500X with five unique settings. The lenses are achromatically corrected for improved resolution, and flat-field corrected to ensure edge-to-edge sharpness.
Models & Specifications
| Model | BM45MR | BM45MRT | |
| Optical system | Finite optical system | ● | ● |
| Viewing head | Gemel binocular observation tube 30° inclined, 360° rotatable, interpupillary distance adjustment range 50-75mm, bilateral diopter adjustment: +/-5 diopters, inverted image | ○ | ○ |
| Gemel trinocular observation tube 30° inclined, 360° rotatable, interpupillary distance adjustment range 50-75mm, bilateral diopter adjustment: +/-5 diopters, inverted image, fixed beam splitting ratio, eyepiece: trinocular=80:20 | ● | ● | |
| Eyepiece | High eye point large field plan eyepiece PL10X/18mm | ●● | ●● |
| High eye point large field plan eyepiece PL10X/18mm with micrometer | ○ | ○ | |
| High eye point large field plan eyepiece WF15x/13mm | ○ | ○ | |
| High eye point large field plan eyepiece WF15x/13mm with micrometer | ○ | ○ | |
| High eye point large field plan eyepiece WF20x/10mm | ○ | ○ | |
| Objective lens | Long working distance plan achromatic metallographic objective 5x/0.13, WD: 15.50mm | ● | ● |
| Long working distance plan achromatic metallographic objective 10x/0.25, WD: 8.70mm | ● | ● | |
| Long working distance plan achromatic metallographic objective 20x/0.40, WD: 8.80mm | ● | ● | |
| Long working distance plan achromatic metallographic objective 50x/0.60, WD: 5.10mm | ● | ● | |
| Long working distance plan achromatic metallographic objective 100x/0.80, WD: 2.00mm | ○ | ○ | |
| Nosepiece | Inward revert quadruple nopseiece | ● | ● |
| Inward revert quintuple nopseiece | ○ | ○ | |
| Stage | Double-layer mechanical moving platform, coaxial adjustment of X and Y directions in low hand position; stage size: 140mm×132mm (with 180×145mm flat platform, 102×102mm glass stage), moving range: 76mm×50mm | ● | ● |
| Focusing | Low-handed coarse-coaxial focusing mechanism with fine-tuning accuracy of 0.002mm, adjustable tensioning device for preventing slippage and random limit device for preventing slicing, fast focusing | ● | ● |
| Reflected illuminator | Adaptive 100V-240V wide voltage, reflector lamp room, single high power 6V/30W haogen lamp (or 5W LED lamp optional), warm color, with field diaphragm, aperture stop, center adjustable; with color filter slot and polarizer slot | ● | ● |
| Transmitted illuminator | Adaptive 100V-240V wide voltage, single high power halogen lamp 6V/30W (or 5W LED lamp optional), warm color | ● | |
| Light switch | With up and down lighting switching | ● | ● |
| Condenser | N.A.1.25 Abbe condenser (phase contrast with plug-in type, dark field accessory interface), preset center, rack and pinion lift (fixed Kohler illumination) with aperture diaphragm and color filter bracket (critical lighting) | ● | |
| Polarizing kit | Polarizer insert & analyzer insert plate | ○ | ○ |
| C mount lens | 0.35x, 0.5x, 0.65x, 1x C mount lens optional | ○ | ○ |
| Stage micrometer | Stage micrometer with scale value 0.01mm | ○ | ○ |

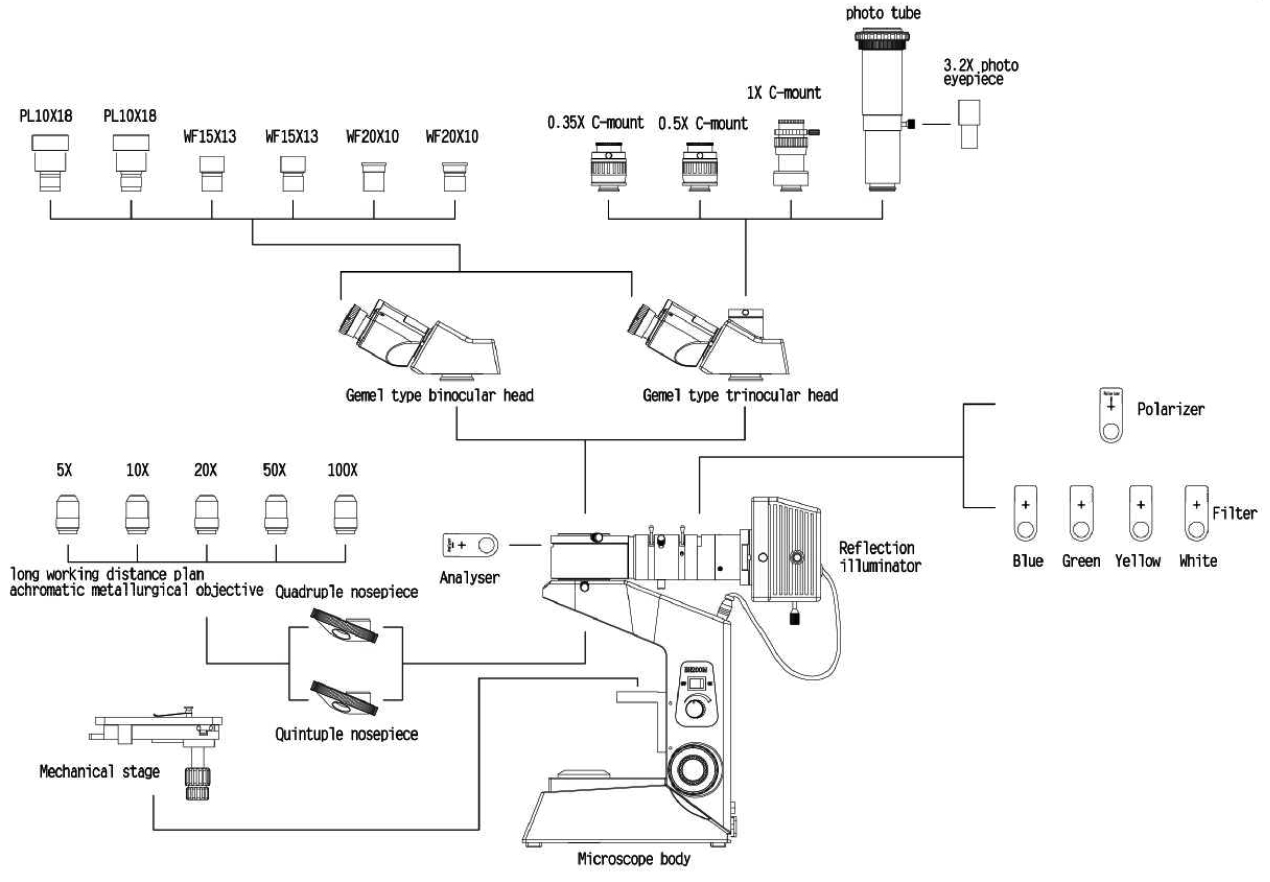

System Diagrams
