MIV5100 Series Inverted Metallurgical Microscopes

Home Microscopy Metallurgical Microscopes MIV5100 Series Inverted Metallurgical Microscopes

MIV5100 Series Inverted Metallurgical Microscopes

Metallurgical Microscopes2018-12-08n50

Description

Descriptions

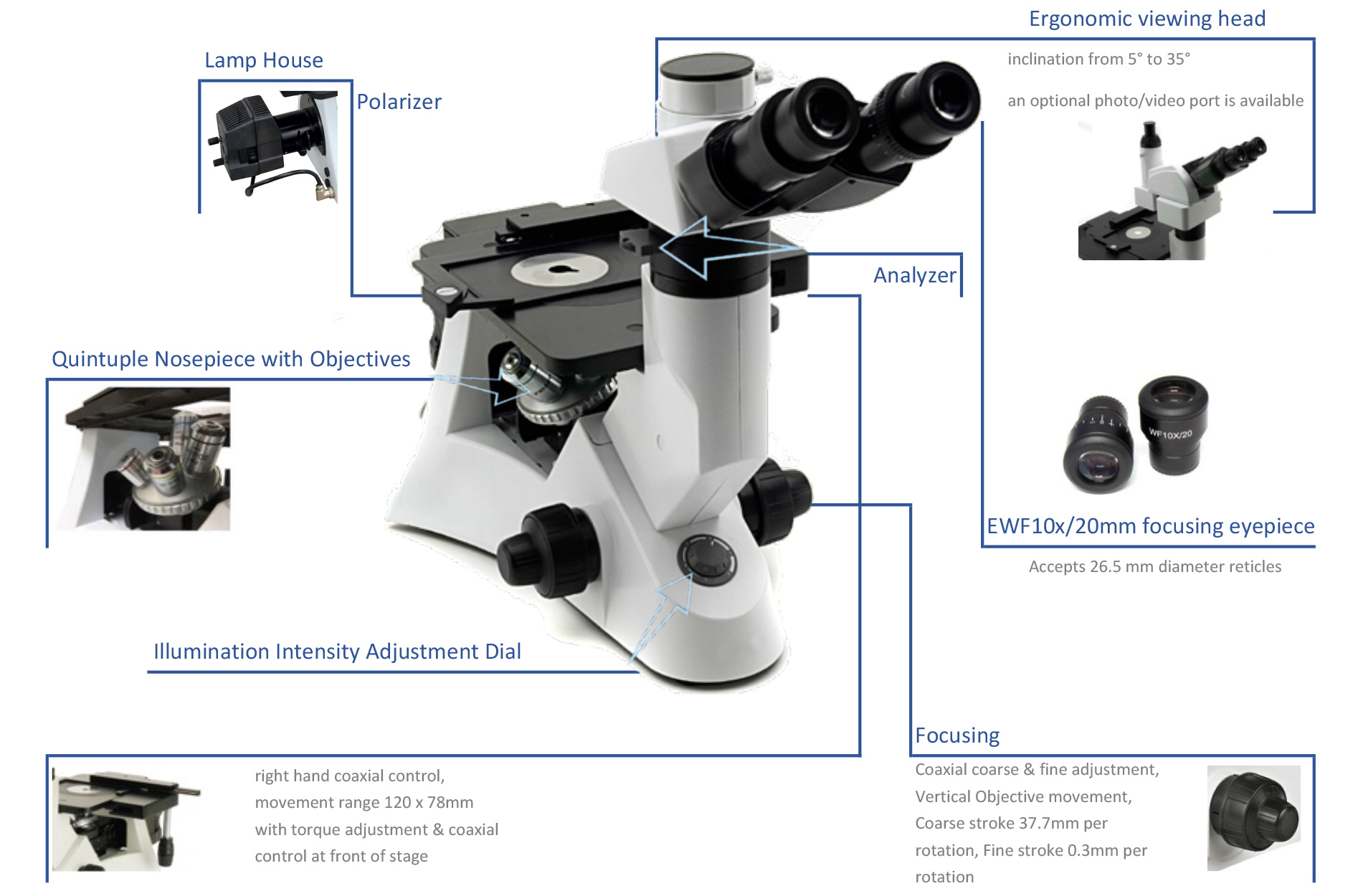

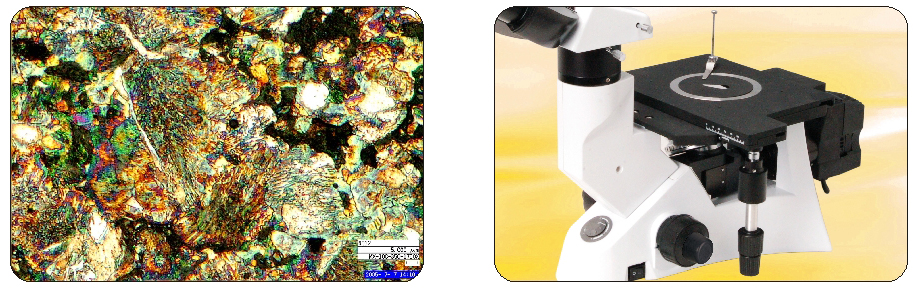

MIV5100 trinocular inverted metallurgical microscope with up to 400x magnification. Equipped with infinitive optical system, providing excellent optical functions, and the features of stable stand structure, advanced stage design and comfortable operation, it is widely used in institute and laboratory.

–

Objective Lens

Magnification NA Working Distance
Infinity Plan Achromatic 2.5x 0.08 11.7mm
Infinity Plan Achromatic 2.5x 0.08 10.7mm
Infinity Plan Achromatic 4x 0.10 17.3mm
Infinity Plan Achromatic 5x 0.12 15.4mm
Infinity Plan Achromatic 10x 0.25 10.0mm
Infinity Plan Achromatic 20x 0.40 5.8mm
Infinity Plan Achromatic 40x 0.60 2.9mm
Infinity Plan Achromatic 50x 0.75 0.32mm
Infinity Plan Achromatic 80x 0.90 0.2mm
Infinity Plan Achromatic 100x 0.80 2.0mm

–

Documentation

There cameras for industrial basic documentation including quality control. Each of these cameras are great microscopy cameras for viewing live images on a tablet or computer screen, capturing images, and saving them to a file for documentation.

–

Product Specifications

Model MIV5100 MIV5100A
Viewing Head Trinocular head inclined at 30º, interpupillary 48-75mm
Eyepiece High-point, Extra wide field eyepiece ew10X/20
Infinite LWD Plan Achromatic Objective 4X/0.10/∞/-   WD 17.3mm
10X/0.25/∞/- WD 10.0mm
20X/0.40/∞/0   WD 5.8mm
40X/0.6/∞/0 WD 2.90mm
Nosepiece Quintuple Nosepiece
Stage Plain stage with slide clips Plain stage with slide clips, Attachable mechanical stage, X-Y Coaxial control, Moving range 120X78mm, Auxiliary stage
Focusing Coaxial coarse & fine adjustment, Vertical Objective movement, Coarse stroke 37.7mm per rotation, Fine stroke 0.2mm per rotation
Illumination Halogen lamp 6V/30W, Kohler illumination
Filter Blue, Yellow, Green and ground glass
Others Polarization Attachment

–

Options

Cat No. Descriptions Picture
M40301001 Infinity Plan Achromatic Objective 2.5X/0.08/∞/- WD 11.7mm
M40301002 Infinity Plan Achromatic Objective 2.5X/0.08/∞/-   WD 10.7mm (λ)
M40301003 Infinity Plan Achromatic Objective 5X/0.12/∞/-   WD 15.4mm
M40301004 Infinity Plan Achromatic Objective 50X/0.75/∞/0 WD 0.32mm
M40301005 Infinity Plan Achromatic Objective 80X/0.90/∞/0 WD 0.20mm
M40301006 Infinity Plan Achromatic Objective 100X/0.80/∞/0 WD 2.00mm
M40301007 Attachable mechanical stage, X-Y Coaxial control, Moving range 120X78mm
M40301008 Double layer mechanical stage 226×178mm,Moving range 50×50mm
M40301009 Auxiliary stage
M40301010 0.5x C mount
M40301011 1x C mount
