Description
Introduction

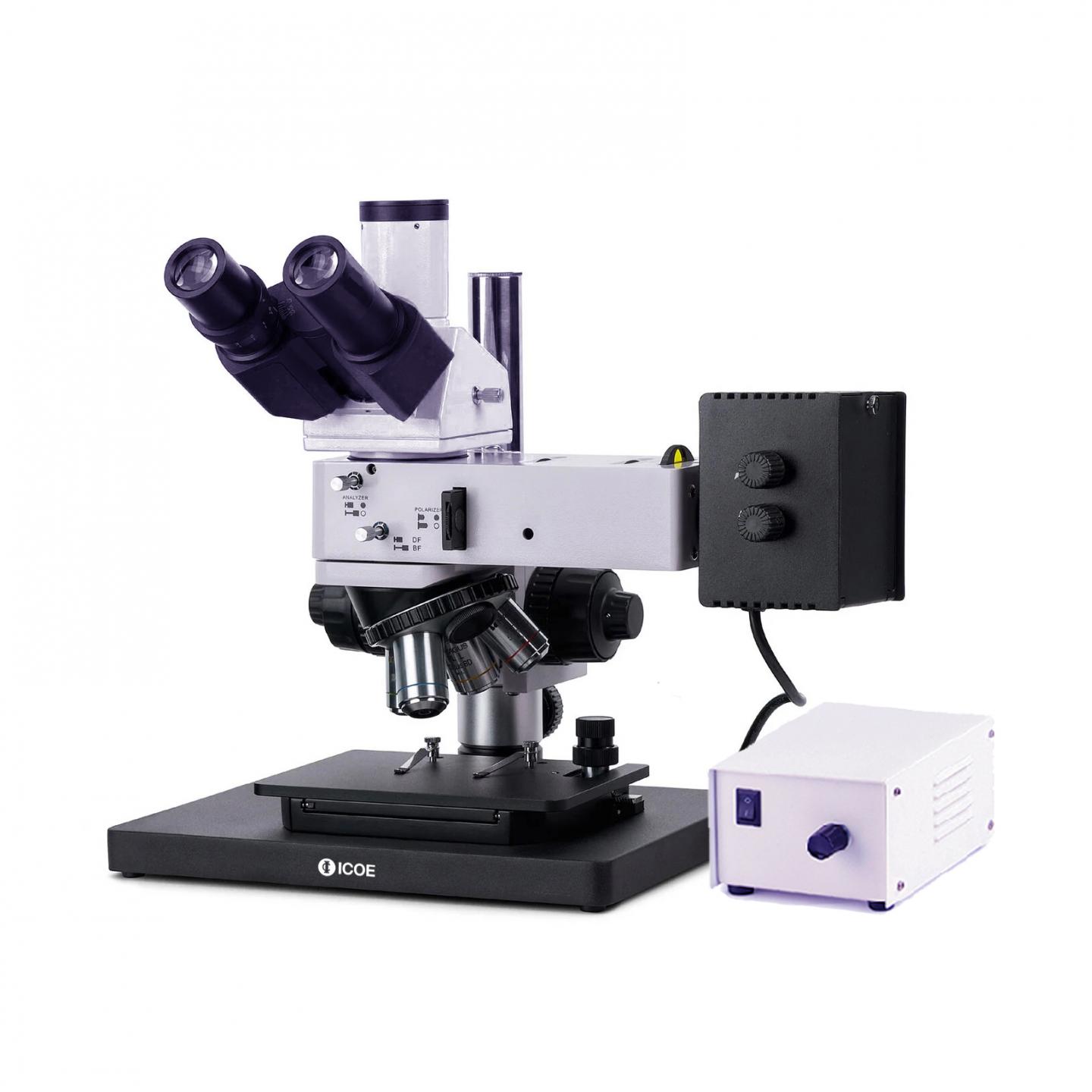

MEV600 series infinite metallurgical microscope is capable of observing objects of various heights and shapes. It can be placed in small workspaces and allows the microscope stand to be adjusted to meet the specific requirements of the production line. The microscope is designed to observe the microstructure of metals and alloys, semiconductor materials, control the quality of paint coatings and study other opaque objects. The reflected light illumination allows for brightfield, darkfield, and polarization microscopy techniques. The microscope can be used in various fields (metallurgical, engineering, aerospace, nuclear, and energy industries) as well as in research laboratories and technical universities.
Specifications
| Model | MEV600R | MEV600D | MEV600DIC | |
| Optical system: | Infinity Optical System | • | • | • |
| Viewing head: | Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm | • | • | • |
| Nosepiece: | Backward quintuple nosepiece | • | • | |
| Backward quintuple nosepiece with DIC slot | • | |||
| Eyepiece: | A pair of wide field eyepiece WF10х/22mm | •• | •• | •• |
| Objectives: | Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF) WD 26.1mm | • | ◦ | |
| Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF/DF) WD 20.2mm | • | ◦ | ||
| Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF/DF) WD 8.80mm | • | ◦ | ||
| Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF) WD 3.98mm | ◦ | ◦ | ||
| Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF) WD 3.68mm | • | • | ||
| Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF) WD 2.03mm | ◦ | ◦ | ||
| Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF) WD 1.25mm | ◦ | ◦ | ||
| Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF) WD 0.40mm (dry) | ◦ | ◦ | ||
| Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF) WD 26.1mm | • | |||
| Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF/DF) WD 20.2mm | • | |||
| Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF/DF) WD 8.80mm | • | |||
| Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF/DF) WD 3.98mm | ◦ | |||
| Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF/DF) WD 3.68mm | • | |||
| Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF/DF) WD 2.03mm | ◦ | |||
| Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF/DF) WD 0.80mm | ◦ | |||
| Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF/DF) WD 0.40mm (dry) | ◦ | |||
| Infinite Plan Achromatic Objective LMPlan5×/ 0.12/ ∞/ – WD 15mm (DIC) | • | |||
| Infinite Plan Achromatic Objective LMPlan10×/ 0.25/ ∞/ – WD 10.5mm (DIC) | • | |||
| Infinite Plan Achromatic Objective PL LMPlan20×/ 0.40/ ∞/ – WD 4.5mm (DIC) | • | |||
| Mechnical stage: | Mechnical stage 185x140mm, two-axis, with a glass stage plate, X- and Y-axis stage moving range 75x50mm | • | • | • |
| Stand base: | Stand base size is 300mmX240mm | • | • | • |
| Focusing mechanism: | Coaxial coarse and fine focusing knobs located on both sides, 2μm fine focusing scale value, with coarse focusing tension adjusting knob & coarse focusing lock knob | • | • | • |
| Reflected Illumination: | Built-in field and aperture diaphragms, built-in analyzer and removable polarizer; color filters: matt, yellow, green, blue, 12V, 30W halogen reflected light source, brightness-adjustable | • | ||
| With darkfield technique, built-in field and aperture diaphragms, built-in analyzer and removable polarizer; color filters: matt, yellow, green, blue, 12V, 50W halogen reflected light source, brightness-adjustable | • | |||
| Built-in field and aperture diaphragms, built-in analyzer and removable polarizer; color filters: matt, yellow, green, blue, 12V, 50W halogen reflected light source, brightness-adjustable | • | |||
| Polarization: | Built-in analyzer and removable polarizer | • | • | • |
| DIC: | DIC kit for 5X-20X | • | ||
| C mount adapter: | 0.4X C mount adapter | ◦ | ◦ | ◦ |
| 0.5X C mount adapter | ◦ | ◦ | ◦ | |
| 1X C mount adapter | ◦ | ◦ | ◦ | |
| 0.5X C mount adapter with reticle micrometer, value 0.1mm/scale | ◦ | ◦ | ◦ | |
| Photo adapter: | Photo adapter with CANON/Nikon DSLR camera | ◦ | ◦ | ◦ |
| Power: | 110V/220V, 50/60Hz | • | • | • |
Optional Accessories
| Order Code | Descriptions |
| MEV6001 | Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm |
| MEV6002 | Backward quintuple nosepiece |
| MEV6003 | Backward quintuple nosepiece with DIC slot |
| MEV6004 | Wide field eyepiece WF10×/22mm |
| MEV6005 | Wide field WF 10x/22 mm eyepiece with reticule |
| MEV6006 | Wide field WF 12.5x/17.5 mm eyepiece for Ø 30 mm tube |
| MEV6007 | Wide field WF 15x/16 mm eyepiece for Ø 30 mm tube |
| MEV6008 | Wide field WF 20x/12 mm eyepiece for Ø 30 mm tube |
| MEV6009 | Eyeshade for eyepieces |
| MEV6010 | Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF) WD 26.1mm |
| MEV6011 | Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF/DF) WD 20.2mm |
| MEV6012 | Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF/DF) WD 8.80mm |
| MEV6013 | Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF) WD 3.98mm |
| MEV6014 | Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF) WD 3.68mm |
| MEV6015 | Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF) WD 2.03mm |
| MEV6016 | Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF) WD 1.25mm |
| MEV6017 | Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF) WD 0.40mm (dry) |
| MEV6018 | Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF) WD 26.1mm |
| MEV6019 | Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF/DF) WD 20.2mm |
| MEV6020 | Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF/DF) WD 8.80mm |
| MEV6021 | Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF/DF) WD 3.98mm |
| MEV6022 | Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF/DF) WD 3.68mm |
| MEV6023 | Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF/DF) WD 2.03mm |
| MEV6024 | Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF/DF) WD 0.80mm |
| MEV6025 | Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF/DF) WD 0.40mm (dry) |
| MEV6026 | Infinite Plan Achromatic Objective LMPlan5×/ 0.12/ ∞/ – WD 15mm (DIC) |
| MEV6027 | Infinite Plan Achromatic Objective LMPlan10×/ 0.25/ ∞/ – WD 10.5mm (DIC) |
| MEV6028 | Infinite Plan Achromatic Objective PL LMPlan20×/ 0.40/ ∞/ – WD 4.5mm (DIC) |
| MEV6029 | DIC kit 5x-20x (only for model ME600DIC) |
| MEV6030 | Epi-illumination device for reflection light |
| MEV6031 | 12V/30W Halogen for reflected illumination |
| MEV6032 | 12V/50W Halogen for reflected illumination |
| MEV6033 | Polarizer for reflected light |
| MEV6034 | Blue filter for reflected light |
| MEV6035 | Green filter for reflected light |
| MEV6036 | Yellow filter for reflected light |
| MEV6037 | Matt filter for reflected light |
| MEV6038 | Red filter for reflected light |
| MEV6039 | Mechnical stage 185x140mm, two-axis, with a glass stage plate, X- and Y-axis stage moving range 75x50mm |
| MEV6040 | 0.5x C mount |
| MEV6041 | 1x C mount |
| MEV6042 | 0.5x C mount with reticule |
