Description

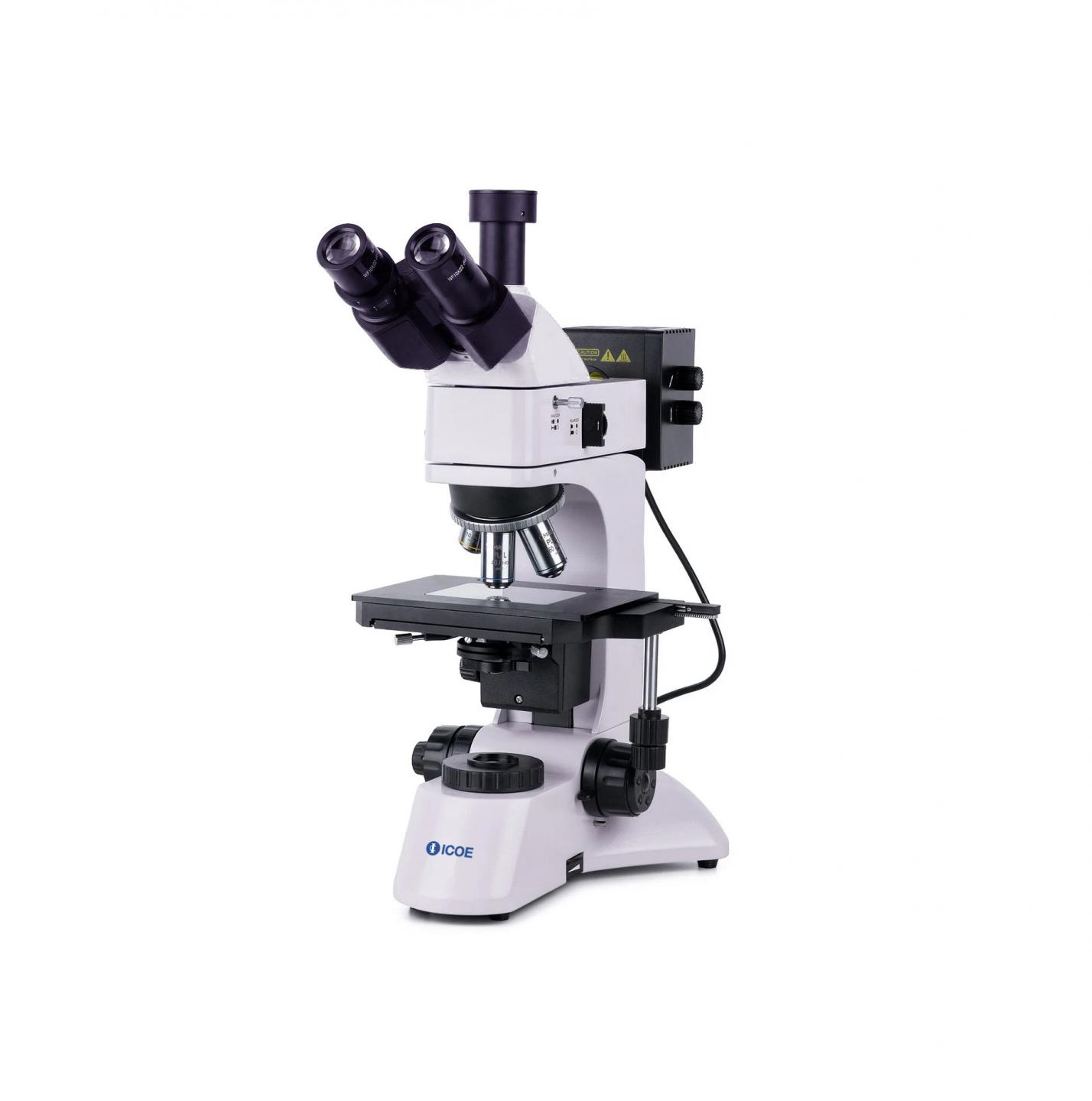

ICOE ME600 Series Infinite Metallurgical Microscope, magnification: 50–500x in its standard configuration. The microscope is designed for studying the microstructure of metals, alloys, semiconductor materials, paint coatings, and other opaque flat and polished samples. The reflected light illuminator allows for brightfield, darkfield, and polarization microscopy techniques. The built-in transmitted light illuminator is suitable for examining translucent films and objects: air, water, oil samples, etc. The microscope can be used in various fields (metallurgical, engineering, aerospace, nuclear and energy industries) as well as in research laboratories and technical universities.
There are 4 types (ME600R, ME600, ME600U, ME600BD) available
1. ME600R is with trinocular head, with reflected illumination, plan achromatic objective for brightfield microscopy techniques, 30W halogen reflected light illuminator
2. ME600 is with trinocular head, has two types of illumination modes, including of transmitted light illumination, reflected light illumination, with plan achromatic objective for brightfield microscopy techniques, 30W halogen transmitted light illuminator & reflected light illuminator
3. ME600U is with trinocular head, has three types of illumination modes, including of transmitted light illumination, reflected light illumination and the synchronous transmission-reflecting light, with plan achromatic objective for brightfield microscopy techniques, 30W halogen transmitted light illuminator & reflected light illuminator.
4. ME600BD is with trinocular head, has two types of illumination modes, including of transmitted light illumination, reflected light illumination, with plan achromatic objective for brightfield and darkfield microscopy techniques, 30W halogen transmitted light illuminator, 50W halogen reflected light illuminator
Specifications
| Model | ME600R | ME600 | ME600U | ME600BD | |
| Optical system: | Infinity Optical System | • | • | • | • |
| Viewing head: | Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm | • | • | • | • |
| Nosepiece: | Backward quintuple nosepiece | • | • | • | • |
| Eyepiece: | A pair of wide field eyepiece WF10х/22mm | •• | •• | •• | •• |
| Objectives: | Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF) WD 26.1mm | • | • | • | |
| Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF) WD 20.2mm | • | • | • | ||
| Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF) WD 8.80mm | • | • | • | ||
| Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF) WD 3.98mm | ○ | ○ | ○ | ||
| Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF) WD 3.68mm | • | • | • | ||
| Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF) WD 2.08mm | ○ | ○ | ○ | ||
| Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF) WD 1.25mm | ○ | ○ | ○ | ||
| Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF) WD 0.40mm (dry) | ○ | ○ | ○ | ||
| Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF/DF) WD 9.7mm | • | ||||
| Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF/DF) WD 9.3mm | • | ||||
| Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF/DF) WD 7.20mm | • | ||||
| Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF/DF) WD 3.0mm | ○ | ||||
| Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF/DF) WD 3.0mm | • | ||||
| Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF/DF) WD 1.9mm | ○ | ||||
| Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF/DF) WD 0.80mm | ○ | ||||
| Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF/DF) WD 0.40mm (dry) | ○ | ||||
| Stage: | 210x140mm, two-axis mechanical stage, X- and Y-axis stage moving range 75x50mm | • | |||
| 210x140mm, two-axis mechanical stage, with a glass stage plate, X- and Y-axis stage moving range 75x50mm | • | • | • | ||
| Focusing mechanism: | Coaxial coarse and fine focusing knobs located on both sides, coarse focusing travel, 25mm, 2μm fine focusing scale value, with coarse focusing tension adjusting knob & coarse focusing lock knob | ||||
| Reflected Illumination: | Built-in field and aperture diaphragms, built-in analyzer and removable polarizer; 12V, 30W halogen reflected light source, brightness-adjustable | • | • | • | |
| Built-in field and aperture diaphragms, built-in analyzer and removable polarizer; 12V, 50W halogen reflected light source, brightness-adjustable | • | ||||
| color filters: Blue, green, yellow, matt | • | • | • | ||
| color filters: yellow, green, blue, red | • | ||||
| Transmitted Light: | 12V 30W halogen transmitted light source, brightness-adjustable, built-in field diaphragm | / | • | • | • |
| color filters: Blue, matt | / | • | • | ||
| color filters: Blue, green, yellow, matt | / | • | |||
| Condenser: | Center-adjustable and height-adjustable Abbe condenser, NA 1.25, adjustable aperture diaphragm and flip-down lens, with locking screws | / | • | • | • |
| Polarization: | Built-in analyzer and removable polarizer | • | • | • | • |
| Power: | 110V/220V, 50/60Hz | • | • | • | • |
Optional Accessories
| Cat. Number | Descriptions |
| ME60001 | Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm |
| ME60002 | Backward quintuple nosepiece |
| ME60003 | Backward quintuple nosepiece with DIC slot |
| ME60004 | Wide field eyepiece WF10×/22mm |
| ME60005 | Wide field WF 10x/22 mm eyepiece with reticule |
| ME60006 | Wide field WF 12.5x/17.5 mm eyepiece for Ø 30 mm tube |
| ME60007 | Wide field WF 15x/16 mm eyepiece for Ø 30 mm tube |
| ME60008 | Wide field WF 20x/12 mm eyepiece for Ø 30 mm tube |
| ME60009 | Eyeshade for eyepieces |
| ME60010 | Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF) WD 26.1mm |
| ME60011 | Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF) WD 20.2mm |
| ME60012 | Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF) WD 8.80mm |
| ME60013 | Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF) WD 3.98mm |
| ME60014 | Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF) WD 3.68mm |
| ME60015 | Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF) WD 2.08mm |
| ME60016 | Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF) WD 1.25mm |
| ME60017 | Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF) WD 0.40mm (dry) |
| ME60018 | Infinite Plan Achromatic Objective PL L 5×/ 0.12/ ∞/ – (BF/DF) WD 9.7mm |
| ME60019 | Infinite Plan Achromatic Objective PL L10×/ 0.25/ ∞/ – (BF/DF) WD 9.3mm |
| ME60020 | Infinite Plan Achromatic Objective PL L20×/ 0.40/ ∞/ – (BF/DF) WD 7.20mm |
| ME60021 | Infinite Plan Achromatic Objective PL L40×/ 0.60/ ∞/ 0 (BF/DF) WD 3.0mm |
| ME60022 | Infinite Plan Achromatic Objective PL L50×/ 0.7/ ∞/ 0 (BF/DF) WD 3.0mm |
| ME60023 | Infinite Plan Achromatic Objective PL L60×/ 0.70/ ∞/ 0 (BF/DF) WD 1.9mm |
| ME60024 | Infinite Plan Achromatic Objective PL L80×/ 0.80/ ∞/ 0 (BF/DF) WD 0.80mm |
| ME60025 | Infinite Plan Achromatic Objective PL L100×/ 0.85/ ∞/ 0 (BF/DF) WD 0.40mm (dry) |
| ME60026 | Infinite Plan Achromatic Objective LMPlan5×/ 0.12/ ∞/ – WD 15mm (DIC) |
| ME60027 | Infinite Plan Achromatic Objective LMPlan10×/ 0.25/ ∞/ – WD 10.5mm (DIC) |
| ME60028 | Infinite Plan Achromatic Objective PL LMPlan20×/ 0.40/ ∞/ – WD 4.5mm (DIC) |
| ME60029 | DIC kit 5x-20x (only for model ME600DIC) |
| ME60030 | Epi-illumination device for reflection light |
| ME60031 | 12V/30W Halogen for reflected illumination |
| ME60032 | 12V/50W Halogen for reflected illumination |
| ME60033 | 12V/30W Halogen bulb for transmitted illumination |
| ME60034 | Polarizer for reflected light |
| ME60035 | Blue filter for reflected light |
| ME60036 | Green filter for reflected light |
| ME60037 | Yellow filter for reflected light |
| ME60038 | Matt filter for reflected light |
| ME60039 | Red filter for reflected light |
| ME60040 | Abbe condenser NA1.25 |
| ME60041 | Blue filter for transmitted light |
| ME60042 | Green filter for transmitted light |
| ME60043 | Yellow filter for transmitted light |
| ME60044 | Matt filter for transmitted light |
| ME60045 | Mechnical stage 210x140mm, two-axis, with a glass stage plate, X- and Y-axis stage moving range 75x50mm |
| ME60046 | 0.5x C mount |
| ME60047 | 1x C mount |
| ME60048 | 0.5x C mount with reticule |
