Description
Specifications

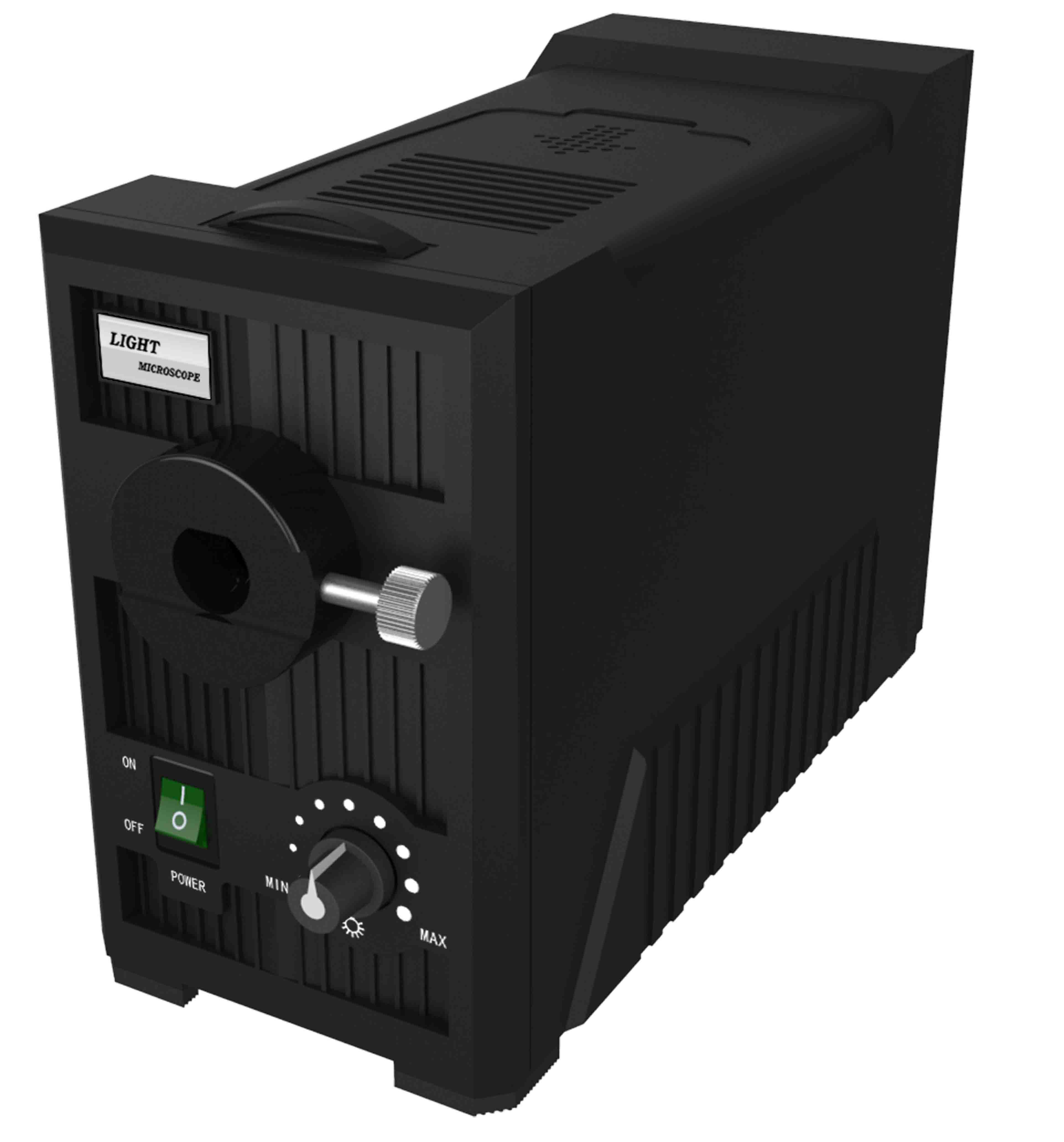

– Halogen light source
| Power: | 21V/150W, Philips Lamp (Lamp Model No.: 13629) |
| Input Voltage: | 176V-265V, 50Hz (110V optional) |
| Color Temperature: | 3000K |
| Illuminance: | Approximately 100000Lx |
| Filter: | Light Blue (Optional: Navy Blue, Red, Green) |
| Optical Fiber Interface: | Φ16mm |
| Size: | 230mm×101.6mm×150mm |
| Gross Weight: | 2.7 kgs (Optical Fiber not included) |
| Net Weight: | 2.1 kgs (Optical Fiber not included) |
| Packing Size: | 285mm×230mm×255mm |

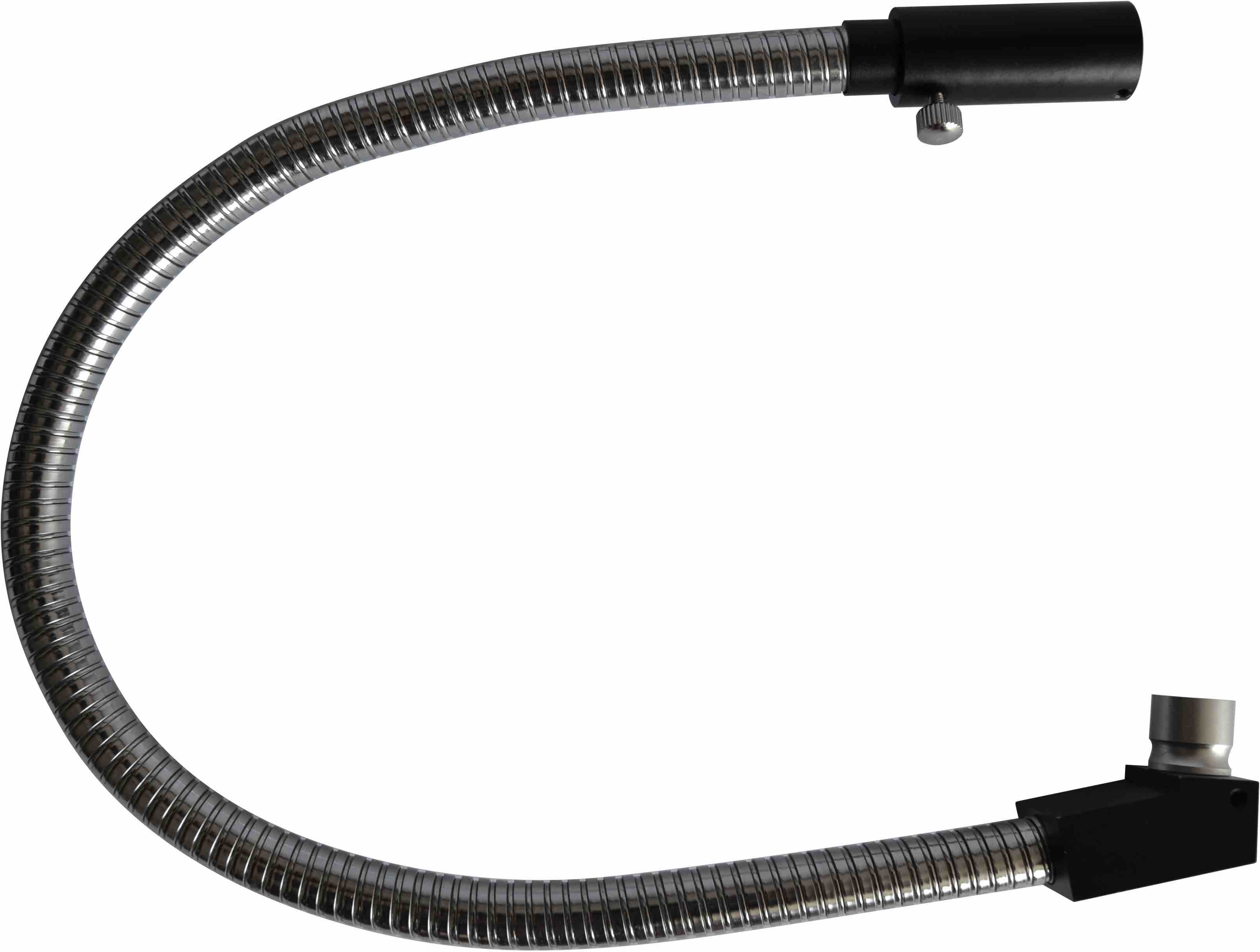

– Single Fiber
| Fiber Diameter:8mm |  |
| Fiber Length:550mm | |
| Hard Fiber with Condenser | |
| 5/8〞Standard Interface |

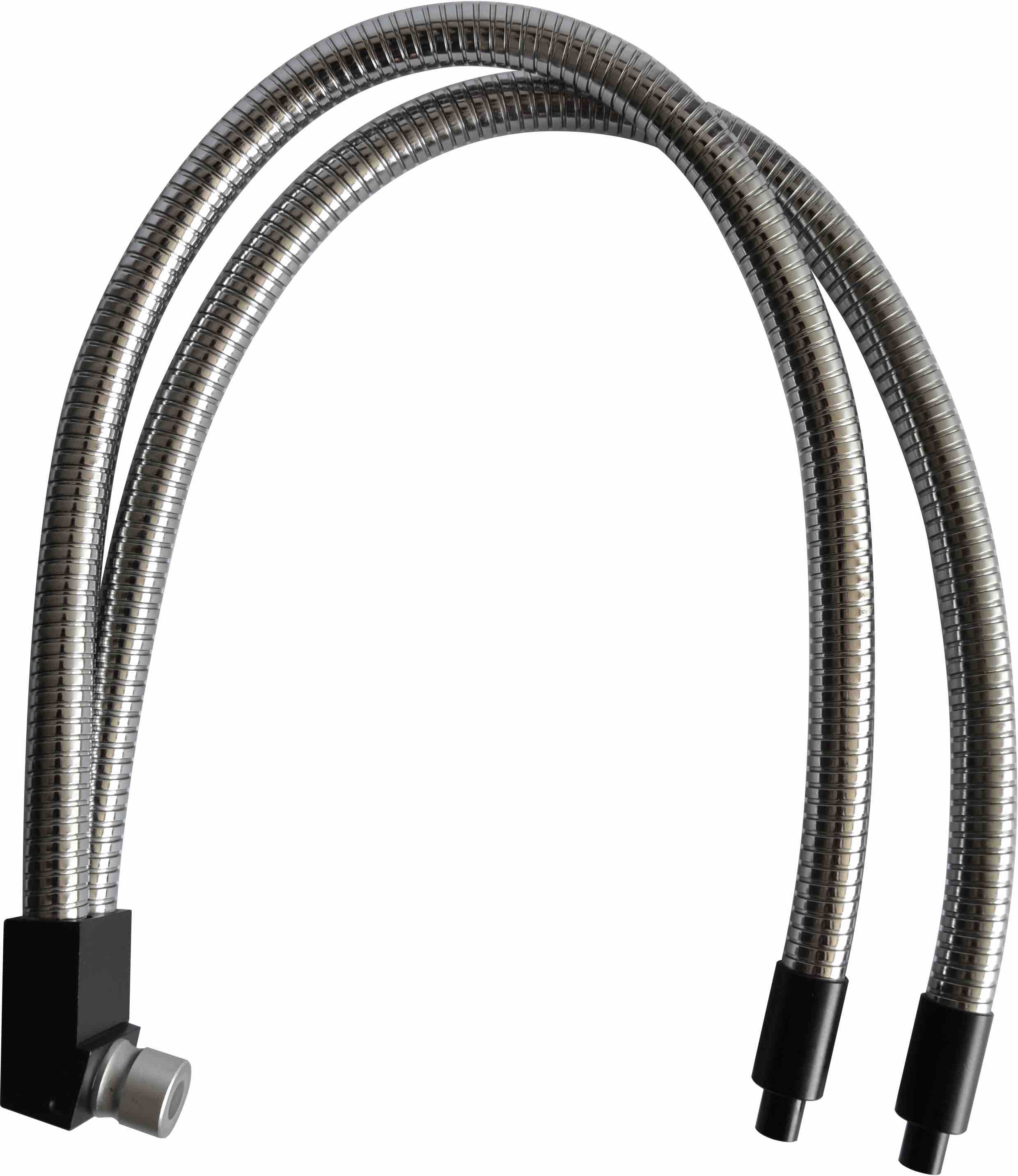

– Dual Fiber
| Fiber Diameter: 8mm |  |
| Fiber Length: 550mm | |
| Hard Fiber with Condenser | |
| 5/8〞Standard Interface |

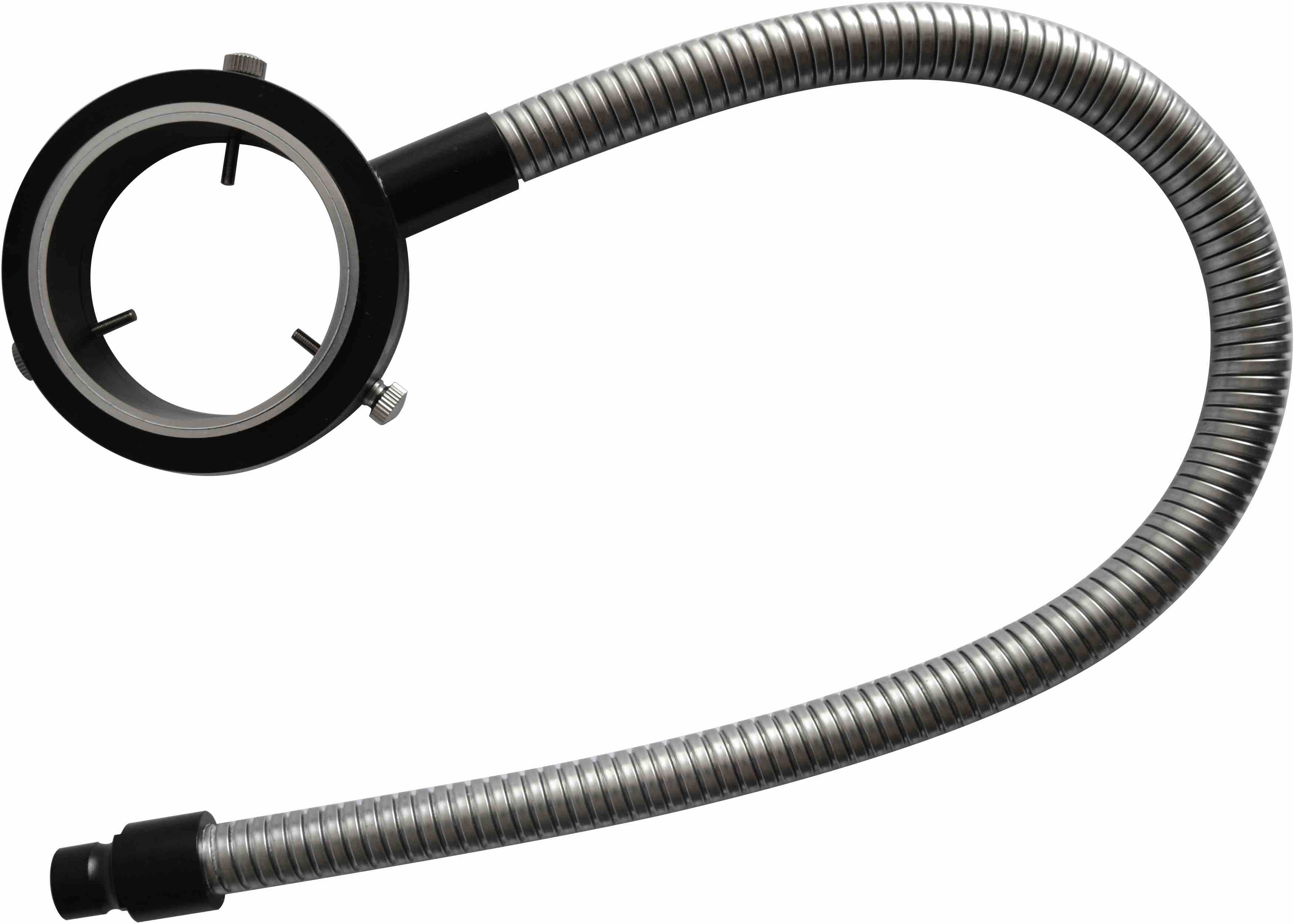

– Ring Fiber
| Fiber Diameter: 8mm |  |
| Fiber Length: 550mm | |
| 5/8〞Standard Interface |
