Description
Features
1. High brightness illumination
2. Switch power supply giving a legerity instrument with advantages of smooth brightness adjustment, long working time and low noise.
3. Multi-coated IR cutoff filter enhancing the performance of instrument.
4. Fiber pipes providing illumination without heat radiation to specimen, for alive and particular specimens observation.
5. Flexible pipes guide providing a satisfactory illumination on position and direction
6. Automatic power shutoff while door opening for lamp replacement
7. Long lifetime
8. Variable light intensity
Specifications

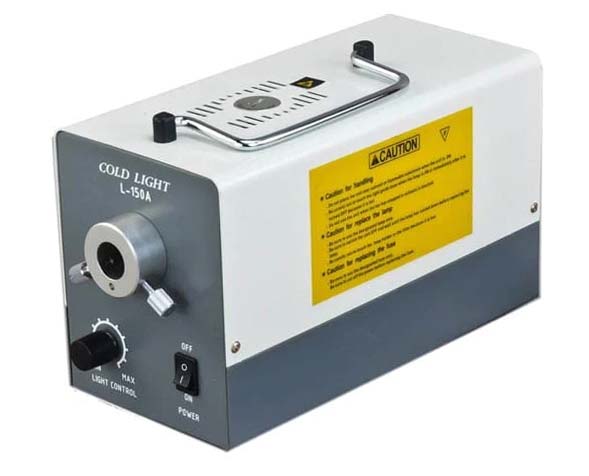

1. Model: L-150
2. Halogen lamp 21v 150w with reflector
3. Single fiber guide/Dual fiber guide/O-ring fiber guide
4. Fan cooling system
5. Dual fiber light guide: rigid flectional tube with length of 20″ (50cm)
6. Power input: 115v or 230v switchable
7. Dimensions (body only): 26x12x15cm
8. Net weight: 3.7kg
Optional fibers
– Single Fiber
| Fiber Diameter:8mm |  |
| Fiber Length:550mm | |
| Hard Fiber with Condenser | |
| 5/8〞Standard Interface |
– Dual Fiber
| Fiber Diameter: 8mm |  |
| Fiber Length: 550mm | |
| Hard Fiber with Condenser | |
| 5/8〞Standard Interface |
– Ring Fiber
| Fiber Diameter: 8mm |  |
| Fiber Length: 1000mm | |
| 5/8〞Standard Interface |

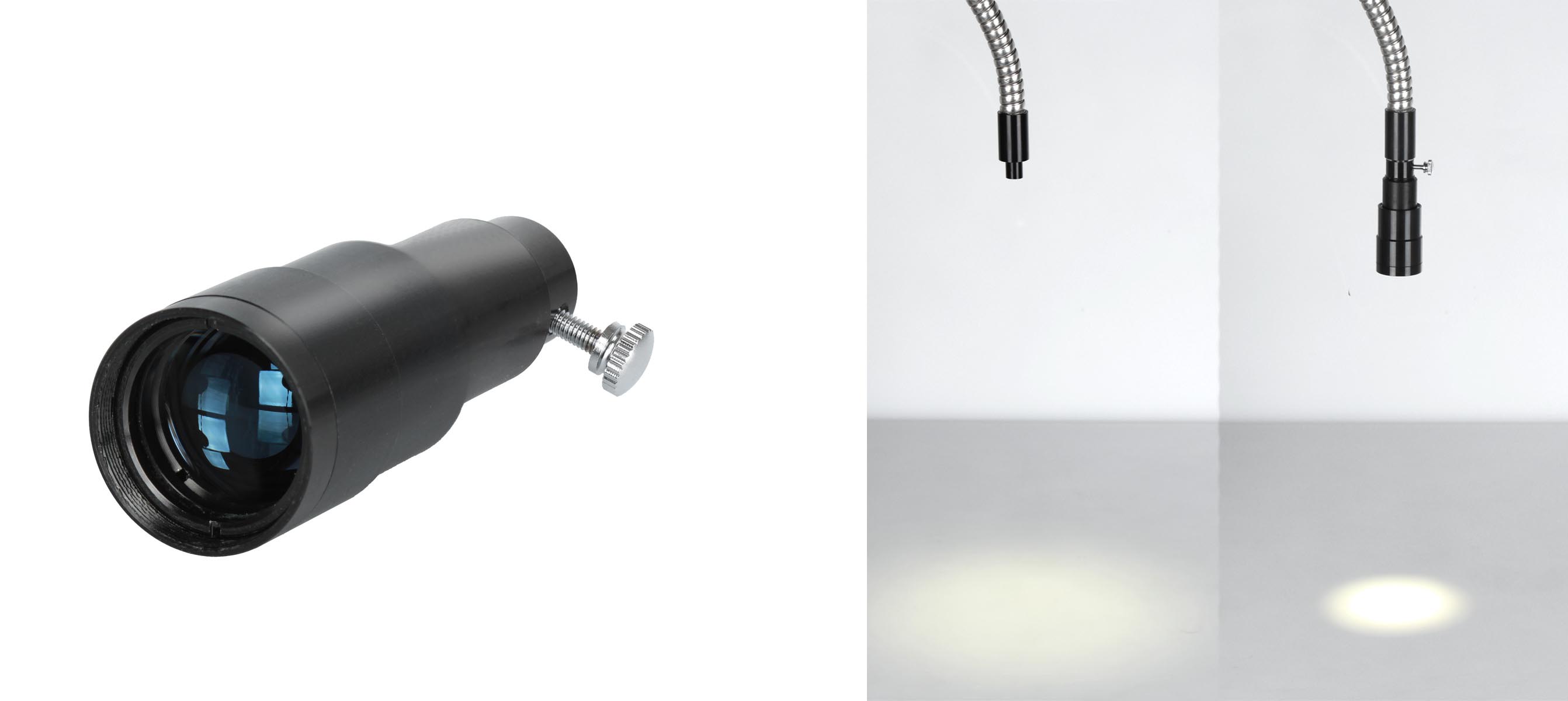

Kohler illumination
A Kohler illumination attachment that can be used to obtain a parallel beam of light at the output of the optical fiber of the L-150 series illuminators. Unification of the beam allows you to get a higher illuminance at the point of observation.
