Description
Specifications & Models

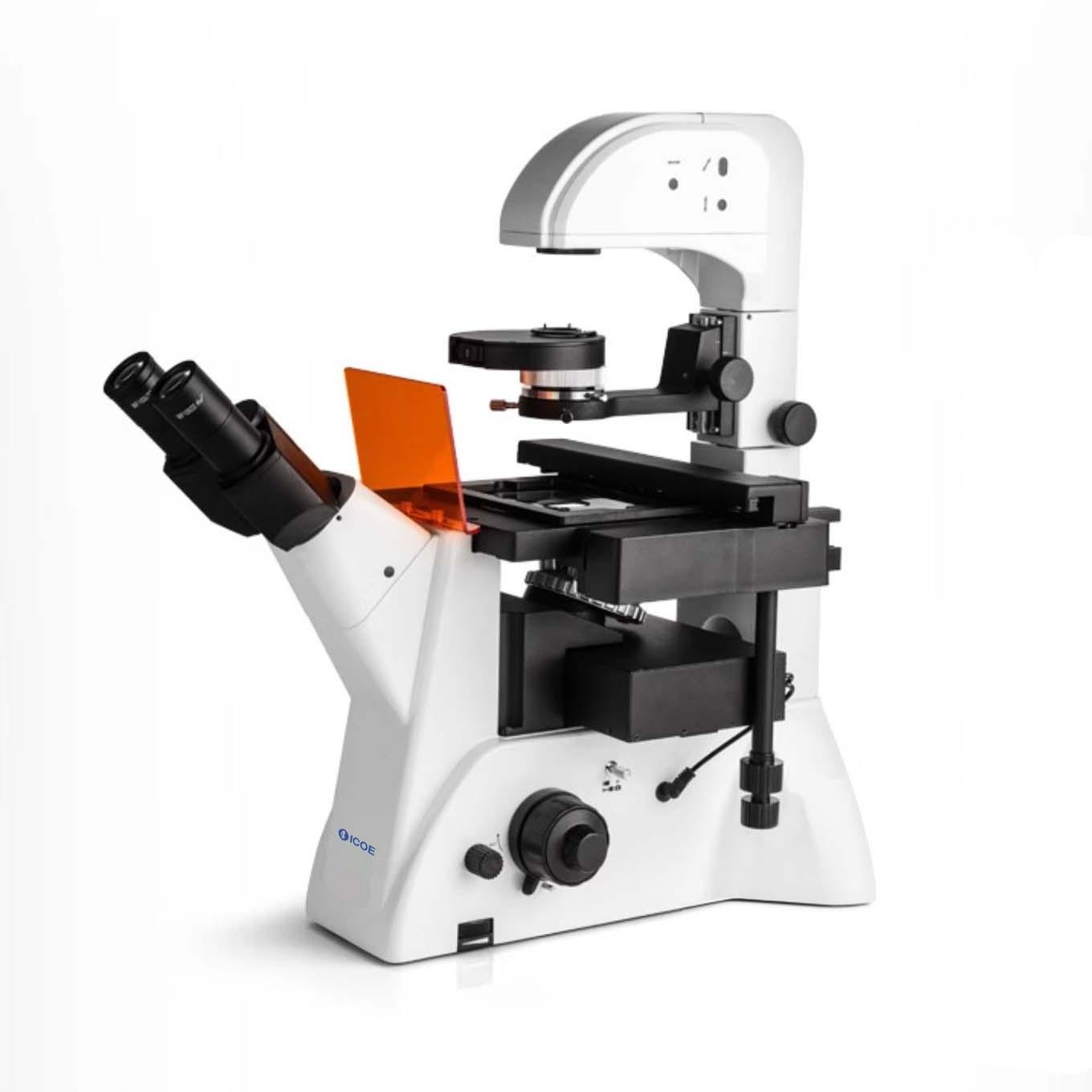

| Model | IV6600F-LED | |
| Viewing head: | Viewing head with eyetube inclined 45˚ and interpupillary distance is 53~75mm. | • |
| Eyepiece: | Wide field eyepiece WF10X/22mm | • |
| Centering telescope | • | |
| Nosepiece: | Sextuple nosepiece | • |
| Objective: | Infinity plan achroamtic objective PLL 10X0.25 Work distance:4.3 mm,Cover glass thickness:1.2mm. | • |
| Infinity plan achroamtic objective PLL 20X0.40 Work distance:8.0 mm,Cover glass thickness:1.2mm. | • | |
| Infinity plan achroamtic objective PLL 40X0.60 Work distance:3.5 mm,Cover glass thickness:1.2mm. | • | |
| Infinity plan phase contrast objective PLL 10X0.25 PHP2 Work distance:4.3 mm,Cover glass thickness:1.2mm. | • | |
| Infinity plan phase contrast objective PLL 20X0.40 PHP2 Work distance:8.0 mm,Cover glass thickness:1.2mm. | • | |
| Infinity plan phase contrast objective PLL 40X0.60 PHP2 Work distance:3.5 mm,Cover glass thickness:1.2mm. | • | |
| Stage: | Fixed stage overall size 227 x 208mm, glass rotundity stage overall size Ф118mm, with mechanical moving device, moving range 77 x 134.5mm | • |
| with culture dish holder 1, inside locating slot size: 86mm (W) x 129.5mm (L), optional with a circular culture dish Ф90mm | • | |
| with culture dish holder 2, inside locating slot size: 34mm (W) x 77.5mm (L), optional with a circular culture dish Ф68.5mm | • | |
| with culture dish holder 3, inside locating slot size: 57mm (W) x 82mm (L) optional with a circular culture dish Ф60mm | • | |
| with culture dish holder 4, inside locating slot size: 29mm (W) x 77.5mm (L) optional with a circular culture dish Ф35mm | • | |
| Focus system: | Coaxial coarse & fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. | • |
| Condenser: | Turret phase contrast condenser, NA0.3 working distance 55mm | • |
| Transmitted illumination: | 5W high brightness LED lighting, brightness and color temperature continuously adjustable | • |
| Epi-fluorescent illumination: | 5W high brightness LED lighting | • |
| Filter set DAPI, wavelength of excitation light 365/35nm, wavelength of emitted light 450/65nm | • | |
| Filter set FITC, wavelength of excitation light 475/40nm, wavelength of emitted light 535/45nm | • | |
| Filter set TRITC, wavelength of excitation light 525/45nm, wavelength of emitted light 595/60nm | • | |
| Filter set TEXASERED, wavelength of excitation light 560/55nm, wavelength of emitted light 645/75nm | ○ | |
| Filter set CY5, wavelength of excitation light 607/75nm, wavelength of emitted light 695/55nm | ○ | |
