IE5600FL Infinite Inverted Fluorescent Microscop

Home Microscopy Biological Microscopes Inverted Microscopes IE5600FL Infinite Inverted Fluorescent Microscop

IE5600FL Infinite Inverted Fluorescent Microscop

Inverted Microscopes, Inverted Fluorescence2023-10-11n50

Description

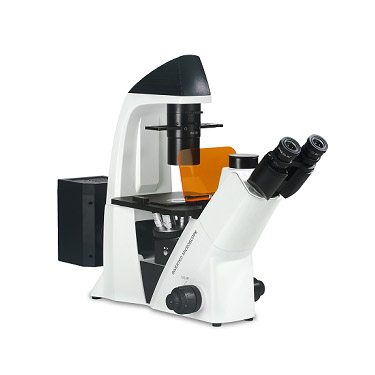

Model IE5600FL Infinite Inverted Fluorescent Microscope with Digital Camera (Optional)
Optical system:  Infinity corrected optical system
Viewing head:  Trinocular head inclined at 45°, interpupillary distance 48-76mm, 360° rotation, Light distribution (both): 100:0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece)
Nosepiece:  5 positions, with bidirectional rotation on ball bearings and click stop
Eyepiece:  Wide field eyepiece WF10×/22mm, diopter adjustable
Objectives:  Infinite Plan Achromatic Fluor Objective 10×/0.25
Infinite Plan Achromatic Fluor Objective 20×/0.40
Infinite Plan Achromatic Fluor Objective 40×/0.60
Stage:  Stage size: X×Y 210×241mm, round slide size: φ118mm, attached mechanical stage (available for 96 holes plate, moving range XY: 128×80mm), With φ54mm culture dish holder, (φ65mm, φ35mm, blood cell counter are optional)
Focusing:  Coaxial coarse and fine adjustment, vertical objective movement, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation
Condenser:  Long working distance, Quickly detachable, N.A.0.3, Working distance:72mm (with condenser), 195mm(without condenser).
Illumination:  6V/30W Halogen lamp, Koehler Illumination, input voltage: 100V~240V
Supplied with:  Dust cover, spare fuse, Diameter 45mm, Blue & Green filter
Power:  110v or 220V, 50/60Hz
Micrometer: Micrometer slide
Fluorescent kit: Epi fluorescence unit, field diaphragm, center adjustable. 100W mercury lamp (OSRAM), 4 fluorescence filters B, G, V, UV, Digital mercury lamp power box (input voltage:100V~240V)
C mount: 0.5× C-Mount, focus adjustable, for digital camera)
 Digital camera (Optional) KOTI-5A digital eyepiece, 5.1MP, Color CMOS, USB2.0, with sensor size: 1/2.5″(5.70×4.28), pixel: 2.2×2.2um. FPS/Resolution: 30@2592×1944, 30@1280×960, 30@640×480, with image process software, Software compatible: Ø Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images
