IV6000FL Series Inverted LED Fluorescence Microscope

Home Microscopy Fluorescence Microscopes Inverted Fluorescence IV6000FL Series Inverted LED Fluorescence Microscope

IV6000FL Series Inverted LED Fluorescence Microscope

Inverted Fluorescence2021-01-17n50

Description

Specifications & Models

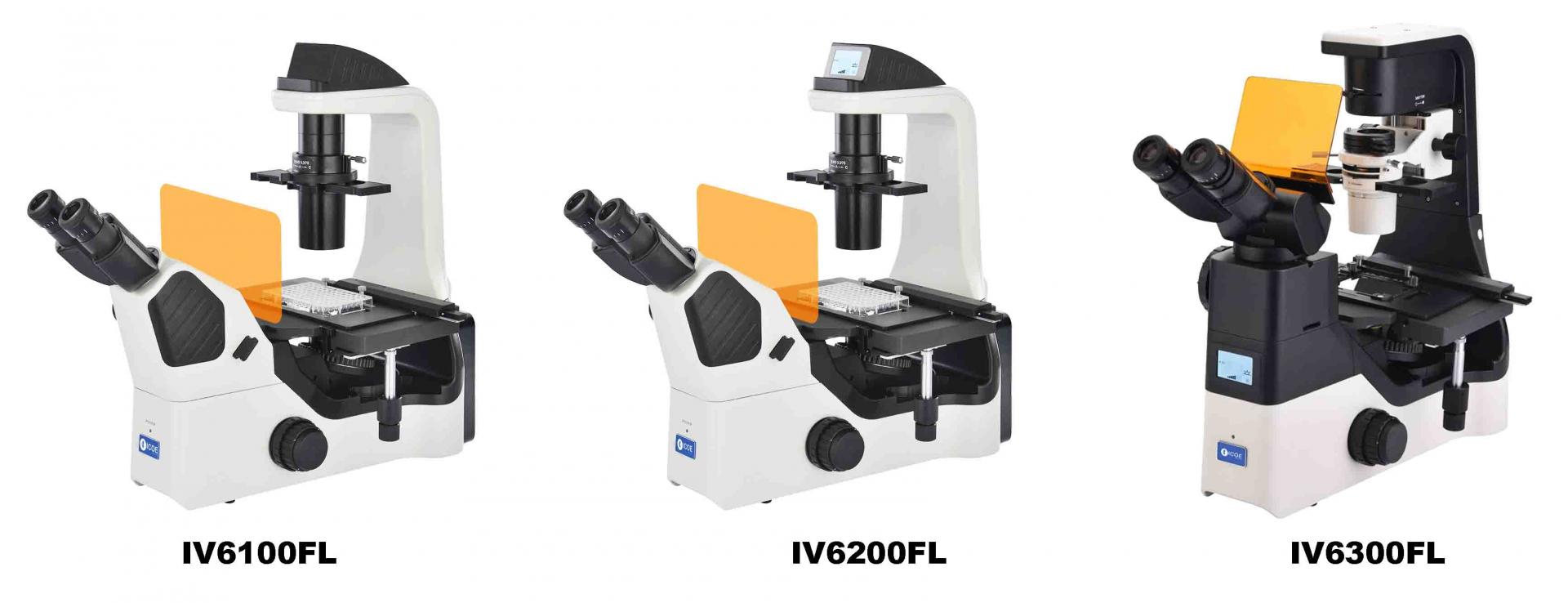

Model IV6100FL IV6200FL IV6300FL
Optical System: Infinity Corrected Optical System • • •
Viewing head:  Seidentopf viewing head inclined at 45°, interpupillary distance 48-75mm; additional camera port: eyepiece/port 100:0, 0:100                • •
Ergo. titling viewing head, adjustable from 0° to 35°, interpupilary distance 47-78mm, additional camera port: eyepiece/port 100:0, 0:100      •
Nosepiece:  Objective converter with 5 positions, with bidirectional rotation on ball bearings and click stop •
Objective coding converter with 5 positions. It can memorize the illumination brightness when using each objective. When different objectives are converted to each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency. • •
Eyepiece:  A pair of High-point, Extra Wide Field Eyepiece EW10×/22mm • • •
WF15x/16mm Eyepieces ○ ○ ○
WF20x/12mm Eyepiece ○ ○ ○
Objective Infinity plan objective 4x/0.1, WD 30mm • ○ ○
Infinity plan objective 10x/0.25, WD 10.2mm ○ ○ ○
Infinity plan objective 20x/0.4, WD 12mm ○ ○ ○
Infinity plan objective 40x/0.6, WD 2.2mm ○ ○ ○
Infinity phase contrast objective 10x/0.25, WD 10.2mm • • •
Infinity phase contrast objective 20x/0.4, WD 12mm • • •
Infinity phase contrast objective 40x/0.6, WD 2.2 • • •
Infinity plan semi-apochromatic phase contrast objective 4x/0.13, WD 17.78mm (optional for IV6200 model) ○ ○ ○
Infinity plan semi-apochromatic phase contrast objective 10x/0.3, WD 7.4mm (optional for IV6200 model) ○ ○ ○
Infinity plan semi-apochromatic phase contrast objective 20x/0.45, WD 8mm (optional for IV6200 model) ○ ○ ○
Infinity plan semi-apochromatic phase contrast objective 40x/0.60, WD 3.3mm (optional for IV6200 model) ○ ○ ○
Infinity plan semi-apochromatic phase contrast objective 60x/0.70, WD 1.9mm (optional for IV6200 model) ○ ○ ○
Infinity plan semi-apochromatic phase contrast objective 20x/0.45, with collar ring for adjustment of working distance between 7.5-8.8mm (optional for IV6200 model) ○ ○ ○
Infinity plan semi-apochromatic phase contrast objective 40x/0.60, with collar ring for adjustment of working distance between 3-4.4mm (optional for IV6200 model) ○ ○ ○
Infinity plan semi-apochromatic phase contrast objective 60x/0.70, with collar ring for adjustment of working distance between  1.8-2.6mm ○ ○ ○
Infinity plan semi-apochromatic fluorescent objective 4x/0.13, WD 17mm ○ ○ ○
Infinity plan semi-apochromatic fluorescent  objective 10x/0.3, WD 7.4mm ○ ○ ○
Infinity plan semi-apochromatic fluorescent objective 20x/0.45, WD 8mm ○ ○ ○
Infinity plan semi-apochromatic fluorescent objective 40x/0.60, WD 3.3mm ○ ○ ○
Stage:  Long-handle mechanical stage, plain stage 250×170mm, glass insert, moving stages 80×128mm, offering a optimal working condition for 5 types of optional holders (Slide glass holder Φ65mm, universal holder, terasaki holder, perti dish holder Φ54mm, perti dish holder Φ90mm), well clamper, culture flasks stage clip    • • •
Focusing:  Coaxial coarse and fine adjustment, the function of coarse tightness adjustment, fine division 1um, fine stroke 0.2mm per rotation, coarse stroke 37.5mm per rotation, up 7mm, down 1.5mm • • •
Condenser:  Long working distance condenser, numerical aperture 0.30, working distance 75 mm. The condenser can be removed in order to increase the working distance to 187 mm • • •
Condenser:  Slide-in condenser, numerical aperture 0.30, working distance 75mm • • •
Telescope  Centering Telescope ∅30mm • • •
Phase contrast: It adopts 10x/20x/40x Universal phase contrast slider, which is unnecessary to switch the phase contrast slide plate when changing the objective lens, which is more convenient for observation • • •
Illumination:  3W LED Transmitted light • • •
ECO:  No operator, turn off the light source automatically in 15 minutes (time can be set by operator) ○ • •
LCD Display: Function display magnification, timing sleep, brightness
indication and lock, etc
• •
Fluorescent kit: High brightness LED fluorescent attachment, that include: LED illuminatior (compared with the traditional mercury bulb, the LED elimiate frequent bulb replacements, saving time and money. Also of preheating, cooling, and high temperture is solved); fluorescent Filter cubes with noise terminator; the mechanism configure is able to equip with max. 3 fluorescence filter cubes; come with attachable contrast shield; barrier to resist the ultraviolet light, with 3 standard fluorescent filters below: • • •
Blue excitation cube, excitation: BP460~490, dichroic mirror: DM500,barrier filter: BA520 • • •
Green excitation cube,excitation:BP510~550, dichroic mirror,DM570, barrier filter: BA590 • • •
Ultraviolet excitation cube, excitation: BP330~385, dichroic mirror: DM400, barrier filter: BA420 • • •
Supplied with:  Dust cover, Diameter 45mm, Blue, Green and Ground Glass • • •
Observing method: Brightfield, phase contrast, Hoffman phase contrast (optional), emboss contrast (optional), epi-fluorescence • • •
