Description
Models & Specifications
| Model | IV6600B | IV6600T | IV6600F-LED | |

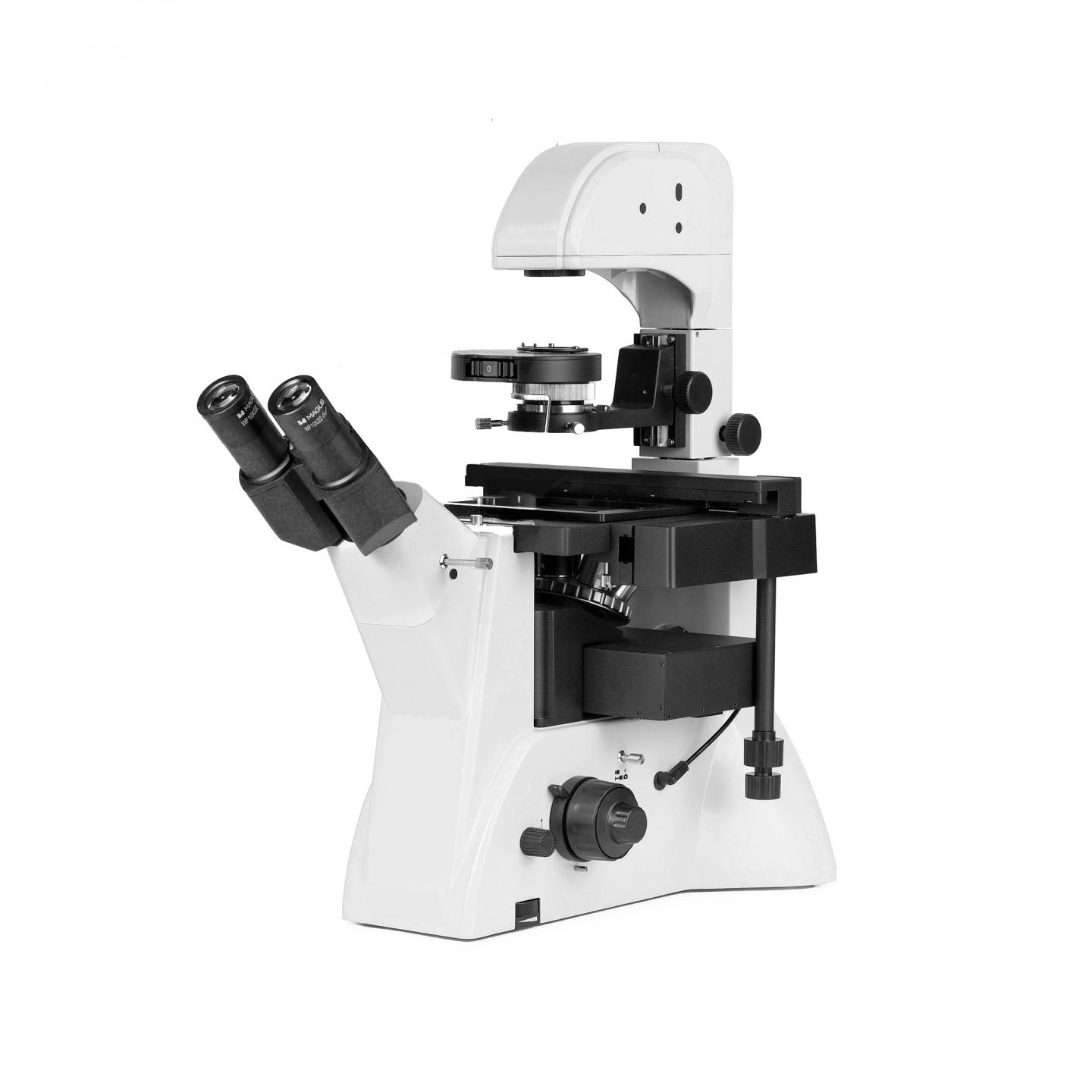

| Descriptions: | Designed for observing samples in laboratory containers with a height of up to 55 mm and a bottom thickness of up to 1.2 mm. When the illuminator support is tilted, containers up to 165 mm in height can be used. Supports brightfield and phase contrast techniques; equipped with a phase contrast condenser with field diaphragm. Microscope head can be rotated 180° | ● | ● | ● |
| Viewing head: | Binocular viewing head with eyetube inclined 45˚ and interpupillary distance is 48~75mm | ● | ● | |
| Trinocular viewing head with eyetube inclined 45˚ and interpupillary distance is 48~75mm. with trinocular port | ● | |||
| Digital port: | Digital port on body of left side, can be connected to digital port by selecting a C mount | ● | ● | ● |
| Eyepiece: | Wide field eyepiece WF10X/22mm | ●● | ●● | ●● |
| Centering telescope | ● | ● | ● | |
| Nosepiece: | Quintuple nosepiece | ● | ● | ● |
| Objective: | Infinity plan achroamtic objective PLL 10X0.25 Work distance:4.3 mm,Cover glass thickness:1.2mm. | ● | ● | ● |
| Infinity plan achroamtic objective PLL 20X0.40 Work distance:8.0 mm,Cover glass thickness:1.2mm. | ● | ● | ● | |
| Infinity plan achroamtic objective PLL 40X0.60 Work distance:3.5 mm,Cover glass thickness:1.2mm. | ● | ● | ● | |
| Infinity plan phase contrast achromatic objective: PLL 10x/0.25 PHP2 WD 4.3mm | ● | ● | ● | |
| Infinity plan phase contrast achromatic objective: PLL 20x/0.40 PHP2 WD 8.0mm | ○ | ○ | ● | |
| Infinity plan phase contrast achromatic objective: PLL 40x/0.60 PHP2 WD 3.5mm | ○ | ○ | ● | |
| Infinity plan fluorescent objective 4X/0.13 Work distance: 18.95 mm | ○ | ○ | ○ | |
| Infinity plan fluorescent objective 10X/0.30 Work distance: 7.27 mm | ○ | ○ | ○ | |
| Infinity plan fluorescent objective 20X/0.45 Work distance: 6.03 mm | ○ | ○ | ○ | |
| Infinity plan fluorescent objective 40X/0.65 Work distance: 1.79 mm | ○ | ○ | ○ | |
| Infinity plan fluorescent objective 60X/0.75 Work distance: 1.28 mm | ○ | ○ | ○ | |
| Stage: | Fixed stage overall size 227 x 208mm, glass rotundity stage overall size Ф118mm, with mechanical moving device, moving range 77 x 114mm | ● | ● | ● |
| with culture dish holder 1, inside locating slot size: 86mm (W) x 129.5mm (L), optional with a circular culture dish Ф90mm | ● | ● | ● | |
| with culture dish holder 2, inside locating slot size: 34mm (W) x 77.5mm (L), optional with a circular culture dish Ф68.5mm | ● | ● | ● | |
| with culture dish holder 3, inside locating slot size: 57mm (W) x 82mm (L) optional with a circular culture dish Ф60mm | ● | ● | ● | |
| with culture dish holder 4, inside locating slot size: 29mm (W) x 77.5mm (L) optional with a circular culture dish Ф35mm | ● | ● | ● | |
| Focus system: | Coaxial coarse & fine focus, with tension adjustable and up stop, minimum division of fine focusing is 2μm. | ● | ● | ● |
| Condenser: | Turret phase contrast condenser NA0.6, working distance is 55mm, up to 165 mm if the illuminator support is tilted | ● | ● | ● |
| Transmitted light: | 5W LED lamp, brightness adjustable | ● | ● | ● |
| 12V 30W Halogen lamp, brightness adjustable | ○ | ○ | ○ | |
| Filter: | Frosted glass and blue, green filter | ● | ● | ● |
| Front LCD: | The LCD screen on the front of the microscope displays the use status of the microscope, including magnification, light intensity | ○ | ○ | ○ |
| Epi-fluorescent illumination: | 5W high brightness LED lighting | ○ | ○ | • |
| Filter set DAPI, wavelength of excitation light 365/35nm, wavelength of emitted light 450/65nm | ○ | ○ | • | |
| Filter set FITC, wavelength of excitation light 475/40nm, wavelength of emitted light 535/45nm | ○ | ○ | • | |
| Filter set TRITC, wavelength of excitation light 525/45nm, wavelength of emitted light 595/60nm | ○ | ○ | • | |
| Filter set TEXASERED, wavelength of excitation light 560/55nm, wavelength of emitted light 645/75nm | ○ | ○ | ○ | |
| Filter set CY5, wavelength of excitation light 607/75nm, wavelength of emitted light 695/55nm | ○ | ○ | ○ | |
Optional Accessories
| Order code | Descriptions |
| MICV660001 | Wide field eyepiece WF10X/22mm |
| MICV660002 | Wide field eyepiece 10x/22mm with a scale |
| MICV660003 | Wide field eyepiece 12.5x/14mm |
| MICV660004 | Wide field eyepiece 15x/15mm |
| MICV660005 | Wide field eyepiece 20x/12mm |
| MICV660006 | Wide field eyepiece 25x/9mm |
| MICV660007 | Eyecups |
| MICV660008 | Siedentopf binocular tube, with an observation angle of 30°, and a pupil distance of 48-75mm |
| MICV660009 | Siedentopf trinocular tube, with an observation angle of 30°, and a pupil distance of 48-75mm |
| MICV660010 | Infinity plan achromatic objective: PLL 10x/0.25 phase WD 4.3mm |
| MICV660011 | Infinity plan achromatic objective: PLL 20х/0.40 WD 8.0mm |
| MICV660012 | Infinity plan achromatic objective: PLL 40х/0.60 WD 3.5mm |
| MICV6PL60X | Infinity plan achromatic objective: PL 60х/0.70 WD 1.28mm |
| MICV660013 | Infinity plan phase contrast achromatic objective: PLL 10x/0.25 PHP2 WD 4.3mm |
| MICV660014 | Infinity plan phase contrast achromatic objective: PLL 20x/0.40 PHP2 WD 8.0mm |
| MICV660015 | Infinity plan phase contrast achromatic objective: PLL 40x/0.60 PHP2 WD 3.5mm |
| MICV660016 | Infinity plan fluorescent objective 4X/0.13 Work distance: 18.95 mm |
| MICV660017 | Infinity plan fluorescent objective 10X/0.30 Work distance: 7.27 mm |
| MICV660018 | Infinity plan fluorescent objective 20X/0.45 Work distance: 6.03 mm |
| MICV660019 | Infinity plan fluorescent objective 40X/0.65 Work distance: 1.79 mm |
| MICV660020 | Infinity plan fluorescent objective 60X/0.75 Work distance: 1.28 mm |
| MICV66DIC1 | Infinity plan DIC objective 5x/0.12, WD: 18.2mm |
| MICV66DIC2 | Infinity plan DIC objective 10x/0.25, WD: 20.2mm |
| MICV66DIC3 | Infinity plan DIC objective 20x/0.35, WD: 6.0mm |
| MICV6MTC55 | Long working distance turret modulation contrast condenser, working distance is 55mm |
| MICV66M10X | Infinity Modulation Contrast Objective: PLL 10x/0.25 PMC WD 4.3mm |
| MICV66M20X | Infinity Modulation Contrast Objective: PLL 20x/0.40 PMC WD 8.0mm |
| MICV66M40X | Infinity Modulation Contrast Objective: PLL 40x/0.60 PMC2 WD 3.5mm |
| MICV6MPC55 | Long working distance modulation contrast condenser with sliding plate, working distance is 55mm |
| MICV660021 | Quintuple nosepiece |
| MICV6600N6 | Sextuple nosepiece |
| MICV660022 | Mechnical attachment for the stage with, moving range 114x77mm |
| MICV66X023 | Culture dish holder, inside locating slot size: 86mm (W) x 129.5mm (L), optional with a circular culture dish Ф90mm |
| MICV66X024 | Culture dish holder, inside locating slot size: 34mm (W) x 77.5mm (L), optional with a circular culture dish Ф68.5mm |
| MICV66X025 | Culture dish holder, inside locating slot size: 57mm (W) x 82mm (L) optional with a circular culture dish Ф60mm |
| MICV66X026 | Culture dish holder, inside locating slot size: 29mm (W) x 77.5mm (L) optional with a circular culture dish Ф35mm |
| MICV6600UH | Universal holder |
| MICV66X027 | Fluorescence kit with 5W LED Light Source, with standard 3 fluorescent filters |
| MICV66X028 | blue (B), 450–490nm/505nm/515nm; |
| MICV66X029 | green (G), 495–555nm/585nm/595nm |
| MICV66X030 | ultraviolet (UV), 320–380nm/425 nm/435 nm; |
| MICV66X031 | violet (V), 380–415nm/455nm/475nm |
| MICV660CY5 | Filter set CY5, wavelength of excitation light 607/75nm, wavelength of emitted light 695/55nm |
| MICV66MCC1 | Phase contrast turret condenser NA0.6 |
| MICV66DIC4 | DIC Condenser NA0.3 |
| MICV66DIC5 | DIC kit, including DIC plate for nosepiece & DIC plate for condenser |
| MICV6MTC55 | Long working distance turret modulation contrast condenser |
| MICV6MPC55 | Long working distance modulation contrast condenser with sliding plate |
| MICV6LED5W | 5W LED for transmitted light |
| MICV6HAL30 | 30W halogen bulb for transmitted light |
| MICV66C10X | 1x C mount adapter for digital camera |
| MICV66C05X | 0.5x C mount adapter for digital camera |
| MICV66C05D | 0.5x C mount with dividing 0.1mm/Div for digital camera |
| MICV66C04X | 0.4x C mount adapter for digital camera |
| MICV660038 | Calibration slide |
| DP1105L8 | DP1-Pro tablet with 10.5″ touchscreen, integrated with 4K 8MP camera, 1/2″ sensor, 2.0×2.0um, CMOS chip, with 1 x HDMI port, 2 x USB3.0 ports, 1 x USB2.0 port, 1x Gigabit Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 5.0, Image: 30@3840*2160, support 1080 video, with Android OS system, built-in image process software |
| DITA002 | DP2 tablet with 11.6″ touchscreen, integrated with 16MP camera, 1/2.3″ sensor, 1.34×1.34um, CMOS chip, with 1 x HDMI port, 3x USB2.0 port, 1x Lan port, 2.4GHz/5GHz dual-band WIFI, support WIFI6, Support Bluetooth 4.2, effective pixel: 30@4672×3500, support 1920×1080 video, FPS60 with windows 11 OS system, built-in image process software |
