Description

IV6000 Series Inverted Microscopes, Designed for Satisfying Needs of Modern Laboratories, Clinics and Universities.

IV6000 Series inverted microscope makes reasonable improvement on basis of scientific research microscope. More suitable for laboratory observation of cells.

ROUTINE IN UNIVERSITIES, LABS & INDUSTRIES

• Adopt long life LED light source and infinity optical system, easy to obtain high-definition and high contrast wide viewing images.
• The body is compact and stable, and the operation buttons are well arranged, the cells can be observed, sampled and processed in the super clean bench freely.

THE OPTIMAL PARTNER FOR ROUTINE TASKS

• Using 3 different color filter, it widely enlarges selectivity for dye. LED illumination with large intensity and even brightness provides support for high quality fluorescence observation.
• With standard camera port, ICOE camera and image processing software, providing low nose, high sensitivity and resolution image.

 Professional Cell Observation

Ergonomic design, comfortable operation

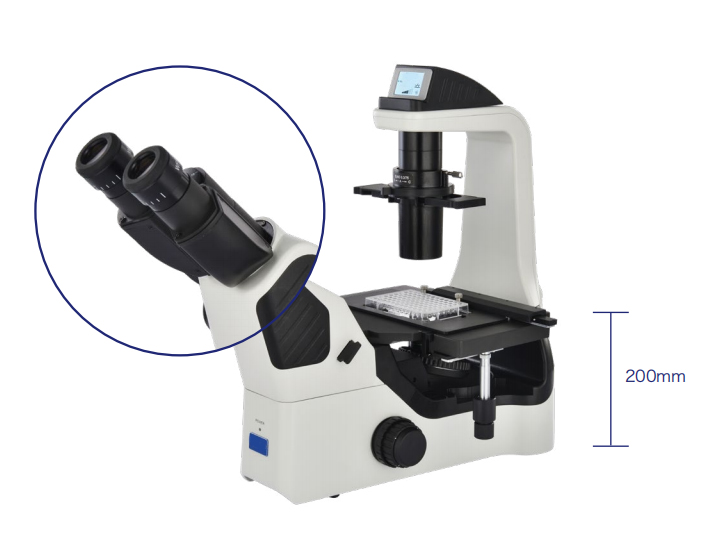

· 45° Inclined Viewing Head

Inclined viewing head makes the user to operate microscope in a comfortable position. Minimize muscle tension and discomfort caused by long working hours.

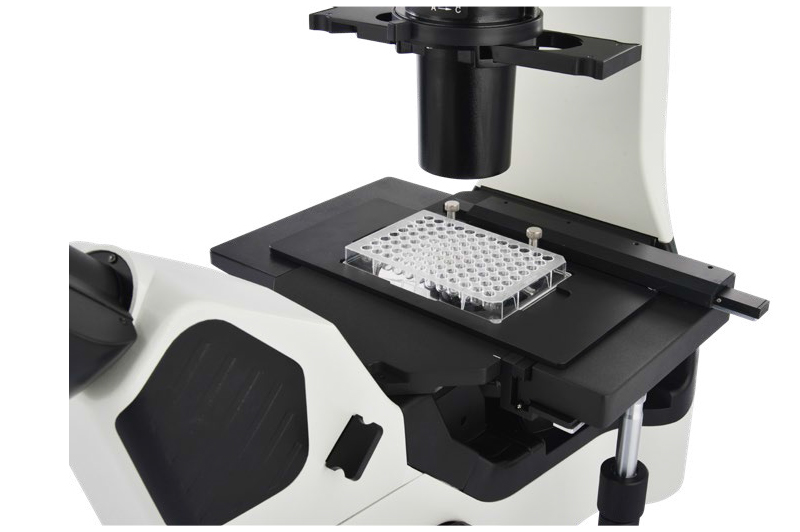

· Long-handle mechanical stage

The user can make comfortable and smooth movement during the operation, thereby improving work efficiency and comfort.

High brightness, long lifetime LED Illumination

·LED illuminator, suitable for various observation

With a high brightness and long lifetime LED illumination system for both transmission and fluorescent lighting, proving even brightness and cool lighting.

Intelligent operating system

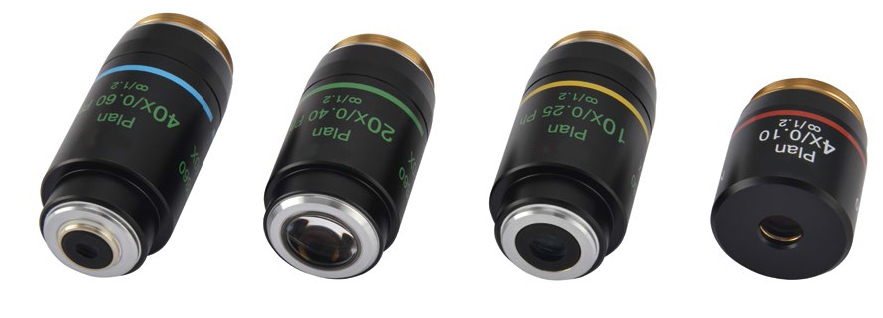

· Objective coding converter

It can memorize the illumination brightness when using each objective. When different objectives are converted to each other, the light intensity is automatically adjusted to reduce visual fatigue and improve work efficiency.

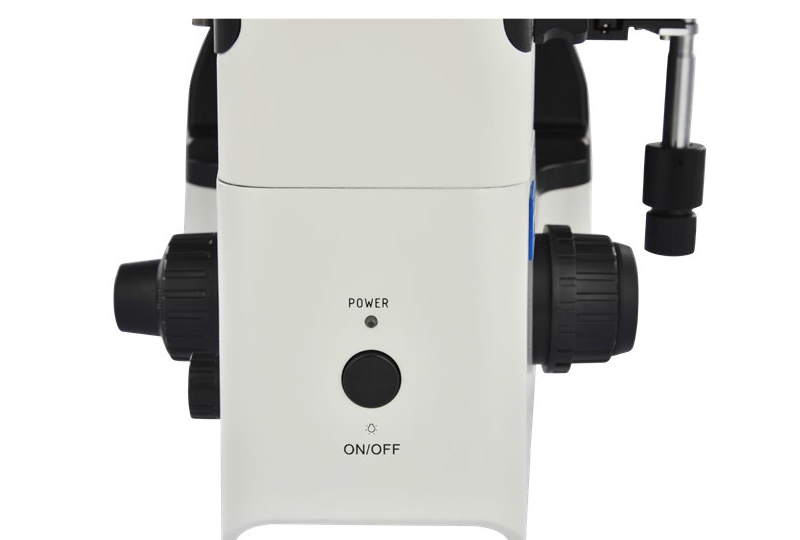

· Use a dimming knob to achieve multiple functions

Click: Enter standby status

Double click: light lock or unlock

Rotation: Adjust brightness

Press + up-spin: Switch to the upper light source

Press + down-spin: Switch to the under light source

Press 3 seconds: Set the time of turning off the light after leaving

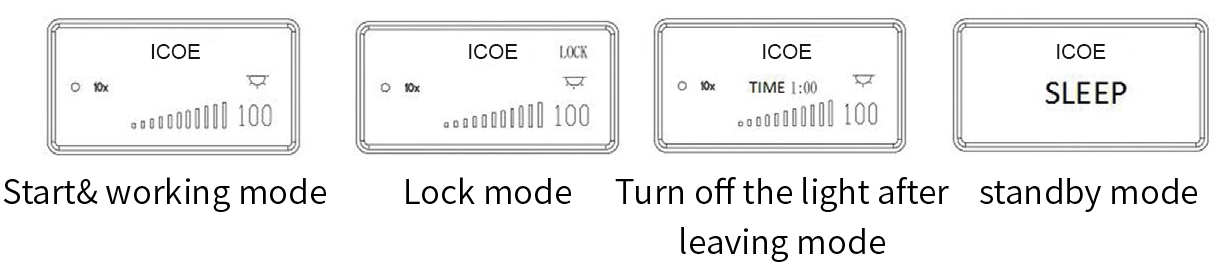

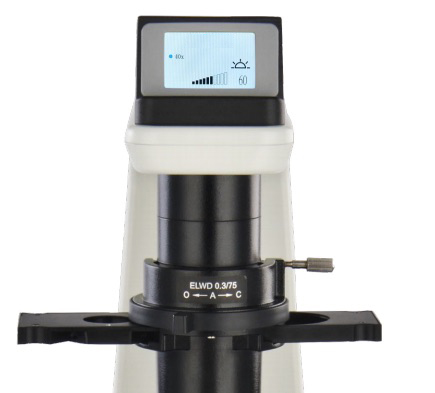

· The display of microscope use state

The liquid crystal screen on the front of the microscope can display the using state of the microscope, including

magnification, light intensity, standby status, and so on.

 More convenient for cell sampling and aseptic manipulation

The microscope control mechanism is reasonable in layout and easy to operate

The frequently used control mechanisms are close to the user and in low-hand position. This kind of design makes operation more quickly and conveniently, and reduce the fatigue caused by the long observation. On the other hand, it reduces the airflow and dust caused by large amplitude operation, and it is very effective to reduce the probability of sample pollution. It is a strong guarantee for the accuracy and repeatability of the experimental results.

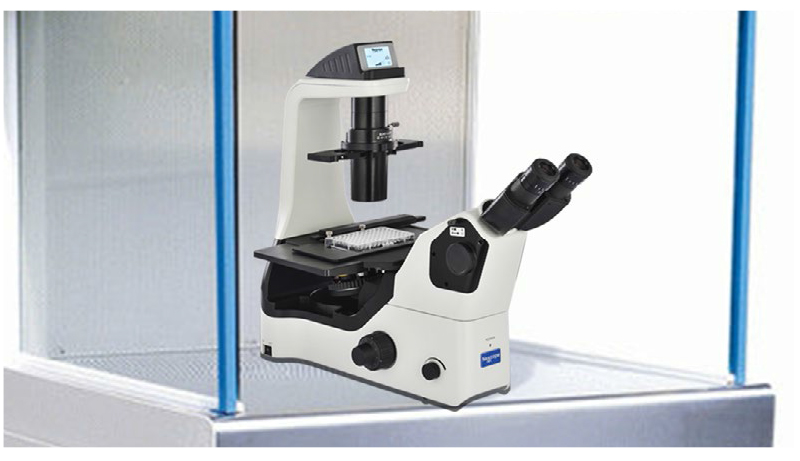

The body is compact, stable and suitable for clean bench

· Can be sterilized in the clean bench

On the premise of ensuring the effect of imaging, IV6000 is with relative compact design. The volume and weight of the body is reduced as much as possible in principle of stability. The compact body is with anti-UV coating and can be placed into the clean bench for sterilization under UV lamp.

· Cell sampling and operation can be performed in clean bench

The distance between the eye point to the operation button and the focusing knob of the IV6000 is relatively short, and the distance from the stage is far away. It is available to make the viewing head and operating mechanism outside, and stage, objectives and sample inside. So realize cell sampling and operation inside and observing comfortably outside.

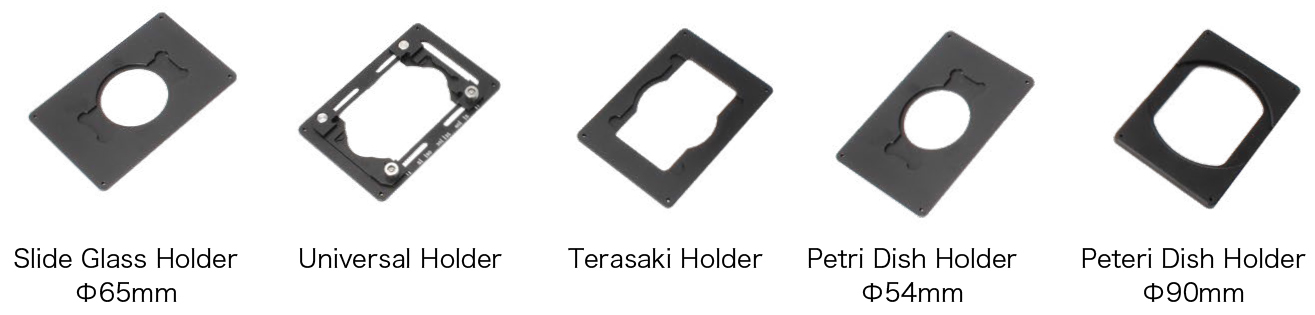

Various holders for different culture containers

Various holders are available for different culture containers, such as Petri dishes, well plates, and culture flasks. As well as available for different size Petri dishes.

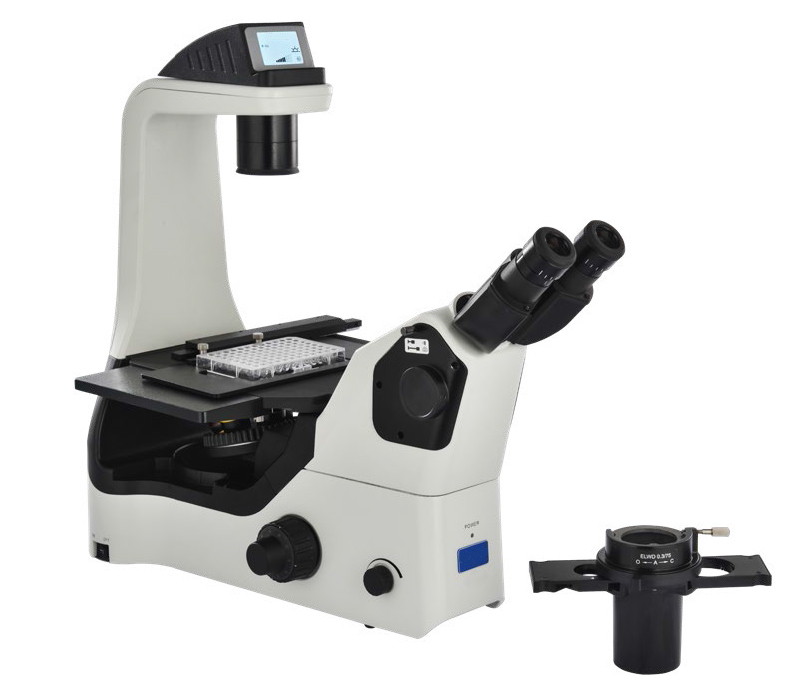

Detachable condenser

When culture flask is used, the condenser can be removed to increase working distance. It is also suitable for multilayer culture flask.

 Transmission

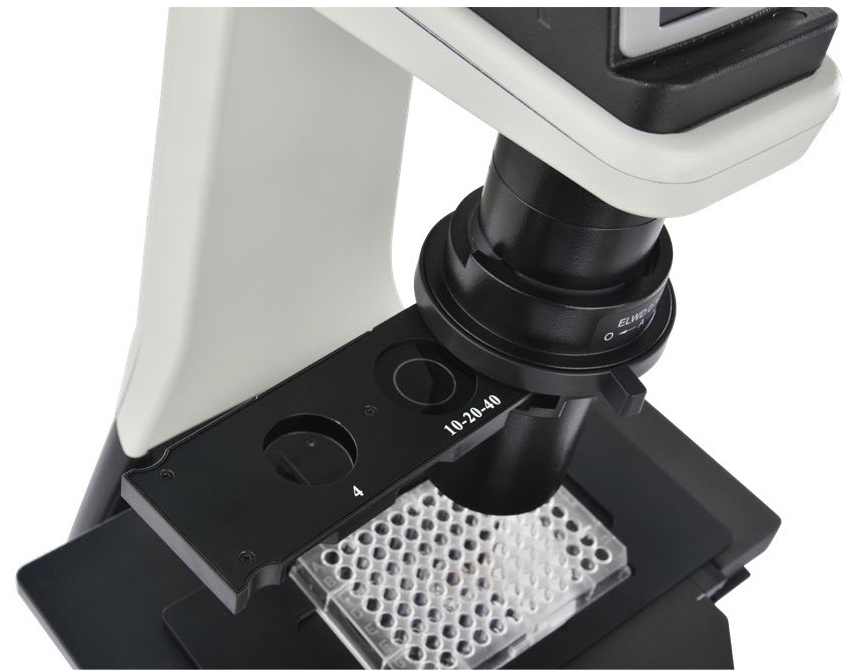

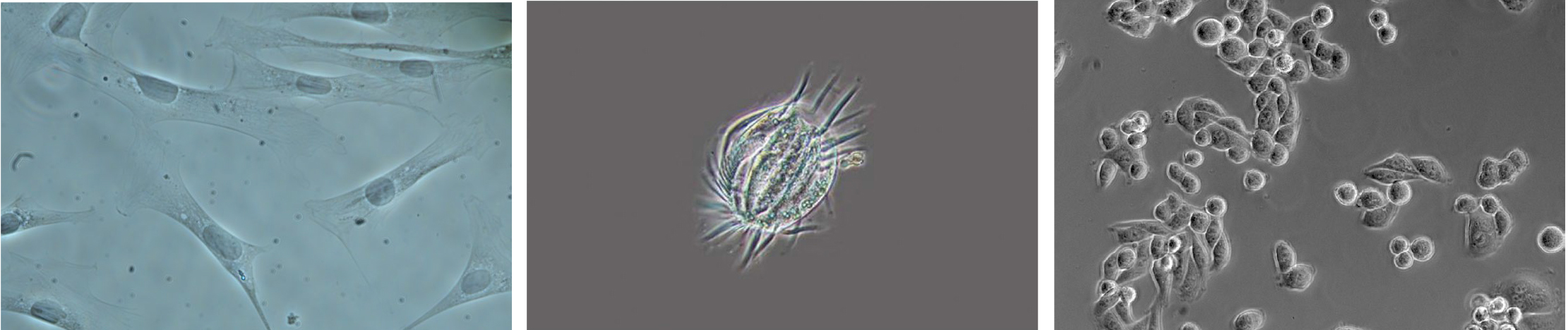

Phase Contrast

By using changes in the refractive index, high contrast microscopic images of transparent samples can be obtained with phase contrast observation technique. The advantage is that the details of live cell imaging can be obtained without staining and fluorescent dyes. Application range: Living cells in culture, Microorganism, Tissue slide, Subcellular graims (including cell nuclei and organelles).

Hoffman Modulation Phase Contrast

With slant light, changing phase gradient into light intensity variety, it can be used to observe unstained cells and living cells.

3D Emboss Contrast

Even without extra optical components, no glare 3D image can be obtained just through adding adjustment slider. Both glass and plastic petri dishes are available.

 Fluorescent Observation

LED light makes fluorescent observation easier

·Uniform brightness

Matching with Kohler illumination, the Fly-eye lens delivers uniform brightness to the entire filed of view, whether through the eyepiece or through CCD camera.

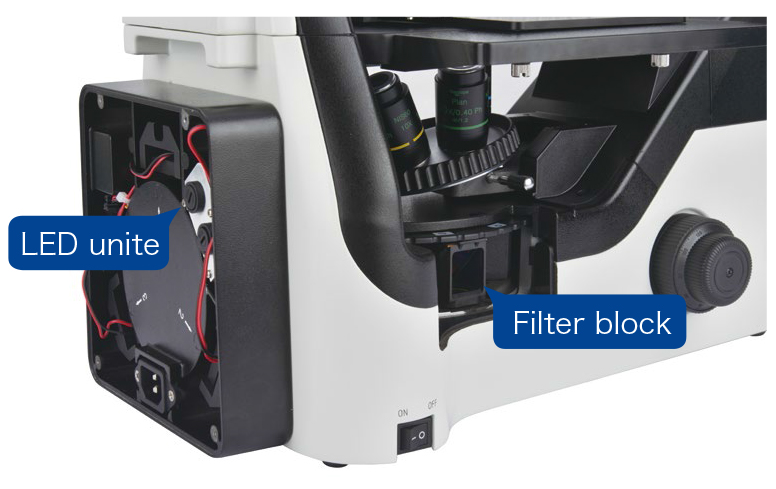

·LED Easy to use

Compared with the traditional mercury bulb, the LED eliminate frequent bulb replacements, saving time and money. Also the problems of preheating, cooling and high temperature is solved.

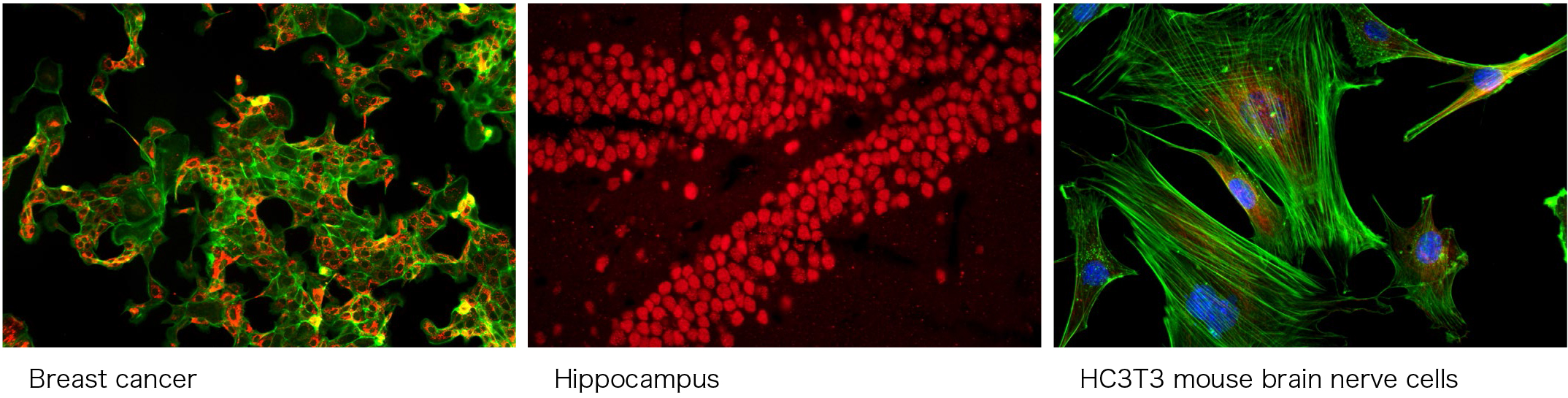

Suitable for a variety of fluorescent dyes

Equipped with 3 fluorescent filter blocks, it provides a wide range of choice of dyes and capture clear high contrast fluorescence images.

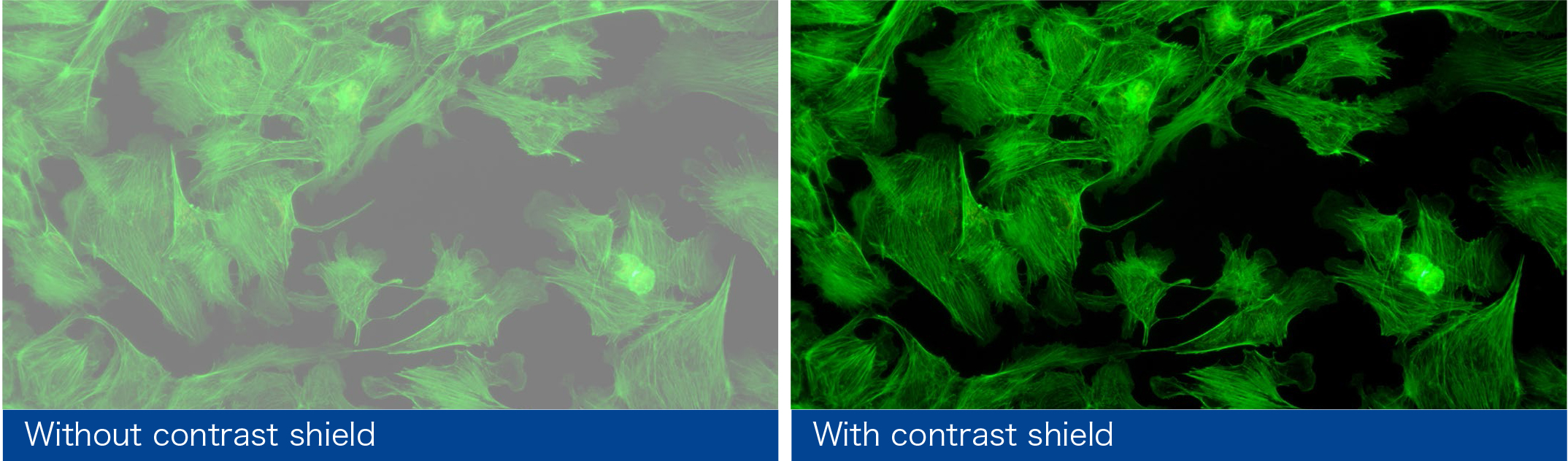

Contrast Shield

The Contrast Shield can effectively block the interference of the external light, increase the contrast of the fluorescent image, and provide a high signal-to-noise ratio fluorescent image. When need phase contrast observation, the Contrast Shield is very convenient to be removed from the light path, avoiding influence on the quality of phase contrast.

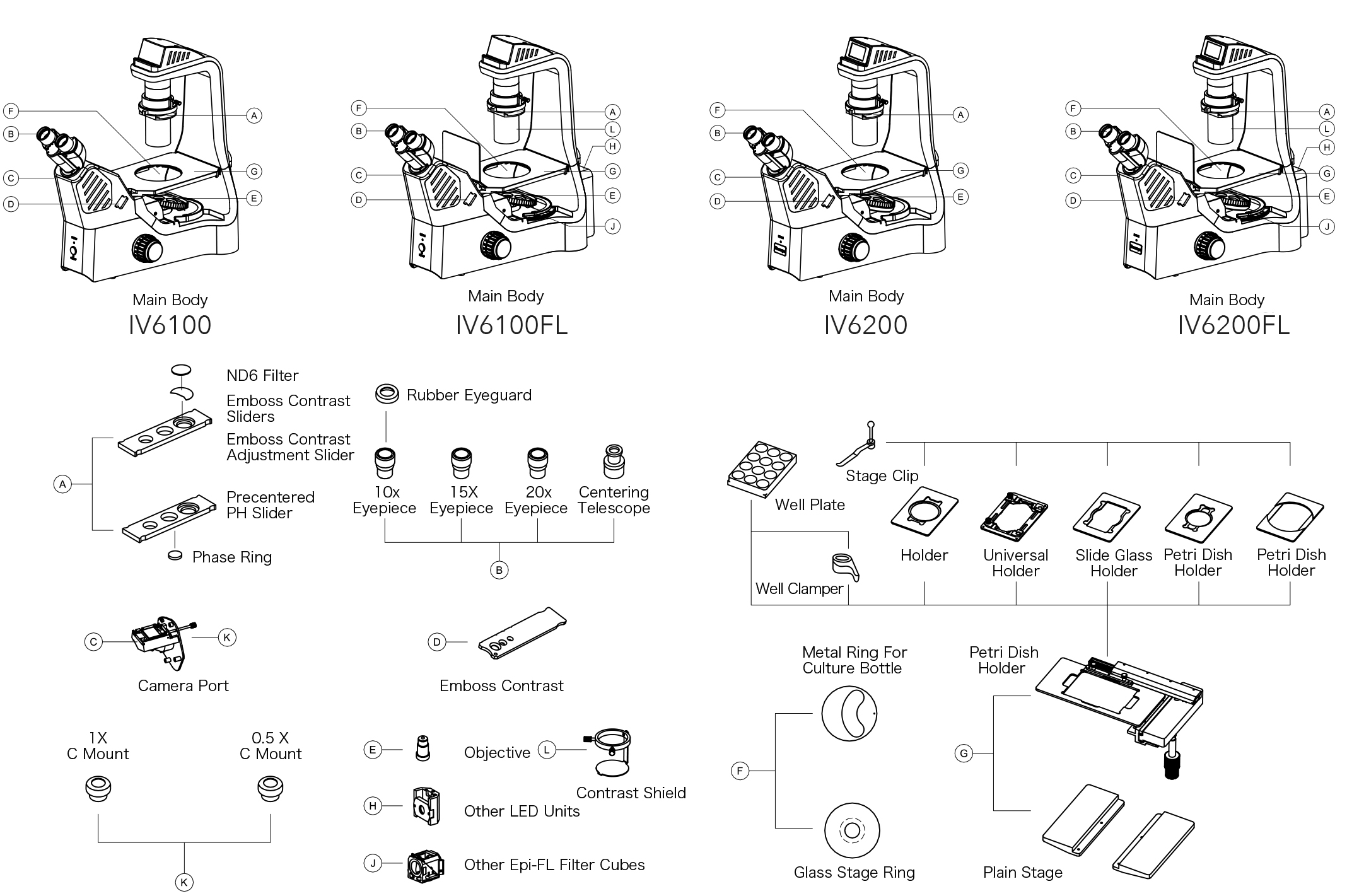

IV6000 Series System Diagram

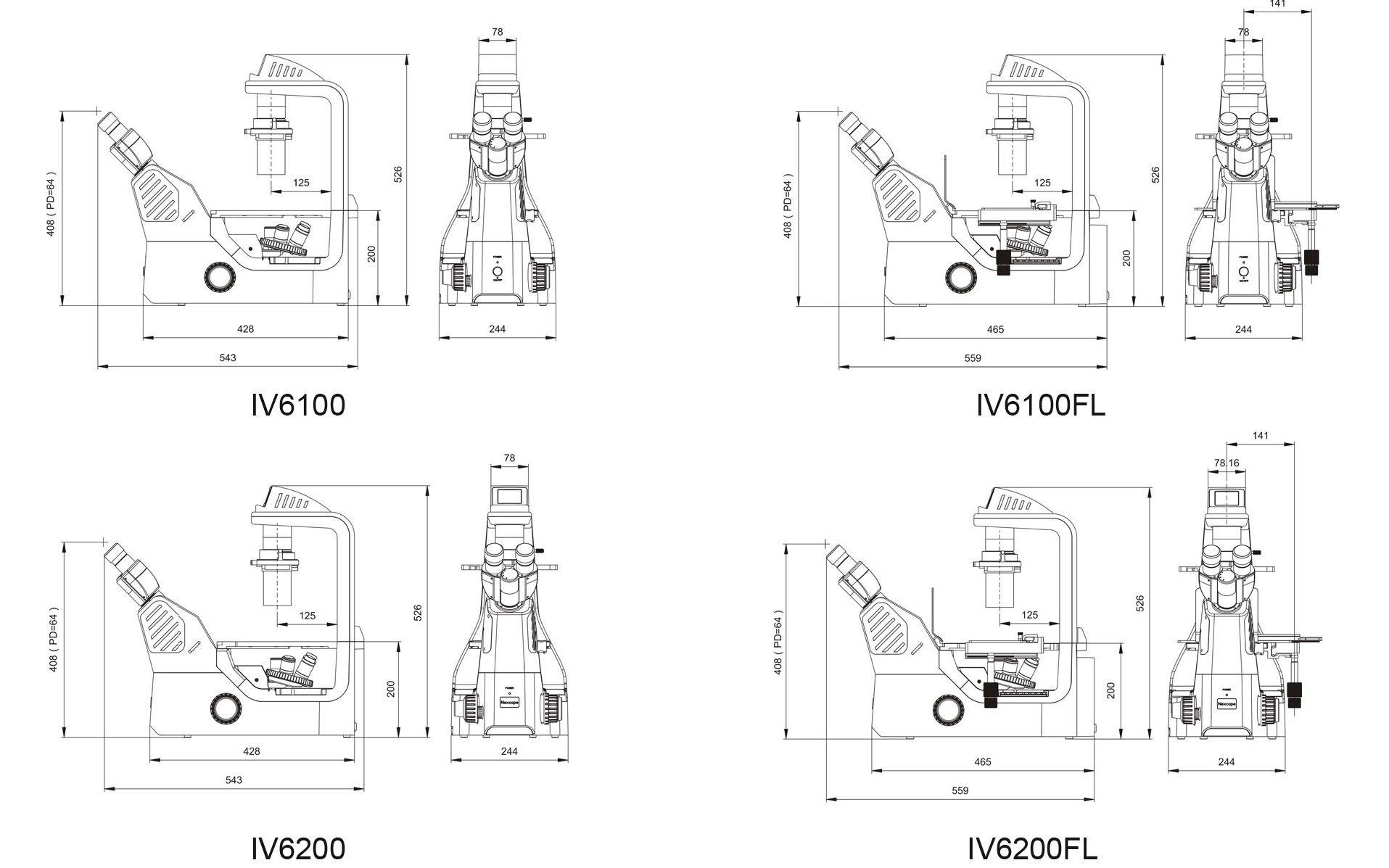

IV6000 Series Dimensions Figure

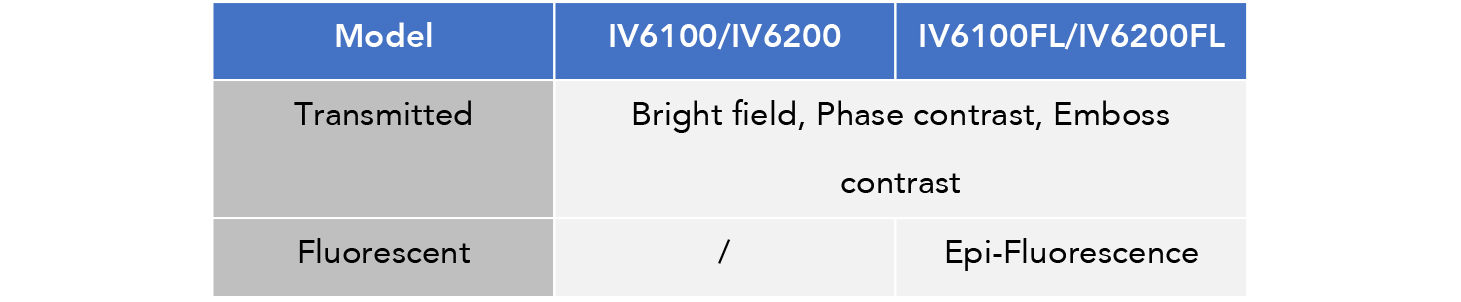

IV6000 Series’ Models and Specifications

Option Accessories List
