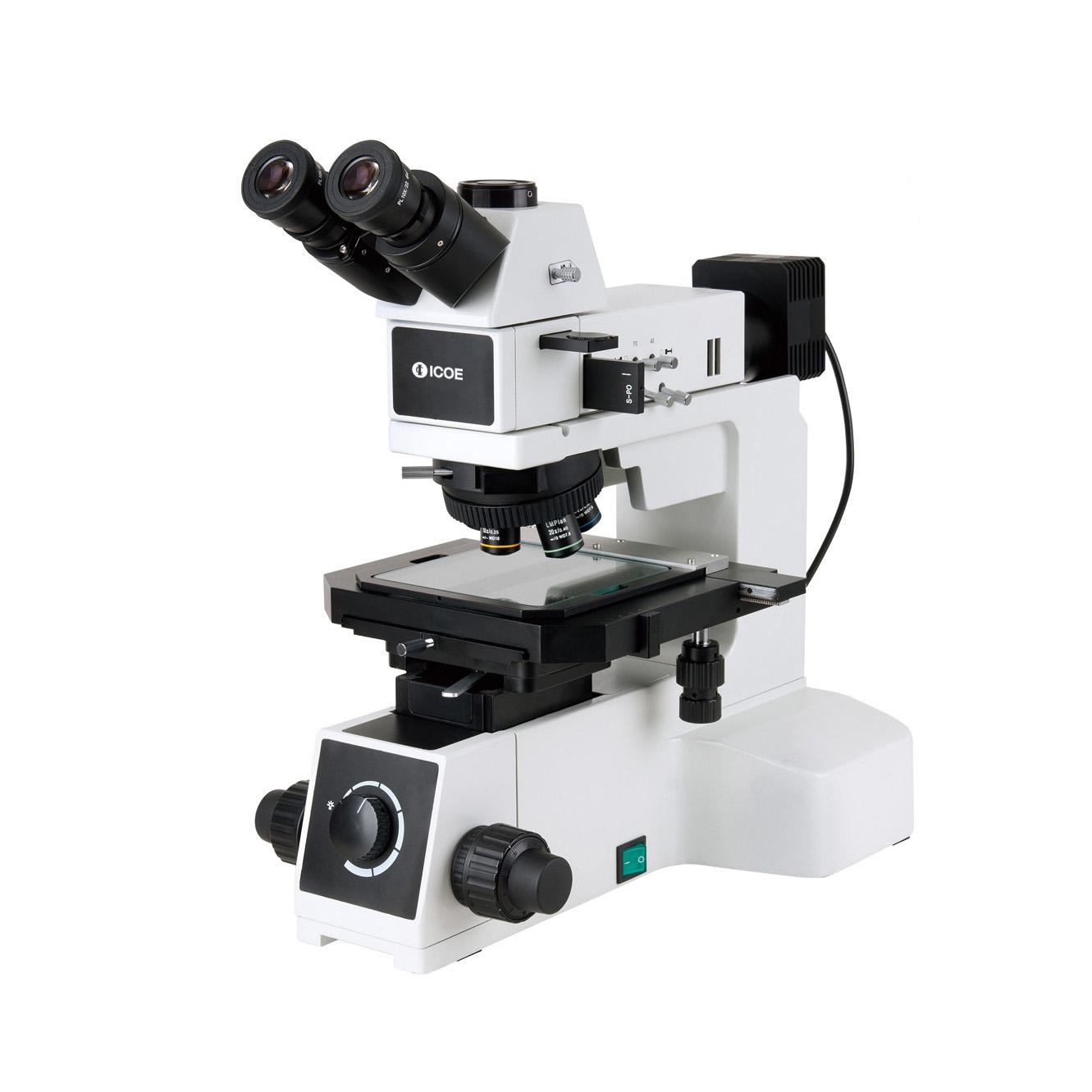

Models & Specifications
| Model | HFM04R | HFM04TR | |
| Optical System | Color Corrected Infinite Optical System (CCIS) | • | • |
| Viewing head: | Gemel trinocular viewing head, 30° inclined, Interpupilary 50-76mm, with light distribution 100/0, 50/50 | • | • |
| Eyepiece | High point eyepiece, wide-field plan eyepiece PL10X/22mm | •• | •• |
| High point eyepiece，wide-field plan eyepiece PL10X/22mm with reticle | ○ | ○ | |
| High point eyepiece，wide-field plan eyepiece PL10X/22mm，diopter adjustment | ○ | ○ | |
| High point eyepiece，wide-field plan eyepiece PL10X/22mm with reticle,diopter adjustment | ○ | ○ | |
| High point eyepiece，wide-field plan eyepiece PL15X/16mm | ○ | ○ | |
| Objective | LWD plan achromatic metallurgical objective 5X-DIC,LMPL5X/0.15 WD10.8mm | • | • |
| LWD plan achromatic metallurgical objective 10X-DIC,LMPL10X/0.3 WD10mm | • | • | |
| LWD plan achromatic metallurgical objective 20X-DIC,LMPL20X/0.45 WD4mm | • | • | |
| LWD plan achromatic metallurgical objective 50X,LMPLFL50X/0.55 WD7.5mm | • | • | |
| LWD plan achromatic metallurgical objective 100X,LMPLFL100X/0.8 WD2.1mm | ○ | ○ | |
| Nosepiece: | Reversed quintuple nosepiece, with DIC slot | • | • |
| Stage: | 4”double layers mechanical, moving range 105mmX105mm, with metal flat stage and a glass plate, right hand position X/Y moving hand wheel, with stage adaptor. Platform area 230X215mm.(right hand, reflected) | • | |
| 4”double layers mechanical, moving range 105mmX105mm, with glass flat stage, right hand position X/Y moving hand wheel, with stage adaptor. Platform area 230X215mm.(right hand, Reflected/Transmitted) | • | ||
| Main body: | Reflected body, Coaxial coarse and fine focus system, Coarse adjustment range 30mm, precision of fine adjustment: 0.001mm, with coarse adjustment stop and tightness adjustment | • | |
| Reflected/Transmitted body, Coaxial coarse and fine focus system, Coarse adjustment range 33 mm, precision of fine adjustment: 0.001mm, with coarse adjustment stop and tightness adjustment.Built-in 5W LED warm transmitted illuminator, transmitted and reflected light is adjustable indepedently. | • | ||
| Illumination: | Reflected illuminator with iris diaphragm and aperture diaphragm, both centers adjustable | • | • |
| Wide voltage 100V-240V, single high-power 5W LED,warm | • | • | |
| Polarizqation: | polarizer | • | • |
| DIC attachment | DIC attachment | ○ | ○ |
| Power: | Power supply: AC 110-240V 50Hz/60Hz wide range. | • | • |
| Interference filter: | Interference filter, Blue(Reflected)≤480nm | ○ | ○ |
| Interference filter, Green(Reflected)520nm-570nm | ○ | ○ | |
| Interference filter, Red(Reflected)630nm-750nm | ○ | ○ | |
| Interference filter, White balance filter(Reflected) | ○ | ○ | |
| C mount: | 0.35X C-mount, focusing adjustment | ○ | ○ |
| 0.5X C-mount, focusing adjustment | ○ | ○ | |
| 0.65X C-mount, focusing adjustment | ○ | ○ | |
| 1X C-mount, focusing adjustment | ○ | ○ | |
| Others: | micrometer, scale value:0.01mm | ○ | ○ |
| Flattening mill | ○ | ○ | |
| Digital Camera: | Optional (various camera models available, please refer to ICOE camera brochure) | ○ | ○ |
