HEX10 Series Research Metallurgical Microscope

Home Microscopy Metallurgical Microscopes HEX10 Series Research Metallurgical Microscope

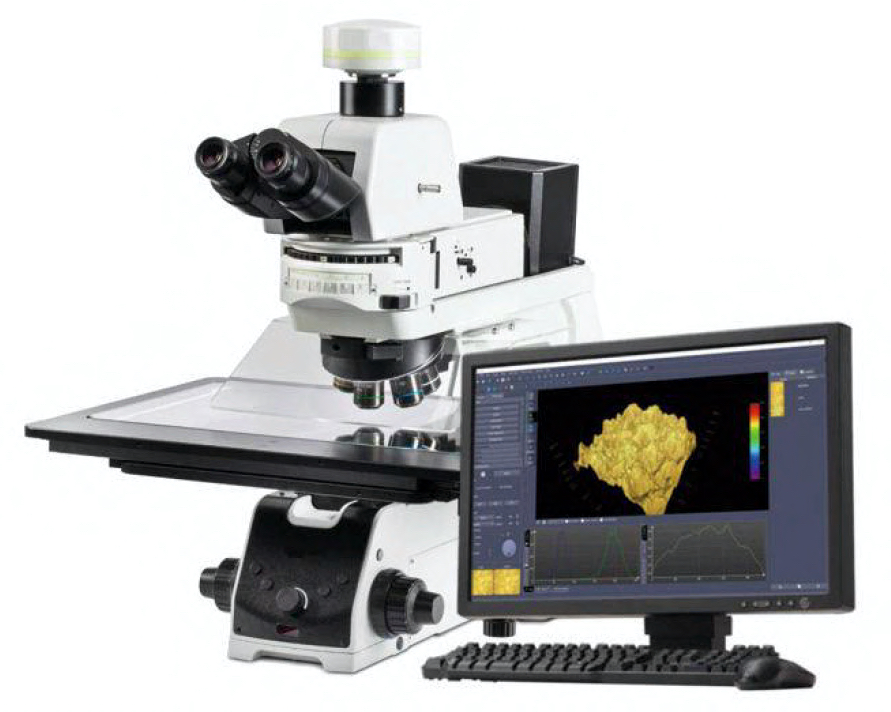

HEX10 Series Research Metallurgical Microscope

Metallurgical Microscopes2022-12-06n50

Description

Features

High Image Reduction

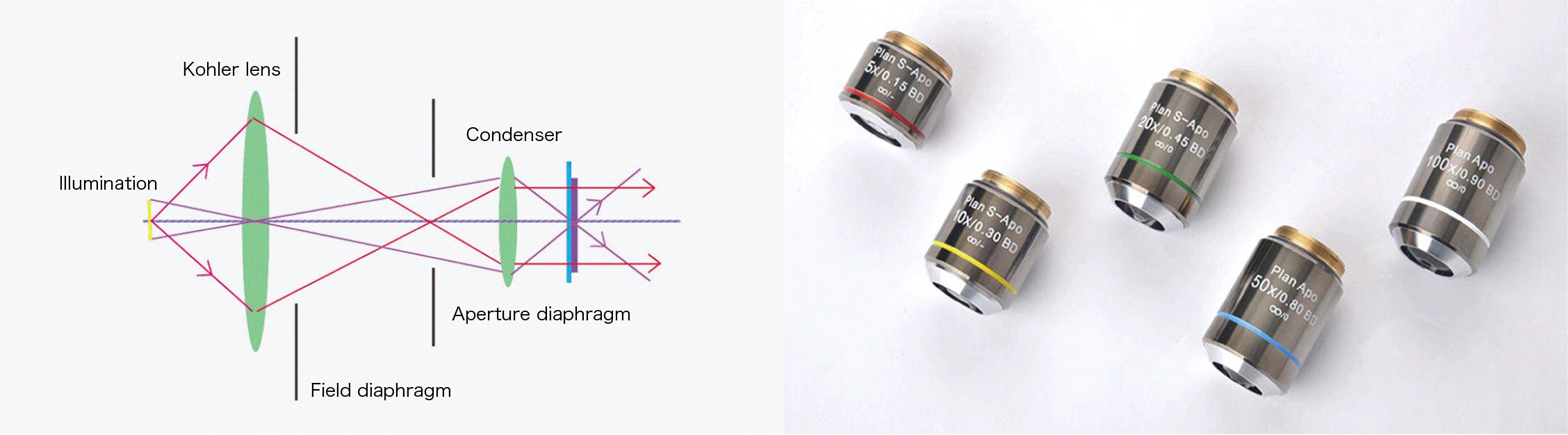

Kohler lens

Perfect microscopic illumination system — Kohler illumination, provides bright and uniform illumination throughout the viewing field. Coordinated with infinity optical system NIS45, high NA and LWD objective, perfect microscopic imaging can be provided.



NIS45 series objectives

By adopting multilayer coating technology, NIS45 series objective lens can compensate spherical aberration and the chromatic aberration from ultraviolet to near infrared. The sharpness, resolution and color rendition of the images can be guaranteed . The image with high-resolution and flat image for various magnifications can be got.

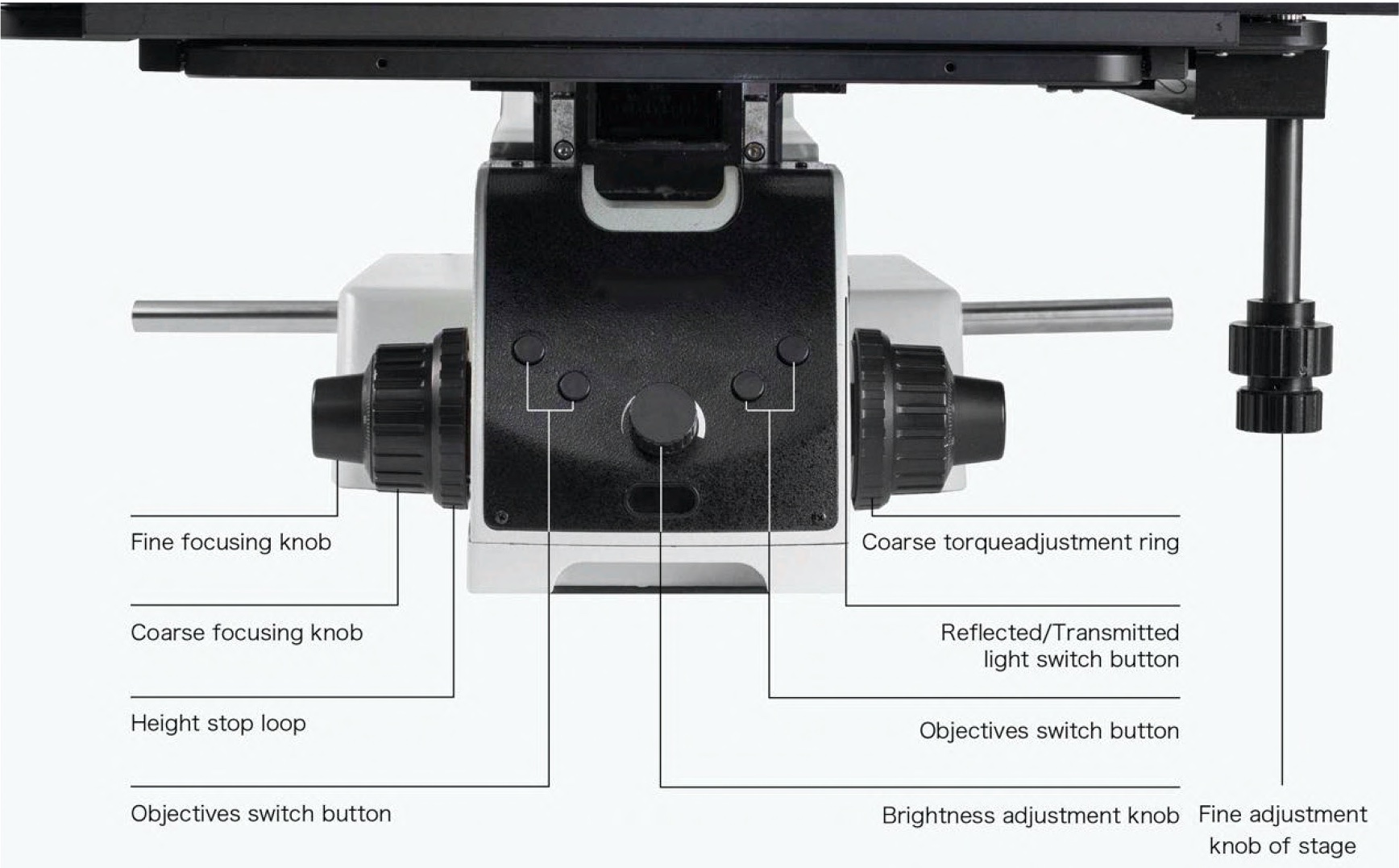

“Near Operator” Design

The operating panel of the microscope is located on the front of the microscope.

The control mechanism used for observation is located on the front of the microscope (near the operator), which makes the operation on the microscope more quickly and conveniently when observing the sample. And it can reduce the fatigue caused by long time observation and the floating dust brought by a big range of movement.



Humanized Design

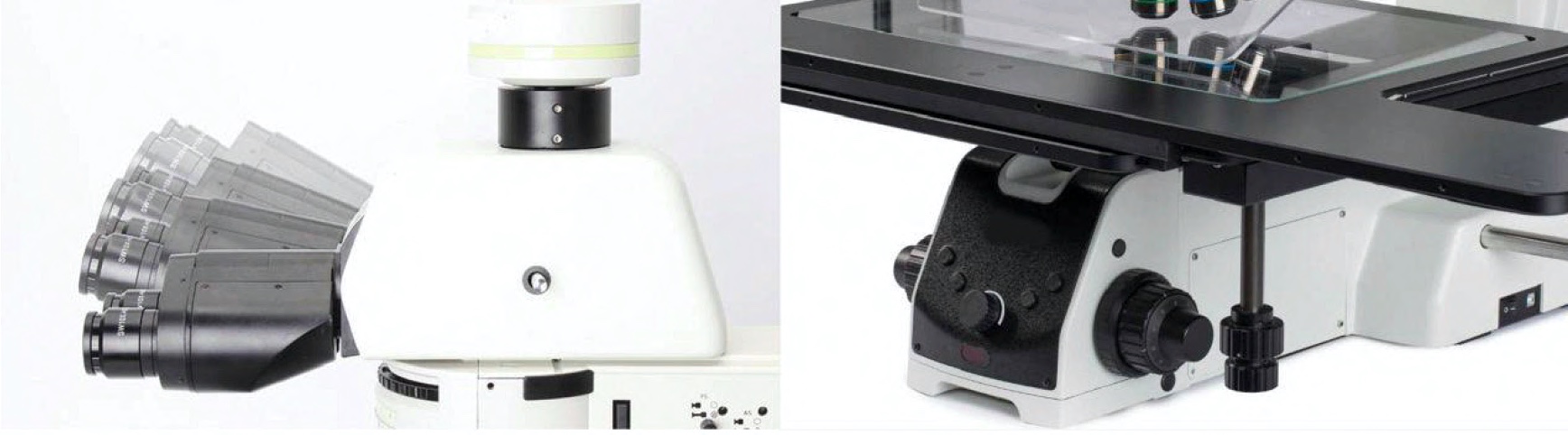

Ergo tilting trinocular viewing head

The Ergo tilting viewing head can make the micro observation work more comfortable, so as to minimize the muscle tension and discomfort caused by long hours of work.



Focusing mechanism and fine adjustment handle of stage with low hand position

The focusing mechanism and fine adjustment handle of stage adopt the low hand position design, which conforms to the ergonomic design, and gives the greatest degree of comfortable feeling.



More convenient for industrial sample observation

The built-in clutch handle of stage

It can realize the fast and slow moving mode of the stage and can quickly locate large-area samples. It will no longer be difficult to locate the samples accurately and quickly when co-using with the fine adjustment handle of stage.



Built-in control panel

The specific button is set to correspond with a specific objective, and then the magnification can be changed easily by one click.



More suitable for FPD and LSI sample

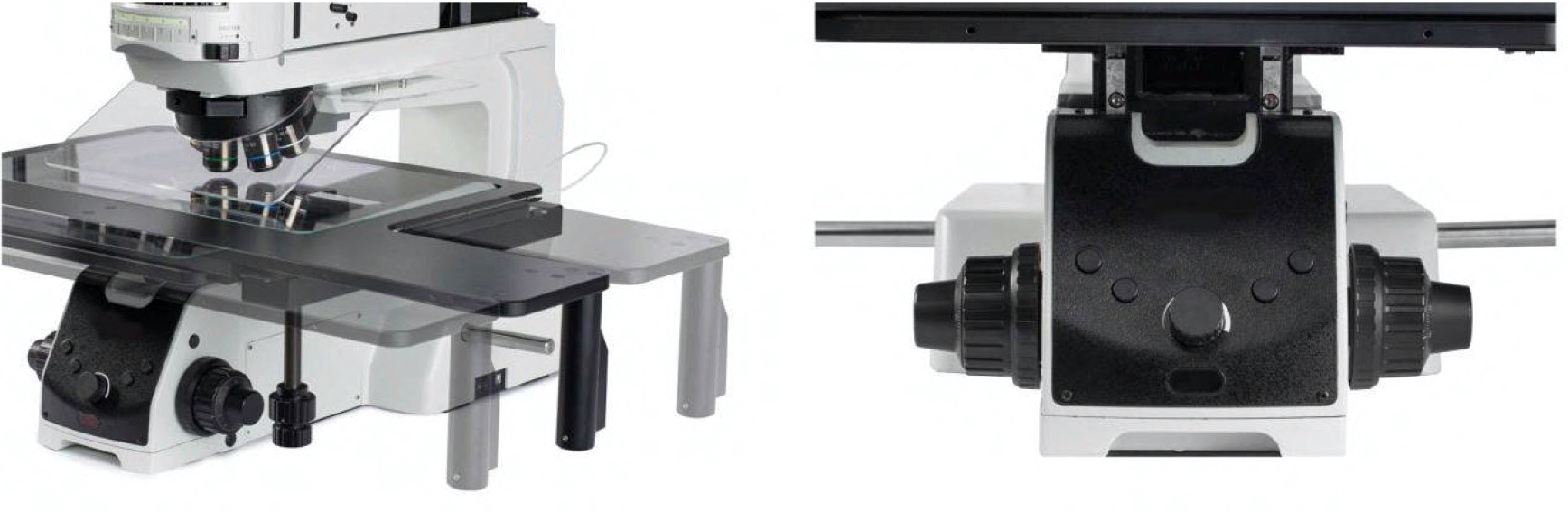

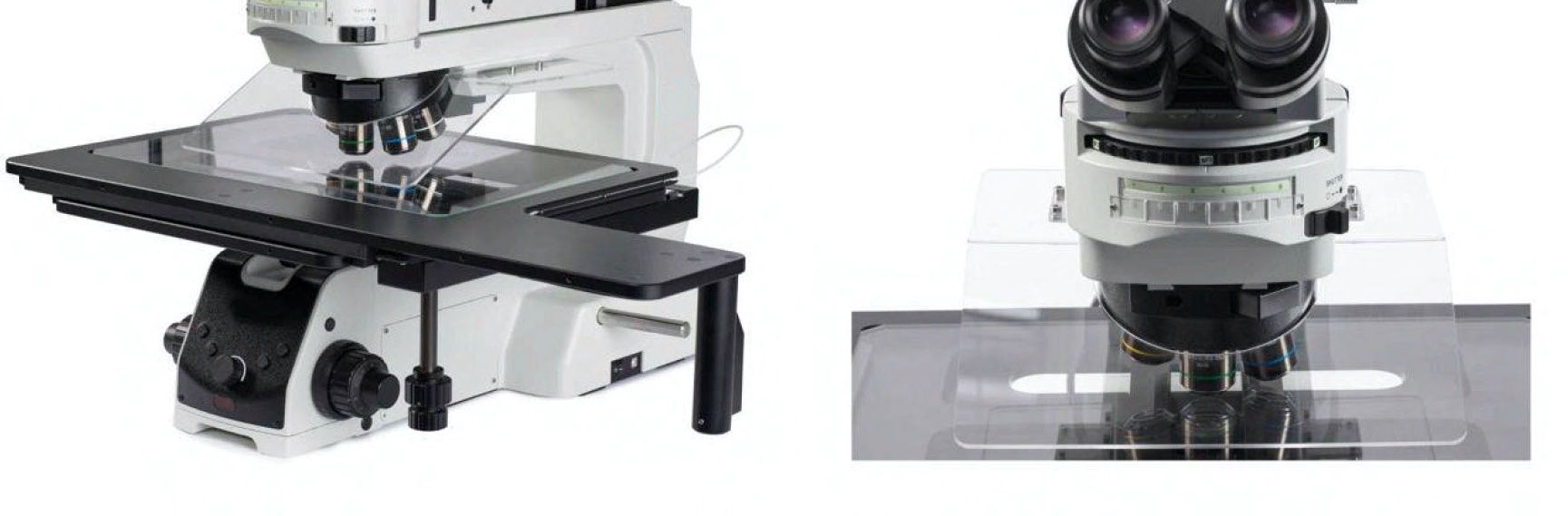

Oversized stage

The areas of microelectronics and semiconductor samples tend to be large, so ordinary metallographic microscope stage cannot meet their observation needs. HEX10 has a oversized stage with a large movement range, and it is convenient and easy to move. So it is an ideal tool for microscopic observation of large area industrial samples.



Anti-static protective cover

Industrial samples should be far away of floating dust, and a bit of dust can affect product quality and test results. HEX10 has a large area of anti – static protective cover, which can furthest prevent from the floating dust and fall dust so as to protect the samples and make the test result more accurate.

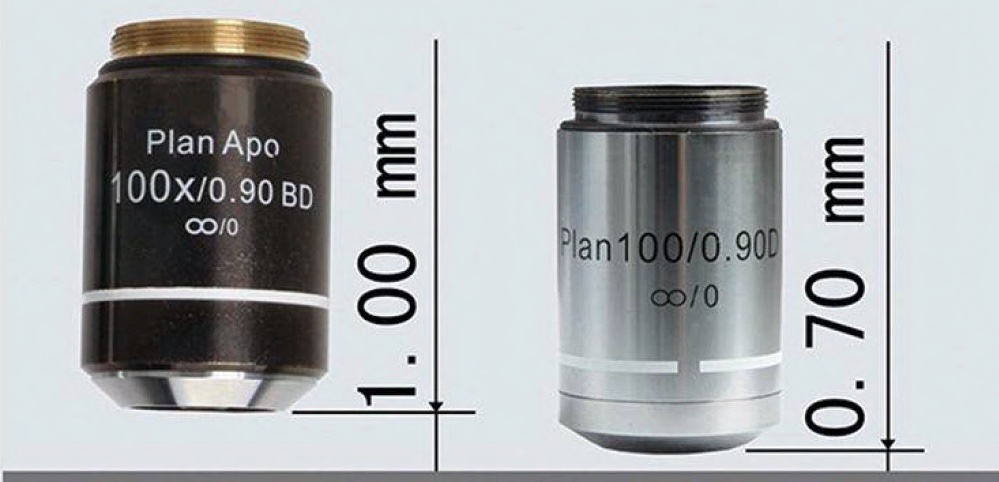

Longer working distance and high NA objective

All kinds of electronic components and semiconductors make the circuit board samples have a larger difference in height. Therefore, special objective with long working distance are adopted in this microscope. Meanwhile, in order to satisfy the industrial samples’ high requirements on color reproduction, the multilayer coating technology has been developed and improved over the years and the apochromatic objective with high NA are adopted, which can restore the real color of samples



Modular Design

Bright field Dark field DIC Fluorescent light Polarized light

Reflected illumination

● ● ● ●

●

Transmitted illumination ● – – –

●

ICOE research-grade microscopes can realize a variety of observation methods through modular combinatioin: brightfiled, darkfield, phase contrast, fluorescence, polarization, DIC and so on.



A variety of observation methods can meet various testing requirements.

1. Reflected illumination bright field

HEX10 adopts an excellent NIS infinity optical system. The viewing field is uniform, bright and with high color reproduction degree. IIt is suitable

to observe opaque semiconductors samples.



2. Dark field

It can realize bright observation at dark field observation and carry on high sensitivity inspection to the flaws such as fine scratches. It is suitable for surface inspection of samples with high demands.



3. Bright field of transmitted illumination

For transparent samples, such as FPD and optical elements, the bright field observation can be realized by condenser of transmitted light. It can also be used with DIC, simple polarization and other accessories.



4. Simple polarization

This observation method is suitable for birefringence specimens such as metallurgical tissues, minerals, LCD and semiconductor materials.



5. Reflected illumination DIC

Used to observe small differences in precision molds. This observation technology can express the subtle height differences that cannot be seen in ordinary observation in the form of relief and three-dimensional images.



NOMIS Basic image processing system

  1. The software has various functions to satisfy your different image processing and analuysis needs.
  2. Multiple camera are available to provide excellent microscopic photographing scheme.
  3. The universal USB3.0 interface provides high-speed image transmission.



Image software with high quality image acquisition, processing and analysis

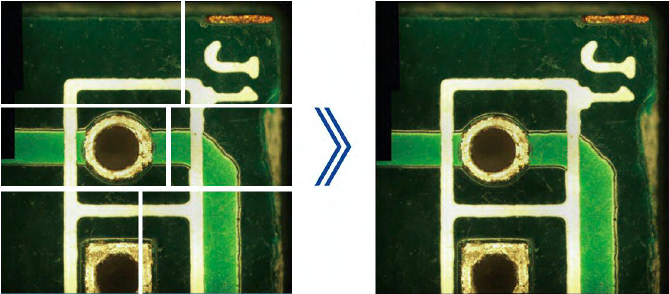

Image stitching

NOMIS Basic can quickly assemble small images into a large, high-resolution image by collecting image or importing images in real time.

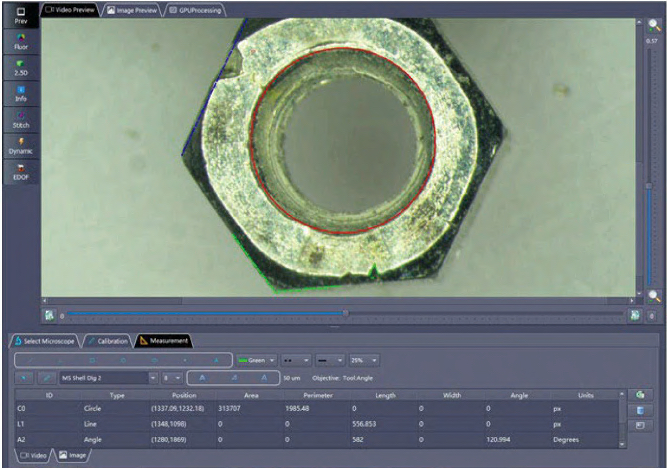

Real-time/static measurement

Typical observation and quality control require interactive measurement function. For example: distance, angle, retangle , circle and ellipse.



HD Real-time HDR image video

When different samples are observed, the surface of the sample shows a high-contrast area. HDR enables users to create a perfect exposure image between clicks.

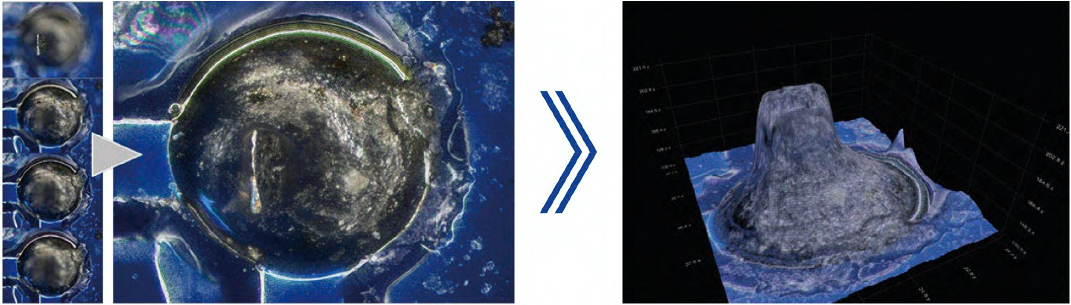

Depth of filed fusion/3D reconstruction

NOMIS Basic provides depth of field fusion and 3D reconstruction functions.



Product Specifications

Model

HEX10

Optical System NIS45 Infinite Optical System

●

Viewing head Siedentopf trinocular viewing head, Eyepiece/port:100/0, 20/80, 0/100, Depression angle:30 degrees,pupil distance adjustment range:47-78mm

●

Ergo tilting trinocular viewing head, Eyepiece/port:100/0, 20/80, 0/100, Depression angle:0-30 degrees, pupil distance adjustment range:47-78mm

●

Eyepiece ·SW10x(25)

●●

·SW10X(22)

○○

EW12.5X(17.5)

○○

WF15X(16)

○○

WF20X(12)

○○

Nosepiece Sextuple nosepiece for bright and dark field, with DIC slot (Auto)

●

Objective Plan Semi- Apochromatic 5x, 10x, 20x, 50x, 100x objectives (Apochromatic objectives are optional)

●

Stage Large Stage 14” x 12”, Range: 356 x 305 mm,  (Lighting area for transmitted light:356 x 284 mm), It can be used for 300mm wafers,attached is the sample bracket.

●

Condenser Transmitted illuminatin with condenser

●

Epi-illumination Bright field ,dark field ,DIC, simplified polarized, and fluorescent

●

Transillumination Bright field, simplified polarized light

●

Digital camera 6MP pixel high resolution camera USB3.0, with image processing software

○



Optional Accessories

Order code Descriptions
HEX001 Trinocular viewing head supplied, interpupillary distance between 47-78 mm and photo tube with standard Ø 23.2 mm tube. The trinocular tube with standard Ø 23.2 mm tube. The trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces
HEX002 Ergonomic 0 to 35° tilting trinocular head, interpupillary distance between 47-78 mm and photo tube with standard Ø 23.2 mm tube. The
trinocular tilting head has an optical path selector (100:0 / 80:20 / 0:100). Diopter ± 5 adjustments on both eyepieces
HEX003 HEX10 Main body
HEX004 Super wide field SWF 10x/25 mm eyepiece for Ø 30 mm tube
HEX005 Super wide field SWF 10x/25 mm eyepiece with crosshairs for Ø 30 mm tube
HEX006 Super wide field SWF 10x/25 mm eyepiece with 10/100 micrometer for Ø 30 mm tube
HEX007 Super wide field SWF 10x/25 mm eyepiece with 10/100 micrometer and crosshairs for Ø 30 mm tube
HEX008 Super wide field SWF 10x/25 mm eyepiece with 20 x 20 square grid reticle. For Ø 30 mm tube
HEX009 Super wide field SWF 10x/22 mm eyepiece for Ø 30 mm tube
HEX010 Super wide field SWF 10x/22 mm eyepiece with crosshairs for Ø 30 mm tube
HEX011 Super wide field SWF 10x/22 mm eyepiece with micrometer for Ø 30 mm tube
HEX012 Super wide field SWF 10x/22 mm eyepiece with micrometer and crosshairs for Ø 30 mm tube
HEX013 Super wide field SWF 10x/22 mm eyepiece with 20 x 20 square grid reticle. For Ø 30 mm tube
HEX014 Wide field WF 12.5x/17.5 mm eyepiece for Ø 30 mm tube
HEX015 Wide field WF 15x/16 mm eyepiece for Ø 30 mm tube
HEX016 Wide field WF 20x/12 mm eyepiece for Ø 30 mm tube
HEX017 Eyeshade for eyepieces
HEX018 SZA10 six apertures electric reversed nosepiece with compensator slide slot/reflected DIC slide slot
HEX019 N-ANH Compensator slider
HEX020 N-QWP 1/4 λPlate
HEX021 N-STP λPlate
HEX022 N-CWE Quartz Wedge
HEX023 N-AN Transmitted Analyzer (used with nosepiece)
HEX024 DICR reflected DIC slide for materials sciences, With the redesign of the DIC-module visualization of height differences which normally cannot be displayed using brightfield techniques has greatly improved. These relief like images are ideal for surface inspections of wafers, LCD screens etc
HEX025 Infinite Plan 2x/0.06 materials sciences objective, WD: 7.5mm, no cover glass correction, for bright field and dark field
HEX026 Infinite Plan 5x/0.15 materials sciences objective, WD: 20mm, no cover glass correction, for bright field and dark field
HEX027 Infinite Plan 10x/0.30 materials sciences objective, WD: 11mm, no cover glass correction, for bright field and dark field
HEX028 Infinite Plan 20x/0.45 materials sciences objective, WD: 3.1mm, no cover glass correction, for bright field and dark field
HEX029 Infinite Plan Apo 50x/0.80 materials sciences objective, WD: 1mm, no cover glass correction, for bright field and dark field
HEX030 Infinite Plan Apo 100x/0.90 materials sciences objective, WD: 1mm, no cover glass correction, for bright field and dark field
HEX031 Large Stage 14” x 12”, Range: 356 x 305 mm (Lighting area for transmitted light:356 x 284 mm) It can be used for 300mm wafers, with attached sample bracket. with built-in clutch platform handle, which can realize fast and slow movement of the loading platform, and can quickly locate large-area samples. It is used in conjunction with the platform fine-tuning handle to make it accurate and fast. Locating samples is no longer difficult
HEX032 Holder
HEX033 Glass plate for slide
HEX034 Wafer bracket for 2″,3″,4″
HEX035 Crystal plate brac
HEX036 SJ8 Height adjustable Abbe long-distance swing-out N.A. 0.65 condenser with numerical aperture engravings. Working distance 10.2 mm
HEX037 Metallurgical Epi-Illuminator with 6 position rotating cassette, with Brightfield BF1, Dimmed Brightfield BF2 and dark field DF positions. With bank slider, reflected polarizer, reflected analyzer, ME-LBD/GF/YF/FF filter, FL-ND6 filter, FL-ND25 filter. Without illuminator breathing shield
HEX038 ME-D Dark field part
HEX039 ME-B Bright field part
HEX040 Empty slide
HEX041 ME-PO reflection polarizer
HEX042 ME-AN reflected analyzer
HEX043 ME-LBD/GF/YF/FF filter
HEX044 N-ND6 Filter
HEX045 N-ND25 Filter
HEX046 L-H1003 100W Mercury lamp housing for reflected illumination, used with metallurgical Epi-illuminator
HEX047 LED illminator for reflected illumination, used with metallurgical Epi-illuminator
HEX048 Replacement halogen bulb for reflected illumination
HEX049 Replacement halogen bulb for transmitted illumination
HEX050 Replacement LED bulb for transmitted illumination
HEX051 N-PO Transmitted polarizer
HEX052 Photo port attachment with standard 23,2mm tube
HEX053 C-mount with 1 magnification for C-mount camera
HEX054 C-mount with high resolution relay 0.35x objective for 1/3 inch C-mount camera
HEX055 C-mount with high resolution relay 0.50x objective for 1/2 inch C-mount camera
HEX056 C-mount with high resolution relay 0,7x objective for 2/3 inch C-mount camera
HEX057 Universal SLR-adapter with built-in 2x lens for standard 23.2 mm tube. Needs work with T2 adapter
HEX058 T2 ring for Nikon D SLR-digital camera
HEX059 T2 ring for Canon EOS SLR-digital camera
*** Digital camera (please refer ICOE digital camera brochures for more details)

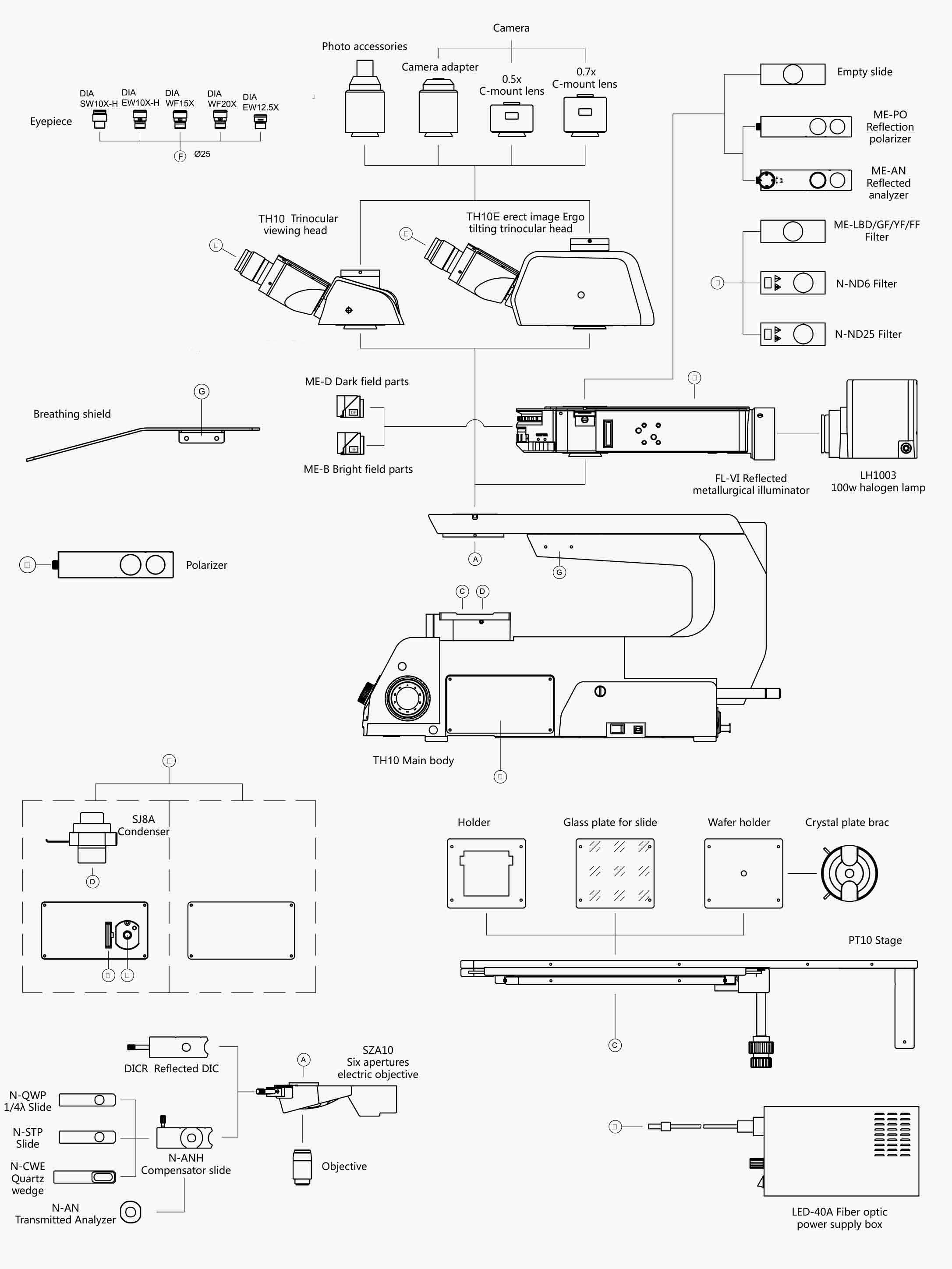

System Diagram

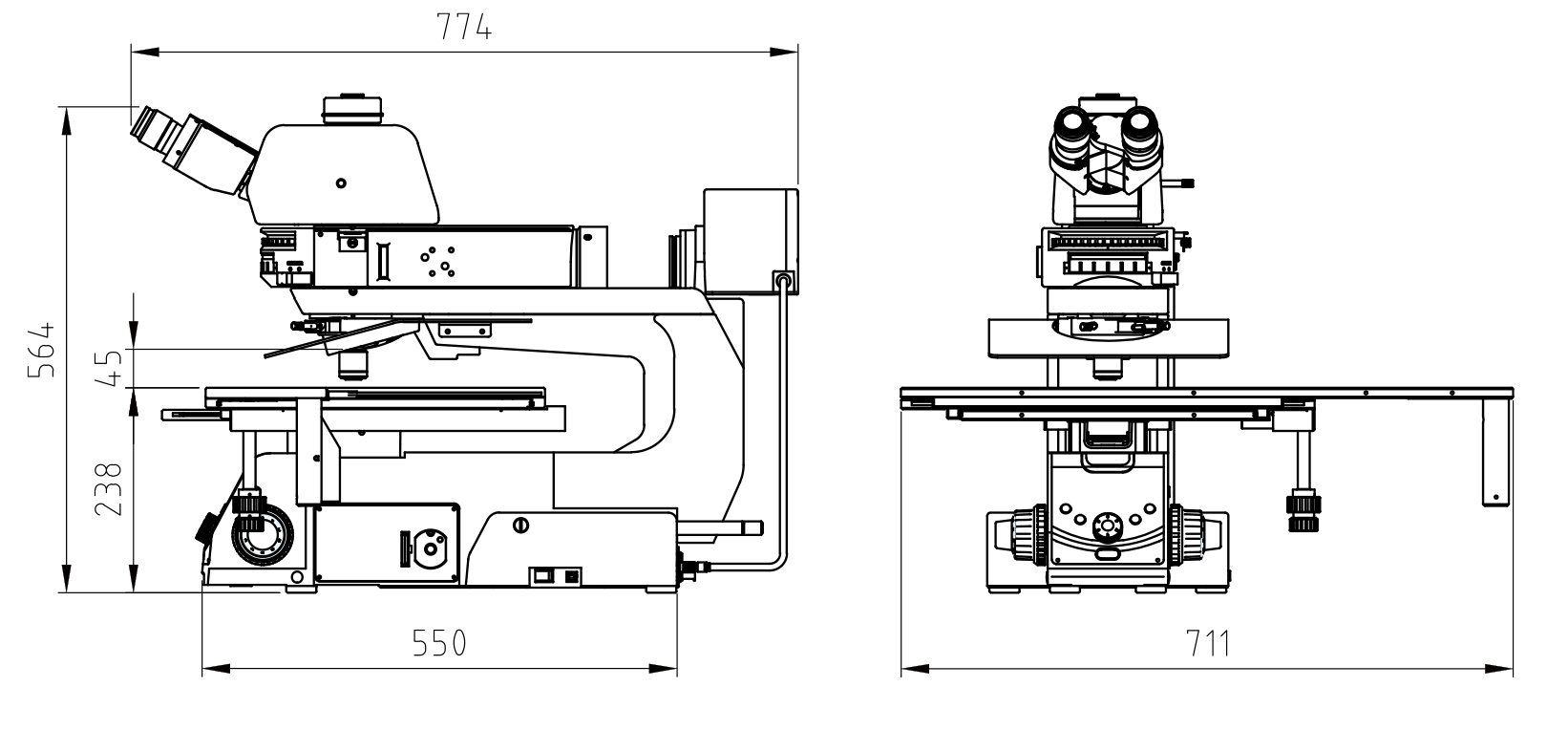

Product Dimensions

Inquiry Us





Related Products

BM45MR Series Metallurgical Microscope

2022-12-22n50

BM35AM Series Infinity Metallurgical Microscopes

2018-11-26n50

MX36 Series Infinite Metallurgical Microscopes

2023-04-09n50

Product Categories

  • Microscopy
    • Biological Microscopes
      • Educational Microscopes
      • Infinity Biological Microscopes
      • Inverted Microscopes
      • Multi-viewing Microscopes
      • Phase Contrast Microscopes
      • Digital Biological Microscopes
    • Phase Contrast Microscope
    • Microscope Slides & Accessories
      • Animal Slides
      • Botany Slides
      • Microorganisms & Bacteria
      • Human Histology Slides
      • Human Pathology Slides
      • Parasitology Slides
    • Stereo Microscopes
      • Educational Stereo
      • Greenough Zoom Stereo
      • CMO (Galilean) Zoom Stereo
      • Comparison Forensic Microscope
      • Eyepieceless Stereo
      • Digital Stereo
      • Stands & Arms of Stereo Microscope
    • Fluorescence Microscopes
      • Epi-LED Fluorescence
      • Epi-Fluorescence
      • Inverted Fluorescence
    • Metallurgical Microscopes
    • Confocal Microscope
    • Digital Microscopes
      • Tabletop Digital Microscope
      • Portable Digital Microscope
    • Comparison Microscope
    • Motorized Scanning Microscope
    • Measuring Microscope
    • Video Microscope Unit & System
    • Micromanipulation System
    • Industrial Monocular Microscope
      • Monocular Zoom Objective Series
      • Digital Monocular Zoom Microscope Series
      • 3D Rotated Series
    • WiFi Interactive Classroom System
    • Polarizing Microscopes
    • Digital Cameras & Tablets
      • VGA/HDMI Cameras
      • USB2.0 CCD Cameras
      • USB3.0 CCD Cameras
      • Cooling Camera
      • Tablets
      • USB2.0 CMOS Cameras
      • USB3.0 CMOS Cameras
      • Wifi Cameras
    • 3D Digital Inspection
    • Microscope Light
    • Others
      • Microscope Adapters for Camera
  • Polarimeter
    • Disc Polarimeter
    • Semi-Auto Polarimeter
    • Auto Polarimeter
  • Automatic Cell Counter
  • Melting Point Apparatus
  • Optomechanics
    • Optomechanical Components
      • Piezo Objective Scanner
  • Imaging Components
    • DIY Components for Building of Microscopy, Imaging System
    • Piezo Objective Scanner
  • Featured Products
  • Scanning Electron Microscopy (SEM)
  • Measurement Systems
  • Machine Vision
    • Machine Vision Camera
    • Machine Vision Light
      • Line Lights
      • Ring Lights
      • Bar Lights
      • Coaxial Lights
      • Backlights
      • UV/IR Lights
      • Strobe Lights
      • Diffused Lights
      • Spot Lights
      • AOI Lights
      • Multi-Colored Lights
      • Water Proof Lights
      • Structured Lights
  • Gel Documentation System
  • In Vivo Imaging System
  • Cell Culture Imaging System
  • Digital Pathology Slide Scanner
  • Refractometer
    • Abbe Refractometer
    • Handheld Refractometer
    • Digital Refractometer
      • Portable Digital Refractometer
      • Tabletop Digital Refractometer
      • Mini Pen-type Digital Refractometer
  • Particle Size & Zeta Potential Analyzer



Latest Post

  • ICOE: Optics Expert
    2017-03-20
  • News Six: weolcome to our website
    2017-03-20
  • News Five: weolcome to our website
    2017-03-20

Email Newsletters

Welcome to subscribe email newsletter to us, get the lastest products and news information from us!

Contact Us

912598829

+86-0574-27803775

sales@nbicoe.com

sales@nbicoe.com

COB 1704, Century Oriental Plaza, Yinzhou District, Ningbo, China

Mobile Website

NINGBO ICOE COMMODITY CO., LTD, YOUR OPTICA EXPERTS
