Description

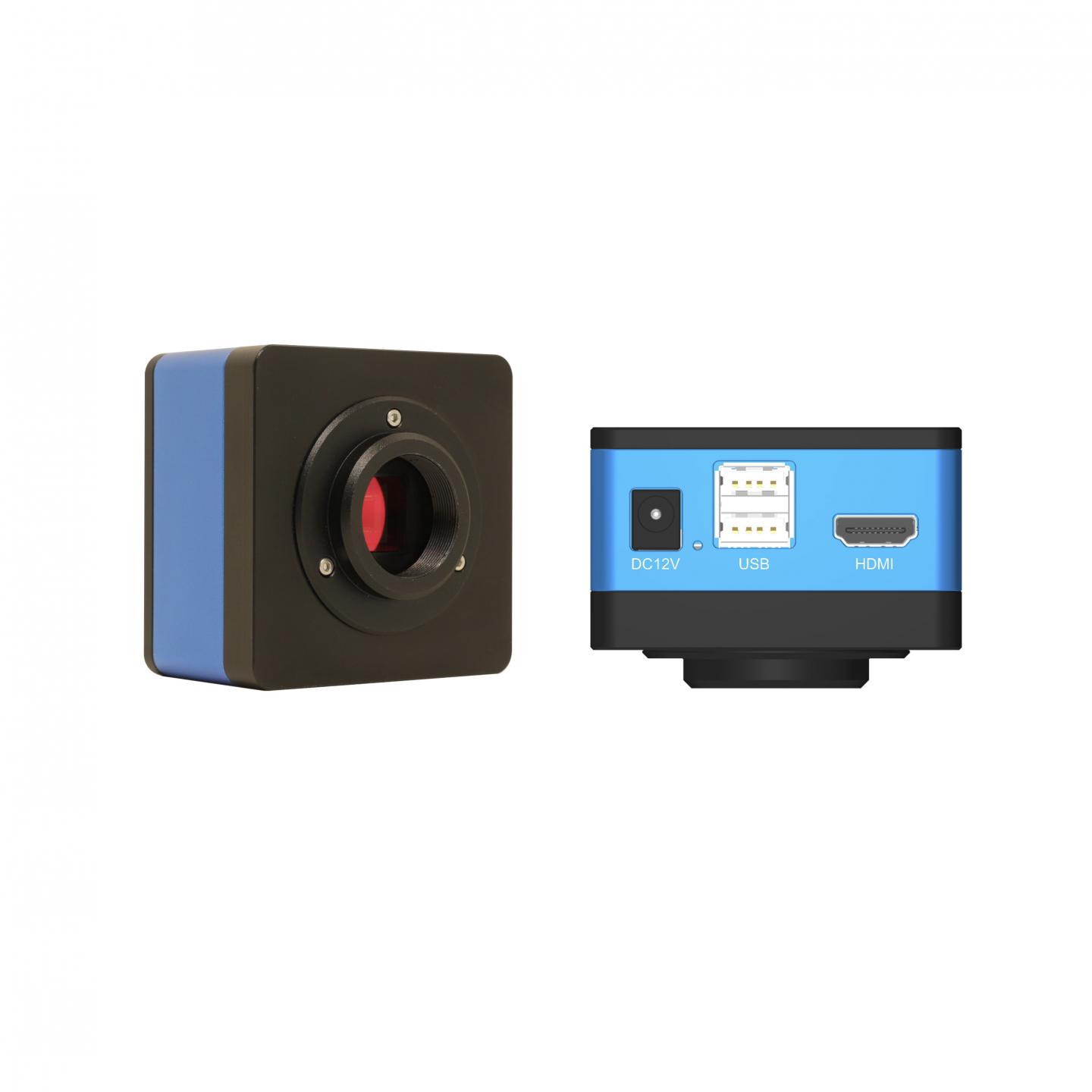

The HUE Series HDMI Camera is intended for acquisition of digital images from stereo microscopes, biological microscopes. Here are basic characteristics of the camera:
HDMI camera with Sony Exmor/STARVIS back-illuminated CMOS sensor
Embedded XCamView software for controlling cameras with measurement, grid line overlay, and custom templates functions
Providingautomatic measurement functions such as automatic edge finding, parallel line distance measurement and rectangle measurement
USB flash drivefor captured image and video storage, support local preview and playback, picture to picture, picture to video comparison functions
Excellent ISP with functions such as dark enhancement, sharpening, and 3D denoising
Supports quick switching of default modes for biological and stereoscopic microscopes, making it convenient for users to in different scenarios
Models & Specifications
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity / Dark Signal | FPS/Resolution | Binning | Exposure |
| HUE8A | Sony IMX678(C) 1/1.8″(7.68×4.32) | 2.0 x 2.0 | 1364 mv with 1/30s
0.15 mv with 1/30s |
30@2840×2160 (HDMI) | 1×1 | 0.04ms~1000ms |
| HUE8B | Sony IMX385(C) 1/2.8″(5.57×3.13) | 1.45 x 1.45 | 300 mv with 1/30s
0.13 mv with 1/30s |
30@3840×1260 (HDMI) | 1×1 | 0.04ms~1000ms |
| HUE2A | Sony IMX385(C) 1/2″(7.2×4.05) | 3.75 x 3.75 | 1175 mv with 1/30s
0.15 mv with 1/30s |
60@1920×1080 (HDMI) | 1×1 | 0.04ms~1000ms |
| HUE2B | Sony IMX462(C) 1/2.8″(5.57×3.13) | 2.9 x 2.9 | 921 mv with 1/30s
0.15 mv with 1/30s |
60@1920×1080 (HDMI) | 1×1 | 0.04ms~1000ms |
Interface & Button Functions
DC12V: Power adapter connector (12V/1A)
LED: LED status indicator
USB: Connect USB mouse for easy operation with embedded XcamView software
Connect USB flash drive to save pictures and videos
HDMI: * Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors (for HUE8A)
* Comply with HDMI1.4 standard. 1080P format video output (for HUE2A)
Video Output Interfae & Functions
HDMI Interface Comply with HDMI1.4 standard
30fps@4K or 30fps@1080P(HUE8A);60fps@1080P(HUE2A)
Other Specification for USB Output
Video Record: Video format： 8M(3840*2160) H264/H265 encoded MP4 file(HUE8A)
8M(3840*2160) H264/H265 encoded MP4 file(HUE2A)
Frame rate during video record:30fps(HUE8A);60fps(HUE2A)
Image Capture: 8M (3840*2160, HUE8A) JPEG/TIFF image in USB flash drive
2M (1920*1080,HUE2A) JPEG/TIFF image in USB flash drive
Measurement Saving: Measurement information saved in different layer with image content in Layered mode.
Measurement information is saved together with image content in Burn in Mode
ISP: Exposure (Automatic / Manual Exposure) / Gain, White Balance, Sharpness, 3D Denoising, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray,50HZ/60HZ Anti-flicker Function
Image Operation: Zoom In/Zoom Out (Up to 10X), Mirror/Flip, Freeze, Cross Line, Compare(Comparison function between real-time
video and pictures on storage media, image to image comparison), Embedded Files Browser, Video Playback, various Measurement Function
Embedded RTC(Optional): To support accurate time on board
Restore Factory Settings: Restore Camera parameters to its factory status
Multiple Language: Support English / Simplified Chinese
