CB800MR Series Infinity Metallurgical Microscopes

Home Microscopy Metallurgical Microscopes CB800MR Series Infinity Metallurgical Microscopes

CB800MR Series Infinity Metallurgical Microscopes

Metallurgical Microscopes2018-12-13n50

Description

Descriptions

Whether you want to inspect alloys, plastics, ceramics or other materials, the CB800MR routine inspection microscope allows both beginners and advanced users to achieve detailed analysis of a wide range of material Subjects

–

Features

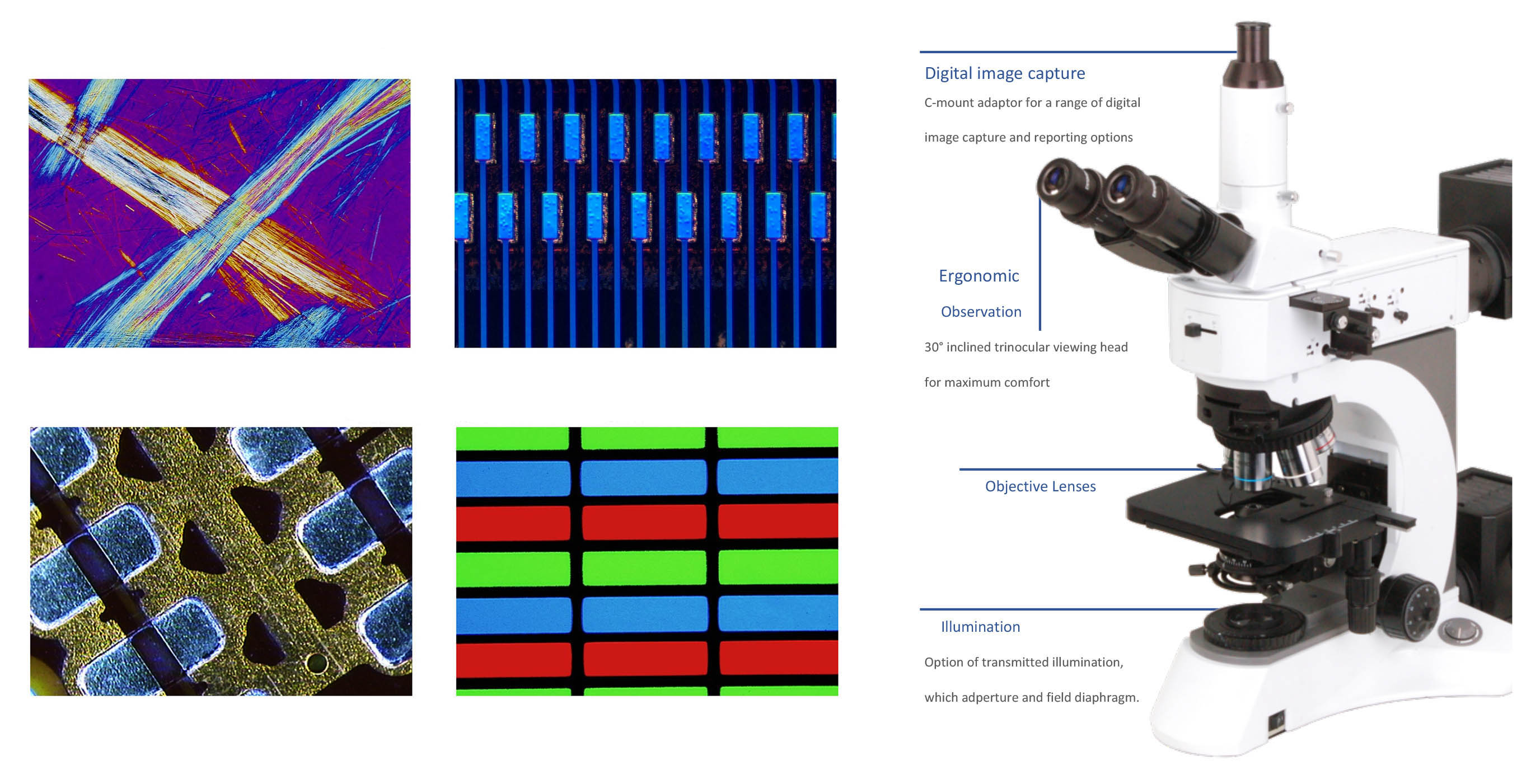

With excellent optical performance and a range of illumination options including bright-field, dark-field and polarized light, CB800MR makes it easy to observe, inspect and analyse a wide range of materials.

  • (1). Effortless observation of a wide range of materials
  • (2). Total magnification up to 1000x
  • (3). Infinity plan achromatic objective options up to 100x, choice of:
  •       • Bright-field objectives or
  •       • Combined bright-field & dark-field objectives
  • (4). Choice of illumination:
  •       • Incident illumination for viewing opaque samples
  •       • The addition of transmitted illumination enables viewing of translucent, or transparent subjects
  • (5). Wide range of options included as standard.
  • (6). Modular design permits the addition of a range of accessories, including digital image capture and image analysis software.

–

The neutral density microscope filters (ND Filters), used in a variety of industrial applications, come as standard to allow you to select which light wavelengths are transmitted, reduced or blocked. These filters offer a selection of transmittance values, daylight blue for a more comfortable viewing, as well as contrast filters, often used for observation of semiconductor wafers and monochrome photography.

Adjustments for illumination, transmittance, interpupillary distance and dioptre are all possible with this versatile materials microscope.

  • (1). Optimise your observations
  •       • CB800MR provides ultimate flexibility offering choice of brightfield or darkfield observations as reflected light, polarized light or transmitted light options to ensure you get the best view of your observation

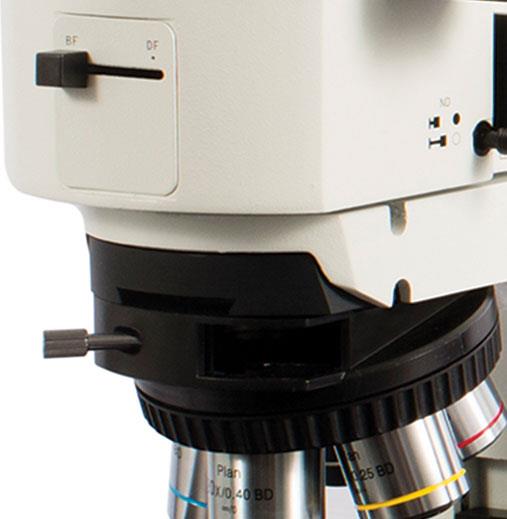

  • (2). Choosing the right illumination technique
  •       • When inspecting PCBs brightfield is effective at showing the detail.
  •       • Switching to darkfield enables the shiny alloy to be seen in greater detail.

–

Objectives Options

Optical Data Working Distance
Brightfield (BF) objective lenes Infinity Plan Achromatic 5x NA0.12 (BF) 15.5mm
Infinity Plan Achromatic10x NA0.25 (BF) 10.0mm
Infinity Plan Achromatic 20x NA0.40 (BF) 5.8mm
Infinity Plan Achromatic 50x NA0.75 (BF) 0.32mm
Infinity Plan Achromatic 100x NA0.80 (BF) 2.0mm
Brightfield/Darkfield (BF/DF) objective lenes Infinity Plan Achromatic 5X NA0.12 (BF/DF) 12.0mm
Infinity Plan Achromatic 10X NA0.25 (BF/DF) 10.0mm
Infinity Plan Achromatic 20X NA0.40 (BF/DF) 4.3mm
Infinity Plan Achromatic 40X NA0.60 (BF/DF) 2.9mm
Infinity Plan Achromatic 50X NA0.75 (BF/DF) 0.32mm
Infinity Plan Achromatic 100X NA0.80 (BF/DF) 2.0mm

–

Product Specifications

Model CB800MR CB800MRT CB820MR CB820MRT
Optical System Infinite optical system
Viewing Head Siedentopf trinocular viewing head, inclined at 30°, interpupillarty distance 48mm-75mm
Eyepiece Φ30 Extral wide field eyepiece EW10×/22
Infinite Plan Achromatic Objective 5×/ 0.12/ ∞/ – (BF) WD 15.5mm,

10×/ 0.25/ ∞/ – (BF/DF) WD 10.0mm,

20×/ 0.4/ ∞/ 0 (BF/DF)  WD 4.3mm,

50×/ 0.75/ ∞/ 0 (BF) WD 0.32mm,

100×/ 0.8/ ∞/ 0 (BF) WD 2mm

5×/ 0.12/ ∞/ – (BF) WD 15.5mm,

10×/ 0.25/ ∞/ – (BF/DF) WD 10.0mm,

20×/ 0.4/ ∞/ 0 (BF/DF)  WD 4.3mm,

50×/ 0.75/ ∞/ 0 (BF) WD 0.32mm,

100×/ 0.8/ ∞/ 0 (BF) WD 2mm,

40×/ 0.65/ ∞/ 0.17 WD 0.54mm,

100×/ 1.25/ ∞/ 0.17 WD 0.13mm

10×/ 0.25/ ∞/ – (BF/DF) WD 10.0mm,

20×/ 0.4/ ∞/ 0 (BF/DF)  WD 4.3mm,

5×/ 0.12/ ∞/ – (BF/DF) WD 12mm,

50×/ 0.75/ ∞/ 0 (BF/DF) WD 0.32mm,

100×/ 0.8/ ∞/ 0 (BF/DF) WD 2mm

10×/ 0.25/ ∞/ – (BF/DF) WD 10.0mm,

20×/ 0.4/ ∞/ 0 (BF/DF)  WD 4.3mm,

40×/ 0.65/ ∞/ 0.17 WD 0.54mm,

100×/ 1.25/ ∞/ 0.17 WD 0.13mm,

5×/ 0.12/ ∞/ – (BF/DF) WD 12mm,

50×/ 0.75/ ∞/ 0 (BF/DF) WD 0.32mm,

100×/ 0.8/ ∞/ 0 (BF/DF) WD 2mm

Maximum Sample Height 50mm 30mm 50mm 30mm
Incident Light 24V/100W Halogen light, lightness adjustable
Kohler illumination and aspherical condenser

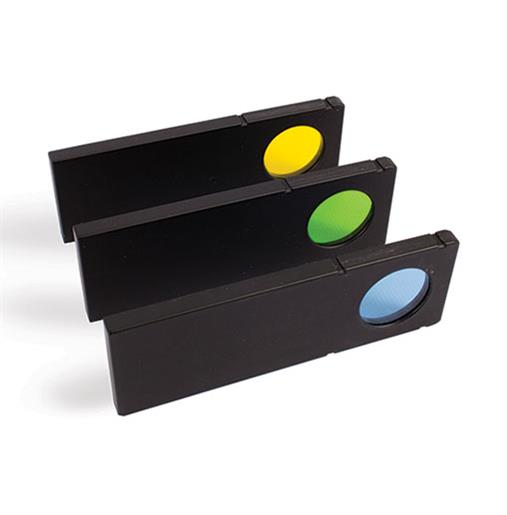

Blue,Green,Yellow and Ground glass
Transmitted Light / Swing-out condenser NA0.9/ 0.25, 24V/ 100W Halogen light and aspherical condenser, blue filter / Swing-out condenser NA0.9/ 0.25, 24V/ 100W Halogen light and aspherical condenser, blue filter
Focusing Coaxial coarse and fine adjustment, fine division 1μm, moving range 30mm
Nosepiece Backward quintuple nosepiece
Stage Non-porous double layer mechanical stage 186X138mm/74mmX50mm Double layer mechanical stage 186×138mm/ 74mm×50mm, specimen preparation plate, slide glass Non-porous double layer mechanical stage 186X138mm/74mmX50mm Double layer mechanical stage 186×138mm/ 74mm×50mm, specimen preparation plate, slide glass

–

Options

Cat No. Descriptions Picture
M402001 2.5×/ 0.08/ ∞/ -(BF) WD 11.7mm
M402002 2.5×/ 0.08/ ∞/ -(BF) WD 10.7 (λglass side)
M402003 40×/ 0.6/ ∞/ 0 (BF/DF) WD 2.90mm
M402004 DIC 20×,100×
M402005 Polarizer and analyzer
M402006 An integrate device foe polarizer and analyzer
M402007 Filter ND25
M402008 Filter ND6
M402009 Glass specimen preparation plate
M402010 Specimen Presser
M402011 0.5x C mount
M402012 1x C mount

–

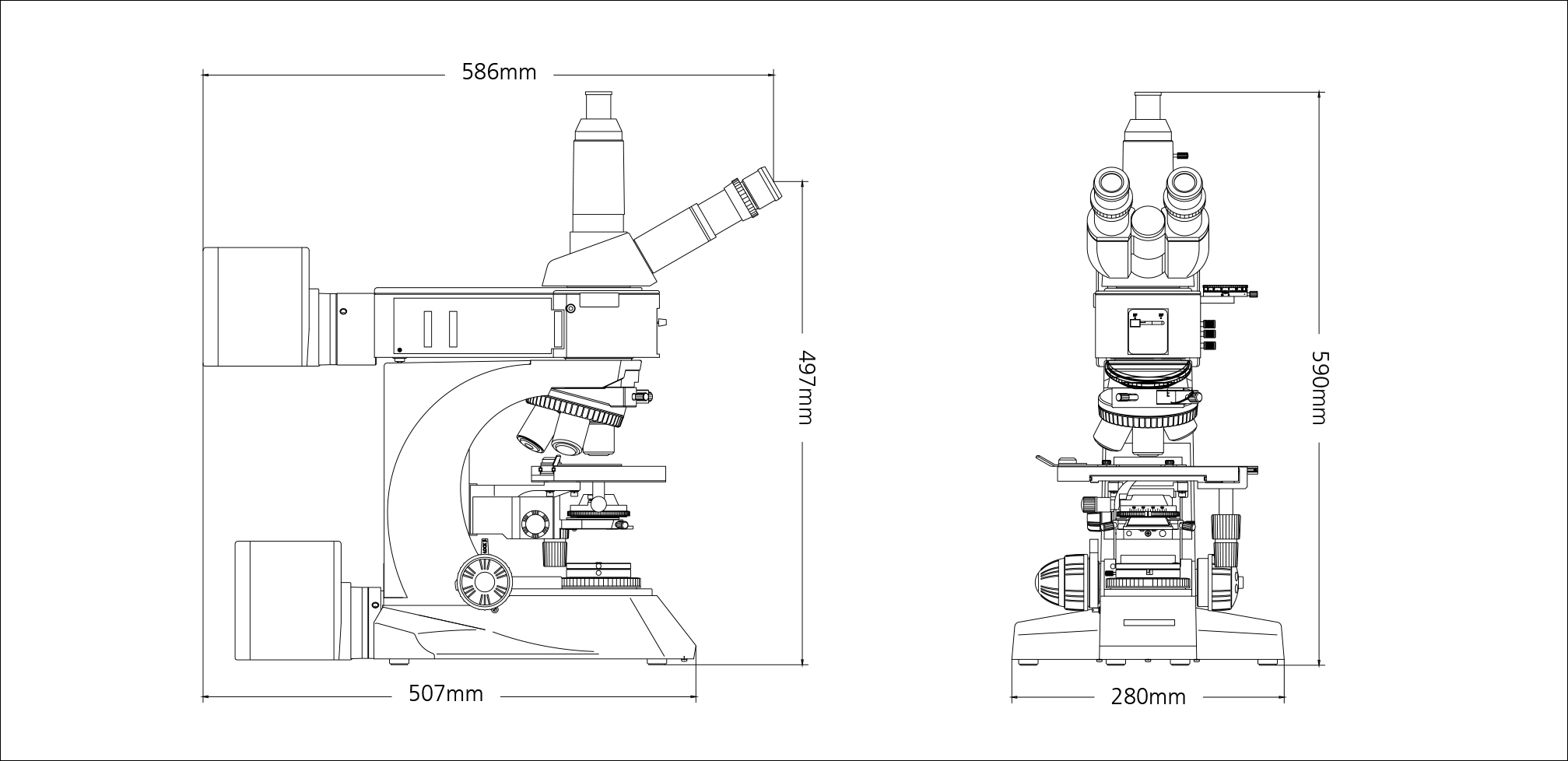

Product Dimensions
