Description
Models & Specifications

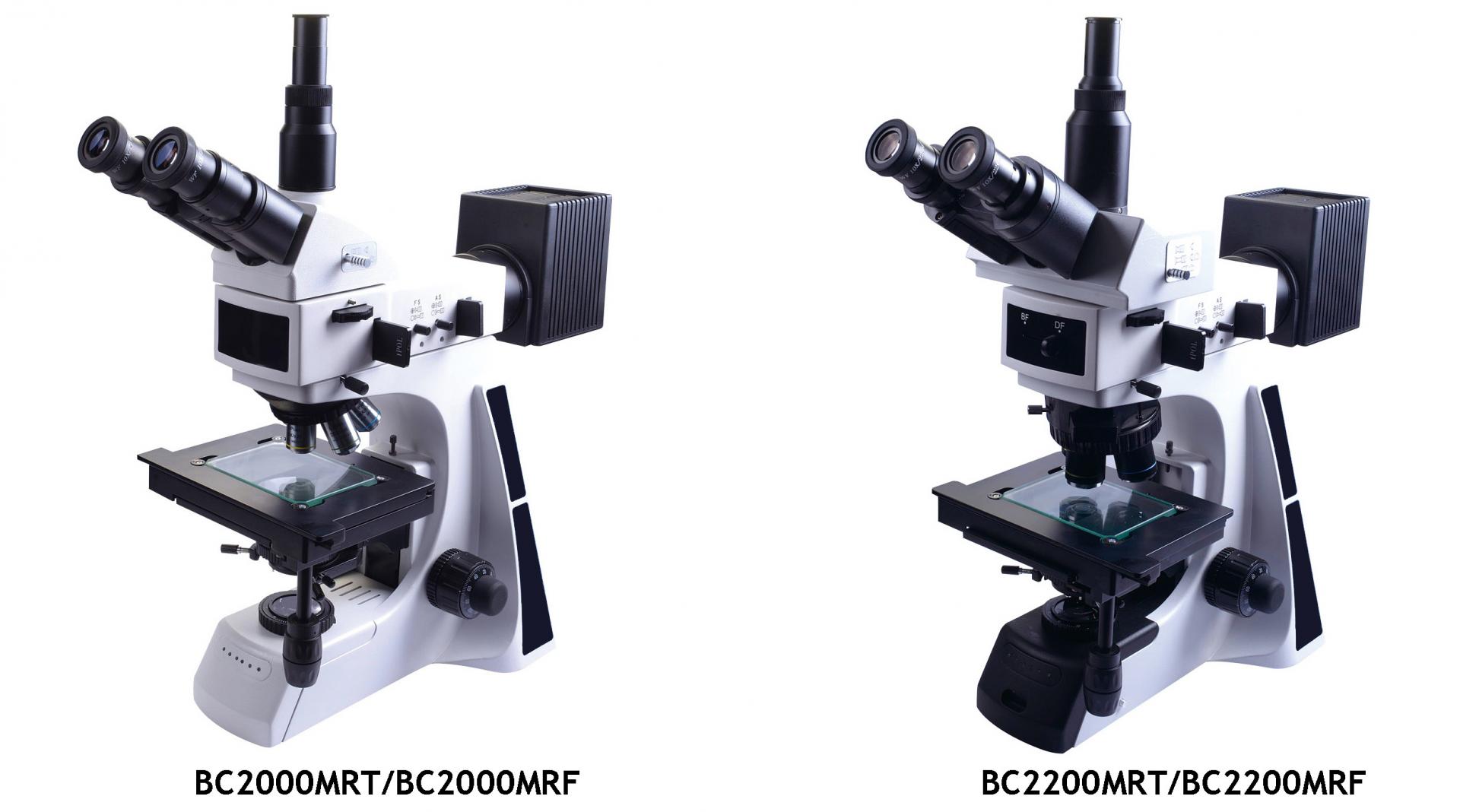

| Model | BC2000MRT | BC2000MRF | BC2200MRT | BC2200MRF | |
| Optical System: | Infinity Corrected Optical System | • | • | • | • |
| Viewing head: | Compensation free trinocular head inclined at 30°, Interpupilary 48-75mm, with light distribution 100/0, 50/50, 0/100 | • | • | • | • |
| Eyepiece: | Wide field eyepiece WF10X/23mm | • | • | • | • |
| Wide field eyepiece WF10X/20mm with crosshair and scale | • | • | • | • | |
| Nosepiece: | Backward quradple nosepiece with DIC slot | • | • | • | • |
| Backward quintuple nosepiece with DIC slot | ○ | ○ | ○ | ○ | |
| Infinite Plan LWD Objective (BF) | Infinite Plan LWD Objective 5X/0.12, WD: 23.6mm (for bright field observations) | • | ○ | / | / |
| Infinite Plan LWD Objective 10X/0.25, WD: 17.8mm (for bright field observations) | • | ○ | / | / | |
| Infinite Plan LWD Objective 20X/0.40, WD: 10.4mm (for bright field observations) | • | ○ | / | / | |
| Infinite Plan LWD Objective 50X/0.55, WD: 7.0mm (for bright field observations) | • | ○ | / | / | |
| Infinite Plan LWD Objective 100X/0.80, WD: 3.2mm (for bright field observations) | ○ | ○ | / | / | |
| Infinite Plan LWD Apochromatic Objective (BF) | Infinite Plan LWD Apochromatic Objective 5X/0.14, WD: 12mm (for bright field observations) | ○ | • | / | / |
| Infinite Plan LWD Apochromatic Objective 10X/0.30, WD: 11mm (for bright field observations) | ○ | • | / | / | |
| Infinite Plan LWD Apochromatic Objective 20X/0.46, WD: 4mm (for bright field observations) | ○ | • | / | / | |
| Infinite Plan LWD Apochromatic Objective 50X/0.80, WD: 1.62mm (for bright field observations) | ○ | • | / | / | |
| Infinite Plan LWD Objective (BF & DF) | Infinite Plan LWD Objective 5X/0.12, WD: 23.6mm (for bright field & dark field observations) | / | / | • | ○ |
| Infinite Plan LWD Objective 10X/0.25, WD: 17.8mm (for bright field & dark field observations) | / | / | • | ○ | |
| Infinite Plan LWD Objective 20X/0.40, WD: 10.4mm (for bright field & dark field observations) | / | / | • | ○ | |
| Infinite Plan LWD Objective 50X/0.55, WD: 7.0mm (for bright field & dark field observations) | / | / | • | ○ | |
| Infinite Plan LWD Objective 100X/0.80, WD: 3.2mm (for bright field & dark field observations) | / | / | ○ | ○ | |
| Infinite Plan LWD Apochromatic Objective (BF & DF) | Infinite Plan LWD Apochromatic Objective 5X/0.14, WD: 12mm (for bright field & dark field observations) | / | / | ○ | • |
| Infinite Plan LWD Apochromatic Objective 10X/0.30, WD: 11mm (for bright field & dark field observations) | / | / | ○ | • | |
| Infinite Plan LWD Apochromatic Objective 20X/0.46, WD: 4mm (for bright field & dark field observations) | / | / | ○ | • | |
| Infinite Plan LWD Apochromatic Objective 50X/0.80, WD: 1.62mm (for bright field & dark field observations) | / | / | ○ | • | |
| Infinite Plan LWD Objective 100X/0.80, WD: 3.2mm (for bright field & dark field observations) | ○ | ○ | ○ | ○ | |
| Polarization attachment: | Analyzer 360° rotatable , both polarizer and analyzer can be noved out of the light path | • | • | • | • |
| Stage: | Double layer mechnical stage, stage size 190x160mm, moving range 80x50mm | • | • | • | • |
| Condenser: | Abbe condenser NA1.25 with iris diaphragm | • | • | • | • |
| Focusing: | Coaxial coarse & fine adjustment, with rack and pinion mechanism, fine focusing scale value 0.002mm, coarse stroke 37.7mm/rotation, moving range: 28mm, with safty stop | • | • | • | • |
| Reflected Illumination: | Kohler illumination, with aperture iris diaphragm and field iris diaphram, 12W 50W halogen lamp, AC85V-230V, brightness adjustable | • | • | • | • |
| Kohler illumination, with aperture iris diaphragm and field iris diaphram, 5W LED lamp, AC85V-230V, brightness adjustable | ○ | ○ | ○ | ○ | |
| Transmitted Illumination: | Kohler illumination, with aperture iris diaphragm and field iris diaphram, 12V 50W halogen lamp, AC85V-230V, brightness adjustable | • | • | • | • |
| Kohler illumination, with aperture iris diaphragm and field iris diaphram, 5W LED lamp, AC85V-230V, brightness adjustable | ○ | ○ | ○ | ○ | |
| Micrometer: | 0.01mm micrometer | • | • | • | • |
| Filter: | Green filter, blue filter & neutral filter | • | • | • | • |
| Micrometer: | 0.01mm micrometer | • | • | • | • |
| Supplied with: | Power cord, dust cover and user manual, all packed in carton shipment box | • | • | • | • |
| C mount: | 1x C mount adapter for digital camera | • | • | • | • |
