Description
Introductions

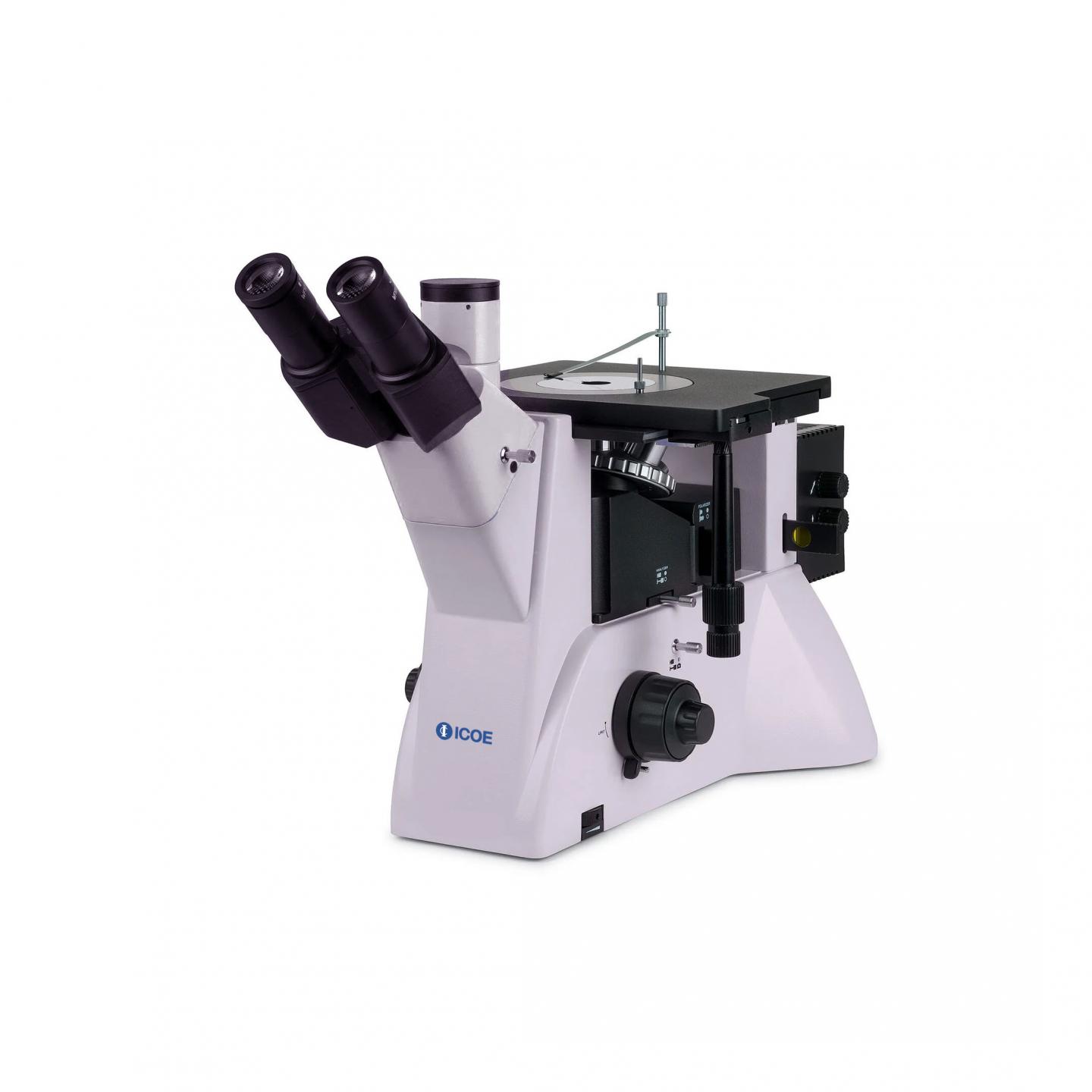

MVX6600 series microscope is designed for studying the microstructure of metals and alloys, semiconductor materials, and other opaque specimens. The inverted design of the microscope does not limit the size of the examined sample; only its weight is limited up to 2kg. One face of the specimen undergoes special processing, and then the specimen is mounted on the stage with that surface down. This microscope can study opaque objects in reflected light using the brightfield,
darkfield (ICOE MVX6600BD & MVX6600TD), and polarization microscopy techniques.
The microscope is used in the metallurgical, engineering, aerospace, nuclear, and energy industries, as well as in research laboratories and technical universities.
Models & Specifications

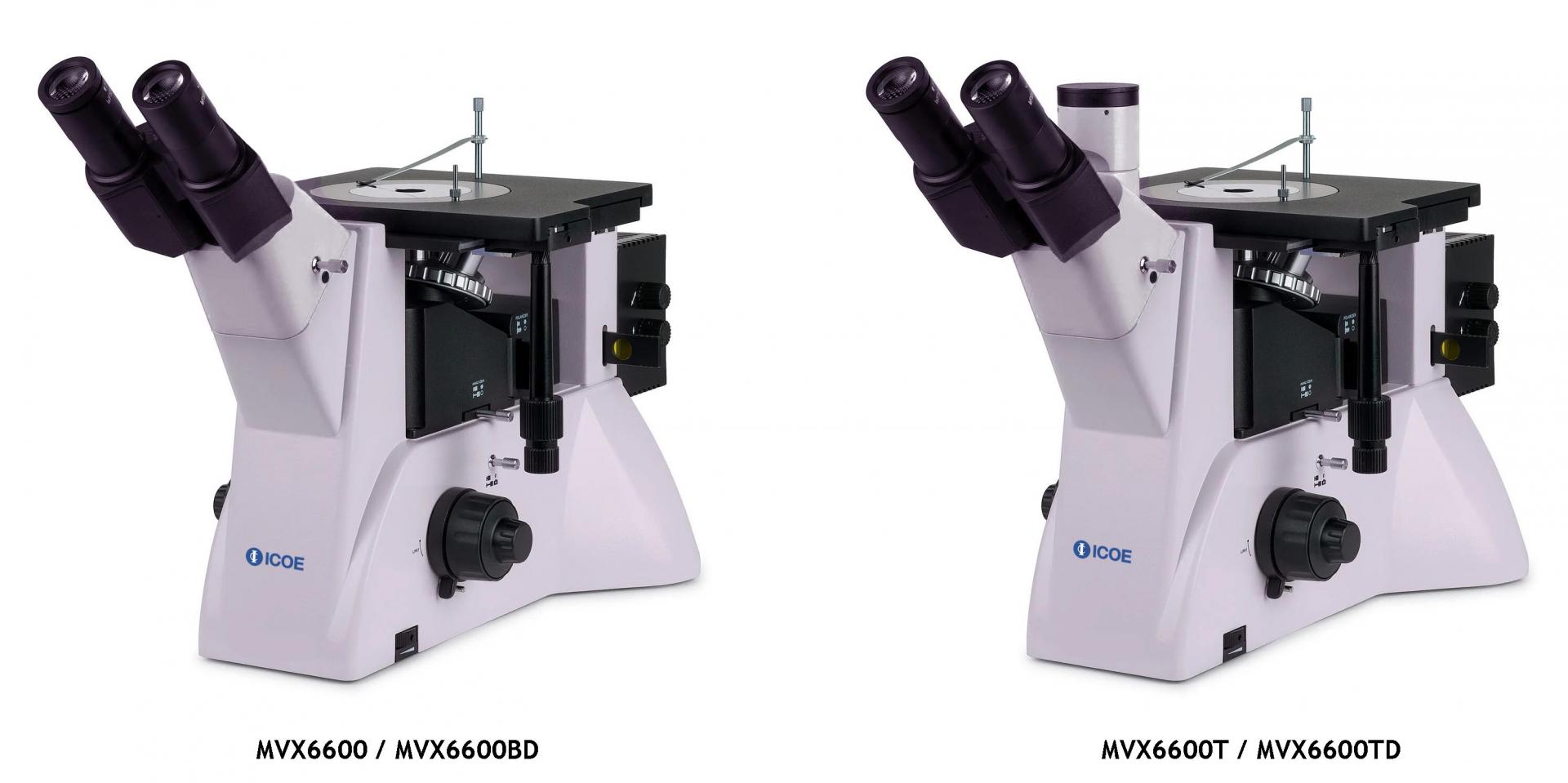

| Model | MVX6600 | MVX6600T | MVX6600BD | MVX6600TD | |
| Viewing head: | Binocular siedentopf viewing head with eyetube inclined 45˚ and interpupillary distance is 48~75mm. | • | • | ||
| Trinocular siedentopf viewing head with eyetube inclined 45˚ and interpupillary distance is 48~75mm. | • | • | |||
| Digital port: | A camera port on the side of body the microscope | • | • | • | • |
| Nosepiece: | Quintuple nosepiece, with backward ball bearing inner locating | • | • | • | • |
| Objective: | Infinity plan objective PL L 5X/0.12, WD: 26.1 mm for bright field observation | • | • | ||
| Infinity plan objective PL L 10X/0.25, WD: 20.2 mm for bright field observation | • | • | |||
| Infinity plan objective PL L 20X/0.40, WD: 8.8 mm for bright field observation | • | • | |||
| Infinity plan objective PL L 40X/0.60, WD: 3.9 mm for bright field observation | ○ | ○ | |||
| Infinity plan objective PL L 50X/0.70, WD: 3.7 mm for bright field observation | • | • | |||
| Infinity plan objective PL L 60X/0.70, WD: 2.1 mm for bright field observation | ○ | ○ | |||
| Infinity plan objective PL L 80X/0.80, WD: 1.2 mm for bright field observation | ○ | ○ | |||
| Infinity plan objective PL L 100X/0.85, WD: 1.2 mm (dry) for bright field observation | • | • | |||
| Infinity plan objective PL L 5X/0.12 BD, WD: 9.7 mm for bright field & dark field observations | • | • | |||
| Infinity plan objective PL L 10X/0.25 BD, WD: 9.3 mm for bright field & dark field observations | • | • | |||
| Infinity plan objective PL L 20X/0.40 BD, WD: 7.2 mm for bright field & dark field observations | • | • | |||
| Infinity plan objective PL L 40X/0.60 BD, WD: 3.0 mm for bright field & dark field observations | ○ | ○ | |||
| Infinity plan objective PL L 50X/0.70 BD, WD: 2.5 mm for bright field & dark field observations | • | • | |||
| Infinity plan objective PL L 60X/0.70 BD, WD: 1.9 mm for bright field & dark field observations | ○ | ○ | |||
| Infinity plan objective PL L 80X/0.80 BD, WD: 0.8 mm for bright field & dark field observations | ○ | ○ | |||
| Infinity plan objective PL L 100X/0.85 BD, WD: 0.4 mm for bright field & dark field observations | ○ | ○ | |||
| Stage: | Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm. Round rotating stage plate Ф130mm with holes: Ф30mm, Ф20mm and Ф10mm | • | • | • | • |
| Focus system: | Coaxial coarse/fine focus, with tension adjustable，minimum division of fine focusing is 2μm. | • | • | • | • |
| Illumination system: | Built-in field diaphragm, aperture diaphragm, removable analyzer and polarizer; Color filters: matt, yellow, green, blue | • | • | ||
| Darkfield technique, Built-in field diaphragm, aperture diaphragm, removable analyzer and polarizer; Color filters: matt, yellow, green, blue | • | • | |||
| 12V/30W halogen bulb, brightness-adjustable | • | • | |||
| 12V/50W halogen bulb, brightness-adjustable | • | • | |||
| C mount: | 0.5x CCD Adapter | ○ | ○ | ○ | ○ |
| 0.5x CCD Adapter with dividing 0.1mm/Div | ○ | ○ | ○ | ○ | |
| 1x CCD Adapter | ○ | ○ | ○ | ○ | |
| Digital camera: | Optional | ○ | ○ | ○ | ○ |
