Description
Higher Resolution, Higher Contrast and Brighter Images
Utilizing a new optical design incorporating a total reflection prism system the ICOE ZX88 series delivers higher resolution, higher contrast and brighter images for industrial, biomedical and educational applications than traditional Greenough stereos.

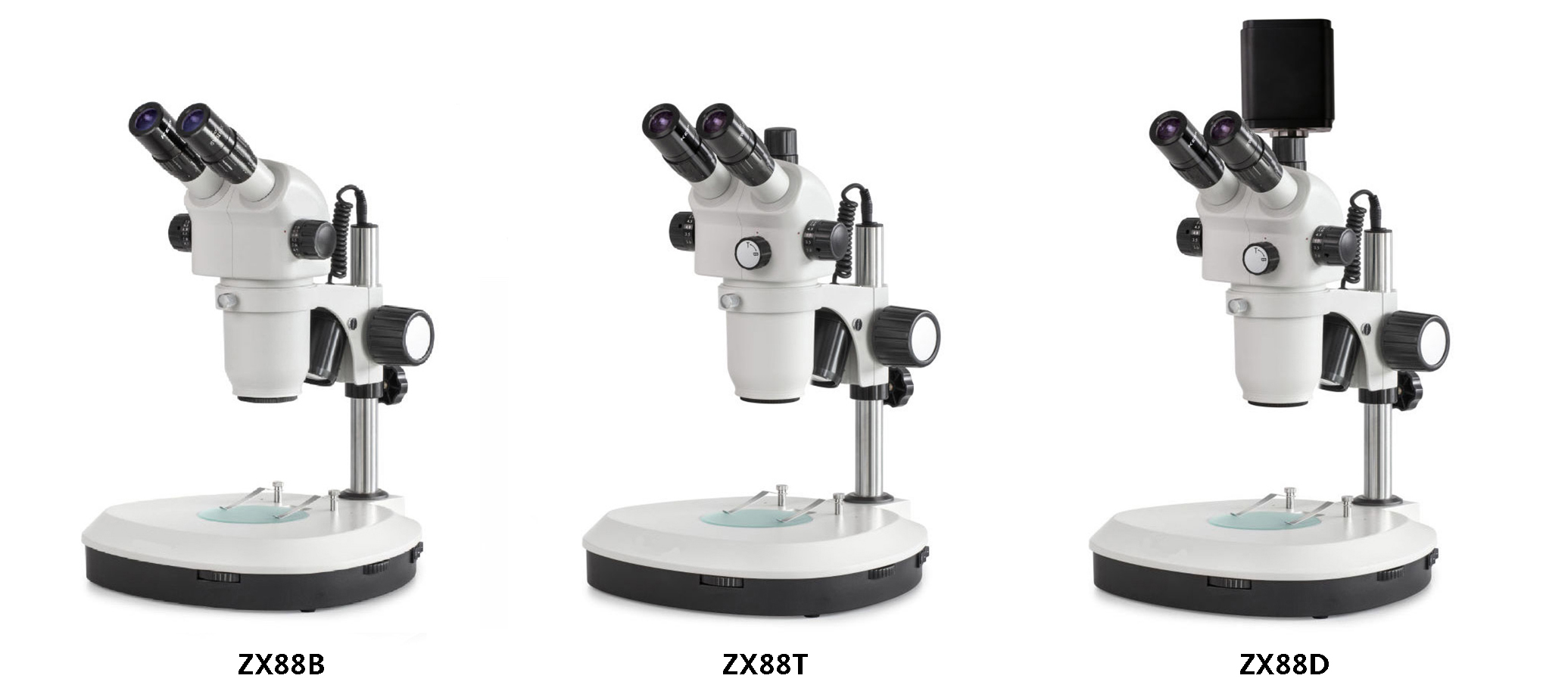

The ZX88 is a versatile, high performance, ergonomically designed zoom stereo microscope ruggedly built to withstand years of heavy usage. This model comes equipped with a viewing head inclined at 35°. The widefield eyepieces have a 10x magnification and a 23 millimeter field of view. The zoom ratio is 8.8:1, the magnification range is 8-70x (w/10x eyepieces) and it has a 108 millimeter working distance. The ZX88 comes on the S-LED stand which has 3 watt reflected and 6 watt transmitted LED light. It has coaxial coarse and fine focusing.
Order code: ZX88B
• Optical system: Greenough optics
• Viewing Head: Binocular viewing head, 35° inclined, interpupilary distance 52-76mm.
• Eyepiece: A pair of super-wide field, high-point eyepiece SHW10×/23mm
• Zoom objective: 0.8x-7x
• Working distance: 108mm
• Zoom ratio: 8.8:1
• Magnification: Standard magnification: 8x-70x, it can be expanded to 2.96x-420x
• Focusing: Focusing Range 100mm
• Illumination: 3W LED Incident & transmitted illumination with brightness adjustable
• Stand & stage base: Ergo Stand with Dual LED illumination, 300mm Height of Post, Coaxial coarse fcousing adjustment (fine focusing is optional), ∅100 object plate, microscope base dimensions 240×285 mm, with anti-vibration feet. Choice of black or white background (incl. Light base, medium width AntiShock)
Order code: ZX88T
• Optical system: Greenough optics
• Viewing Head: Trinocular viewing head with 35° inclined, interpupilary distance 52-76mm, with light distribution 100:0/50:50
• Eyepiece: A pair of super-wide field, high-point eyepiece SHW10×/23mm
• Zoom objective: 0.8x-7x
• Working ditance: 108mm
• Zoom ratio: 8.8:1
• Magnification: Standard magnification: 8x-70x, it can be expanded to 2.96x-420x
• Focusing: Focusing Range 100mm
• Illumimation: 3W LED Incident & transmitted illumination with brightness adjustable
• Stand & stage base: Ergo Stand with Dual LED illumination, 300mm Height of Post, Coaxial coarse fcousing adjustment (fine focusing is optional), ∅100 object plate, microscope base dimensions 240×285 mm, with anti-vibration feet. Choice of black or white background (incl. Light base, medium width AntiShock)
Order code: ZX88D
• Optical system: Greenough optics
• Viewing Head: Trinocular viewing head with 35° inclined, interpupilary distance 52-76mm, with light distribution 100:0/50:50
• Eyepiece: A pair of super-wide field, high-point eyepiece SHW10×/23mm
• Zoom objective: 0.8x-7x
• Working ditance: 108mm
• Zoom ratio: 8.8:1
• Magnification: Standard magnification: 8x-70x, it can be expanded to 2.96x-420x
• Focusing: Focusing Range 100mm
• Illumimation: 3W LED Incident & transmitted illumination with brightness adjustable
• Stand & stage base: Ergo Stand with Dual LED illumination, 300mm Height of Post, Coaxial coarse fcousing adjustment (fine focusing is optional), ∅100 object plate, microscope base dimensions 240×285 mm, with anti-vibration feet. Choice of black or white background (incl. Light base, medium width AntiShock)
• Digital camera: Color digital CMOS camera with Full HD live picture 1920×1080, 60fps, HDMI output for direct viewing on an HD monitor. USB interface for connecting to a computer. Remote control for setting up the camera when working directly on a monitor. Ability to reproduce constant zoom positions for calibration of measurement image, Capture, archive and documentation software – control the camera as well as capture, archive and document microscopic images. Save and convert to various file formats (bmp, jpg, tif, mac). Image processing (contrast, brightness, color settings, etc.) Measuring and placing on a scale line. Automatic image calibration when shooting
More Stands and Arms Available
