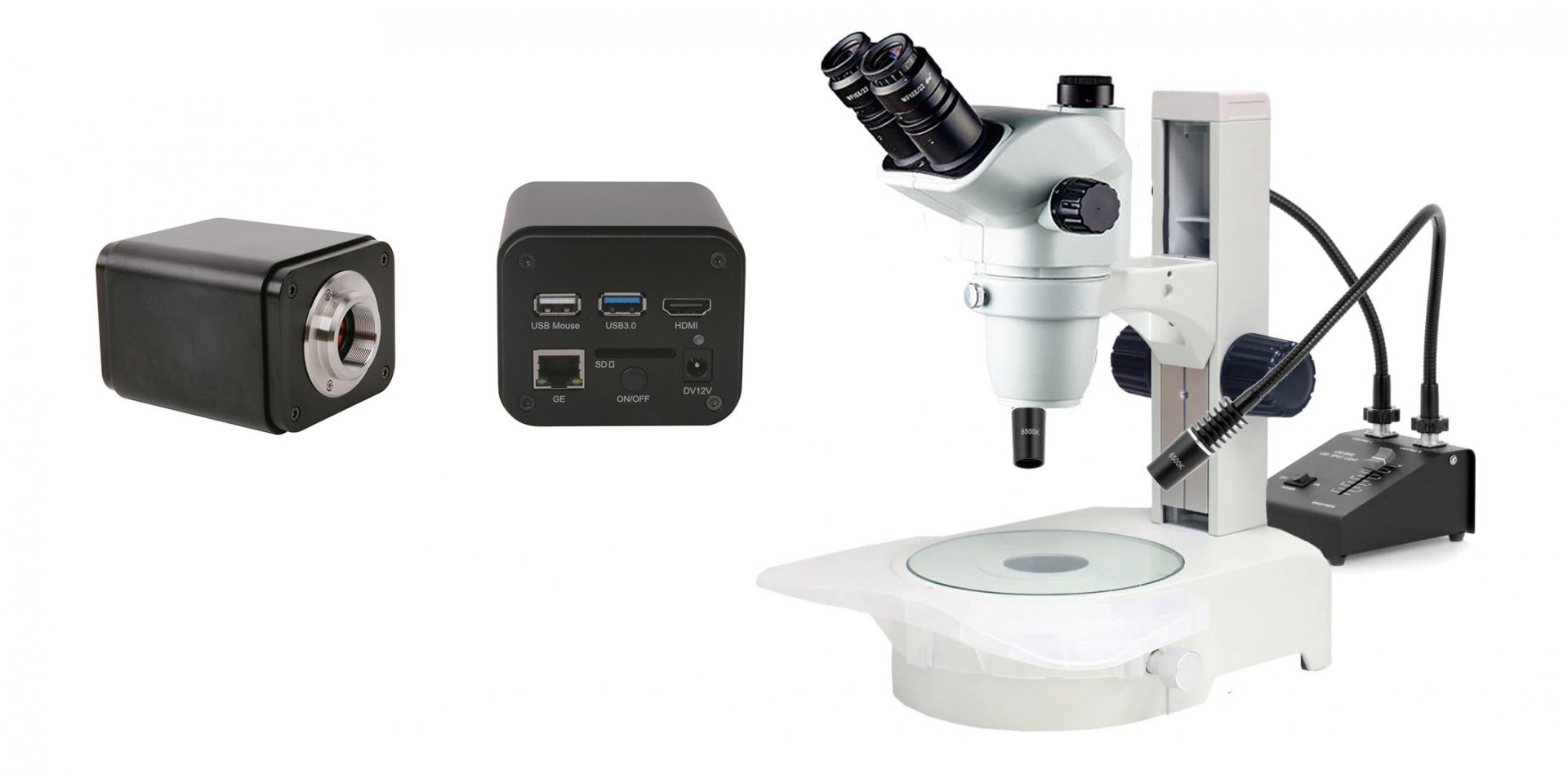

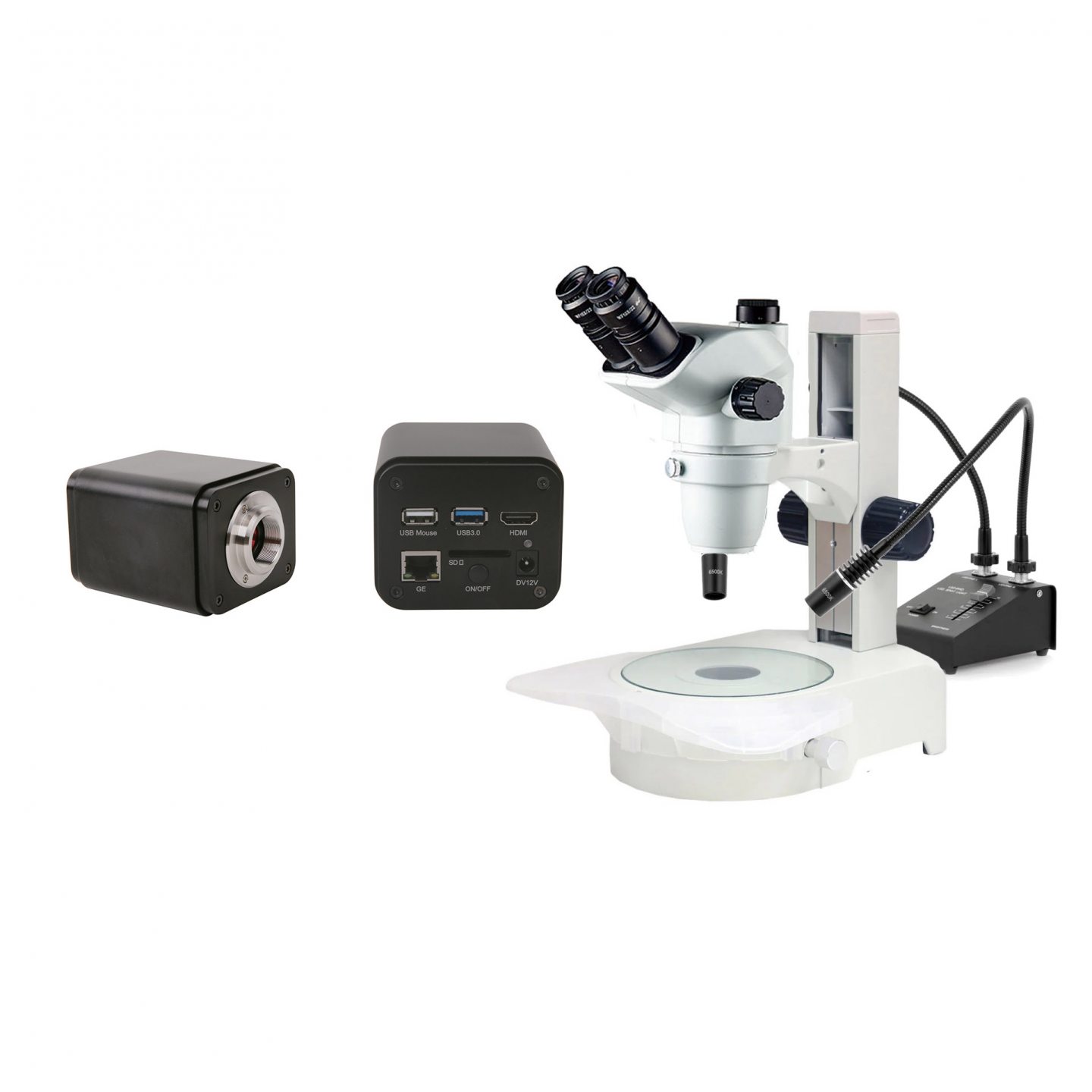

ZX47T-DS1 with L-100A-2 Double-arm goose neck light & polarization with HCO4K-8A Digital Camera

Home Microscopy Stereo Microscopes Greenough Zoom Stereo ZX47T-DS1 with L-100A-2 Double-arm goose neck light & polarization with HCO4K-8A Digital Camera

ZX47T-DS1 with L-100A-2 Double-arm goose neck light & polarization with HCO4K-8A Digital Camera

Greenough Zoom Stereo2023-08-02n50

Description

Model ZX47T-DS1 with L-100A-2 Double-arm goose neck light & polarization with HCO4K-8A Digital Camera
Optical system Greenough type optical system
Viewing Head Trinocular heads, 360° rotating and 45° inclined, with diopter adjustment for both side ±5, with splitting ratio 50/50
Interpupillary distance Adjustable between 54 and 75mm
Eyepiece A pair of eyepieces WF 10x/23mm
Zoom objective Continuous zoom 0.67x – 4.5x. Working distance: 110 mm
Zoom ratio 6.7:1
Magnification Standard magnification: 6.7x-45x (can be extended to 2.01x-270x with auliary objectives), Field of view 32.8mm – 4.9mm (field of view can be extended to 109mm-0.9mm, working distance extended to 287-26mm)
Auiliary lense: 0.5x lense, working distance: 177mm, field of view: 65.7mm-9.8mm (Optional)
Focusing Rack and opinion controlled by a pair of knobs placed on both sides of the stand, with vertical movement: 135mm
Illumimation Double adjustable illuminator for incident and transmitted light fitted with two high-efficiency LED light sources, brightness adjustable
L-100A-2 LED “goose-neck” Dual LED lighting with movable arms at least 250 mm long each, with the possibility of mounting a polarizer and a typical service life of at least 25,000 hours
Stand & stage base Transillumination unit with base mirror, rotating and sliding for brightfield, darkfield and oblique transillumination. Separate control elements for switching on, off and dimming of transmitted and reflected light with a maximum load of at 6 kg and a working surface of at least 200 x 200mm
Polarization Polarizer for transmitted light
Polarizer for the double LED lighting with movable arms
Rotating analyzer
C mount 0.5X lens with C-Mount adapter for digital camera
Digital camera HCO4K-8A  color digital camera, 4K, 8.3MP ultra HD, CMOS color image sensor, with HDMI, USB3.0, SD card slot, WiFi connection), with pixel size of 1.85μmx1.85μm, automatic and manual, exposure, Record format:Snapshot on JPG format, Record on MP4 File format (up to 60fps@3840×2160), exposure range 0.04ms to 2s, with built-in RAM and support USB flash disk to export picture and video data can connect to PC, with HDMI interface to connect to a screen, TV, Projector;  Compatible with Windows, iOS and Android with imaging app. Two operating modes: stand-alone without a PC or with imaging software. Comes with compatible software in French, which allows you to: * Control the camera * Make measurements on the images and process them (contrast, etc.) * Realize panorama and Extended Focus * Live image with the possibility of making videos and images.
Others Dust cover etc.
