Description
Descriptions

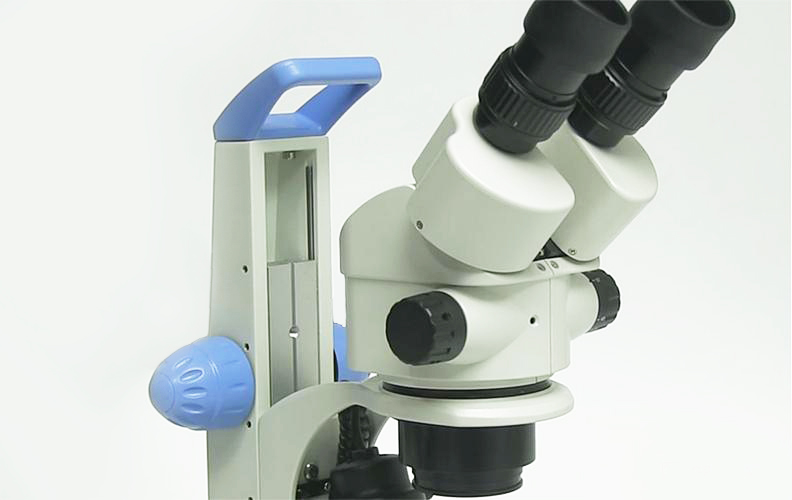

The ZT45N series can be considered as the entry-level of the ICOE professional stereo microscope range. This series has been designed for end users who need professional quality at low cost.
Optical Specifications
|
Eyepiece
|
1x
|
Auxiliary lens 0.5x
|
Auxiliary lens 1.5x
|
Auxiliary lens 2x
|
||||
|
W.D. 100mm
|
W.D. 165mm
|
W.D. 45mm
|
W.D. 30mm
|
|||||
|
Total Mag.
|
FOV
|
Total Mag.
|
FOV
|
Total Mag.
|
FOV
|
Total Mag.
|
FOV
|
|
|
10X/20mm
|
7X
|
28.6mm
|
3.5X
|
57.1mm
|
10.5X
|
19mm
|
14X
|
14.3mm
|
|
45X
|
4.4mm
|
22.5X
|
8.9mm
|
67.5X
|
3mm
|
90X
|
2.2mm
|
|
|
15X/15mm
|
10.5X
|
21.1mm
|
5.25X
|
42.8mm
|
15.75X
|
14.3mm
|
21X
|
10.7mm
|
|
67.5X
|
3.3mm
|
33.75X
|
6.7mm
|
101.25X
|
2.2mm
|
135X
|
1.7mm
|
|
|
20X/10mm
|
14X
|
14.3mm
|
7X
|
28.6mm
|
21X
|
9.5mm
|
28X
|
7.1mm
|
|
90X
|
2.2mm
|
45X
|
4.4mm
|
135X
|
1.5mm
|
180X
|
1.1mm
|
|
|
25X/9mm
|
17.5X
|
12.9mm
|
8.85X
|
25.4mm
|
26.2X
|
8.6mm
|
35X
|
6.4mm
|
|
112.5X
|
2.0mm
|
56.3X
|
4.0mm
|
168.8X
|
1.3mm
|
225X
|
1.0mm
|
|
|
30X/8mm
|
21X
|
11.4mm
|
10.5X
|
22.9mm
|
31.5X
|
7.6mm
|
42X
|
5.7mm
|
|
135X
|
1.8mm
|
67.5X
|
3.6mm
|
202.5X
|
1.2mm
|
270X
|
0.9mm
|
|
Specifications
Model: ZT45NB
- • Viewing Heads: Binocular or Trinocular heads, 360° rotating and 45° inclined
- • Interpupillary distance: Adjustable between 54 and 76 mm
- • Eyepieces: WF10x/20 mm
- • Specimen stage: Fitted with a semi-transparent disc for transmitted light with specimen clips.
- • Objectives: Continuous zoom 0.7x – 4.5x. (6.43:1 zoom factor). Working distance: 100 mm.
- • Stand: Fixed arm type with focusing mechanism.
- • Focusing: Rack and opinion controlled by a pair of knobs placed on both sides of the stand.
- • Illumination: Double adjustable illuminator for incident and transmitted light fitted with two high-efficiency LED light sources.
- • The angle of the incident illuminator is adjustable, voltage: 110/240V AC
Options
- • Eyepiece EW 15x/15 Widefield
- • Eyepiece EW 20x/10 Widefield
- • Eyepiece EW 25x/9
- • Eyepiece EW 30x/8
- • Eye shields
- • Trinocular head, 45° inclined, 360° rotatable, integrated with C-mount
- • Auxiliary lens 0.5x, WD 165mm
- • Auxiliary lens 1.5x; WD 45mm
- • Auxiliary lens 2x; WD 30mm
- • Boom stand
- • Dual arm boom stand
- • Articulated Arm
- • LED Ring Light
- • Digital Cameras
