UOCCD Series C-mount USB2.0 CCD Camera

USB2.0 CCD Cameras2022-05-03n50

Description

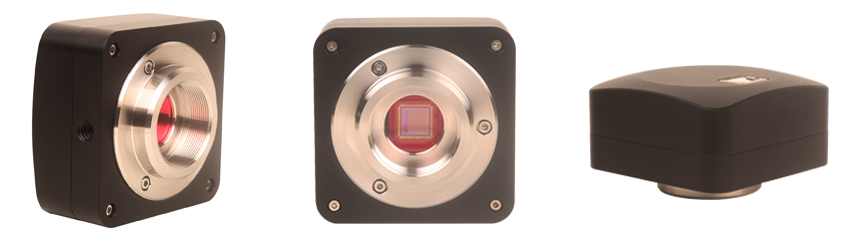

UOCCD Series C-mount USB2.0 CCD Camera

UOCCD: ICOE UOCCD is an ultra-high performance HAD CCD camera. The camera adopts Sony Super HAD CCD sensor as the image-picking device; The Super HAD CCD is a version of Sony’s high performance CCD HAD (Hole-Accumulation Diode) sensor

with sharply improved sensitivity by the incorporation of a new semiconductor technology developed by Sony Corporation. USB2.0 is used as the data transfer interface.

UOCCD comes with advanced video & image processing application ImageView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

The UOCCD can be widely used in brightfield light environment and microscope image capture and analysis.



Model Details

Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure
UOCCD052A ICX655AQ(C)
2/3″(8.44×7.07)
3.45×3.45 420mv with 1/30s
4mv with 1/30s
4.3@2448×2050
10.5@960×720
1×1 0.22ms~60s
UOCCD051A ICX452AQ(C)
1/1.8″(7.19×5.39)
2.775×2.775 260mv with 1/30s
16mv with 1/30s
4@2592×1944
35@560×420
1×1,
2×2
0.212ms~77ms
UOCCD-50A ICX282AQ(C)
2/3″ (8.70×6.53)
3.4×3.4 280mv with 1/30s
16mv with 1/30s
4.5@2560×1920
9@1280×960
1×1,
2×2
0.203ms~60ms
UOCCD031B ICX252AQ(C)
1/1.8″(7.06×5.30)
3.45×3.45 270mv with 1/30s
12mv with 1/30s
6@2048×1536
41@640×480
1×1,2×2 0.178ms~77ms
UOCCD020A ICX274AQ(C)
1/1.8″ (7.04×5.28)
4.40×4.40 420mv with 1/30s
8mv with 1/30s
10@1600×1200 1×1 0.135ms~60s
UOCCD014A ICX205AK(C)
1/2″(6.32×4.76)
4.65×4.65 400mv with 1/30s
16mv with 1/30s
8@1360×1024 1×1 0.227ms~60s
UOCCD014B ICX205AK(C)
1/2″ (6.32×4.76)
4.65×4.65 400mv with 1/30s
16mv with 1/30s
15@1360×1024 1×1 0.127ms~60s
UOCCD014MB ICX205AK(M)
1/2″ (6.32×4.76)
4.65×4.65 450mv with 1/30s
16mv with 1/30s
15@1360×1024 1×1 0.127ms~60s
UOCCD008A ICX204AK(C)
1/3″ (4.76×3.57)
4.65×4.65 400mv with 1/30s
16mv with 1/30s
16@1024×768 1×1 0.16ms~60s



Other Hardware Configurations

Spectral Range 380-650nm (with IR-Cut filter), for Monochromatic Camera, AR Is Used
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
Recording System Still Picture and Movie
Cooling System* Natural



Operating Environment

Operating Temperature -10 °C~ 50 °C
Storage Temperature -20 °C~ 60 °C
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port



Software Environment

Operating System Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17″ or Larger
CD-ROM
