SOCCD Series TE-Cooling C-mount USB2.0 CCD Camera

Home Microscopy Digital Cameras & Tablets USB2.0 CCD Cameras SOCCD Series TE-Cooling C-mount USB2.0 CCD Camera

SOCCD Series TE-Cooling C-mount USB2.0 CCD Camera

● Supporting up to 4'long time exposure;

● USB2.0 interface ensuring high speed data transmission;

● Ultra-Fine color engine with perfect color reproduction capability;

● With advanced video & image processing application ImageView;

● Windows/Linux/macOS/Android multiple platform SDK;

USB2.0 CCD Cameras2022-05-03n50

Description

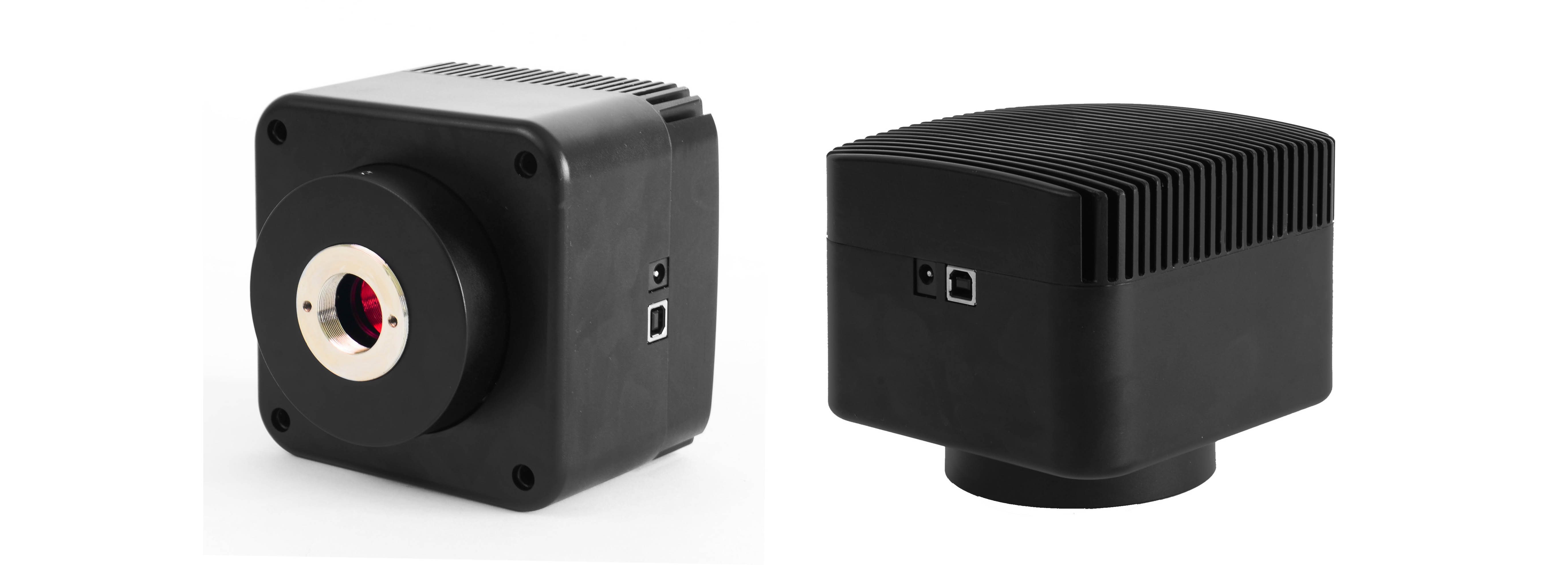

SOCCD Series TE-Cooling C-mount USB2.0 CCD Camera

ICOE SOCCD camera adopts semiconductor cooling peltier chip technique to keep Sony Exview HAD or HAD CCD sensor (The image-picking device) at low temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Besides,

integrated heat pipe-heat sink technique is used to transfer the heat to the camera housing fins. No fan is needed to keep the camera from vibration. USB2.0 is used as the data transfer interface.

SOCCD comes with advanced video & image processing application ImageView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);

The SOCCD can be widely used in low light environment and microscope fluorescence image capture and analysis.



Model Details

Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure
SOCCD052PA ICX655AQ(C)
2/3″(8.44×7.07)
3.45×3.45 420mv with 1/30s
4mv with 1/30s
4.3@2448×2050
10.5@960×720
1×1 0.22ms~60s
SOCCD014PB ICX285AQ(C)
2/3″(8.77×6.60)
6.45×6.45 1240mv with 1/30s
10mv with 1/30s
15@1360×1024 1×1 0.12ms~240s
SOCCD014MA ICX285AL(M)
2/3″(8.77×6.60)
6.45×6.45 1300mv with 1/30s
11mv with 1/30s
15@1360×1024 1×1 0.12ms~240s
SOCCD014PB ICX205AK(C)
1/2″(6.32×4.76)
4.65×4.65 400mv with 1/30s
16mv with 1/30s
15@1360×1024 1×1 0.12ms~240s
SOCCD014MB ICX205AL(M)
1/2″(6.32×4.76)
4.65×4.65 450mv with 1/30s
16mv with 1/30s
15@1360×1024 1×1 0.12ms~240s



Other Hardware Configurations

Spectral Range 380-650nm (with IR-Cut filter), for Monochromatic Camera, AR Is Used
White Balance ROI White Balance/ Manual Temp-Tint Adjustment
Color Rendering Technique Ultra Fine Color Engine
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
Recording System Still Picture and Movie
Cooling System* Natural



Operating Environment

Operating Temperature -10 °C~ 50 °C
Storage Temperature -20 °C~ 60 °C
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply DC 5V over PC USB Port



Software Environment

Operating System Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit)
OS X (Mac OS X), Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory: 2GB or More
USB port: USB2.0 High-speed Port
Display: 17″ or Larger
CD-ROM
