Description
Descriptions
The ST57 series stereo microscope is an extremely robust, stable stereo microscope which is easy to use, it is ideal for all conventional applications in schools, workshops and training companies
The whole range is assembled according to the best technical standards. The optical system, thanks to its transparency, quality and depth, is at the top of its category. The series is composed of 15 models, each one designed to satisfy multiple needs.
Objective Specifications
| Eyepiece | Magnification | 1x | 2x | 3x | 4x |
| WF5x | Total magnification | 5x | 10x | 15x | 20x |
| Field of view mm | ∅ 20 | ∅ 10 | ∅ 6.7 | ∅ 5 | |
| WF10x | Total magnification | 10x | 20x | 30x | 40x |
| Field of view mm | ∅ 20 | ∅ 10 | ∅ 6.7 | ∅ 5 | |
| WF15x | Total magnification | 15x | 30x | 45x | 60x |
| Field of view mm | ∅ 15 | ∅ 7.5 | ∅ 5 | ∅ 3.7 | |
| WF20x | Total magnification | 20x | 40x | 60x | 80x |
| Field of view mm | ∅ 10 | ∅ 6.5 | ∅ 4.3 | ∅ 3.2 | |
| Working Distance | 57cm | 57cm | 57m | 57cm | |
Product Details
- • Interpupillary distance: 55~75
- • One tube with diopter adjustment: +/-5 Dio.
- • Illumination: 110V or 220V/12V 10W,
- • Optional accessories: Inserted Objective 1X, 3X, 4X, 6X

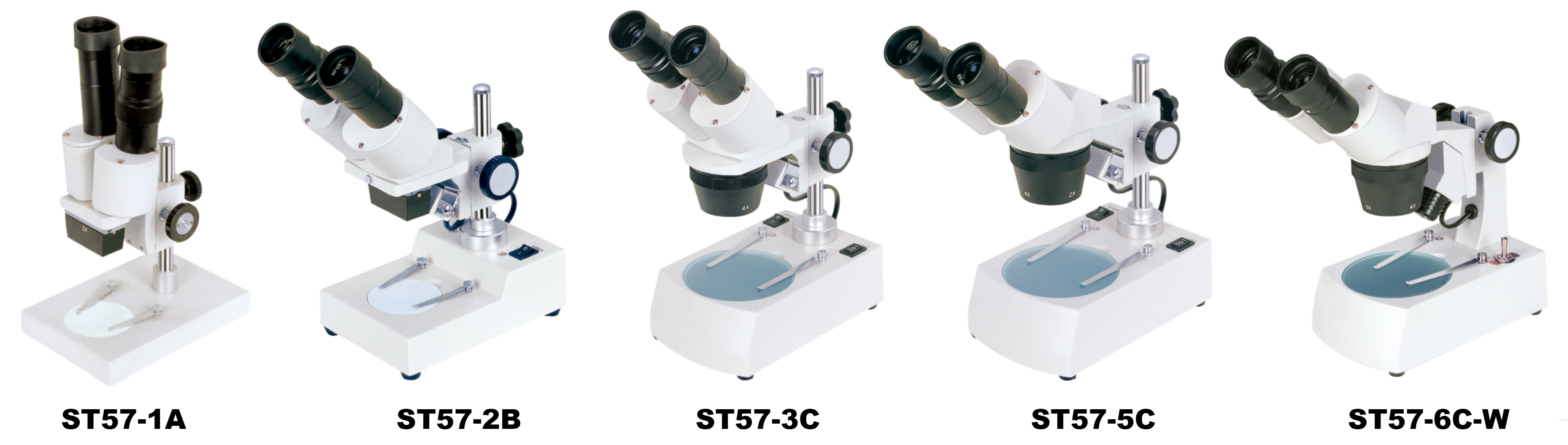

| Model | Illumination | Head and Body | Objective | W.D. | Eyepiece | ||||||||||||||
| ST57-1A | No Light | Straight Viewing | 2X Inserted | 80mm | WF10X/20mm | ||||||||||||||
| ST57-1B | Incident Light | ||||||||||||||||||
| ST57-1C | Incident/Transmitted Light | ||||||||||||||||||
| ST57-2A | No Light | Inclined Viewing Un-rotatable Body | |||||||||||||||||
| ST57-2B | Incident Light | ||||||||||||||||||
| ST57-2C | Incident/Transmitted Light | ||||||||||||||||||
| ST57-3A | No Light | 2X & 4X 90º Rotated | 57mm | ||||||||||||||||
| ST57-3B | Incident Light | ||||||||||||||||||
| ST57-3C | Incident/Transmitted Light | ||||||||||||||||||
| ST57-5A | No Light | Inclined Viewing Body 360º Rotatable | 2X & 4X 360º Rotated | 76mm | |||||||||||||||
| ST57-5B | Incident Light | ||||||||||||||||||
| ST57-5C | Incident/Transmitted Light | ||||||||||||||||||
| ST57-6C-W | Incident/Transmitted Light | ||||||||||||||||||

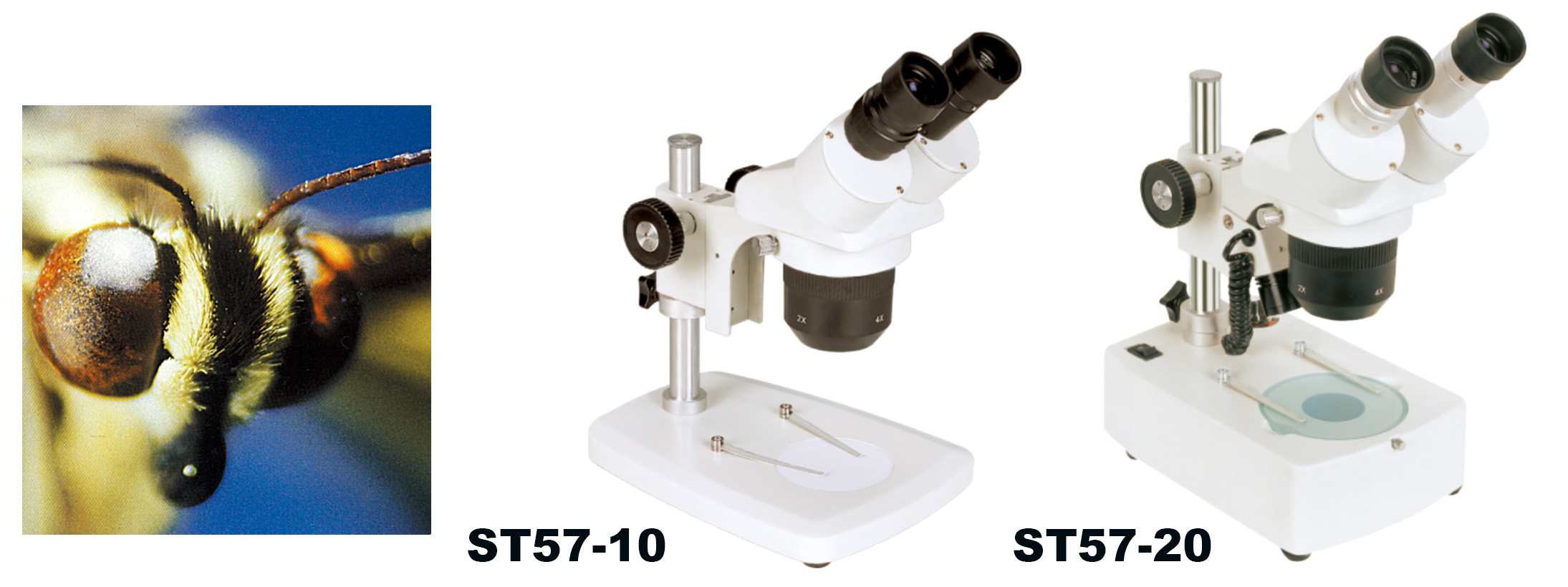

ST57-10/20 Stereo Microscope
| Model | ST57-10 | ST57-20 | |||||||||||||||||
| Eyepiece | WF10X/⌀20 | ●● | ●● | ||||||||||||||||
| Eyepeice WF5X/⌀22, WF15X/⌀15, WF20X/⌀10 | ○○ | ○○ | |||||||||||||||||
| Objectives/Working Distance | 2X&4X/72mm | ● | ● | ||||||||||||||||
| 1X&2X/72mm | ○ | ○ | |||||||||||||||||
| 1X&3X/72mm | ○ | ○ | |||||||||||||||||
| Auxiliary Objective | 0.5X, 0.75X, 1.5X, 2X | ○ | ○ | ||||||||||||||||
| Illumination | No Light | ● | ○ | ||||||||||||||||
| Transmitted and Incident Light | ○ | ● | |||||||||||||||||

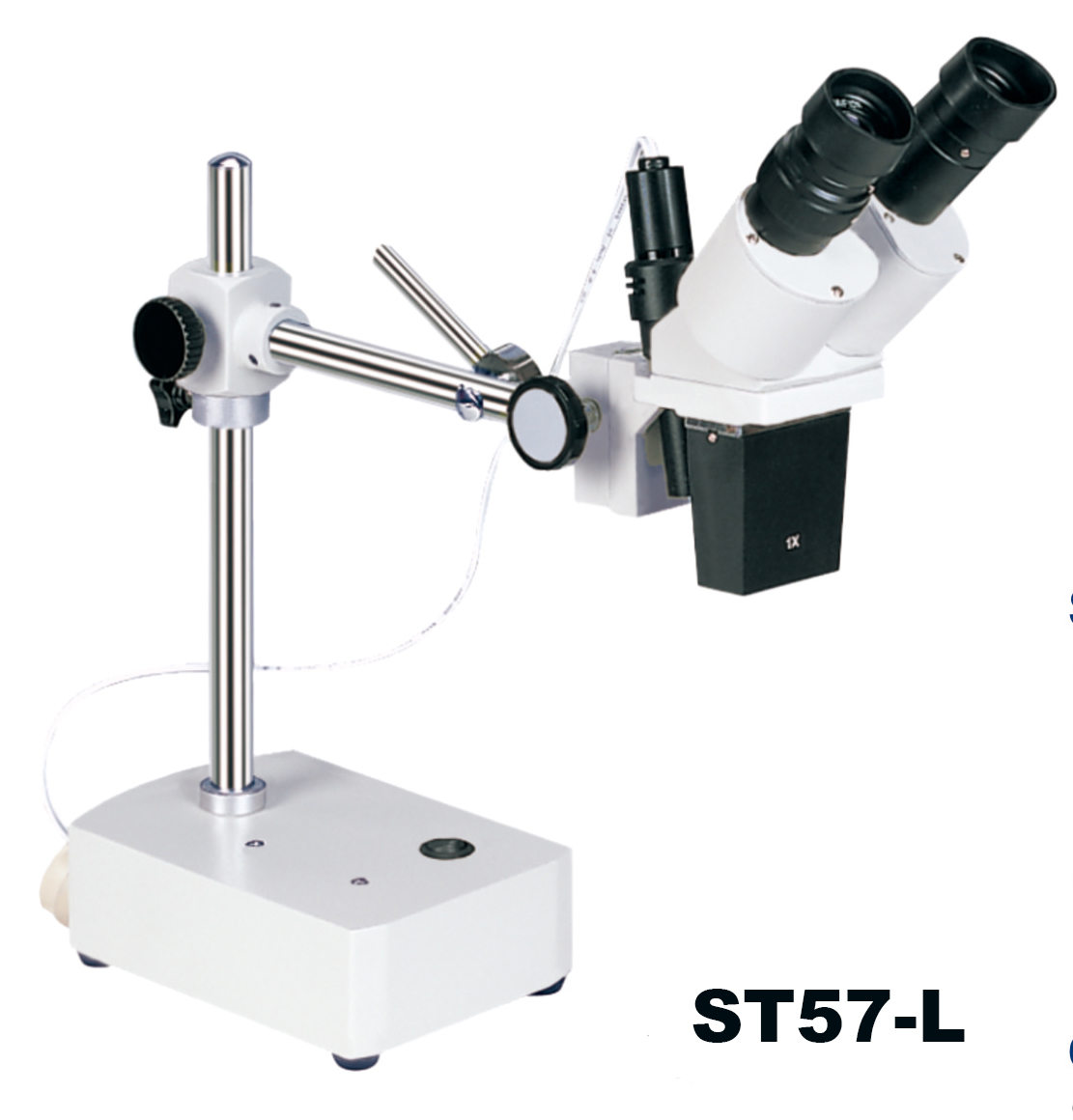

Long Working Distance Stereo Microscope ST57-L
- • Long arm for microscope body
- • Inclined binocular head interpupillary distance 55~75mm
- • Diopter adjustement on left tube +/-5 dio
- • Eyepiece WF10X
- • Insert objective 1X
- • Working distance of objective 230mm
- • Illumination 110V or 220V 10W incandescent lamp
- • Options: Objective 0.5X, Working Distance 250mm
- Eyepeice WF5X/⌀22,
- WF15X/⌀15,
- WF20X/⌀10
