Description
Stereo microscopes are the perfect start to jump into the world of microscopy. With stereo microscopes no special specimen preparation before observing is required inserts, flowers, leafs, coins… can be put under the microscope and viewed immediately and the results are fast and amazing from the start. Kids and students can observe objects independently just right after a short introduction.
Furthermore, stereo microscopes are not only ideal for teaching purposes and learning, they see use in all kinds of application such as routine inspection, quality control, assembly, medical applications or forensics.
Our stereo microscopes create crystal clear erect 3D image with excellent depth of field for observations of flowers, animals, micro-organisms, stones, minerals, various surfaces or circuit boards.

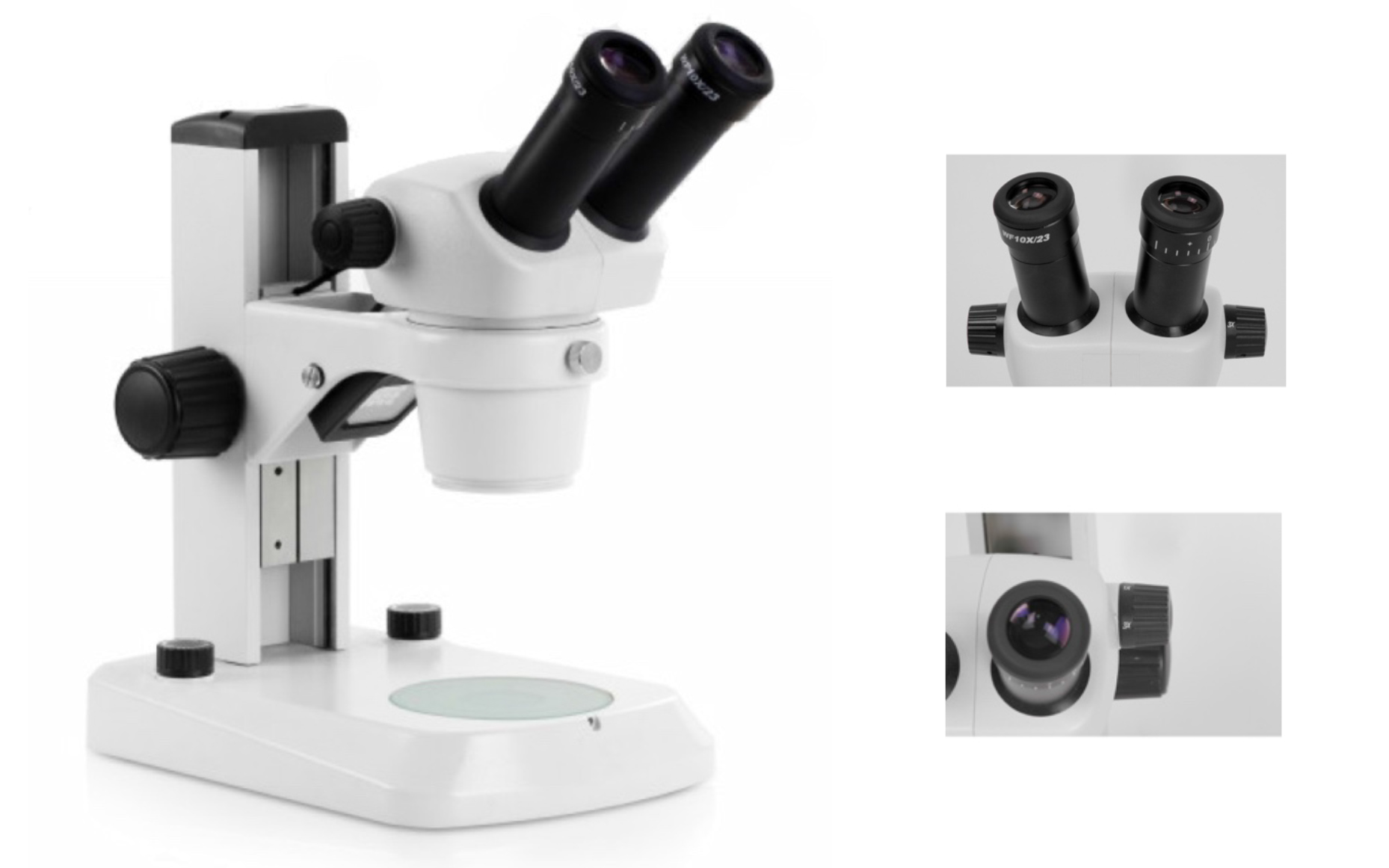

Stereo Microscope Model MS25 Series with standard magnification 20x/40x
The 2-magnification model offers a magnification changer from 2x/4x (optional: 1x/3x, 1x/4x, 1x/2x, 2x/3x). The compact structure, the long working distance (97mm) and the high optical performance makes the model suitable for various applications. It is ideal for teaching purposes and learning, hobby activities, routine laboratory use, biological or botanical applications, assembly. ICOE MS25 series offers a binocular observation tube, which is inclined at 45° (optional: 60°) and 360° rotatable. The stand features an economic incident and transmitted LED illumination system. Both lights can be used together or simultaneously as well as the brightness can be adjusted independently.
Observing inclusions in stones or crystals, biological applications, observing animals or plants
Product Specifications
| Model | MS25B(13) | MS25B(14) | MS25B(12) | MS25B(23) | MS25B(24) | |
| Viewing Head | Binocular head, inclined at 45°, 360° rotatable | ● | ● | ● | ● | ● |
| Binocular head, inclined at 60°, 360° rotatable | ○ | ○ | ○ | ○ | ○ | |
| Binocular head, inclined at 45°, 360° rotatable | ○ | ○ | ○ | ○ | ○ | |
| Diopter Adjustment Eyepiece | WF10x/Φ23 | ● | ● | ● | ● | ● |
| WF10x/Φ20 | ○ | ○ | ○ | ○ | ○ | |
| WF10x/Φ22 | ○ | ○ | ○ | ○ | ○ | |
| WF15x/Φ16 | ○ | ○ | ○ | ○ | ○ | |
| High-point WF20x/Φ12 | ○ | ○ | ○ | ○ | ○ | |
| Low-point WF20x/Φ12 | ○ | ○ | ○ | ○ | ○ | |
| WF30x/Φ8 | ○ | ○ | ○ | ○ | ○ | |
| WF10x eyepiece with cross hair | ○ | ○ | ○ | ○ | ○ | |
| Objective | 1x/3x | ● | ||||
| 1x/4x | ● | |||||
| 1x/2x | ● | |||||
| 2x/3x | ● | |||||
| 2x/4x | ● | |||||
| Auxiliary objective | 2x WD:30mm | ○ | ○ | ○ | ○ | ○ |
| 0.75x WD: 120mm | ○ | ○ | ○ | ○ | ○ | |
| 0.63x WD: 137mm | ○ | ○ | ○ | ○ | ○ | |
| 0.5x WD: 180mm | ○ | ○ | ○ | ○ | ○ | |
| Working Distance | 97mm | ● | ● | ● | ● | ● |
| Stand | Stand without illumination | ○ | ○ | ○ | ○ | ○ |
| Stand with LED transmission illumination | ○ | ○ | ○ | ○ | ○ | |
| Stand with LED reflection illumination | ○ | ○ | ○ | ○ | ○ | |
| Stand with LED transmission & reflection illumination | ● | ● | ● | ● | ● | |
| Arm boom stand | ○ | ○ | ○ | ○ | ○ | |
| Dual arm boom stand | ○ | ○ | ○ | ○ | ○ | |
| Articulated Arm | ○ | ○ | ○ | ○ | ○ | |
| Adapter | TV Mount | ○ | ○ | ○ | ○ | ○ |
| 0.5x C mount | ○ | ○ | ○ | ○ | ○ | |
| 1x C mount | ○ | ○ | ○ | ○ | ○ | |
Options
| Cat. Number | Descriptions |
| M21041001 | Binocular heads, 360° rotating and 45° inclined |
| M21041002 | Binocular heads, 360° rotating and 60° inclined |
| M21041003 | Trinocular heads, 360° rotating and 45° inclined |
| M21041004 | Eyepiece EW 10x/23 |
| M21041005 | Eyepiece WF15x/16 |
| M21041006 | Objective 1x / 3x |
| M21041007 | Objective 1x / 4x |
| M21041008 | Objective 1x / 2x |
| M21041009 | Objective 2x / 3x |
| M21041010 | Objective 2x / 4x |
| M21041011 | Eye shields |
| M21041012 | Auxiliary lens 0.5x, WD 180mm |
| M21041013 | Auxiliary lens 0.63x, WD 137mm |
| M21041014 | Auxiliary lens 0.75x; WD 137mm |
| M21041015 | Auxiliary lens 2x; WD 30mm |
| M21041016 | 1X C TV mount |
| M21041017 | 0.5X C TV mount |
| M21041018 | LED Ring Light |
| M21041019 | Polarization Set |
| M21041020 | Darkfield Set |
| M21041021 | Moveable Stage |
| M21041022 | Boom stand |
| M21041023 | Dual arm boom stand |
| M21041024 | Articulated Arm |
