QZ756P Series Monocular Zoom Objective, with Parallel Light Path 0.7x-5.6x

Home Microscopy Industrial Monocular Microscope Monocular Zoom Objective Series QZ756P Series Monocular Zoom Objective, with Parallel Light Path 0.7x-5.6x

QZ756P Series Monocular Zoom Objective, with Parallel Light Path 0.7x-5.6x

Monocular Zoom Objective Series2022-02-08n50

Description

Features

  • 1. Provide basic zoom objective QZ756P-W100-V100 with 0.7X~5.6X zoom range
  • 2. Large optical zoom ratio: 8X
  • 3. Larger NA: 0.018-0.092 (When using 1x Auxiliary Lens)
  • 4. Higher resolution: 18.6um-3.65um (When using 1x Auxiliary Lens)
  • 5. Larger field of view: 0.99mm-31.74mm(Object plane)
  • 6. Larger sensor size: 2/3 Inch (When using 1x TV Lens)
  • 7. Working distance: 37.5mm-160mm
  • 8. Parfocal in zoom range
  • 9. Compatible with infinity objectives (both biological and metallographic)



QZ756P Series Monocular Zoom Objective, with Parallel Light Path

QZ756P is designed with modularized structure which is based on the bilateral parallel light path.with excellent optical performance. The QZ756P can be used in the fields of machine vision, industrial inspection and scientific research.



The Five Basic Modules of QZ756P Series

The five basic modules are: Middle Zoom Module, Auxiliary Lens Module, TV Lens Module, Bracket Adapter Module and Optional Module as shown below (The Optional Module is not shown)

QZ756P Main Body includes Auxiliary Lens Module, Middle Zoom Module, TV Lens, Camera Adapter Tube and Bracket Adapter



1. The Middle Zoom Module

The Middle Zoom Module which is the main body of QZ756P series monocular zoom objective. There are four types of Middle Zoom Modules including QZ756P, QZ756PT, QZ756PD and QZ756PTD. Details are listed in Table below:

Order No. Descriptions
QZ756P Zoom range: 0.7x-5.6x Ordinary Middle Zoom Module
QZ756PT  Middle Zoom Module with back focus trimmable(adjustable) function
QZ756PD  Middle Zoom Module with detent to fix the magnification function
QZ756PTD  Middle Zoom Module with back focus trimmable and magnification detent functions



2. Auxiliary Lens Module

The replaceable Auxiliary Lens, which can be threaded to the bottom of the Middle Zoom Module. Different magnification of the Auxiliary Lens defines the whole magnification of QZ756P series monocular zoom objective, resulting different working distance. For example, compared with the W100 Auxiliary Lens with 1.0x magnification and 80mm working distance, the W050 Auxiliary Lens will have a reduced magnification to half and the working distance will be extended to about 160mm. Auxiliary Lens and its corresponding optical parameters are shown in table below:

Order No. Magnification Working distance(mm) Field of View in the object side (TV050, 1/3″ sensor)
Lower magnification Higher magnification
W050 0.5X 160 34.28mm 4.28mm
W075 0.75X 105 20.81mm 2.86mm
W100 1.00X 80 17.14mm 2.14mm
W150 1.50X 51.5 11.43mm 1.43mm
W200 2.00X 37.5 8.57mm 1.07mm



3. TV Lens Module

TV lens module which can be threaded to the top of the Middle Zoom Module. TV Lens with different magnification is used to adapt to sensors with different size . For example, the same field of view could be obtained when V100 is used with a 2/3” size sensor and V050 is used with a 1/3” size sensor . TV Lens and its corresponding optical parameters are shown in Table below:

Order number The maximum compatible sensor size
V050 1/3″
V075 1/1.8″
V100 2/3″
V150 1″
V200 4/3″



4. Bracket Adapter Module

Bracket Adapter, which is used for brackets with different mounting apertures and is sheathed in the middle of the monocular zoom objective, The installation method of Bracket Adapter and bracket is shown below:



5. Light Source Module for QZ745P Series Monocular Zoom Objective

Module Order Number Description
Coaxial Light Module CL Coaxial Light Adapter + LED Spot Light
LED Direct Ring Light Module RL LED Direct Ring Light
RPL LED Direct Ring Polarization Light
Transmissive Light Module TL LED Transmissive Light
Power of light source 40600014 US:POWER-U-12V1A (Power Adapter American Standard)
40600015 DE: POWER-E-12V1A (Power Adapter European standard)



Configuration of QZ745P Series Monocular Zoom Objective

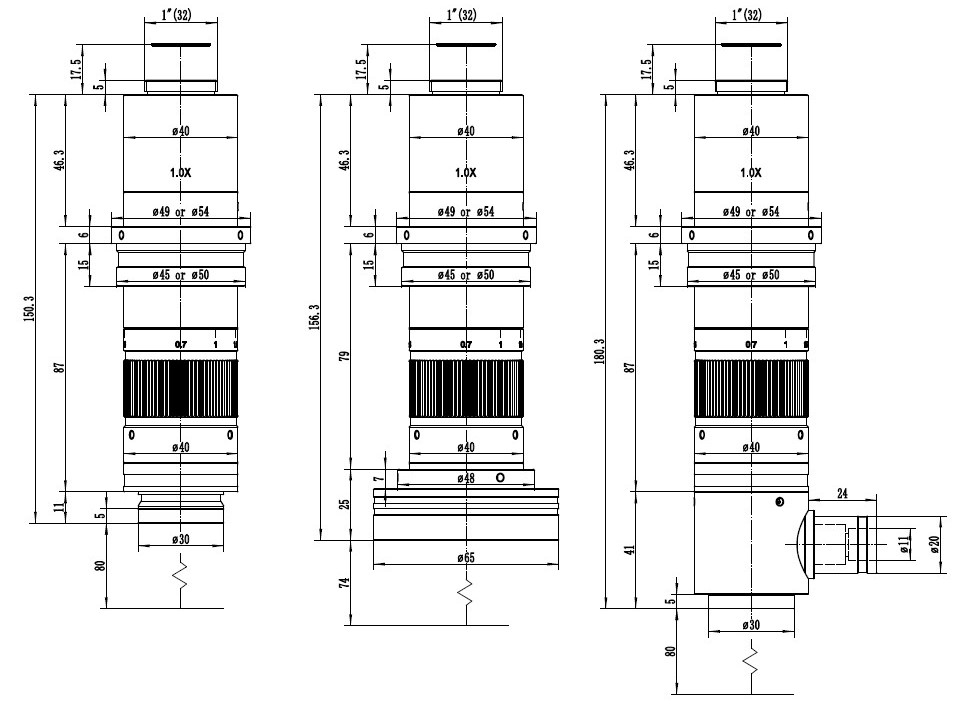

The Dimension of QZ745P Series Monocular Zoom Objective with Different Light Module

1) QZ756P without light module     2) QZ756P equipped with Direct Ring Light Module     3) QZ756P equipped with Coaxial Light Module



Model List of QZ756P Series with Different Auxiliary Lens and TV Lens

The combinations of different the Auxiliary Lens, The Middle Zoom Module and the TV Lens. With this figure, user can configure Monocular Zoom Objective with different magnification to fit different sensor and different application.

Order Code Middle Zoom Module+Auxiliary Lens+TV Lens Camera Type WD (mm) PMAG DFOV (mm) NAO
QZ756P-W050-V050 QZ756P zoom module + 0.5x auxiliary lens+0.5x TV lens 1/3″ 160 0.18X-1.40X 34.28-4.28 0.009-0.046
QZ756P-W075-V050 QZ756P zoom module + 0.75x auxiliary lens+0.5x TV lens 105 0.26X-2.10X 20.81-2.86 0.013-0.069
QZ756P-W100-V050 QZ7456P zoom module + 1x auxiliary lens+0.5x TV lens 80 0.35X-2.80X 17.14-2.14 0.018-0.092
QZ756P-W150-V050 QZ756P zoom module + 1.5x auxiliary lens+0.5x TV lens 51.5 0.53X-4.20X 11.43-1.43 0.026-0.138
QZ756P-W200-V050 QZ756P zoom module + 2x auxiliary lens+0.5x TV lens 37.5 0.70X-5.60X 8.57-1.07 0.035-0.182
QZ756P-W050-V075 QZ756P zoom module + 0.5x auxiliary lens+0.75x TV lens 1/1.8″ 160 0.26X-2.10X 33.97-4.25 0.009-0.046
QZ756P-W075-V075 QZ756P zoom module + 0.75x auxiliary lens+0.75x TV lens 105 0.40X-3.15X 22.67-2.84 0.013-0.069
QZ756P-W100-V075 QZ756P zoom module + 1x auxiliary lens+0.75x TV lens 80 0.53X-4.20X 17.02-2.13 0.018-0.092
QZ756P-W150-V075 QZ756P zoom module + 1.5x auxiliary lens+0.75x TV lens 51.5 0.79X-6.30X 11.34-1.42 0.026-0.138
QZ756P-W200-V075 QZ756P zoom module + 2x auxiliary lens+0.75x TV lens 37.5 1.05X-8.40X 8.51-1.06 0.035-0.182
QZ756P-W050-V100 QZ756P zoom module + 0.5x auxiliary lens+1x TV lens 2/3″ 160 0.35X-2.80X 31.74-3.93 0.009-0.046
QZ756P-W075-V100 QZ756P zoom module + 0.75x auxiliary lens+1x TV lens 105 0.53X-4.20X 20.99-2.61 0.013-0.069
QZ756P-W100-V100 QZ756P zoom module + 1x auxiliary lens+1x TV lens 80 0.70X-5.60X 15.80-1.96 0.018-0.092
QZ756P-W150-V100 QZ756P zoom module + 1.5x auxiliary lens+1x TV lens 51.5 1.05X-11.20X 10.46-1.31 0.026-0.138
QZ756P-W200-V100 QZ756P zoom module + 2x auxiliary lens+1x TV lens 37.5 1.40X-11.2X 7.90-0.99 0.035-0.182
QZ756P-W050-V150 QZ756P zoom module + 0.5x auxiliary lens+1.5x TV lens 1″ 160 0.53X-4.20X 30.48-3.81 0.009-0.046
QZ756P-W075-V150 QZ756P zoom module + 0.75x auxiliary lens+1.5x TV lens 105 0.79X-6.30X 20.25-2.54 0.013-0.069
QZ756P-W100-V150 QZ756P zoom module + 1x auxiliary lens+1.5x TV lens 80 1.05X-8.40X 15.24-1.90 0.018-0.092
QZ756P-W150-V150 QZ756P zoom module + 1.5x auxiliary lens+1.5x TV lens 51.5 1.58X-12.6X 10.13-1.27 0.026-0.138
QZ756P-W200-V150 QZ756P zoom module + 2x auxiliary lens+1.5x TV lens 37.5 2.10X-16.8X 7.62-0.95 0.035-0.182
QZ756P-W050-V200 QZ756P zoom module + 0.5x auxiliary lens+2x TV lens 4/3“ 160 0.70X-5.60X 32.14-4.02 0.009-0.046
QZ756P-W075-V200 QZ756P zoom module + 0.75x auxiliary lens+2x TV lens 105 1.05X-8.40X 21.43-2.68 0.013-0.069
QZ756P-W100-V200 QZ756P zoom module + 1x auxiliary lens+2x TV lens 80 1.40X-11.2X 16.07-2.01 0.018-0.092
QZ756P-W150-V200 QZ756P zoom module + 1.5x auxiliary lens+2x TV lens 51.5 2.10X-16.8X 10.71-1.34 0.026-0.138
QZ756P-W200-V200 QZ756P zoom module + 2x auxiliary lens+2x TV lens 37.5 2.80X-22.4X 8.04-1.00 0.035-0.182

Notices: 1). In above table, the type of middle zoom module is not specified which can be QZ756P, QZ756PT, QZ756PD and QZ756PTD;   2).In above table, the bracket adapter module is not specified which can be A50 or A45
