QZ745 Series Monocular Zoom Objective, 0.7x-4.5x

Monocular Zoom Objective Series2022-02-08n50

Description

QZ745 Series Monocular Zoom Objective

QZ745 series monocular zoom objective uses finite optical system structure with excellent optical performance. it is an ideal choice for most applications that requires multiple magnifications or for those that prohibits continual manual refocusing. The applications of QZ745 series are:

– Machine vision
– Small details inspection
– Industrial inspection especially electronic components
– Scientific research
– Medical industry
– Education industry



The Structure and Characteristic of QZ745 Series Monocular Zoom Objective

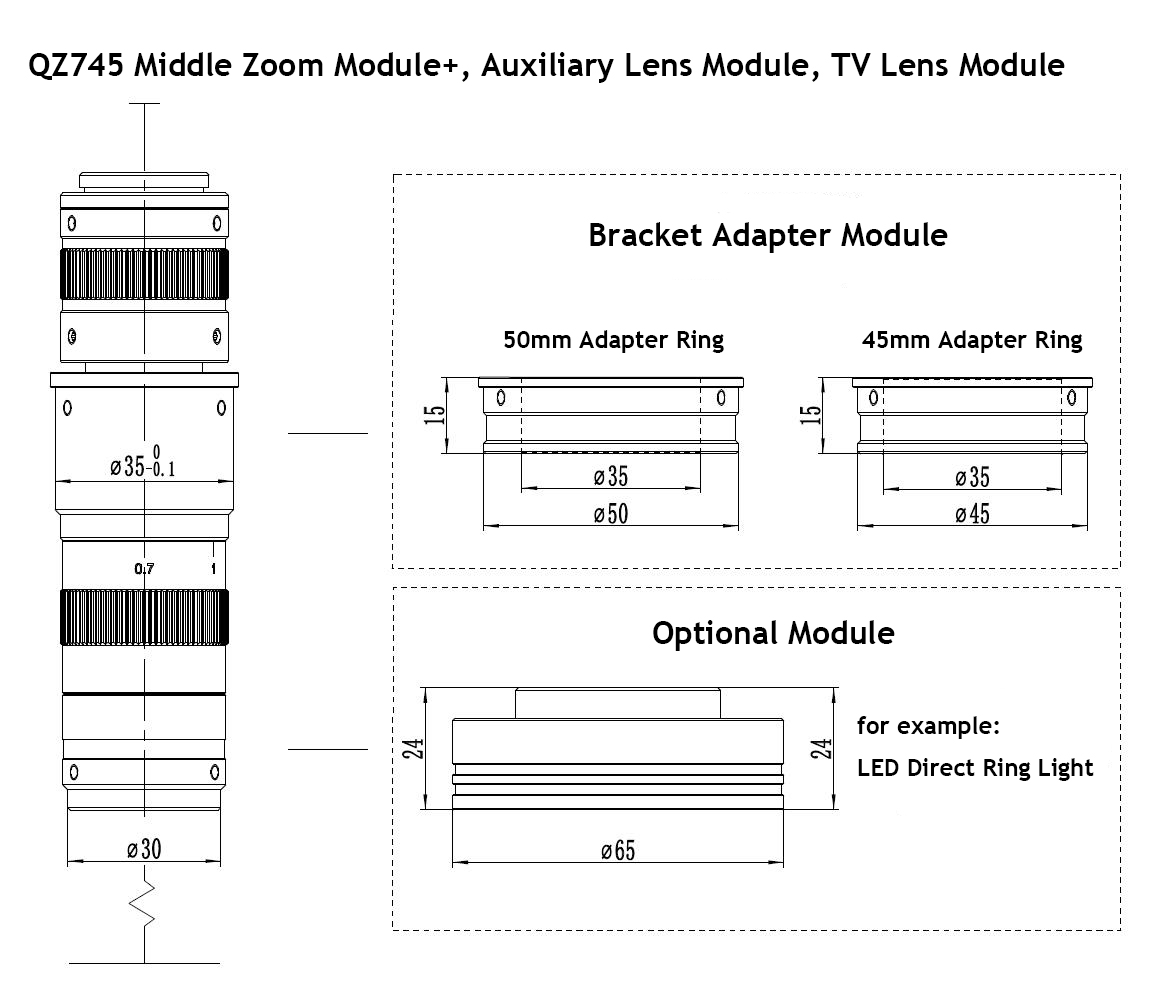

The modular design of QZ745 series is showed below. The design is based on the finite optical system path principle and consists of five basic modules. The five basic modules are: The Main Body including Middle Zoom Module, Auxiliary Lens Module, TV Lens Module, Bracket Adapter Module and Optional Module.



There are four models for QZ745 available

QZ745-W100-V075

QZ745-W100-V050

QZ745-W075-V075

QZ745-W075-V050

Which are the combination of QZ745 main body, auxiliary lenes and TV lenes with different magnification. For example: model QZ745-W100-V050, it represents the magnification of main body is between 0.7X and 4.5X, the magnification of the objective is 1.0X and the magnification of TV Lens is 0.5X.

User can choose different model according to the sensor size and working distance. they are shown in the table below, you may refer to their specifications of QZ745 with Different Auxiliary and TV Lens

Order Number Magnification of main body Magnification of system NA Working distance DFOV(mm) The maximum compatible sensor size
QZ745-W100-V050 0.7X-4.5X 0.35X-2.25X 0.016-0.07 95mm 17.14-2.67 1/3inch
QZ745-W100-V075 0.7X-4.5X 0.53X-3.38X 0.016-0.07 95mm 17.14-2.67 1/1.8inch
QZ745-W075-V050 0.7X-4.5X 0.26X-1.69X 0.012-0.053 127mm 22.86-3.56 1/3inch
QZ745-W075-V075 0.7X-4.5X 0.39X-2.53X 0.012-0.053 127mm 22.86-3.56 1/1.8inch



The Optional Modules of QZ745 Series Monocular Zoom Objective

Module  Order Number Description
LED Direct Ring Light Module RL LED Direct Ring Light
Transmissive Light Module TL LED Transmissive Light
Power of light source 40600014 US:POWER-U-12V1A(Power Adapter American Standard)
40600015 DE: POWER-E-12V1A(Power Adapter European standard

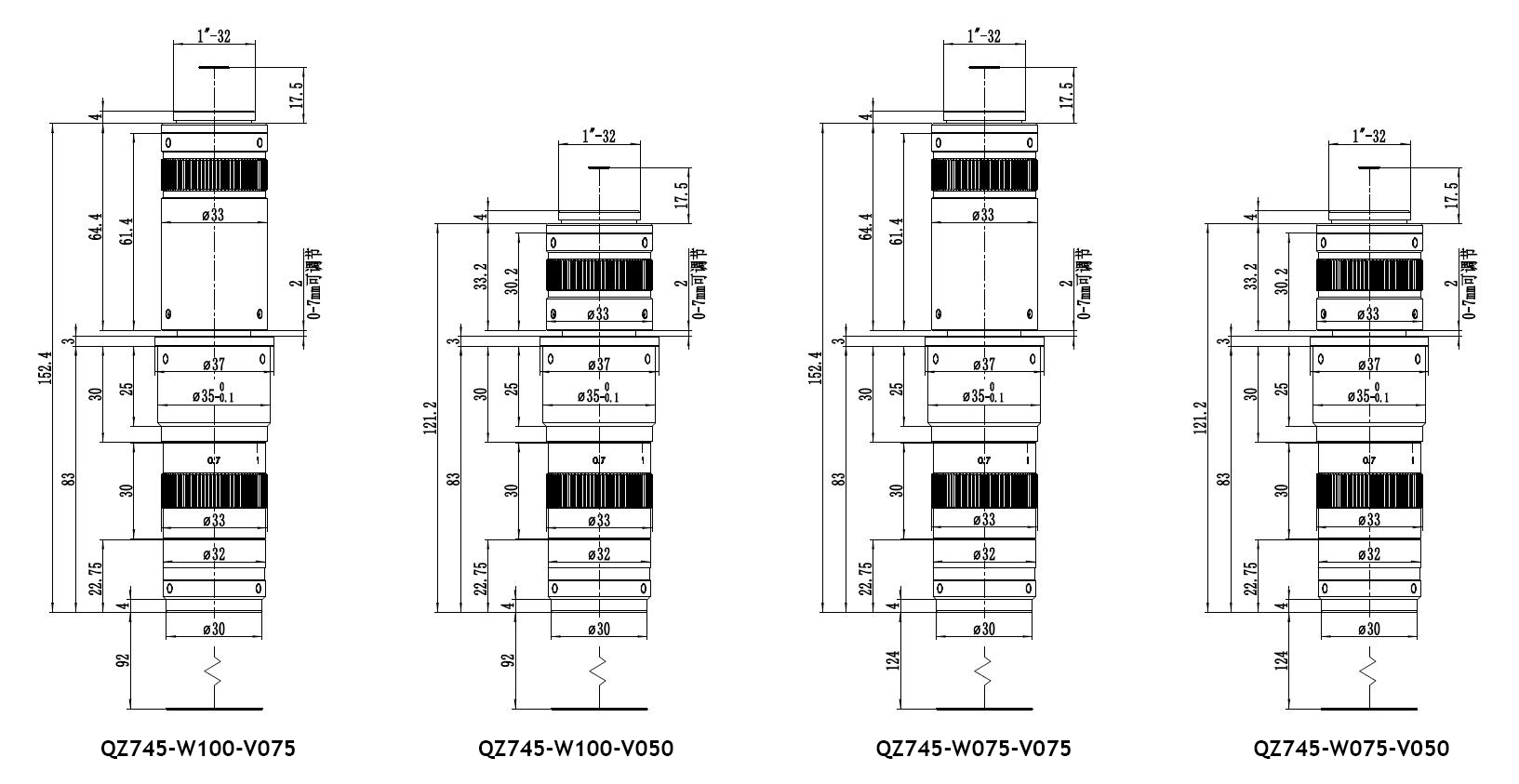

The Dimension of QZ745 Series Monocular Zoom Objective
