Description
Introduction

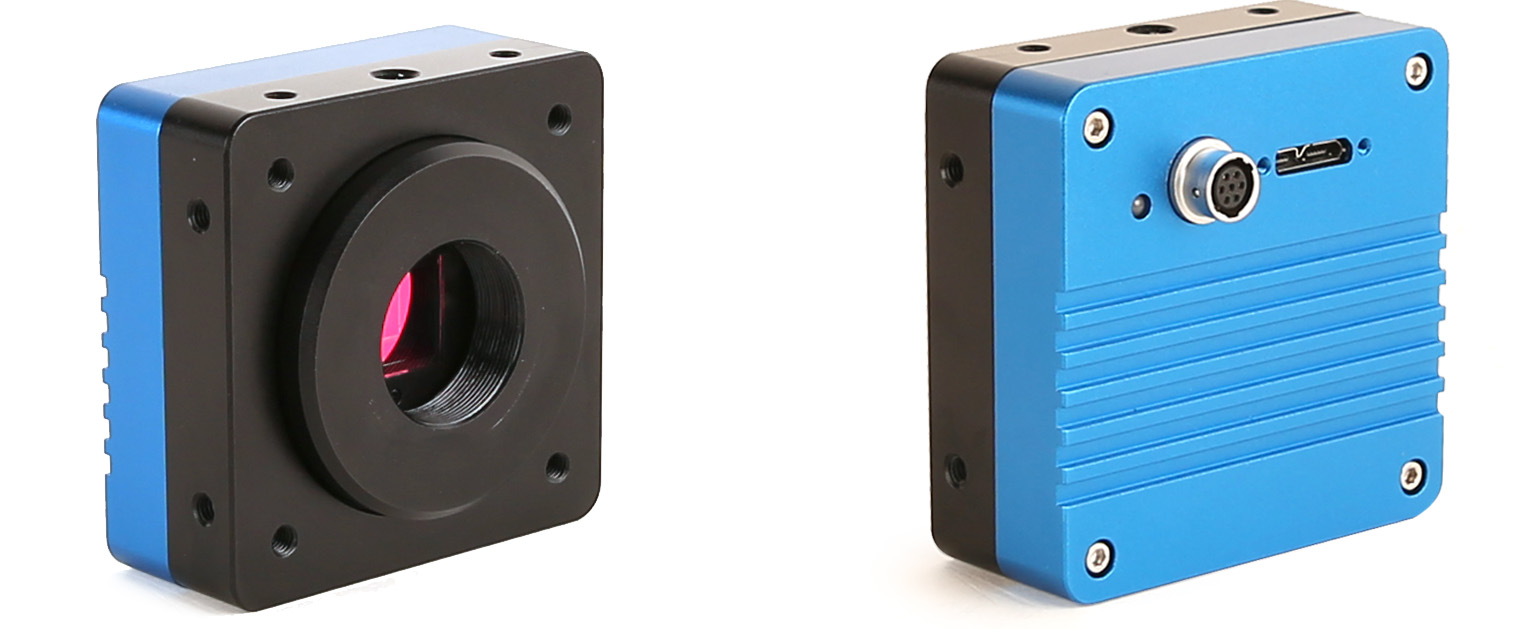

MVUA Series Machine Vision Cameras are USB3.0 interface cameras for industrial applications. They mainly adopt the 1/2.8”~1.1”sensor；
This series cameras are imaging capture devices which use USB3.0 to transmit uncompressed images in real time. They support image acquisition and parameter setting (such as working mode, image parameter adjustment etc.) through client-side user-friendly software.
Features
1. Sony Exmor back-illuminated CMOS sensor;
2. Two-step noise reduction technology;
3. Ultra-high sensitivity and low noise;
4. USB3.0 data transmission interface compatible with USB2.0 protocol;
5. Provides advanced video and image processing application software ToupView, compatible with Windows/Linux/OSX multi-platform SDK, support native C/C++, C#/VB.Net, DirectShow, Twain API;
6. Supports external triggering, digital I/O and free-running modes;
7. Supports ROI, flip, bit-depth switching and other features;
MVUA series specifications
(Moderate sensor size, general or special wavelength(Visible, UV, NIR, 38)
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
| MVUA-0X4MA | 0.4M/IMX287LLR(M,GS)
1/2.9“ (4.97×3.73) |
6.9×6.9 | 7320mv with 1/30s 0.76mv with 1/30s |
101.5fps@720×540 | 1×1 | 6us~15s |
| MVUA-0X5MA | 0.5M/IMX426LLJ(M,GS)
1/1.7“ (7.2×5.58) |
9.0×9.0 | 8100mv with 1/30s 0.3mv with 1/30s |
79.8fps@800×620 | 1×1 | 6us~15s |
| MVUA-0X5MB | 0.5M/IMX433LLJ(M,GS)
1/1.7“ (7.2×5.58) |
9.0×9.0 | 8100mv with 1/30s 0.3mv with 1/30s |
79.8fps@800×620 | 1×1 | 6us~15s |
| MVUA-1X5MA | 1.5M/IMX273LLR(C,GS)
1/2.9“ (4.97×3.73) |
3.45×3.45 | 1830mv with 1/30s 0.15mv with 1/30s |
155fps@1440×1080 523fps@720×540 |
1×1 1×1 |
15us~15s |
| MVUA-1X5PA | 1.5M/IMX273LQR(C,GS)
1/2.9“ (4.97×3.73) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
155fps@1440×1080 523fps@720×540 |
1×1 1×1 |
15us~15s |
| MVUA-1X7MA | 1.7M/IMX432LLJ(M,GS)
1.1“ (14.4×9.9) |
9.0×9.0 | 8100mv with 1/30s 0.3mv with 1/30s |
98.6fps@1600×100 | 1×1 | 6us~15s |
| MVUA-1X7PA | 1.7M/IMX432LQJ(C,GS)
1.1“ (14.4×9.9) |
9.0×9.0 | 4910mv with 1/30s 0.3mv with 1/30s |
98.6fps@1600×1100 | 1×1 | 6us~15s |
| MVUA-2X3MA | 2.3M/IMX174LLJ(M,GS)
1/1.2“ (11.25×7.03) |
5.86×5.86 | 1650mv with 1/30s 0.15mv with 1/30s |
164.5fps@1920×1200 | 1×1 | 15us~15s |
| MVUA-2X3PA | 2.3M/IMX174LQJ(C,GS)
1/1.2“ (11.25×7.03) |
5.86×5.86 | 1016mv with 1/30s 0.15mv with 1/30s |
164.5fps@1920×1200 | 1×1 | 15us~15s |
| MVUA-2X3MB | 2.3M/IMX249LLJ(M,GS)
1/1.2“(11.25×7.03) |
5.86×5.86 | 1650mv with 1/30s 0.15mv with 1/30s |
30fps@1920×1200 | 1×1 | 42us~15s |
| MVUA-2X3PB | 2.3M/IMX249LQJ(C,GS)
1/1.2“(11.25×7.03) |
5.86×5.86 | 1016mv with 1/30s 0.15mv with 1/30s |
30fps@1920×1200 | 1×1 | 42us~15s |
| MVUA-2X8MA | 2.8M/IMX421LLJ(M,GS)
2/3“ (8.71×6.59) |
4.5×4.5 | 3354mv with 1/30s 0.15mv with 1/30s |
121fps@1936×1464 425fps@968×732 |
1×1 1×1 |
6us~15s |
| MVUA-2X8PA | 2.8M/IMX421LQJ(C,GS)
2/3“ (8.71×6.59) |
4.5×4.5 | 2058mv with 1/30s 0.15mv with 1/30s |
121fps@1936×1464 425fps@968×732 |
1×1 1×1 |
6us~15s |
| MVUA-5X0MA | 5.0M/IMX264LLR(M,GS)
2/3“ (8.45×7.07) |
3.45×3.45 | 1830mv with 1/30s 0.15mv with 1/30s |
35.6fps@2448×2048 87.6fps@1224×1024 |
1×1 1×1 |
15us~15s |
| MVUA-5X0PA | 5.0M/IMX264LQR(C,GS)
2/3“ (8.45×7.07) |
3.45×3.45 | 1146mv with 1/30s 0.15mv with 1/30s |
35.6fps@2448×2048 87.6fps@1224×1024 |
1×1 1×1 |
15us~15s |
| MVUA-5X1MA | 5.1M/IMX547-AAMJ-C(M,GS)
1/1.8“(6.71×5.61) |
2.74×2.74 | 2252mv with 1/30s 0.15mv with 1/30s |
63fps@2448×2048 208.4fps@1224×1024 | 1×1 2×2 |
30us~15s |
| MVUA-5X1PA | 5.1M/IMX547-AAQJ-C(C,GS)
1/1.8“(6.71×5.61) |
2.74×2.74 | 1337mv with 1/30s 0.15mv with 1/30s |
63fps@2448×2048 208.4fps@1224×1024 | 1×1 2×2 |
30us~15s |
| MVUA-6X3MA | 6.3M/IMX178LLJ(M,RS)
1/1.8“ (7.37×4.92) |
2.4×2.4 | 760mv with 1/30s 0.15mv with 1/30s |
59.9fps@3072×2048 59.9fps@1536×1024 |
1×1 2×2 |
17us~15s |
| MVUA-6X3PA | 6.3M/IMX178LQJ(C,RS)
1/1.8“ (7.37×4.92) |
2.4×2.4 | 425mv with 1/30s 0.15mv with 1/30s |
59.8fps@3072×2048 59.5fps@1536×1024 |
1×1 2×2 |
17us~15s |
| MVUA-7X1MA | 7.1M/IMX428LLJ(M,GS)
1.1“ (14.4×9.9) |
4.5×4.5 | 3354mv with 1/30s 0.15mv with 1/30s |
51.3fps@3200×2200 133.8fps@1584×1100 |
1×1 1×1 |
6us~15s |
| MVUA-7X1PA | 7.1M/IMX428LQJ(C,GS)
1.1“ (14.4×9.9) |
4.5×4.5 | 2058mv with 1/30s 0.15mv with 1/30s |
51.4fps@3200×2200 133.8fps@1584×1100 |
1×1 1×1 |
6us~15s |
| MVUA-8X3PA | 8.3M/IMX485LQJ-C(C,RS)
1/1.2“ (11.14×6.26) |
2.9×2.9 | 2188mv with 1/30s 0.15mv with 1/30s |
45fps@3840×2160 70fps@1920×1080 |
1×1 1×1 |
30us~15s |
| MVUA-8X3PB | 8.3M/IMX585-AAQJ1-C(C,RS)
1/1.2“ (11.14×6.26) |
2.9×2.9 | 5970mv with 1/30s 0.15mv with 1/30s |
45fps@3840×2160 70fps@1920×1080 |
1×1 1×1 |
30us~15s |
| MVUA-12X3MA | 12.3M/IMX545-AAMJ-C(M,GS)
1.1“(11.22×8.22) |
2.74×2.74 | 2252mv with 1/30s 0.15mv with 1/30s |
28,2fps@4096×3000 100.9fps@2048×1500 100.9fps@1024×750 |
1×1 2×2 4×4 |
30us~15s |
| MVUA-12X3PA | 12.3M/IMX545-AAQJ-C(C,GS)
1.1“(11.22×8.22) |
2.74×2.74 | 1337mv with 1/30s 0.15mv with 1/30s |
28,2fps@4096×3000 100.9fps@2048×1500 100.9fps@1024×750 |
1×1 2×2 4×4 |
30us~15s |
| MVUA-20X0MA | 20.0M/IMX183CLK(M,RS)
1“ (13.06×8.84) |
2.4×2.4 | 777mv with 1/30s 0.2mv with 1/30s |
19.0fps@5440×3684 49.9fps@2736×1824 59.5fps@1824×1216 |
1×1 2×2 3×3 |
53us~15s |
| MVUA-20X0PA | 20.0M/IMX183CQK(C,RS)
1“ (13.06×8.84) |
2.4×2.4 | 462mv with 1/30s 0.2mv with 1/30s |
19.0fps@5440×3684 48.8fps@2736×1824 59.4fps@1824×1216 |
1×1 2×2 3×3 |
53us~15s |
| MVUA-20X4MA | 20.4M/IMX541-AAMJ-C(M,GS)
1.1“ (12.32×12.32) |
2.74×2.74 | 2649mv with 1/30s 0.15mv with 1/30s |
17.5fps@4496×4496 64.4fps@2240×2240 64.4fps@1120×1120 |
1×1 2×2 4×4 |
30us~15s |
| MVUA-20X4PA | 20.4M/IMX541-AAQJ-C(C,GS)
1.1“ (12.32×12.32) |
2.74×2.74 | 1574mv with 1/30s 0.15mv with 1/30s |
17.5fps@4496×4496 64.4fps@2240×2240 64.4fps@1120×1120 |
1×1 2×2 4×4 |
30us~15s |
| MVUA-45X0MA | 45M/IMX492(M)
4/3“ (19.11×13.00) |
2.315×2.315 | 176mv with 1/30s 0.03mv with 1/30s |
8.1@8176×5616 30.0@4080×2808 8.1@7408×5556 33.0@3696×2778 10.4@8176×4320 34.7@4096×2160 62.5@2048×1080 86.5@1360×720 |
1×1(3:2) 2×2(3:2) 1×1(4:3) 2×2(4:3) 1×1(17:9) 2×2(17:9) 3×3(17:9) 4×4(17:9) |
0.1ms~15s |
| MAC-UA (Special Wavelength: UV, NIR） | ||||||
| MVUA-2X1PA (NIR) |
2.1M/IMX462LQR(C,RS,NIR)
1/2.8“ (5.57×3.13) |
2.9×2.9 | 2376mv with 1/30s 0.15mv with 1/30s |
120.3fps@1920×1080 | 1×1 | 11us~15s |
| MVUA-4X1PA (NIR) |
4.1M/IMX464LQR(C,RS,NIR)
1/1.8“ (7.8×4.41) |
2.9×2.9 | 2376mv with 1/30s 0.15mv with 1/30s |
90fps@2688 x 1520 | 1×1 | 11us~15s |
| MVUA-0X5MA (GPixel UV) |
0.5M/GLUX1605BSI(M,UV,RS)
1“(12.8×9.6) |
16×16 | TBD(e-/((W/m2).s)) QE95%@560nm TBD(e-/s/pix) |
60fps@800×600 60fps@400×300 |
1×1 2×2 |
2721us~60s |
| MVUA-1X3MA (GPixel UV) |
1.3M/GLUX9701BSI(M,UV,RS)
1“(12.49×9.99) |
9.76×9.76 | 2.57×108(e-/((W/m2).s)) QE89%@610nm 1140(e-/s/pix) |
30fps@1280×1024 30fps@640×512 |
1×1 2×2 |
6321us~60s |
| MVUA-4X2MA (GPixel NIR) |
4.2M/GSENSE2020e(M,NIR,RS)
1.2“(13.31×13.31) |
6.5×6.5 | 8.1×107(e-/((W/m2).s)) QE73%@595nm 13(e-/s/pix) |
45fps@2048×2048 45fps@1024×1024 |
1×1 2×2 |
21us~60s |
| MVUA-4X2MB (GPixel UV) |
4.2M/GSENSE2020BSI(M,UV,RS)
1.2“(13.31×13.31) |
6.5×6.5 | 1.1×108(e-/((W/m2).s)) QE93.7%@550nm 80(e-/s/pix) |
32fps@2048×2048 32fps@1024×1024 |
1×1 2×2 |
21us~60s |
| MVUA-4X2ME (GPixel UV) |
4.2M/GSENSE400BSI(M,UV,RS)
2.0“(22.53×22.53) |
11.0×11.0 | 3.25×108(e-/((W/m2).s)) QE95.3%@560nm 345(e-/s/pix) |
37fps@2048×2048 37fps@1024×1024 |
1×1 2×2 |
21us~60s |
| MVUA-8X0MA (GS-UV) |
8.0M/IMX487-AAMJ(M,UV,GS)
2/3“ (7.78×7.78) |
2.74×2.74 | 145mv with 1/30s 0.15mv with 1/30s |
45fps@2840×2840 198fps@1420×1420 |
1×1 2×2 |
30us~15s |
Note: Sensor type: M: Monochromatic; C: Color; RS: Rolling Shutter; GS: Global Shutter. EOL: End of life. NRND: Not recommended for new designs.
