Description
Introduction
MVSIR Series Machine Vision Cameras are Short-Wavelength Infrared TE-Cooling USB3.0 InGaAs Cameras
This series cameras are imaging capture devices which use USB3.0 to transmit uncompressed images in real time. They support image acquisition and parameter setting (such as working mode, image parameter adjustment etc.) through client-side user-friendly software.
Features
1. Sony Exmor back-illuminated CMOS sensor;
2. Two-step noise reduction technology;
3. Ultra-high sensitivity and low noise;
4. USB 3.0 data transmission interface compatible with USB2.0 protocol;
5. Provides advanced video and image processing application software ToupView, compatible with Windows/Linux/OSX multi-platform SDK, support native C/C++, C#/VB.Net, DirectShow, Twain API;
6. Supports external triggering, digital I/O and free-running modes;
7. Supports ROI, flip, bit-depth switching and other features;
Spectral Sensitivity Characteristics and Quantum Efficiency

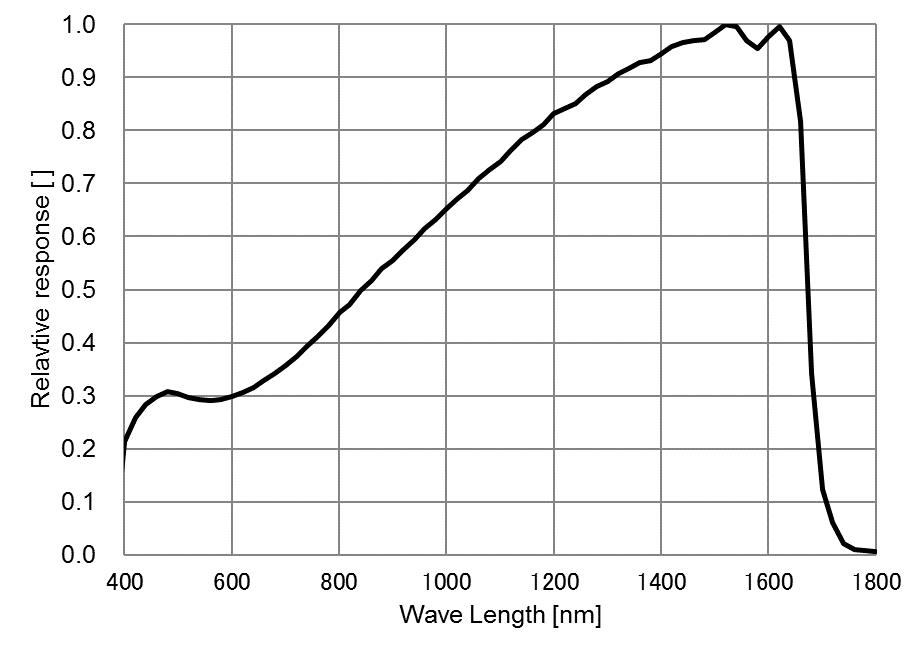

Spectral Sensitivity Characteristics Tj = 15 ˚C, Characteristics in the package status, Constant irradiation energy at each wavelength)
Quantum Efficiency Tj = 15 ˚C, Characteristics in the package status, Constant photon number at each wavelength)
Specifications
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity Dark Signal |
FPS/Resolution | Binning | Exposure |
|---|---|---|---|---|---|---|
|
MVSIR-1X3MA |
1.3M/IMX990(M) 1/2”(6.40×5.12) Buit-in TEC |
5 x5 | 121mV with 1/30s 1.0mV with 1/30s |
132@1280×1024 253@640×512 |
1×1 1×1 |
50us~60s |
| MVSIR-1X3MB | 1.3M/IMX990(M) 1/2”(6.40×5.12) External TEC |
5×5 | 121mV with 1/30s 1.0mV with 1/30s |
132@1280×1024 253@640×512 |
1×1 1×1 | 50us~60s |
|
MVSIR-0X3MA |
0.33M/IMX991(M) 1/4”(3.20×2.56) Buit-in TEC |
5 x5 | 121mV with 1/30s 1.0mV with 1/30s |
258.8@640×512 486.1@320×256 |
1×1 1×1 |
50us~60s |
| MVSIR-0X3MB | 0.33M/IMX991(M) 1/4”(3.20×2.56) External TEC |
5 x5 | 121mV with 1/30s 1.0mV with 1/30s |
258.8@640×512 486.1@320×256 |
1×1 1×1 |
50us~60s |

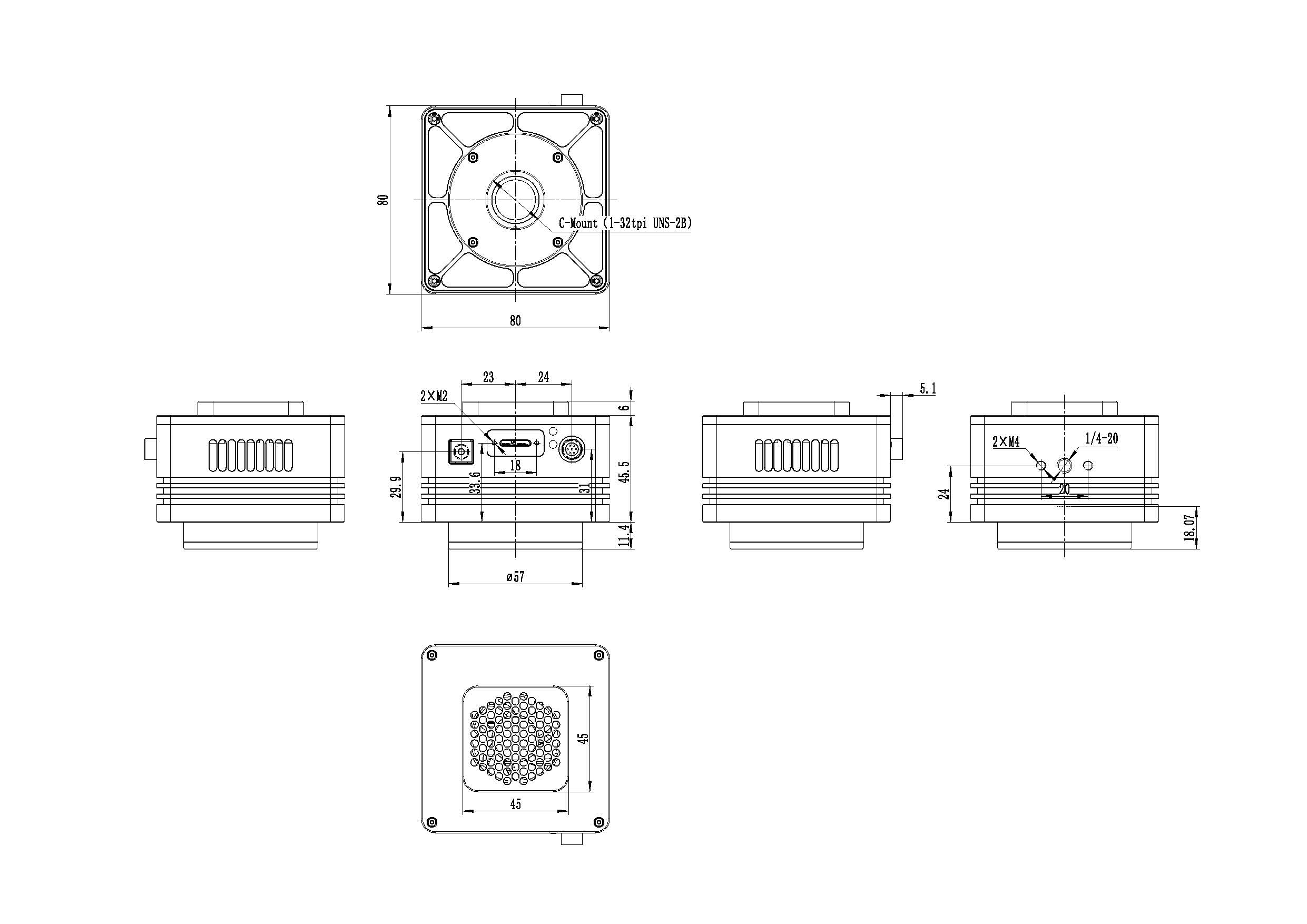

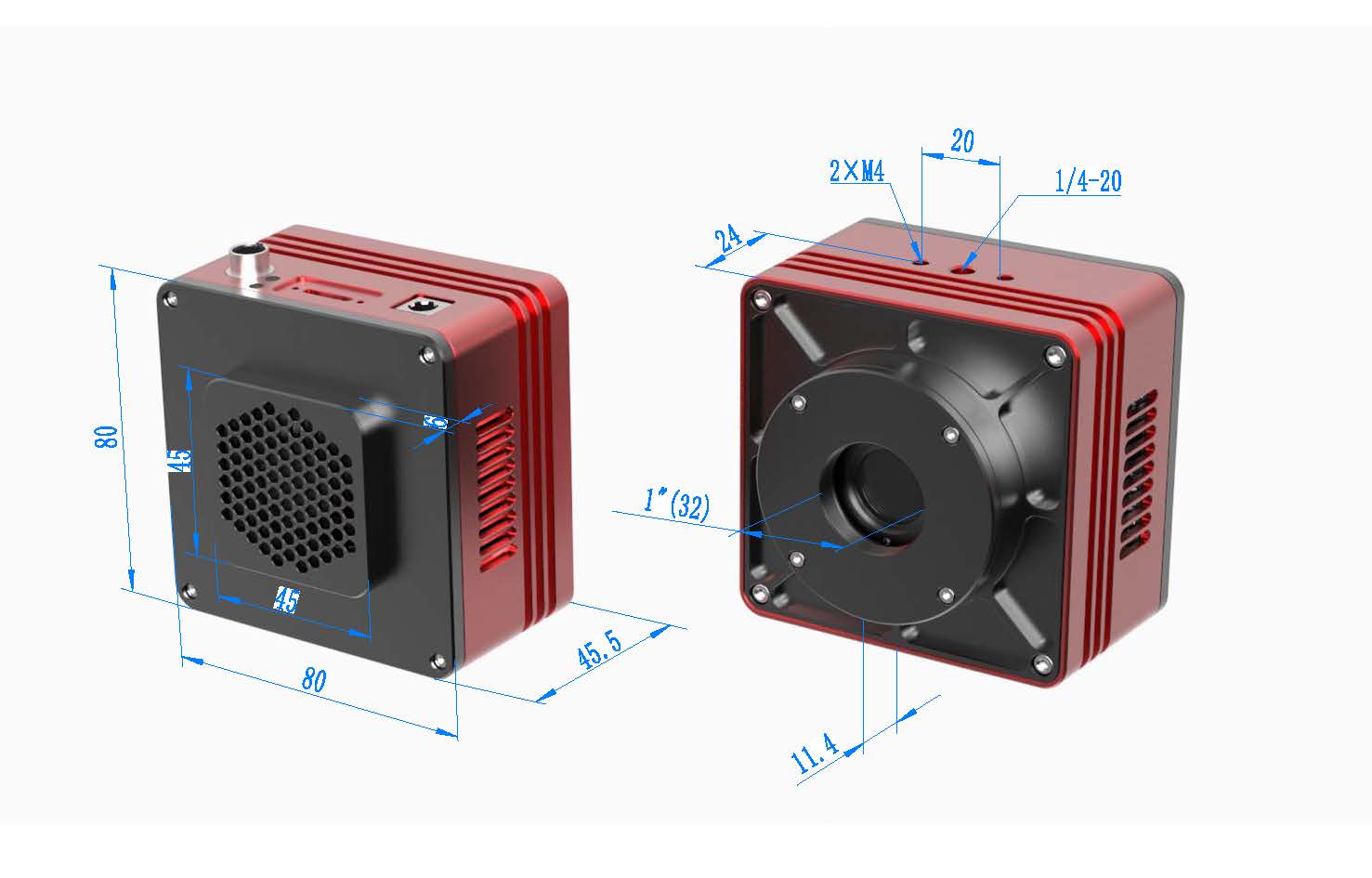

Product Dimensions
