Description

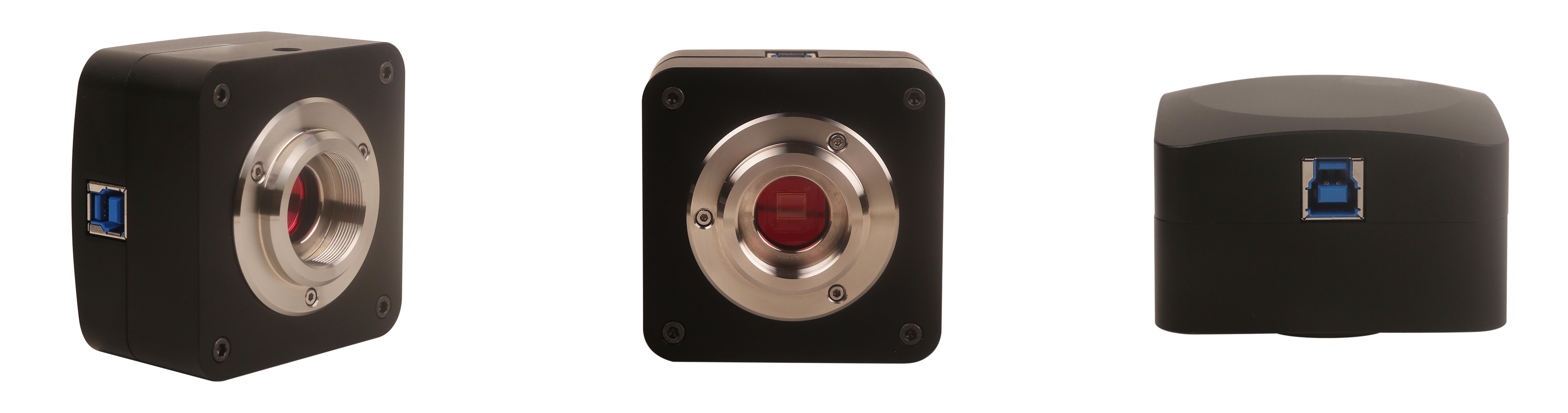

USON Series C-mount USB3.0 CMOS Camera
ICOE ULOIS series camera is an ultra-high performance USB3.0 CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device and USB3.0 is used as the data transfer interface.
ULOIS camera hardware resolutions range from 3.0M to 18M and comes with the Integrated zinc aluminum alloy compact housing.
ULOIS camera comes with advanced video & image processing application ImageView; Providing Windows/Linux/macOS/Android multiple platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc);
The ULOIS can be widely used in brightfield light environment and microscope image capture and anaysis with higher frame rate.
Model Details
| Order Code | Sensor & Size(mm) | Pixel(μm) | G Sensitivity, Dark Signal | FPS/Resolution | Binning | Exposure |
| ULOIS-18PA | 18M/AR1820(C)
1/2.3″(6.14×4.61) |
1.25×1.25 | 0.62 V/lux-sec,
65.8dB, 36.3dB |
5.6@4912×3684,
18.1@2456×1842, 32.2@1228×922 |
1×1,
2×2, 4×4 |
0.1ms~2000ms |
| ULOIS-16PA | 16M/MN34120(C)
1/2.33“ (6.18×4.66) |
1.335×1.335 | R: 2453LSB,
Gr: 2444LSB， Gb: 1054LSB， B: 996LSB |
6.0@4648×3506,
15.0@2304×1750, 26.0@1536×1168 |
1×1,
2×2, 3×3 |
0.2ms~2000ms |
| ULOIS-16PB | 16M/MN34230PLJ(C)
4/3“ (17.6×13.3) |
3.8×3.8 | R: 1315LSB,
Gr: 2413LSB, Gb: 2413LSB, B: 1042LSB, (Gain = 0dB) |
6.0@4648×3506,
15.0@2304×1750, 30.0@1536×1168 |
1×1,
2×2, 3×3 |
0.06ms~15s |
| ULOIS-16MB | 16M/MN34230ALJ(M)
4/3“ (17.6×13.3) |
3.8×3.8 | A: 2650LSB,
B: 2650LSB, C: 2650LSB, D: 2650LSB， (Gain = 0dB) |
22@4640×3506，
36@3840×2160, 43@2304×1750， 43@1920×1080， 49@1536×1168 |
1×1,
1×1, 2×2, 2×2, 3×3 |
0.24ms~15s |
| ULOIS-14PA | 14M/MT9F002(C)
1/2.3″(5.73×4.60) |
1.4×1.4 | 0.724v/lux-sec,
65.3dB, 35.5dB |
6.2@4096×3286,
20.8@2048×1644, 53.3@1024×822 |
1×1,
2×2, 4×4 |
0.4ms~2000ms |
| ULOIS-10PA | 10M/MT9J003(C)
1/2.3″(5.98×4.58) |
1.67×1.67 | 0.31v/lux-sec,
65.2dB, 34dB |
7.2@3584×2746,
24.5@1792×1372 |
1×1,
2×2, 4×4 |
0.38ms~2000ms |
| ULOIS-10MA | 10M/MT9J003(M) 1/2.3″(5.98×4.58) | 1.67×1.67 | 0.4v/lux-sec,
65.2dB, 34dB |
7.2@3584×2746,
24.5@1792×1372 |
1×1,
2×2, 4×4 |
0.38ms~2000ms |
| ULOIS-8PB | 8.5M/Special(C)
1/2.5″(5.56×4.26) |
1.67×1.67 | 0.31v/lux-sec,
65.2dB, 34dB |
8.3@3328×2548,
26.2@1664×1272 |
1×1,
2×2, 4×4 |
0.1ms~2000ms |
| ULOIS-5PA | 5.1M/MT9P006(C)
1/2.5″(5.70×4.28) |
2.2×2.2 | 1.76v/lux-sec,
67.74dB, 38.5dB |
14.2@2560×1922,
38.3@1280×960, 101.2@640×480 |
1×1,
2×2, 4×4 |
0.1ms~2000ms |
| ULOIS-3PA | 3.1M/AR0330(C)
1/3″ (4.51×3.38) |
2.2×2.2 | 1.9v/lux-sec,
100dB, 39dB |
27.3@2048×1534,
53.3@1024×770 |
1×1,
2×2 |
0.1ms~2000ms |
Other Hardware Configuration
| Spectral Range | 380-650nm (with IR-filter), for Monochromatic Camera, AR Is Used |
| White Balance | ROI White Balance/ Manual Temp-Tint Adjustment |
| Color Rendering Technique | Ultra Fine Color Engine |
| Capture/Control SDK | Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc); |
| Recording System | Still Picture and Movie |
| Cooling System* | Natural |
Operation Environment
| Operating Temperature | -10 °C~ 50 °C |
| Storage Temperature | -20 °C~ 60 °C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
Software Environment
| Operating System | Support Microsoft Windows XP / Vista / 7 /8 /10(32 & 64 bit), OS X (Mac OS X), Linux |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or Higher |
| Memory: 2GB or More | |
| USB port: USB2.0 High-speed Port | |
| Display: 17″ or Larger | |
| CD-ROM |
