Mlchrome Series USB3.0 Digital Cameras, 5MP, 6MP, 16MP & 20MP

Home Microscopy Digital Cameras & Tablets USB3.0 CMOS Cameras Mlchrome Series USB3.0 Digital Cameras, 5MP, 6MP, 16MP & 20MP

Mlchrome Series USB3.0 Digital Cameras, 5MP, 6MP, 16MP & 20MP

USB3.0 CMOS Cameras2018-11-22n50

Description

Mlchrome Microscope Camera

The Mlchrome series can meet the needs of bright-field and fluorescence imaging. It not only inherits ICOE perfect color reproduction technology, but also has a new generation of revolutionary computing imaging software, Mosaic 2.0, featuring real-time “depth of field fusion + image stitching” two core functions. These create a phenomenal experience in microscopy” small field of view, big world!”

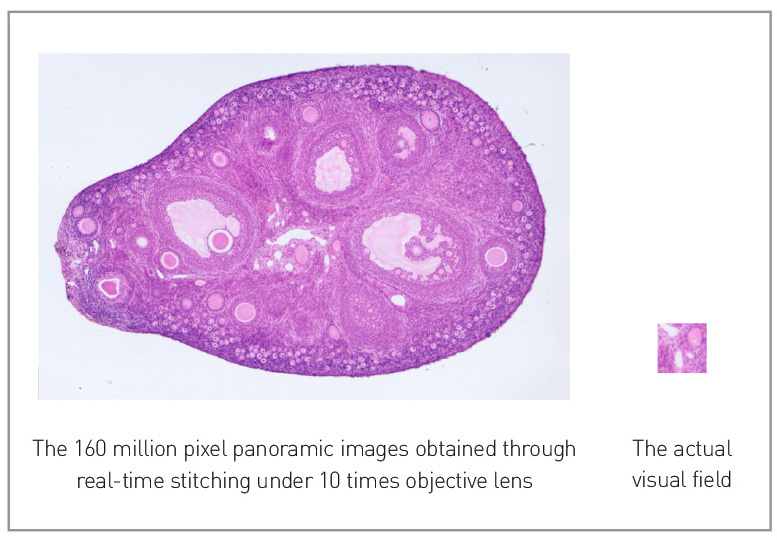

Real-time image stitching

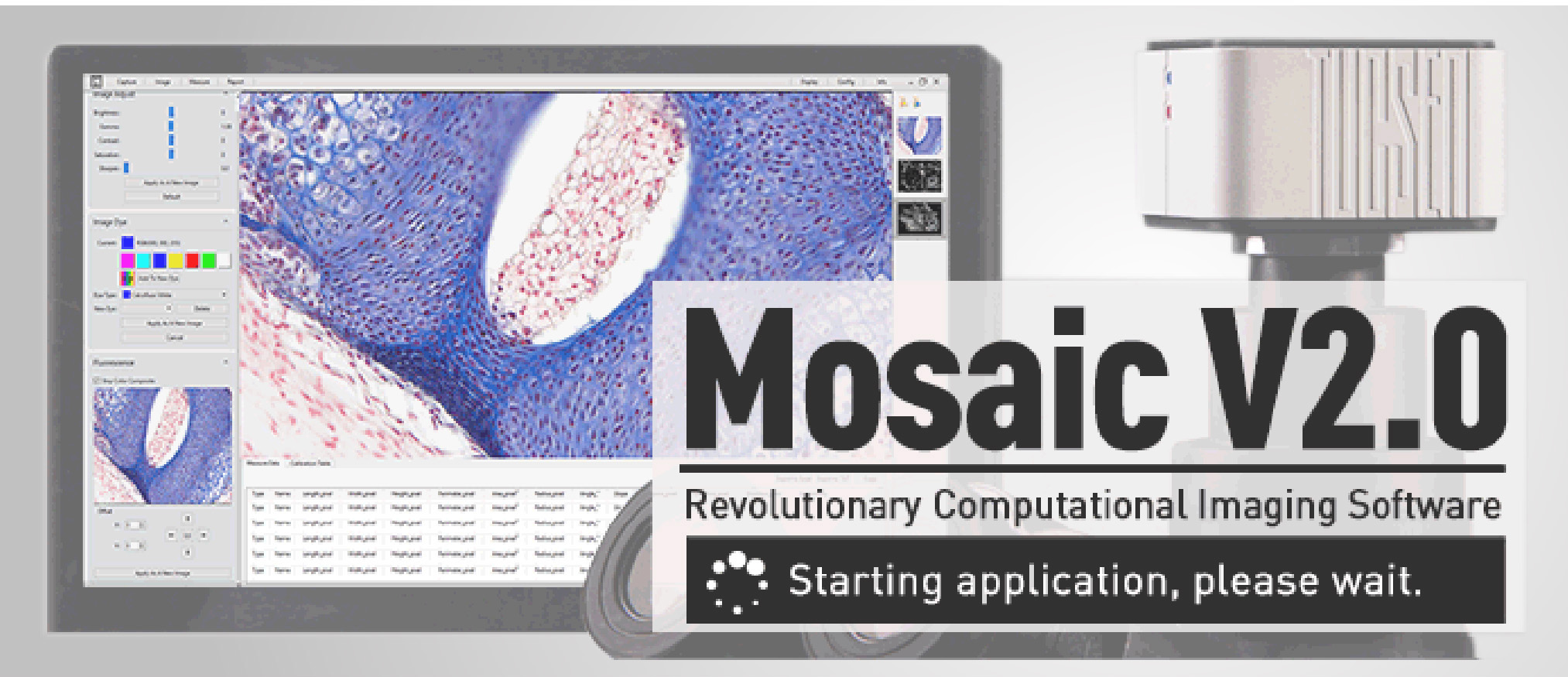

MIchrome is equipped with ICOE new computational imaging software, Mosaic 2.0, which provides a “real-time image stitching” function. It can generate large-sized mosaic images in a few seconds while moving the stage, which is light, smooth and worry-free!

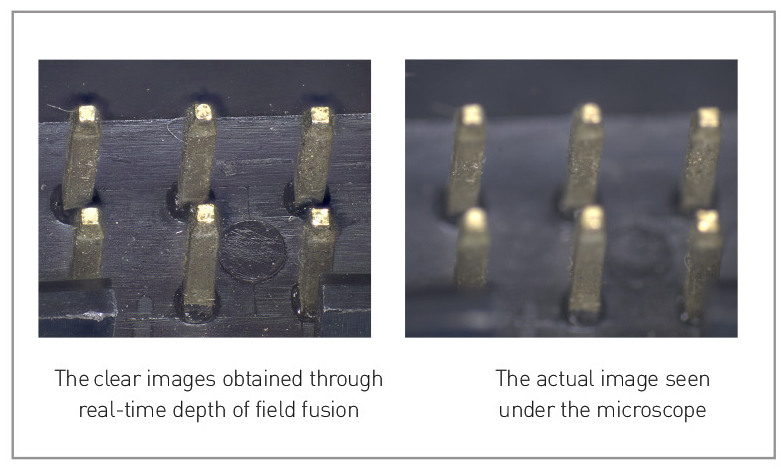

Real-time depth-of-field fusion


MIchrome also provides real-time depth of field fusion. Turning the focus ring to capture different depth of field points while generating clear depth of field images, fast, accurate and efficient.

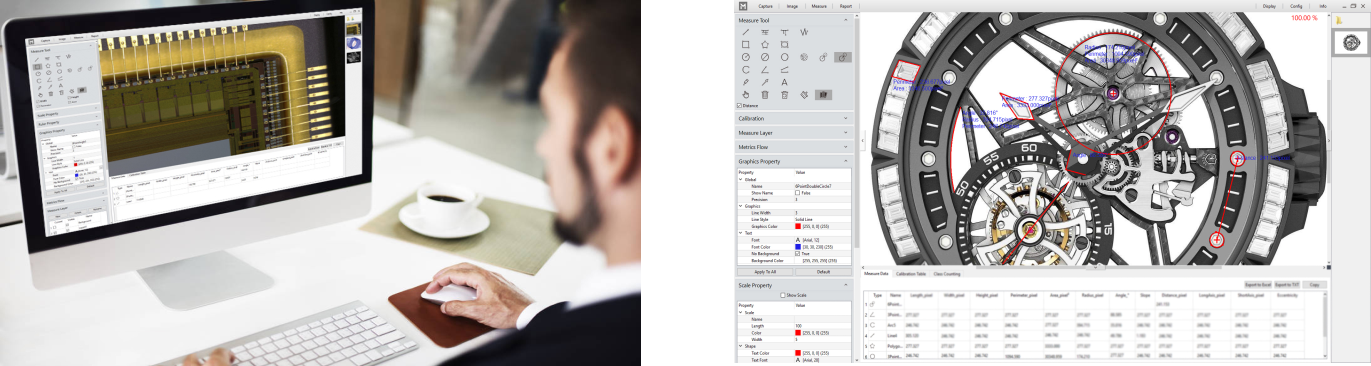

Efficient image acquisition – editing – measurement – report output


From the user’s point of view, redefining the image acquisition – editing – measurement – report output workflow process, taking into account the best operating procedures, greatly saves the operating time, effectively improving productivity.



Excellent imaging performance for brightfield, fluorescence and polarized imaging needs


The use of ICOE’s core ISP color-interpolation algorithm effectively corrects the color deviation of the sensor’s spectral response, to simulate the human eye’s sensitivity to color. The true color in the eyepiece, whether it is a biological bright field, stereo or fluorescence image.

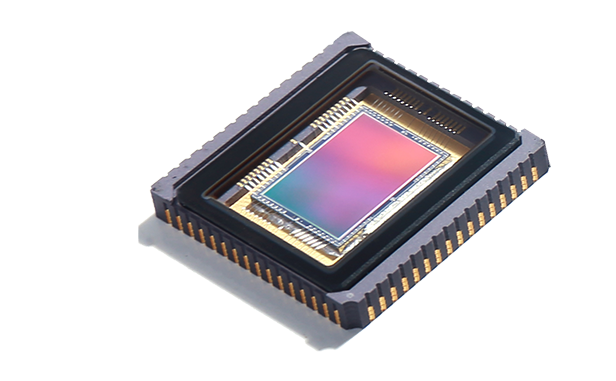

Sony professional CMOS sensor


Uses a Sony 5 megapixel CMOS 2/3″ sensor-IMX264, with 3.45 x 3.45 μm pixels. The resolution of the captured image can reach 2448 x 2048. Images taken at low magnification readily resolved.







Advanced Global Shutter Technology


With global shutter technology, all pixels are exposed simultaneously, which allows accurate tracking and capture of dynamic samples and provides, crisp, undistorted, clear images of fast moving specimens.







Stable high-speed transmission

USB 3.0 high-speed transmission interface, simple and convenient while ensuring a stable High transmission rate which allows fast focusing at high resolution. Imaging can be performed at a rate of 35 fps.







Specifications

Model Mlchrome 5 Pro Mlchrome 20 Mlchrome 16 Mlchrome 6
Shutter Mode Global Rolling Rolling Rolling
Sensor Model IMX264LQR-C IMX183CQJ-J SONY IMX206CQC IMX178LQJ-C
Sensor Type CMOS COMS CMOS CMOS
Sensor Size 2/3″ 1″ 1/2.3″ 1/1.8″
Color/Mono Color Color Color Color
Pixel Size 3.45×3.45(μm) 2.4×2.4(μm) 1.34×1.34(μm) 2.4×2.4(μm)
Resolution 5Mp, 2448(H)x2048(V) 20Mp, 5496(H)x3672(V) 16MP,4608(H)x3456(V) 6Mp, 3072(H)x2048(V)
Frame Rate 35fps(2448×2048) 15fps(5496×3675) 12fps@4608×3456 41fps(3072×2048)
35fps(1224×1024 2x2bin) 53fps(2736×1824 2x2bin) 15fps(4608*2736) 41fps(1536×1024 2x2bin)
88fps(1224×1024) 67fps(1920×1680 3x3bin) 19fps(3648*2736)
Exposure Settings Support auto/manual exposure, exposure time: 0.13ms-15s
Other Settings Auto: color scale, white balance
Manual: gain, noise reduction, gamma, flat field correction
Color Temperature 2000-15000K
Picutre Format JPG/PNG/TIFF
Data Interface USB3.0
Optical Interface Standard C mount
Multiple Cameras Supports 4 Cameras Simultaneously
PC Operating Software: Mosaic V 2.0 System : Windows/Linux/Mac
PC Configuration CPU: Intel Core i5 or better(Quad or more Core),
RAM: 8G or more, OS: Windows 7/8/10 64bit
Size & Weight Size: 68x68x46mm Weight: 330g
