Description

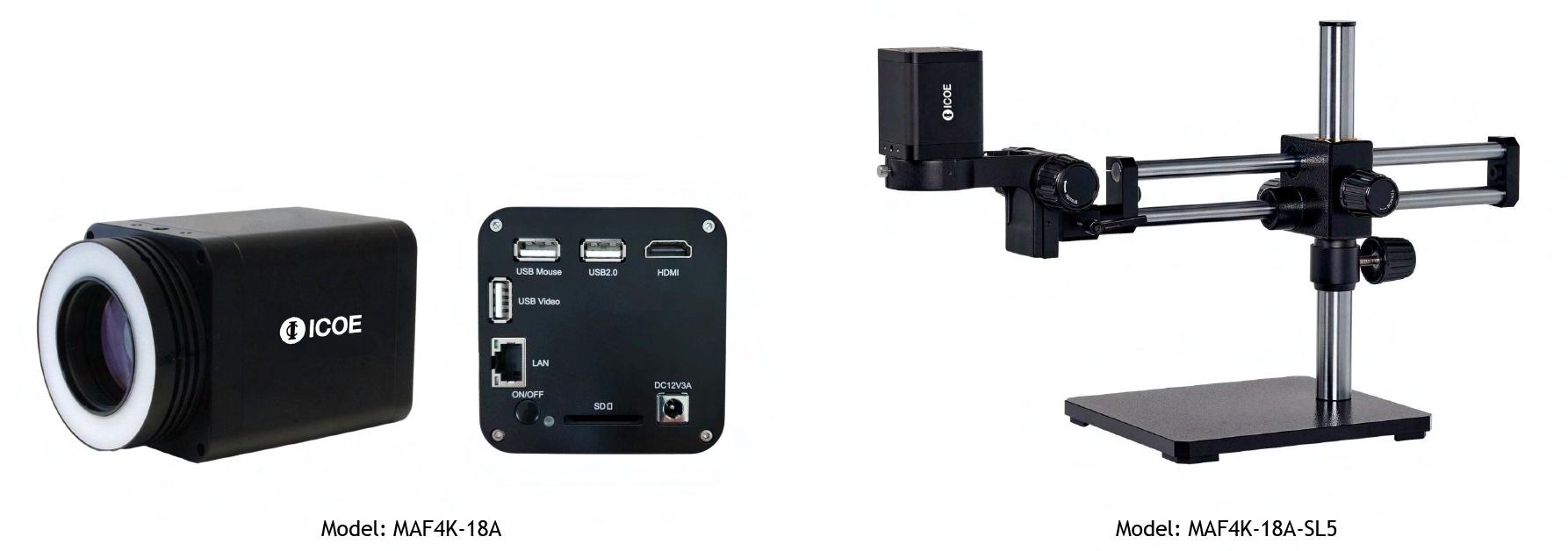

MAF4K-18A 4K Autofocus Digital Inspection Microscope
Full 4K digital microscope with autofocus and extreme depth of field for fast and accurate inspection
Speed, Resolution & Convenience in an Easy-to-Use, Stand-alone Inspection Solution
The MAF4K series autofocus digital microscope from ICOE features built-in software for operation without the need for a PC, and includes robust features for image capture and processing, calibration, measure-ment, and illumination control of the included LED ring light.
Actual magnification is displayed right on the monitor. Experience outstanding full 4K image quality with no image lag. The MAF4K is the perfect solution for streamlining your inspection process.
| MICROSCOPE | |
| Sensor: | Sony IMX415LQR-C CMOS color |
| Sensor size: | 1/2.8” (5.57mm x 3.13mm) |
| Pixel size: | 1.45×1.45μm |
| Resolution: | 8MP (3840 x 2160px) |
| Frame rate: | 30fps@3840×2160 (HDMI, Ethernet, USB) |
| Operating enviroment: | -10°C – 50°C, 30 – 80% RH |
| Connectivity: | USB mouse: control built-in software
USB 2.0: Image storage (USB flash drive) or data transfer to PC HDMI: Image streaming to monitor LAN: Data transfer via Ethernet connection (requires AccuView/AccuView Lite) SD Card: Image storage (not included) |
| User interface: | Control with USB mouse (included) |
| Image capture: | 8MP (3840×2160), JPG or TIF, save to SD card or USB flash drive |
| Video record: | 8MP (3840×2160), 30fps, H264/H265 encoded MP4, save to SD card or USB flash drive |
| Monitor: | 13.3” attachable 4K monitor (optional), or 28” table monitor (optional) |
| Power: | DC12V 3A |
| OPTICAL | |
| Working distance: | 250mm |
| Depth of field: | 205mm-255mm |
| Zoom range: | 1x-18x |
| FOV (mm): | 1x: 255×145, 18x: 14.2×8 |
| Resolution (lp/mm): | 160 |
| Magnification: | 1.15x-20.7x (based on 13.3” monitor), 2.4x-43.7x (based on 28” monitor) |
| BUILT-IN SOFTWARE | |
| Camerea control menu: | Includes: Exposure, Gain, White Balance, Sharpness, Denoise, Saturation, Gamma, Contrast, Brightness |
| Measurement tools: | Includes: Calibration, Measurement, Measurement Parameter Export |
| Synthesis controls: | Includes: Zoom, Flip, Freeze, Crosshair, LED Control, Autofocus, Comparison, Browser, Setting, Version info |
| Autofocus control: | Includes: Zoom, Autofocus, One Push, Manual Focus, Reset |
| PC SUPPORT | |
| Operating system: | Support windows OS & macOS X system |
| PC requirements: | CPU: Equal to Intel Core2 2.8GHz or higher
Memory: 4GB or more Ethernet Port: RJ45 (for LAN connection) Display: 19″ or larger |
| ILLUMINATION | |
| Illumination: | Attachable LED ring light |

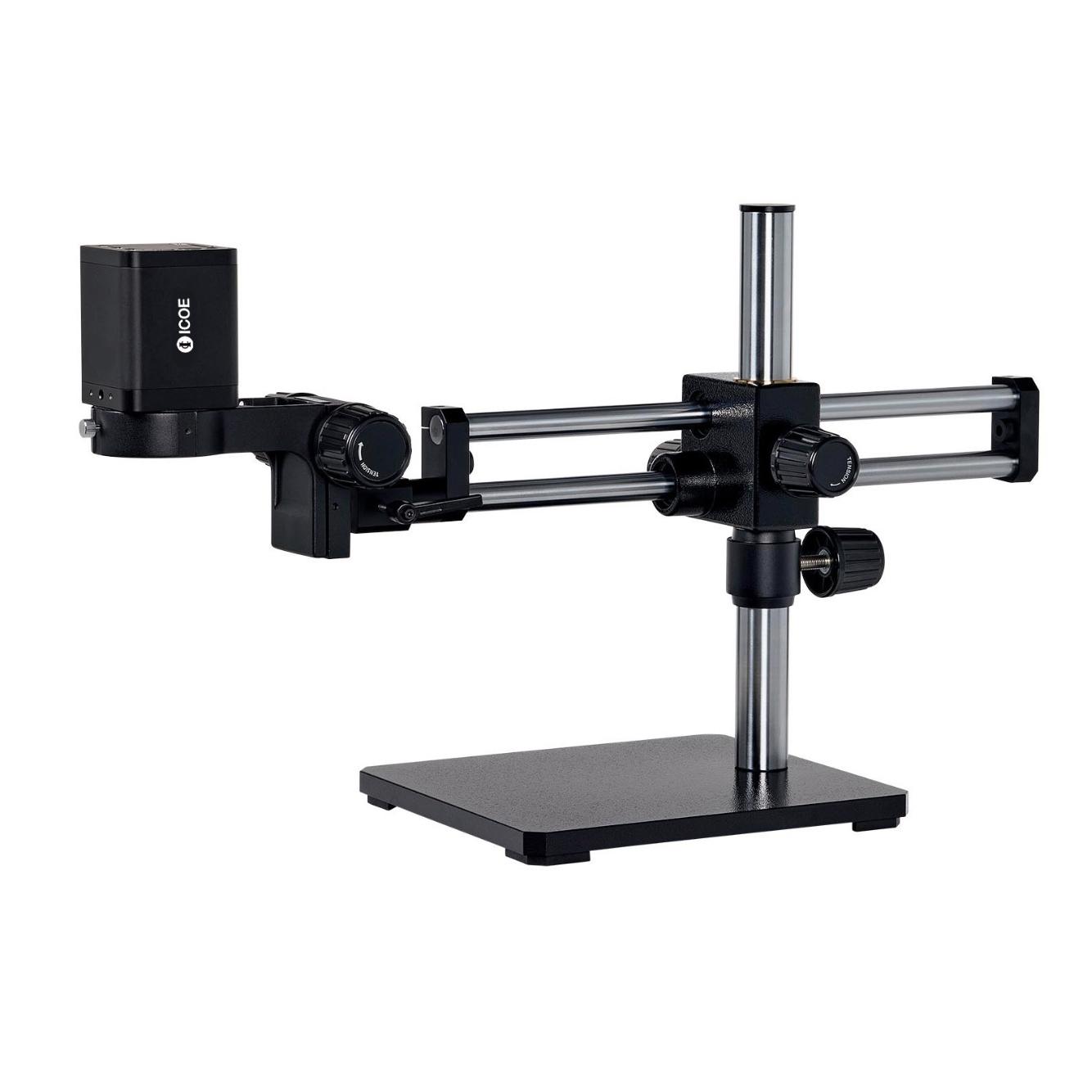

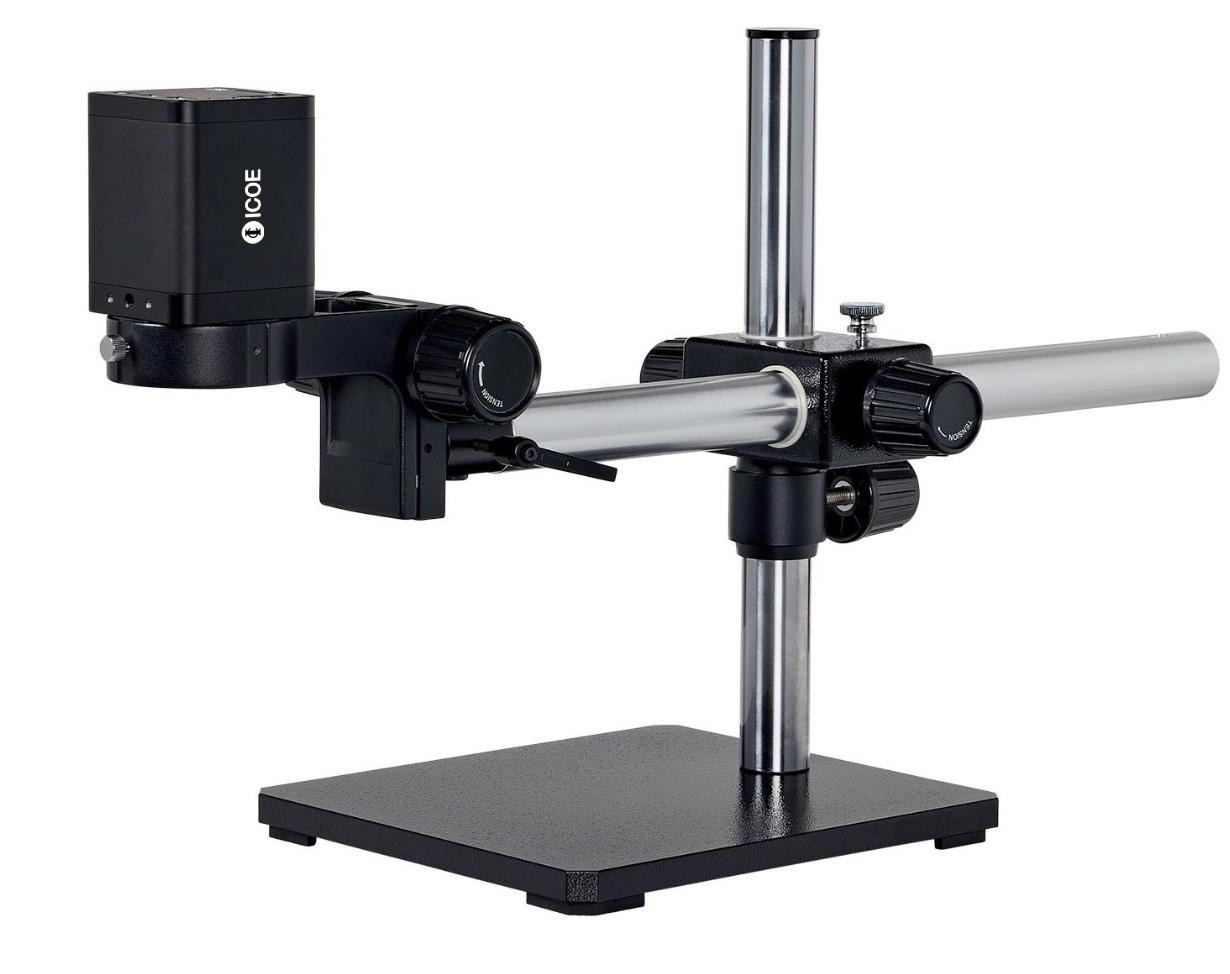

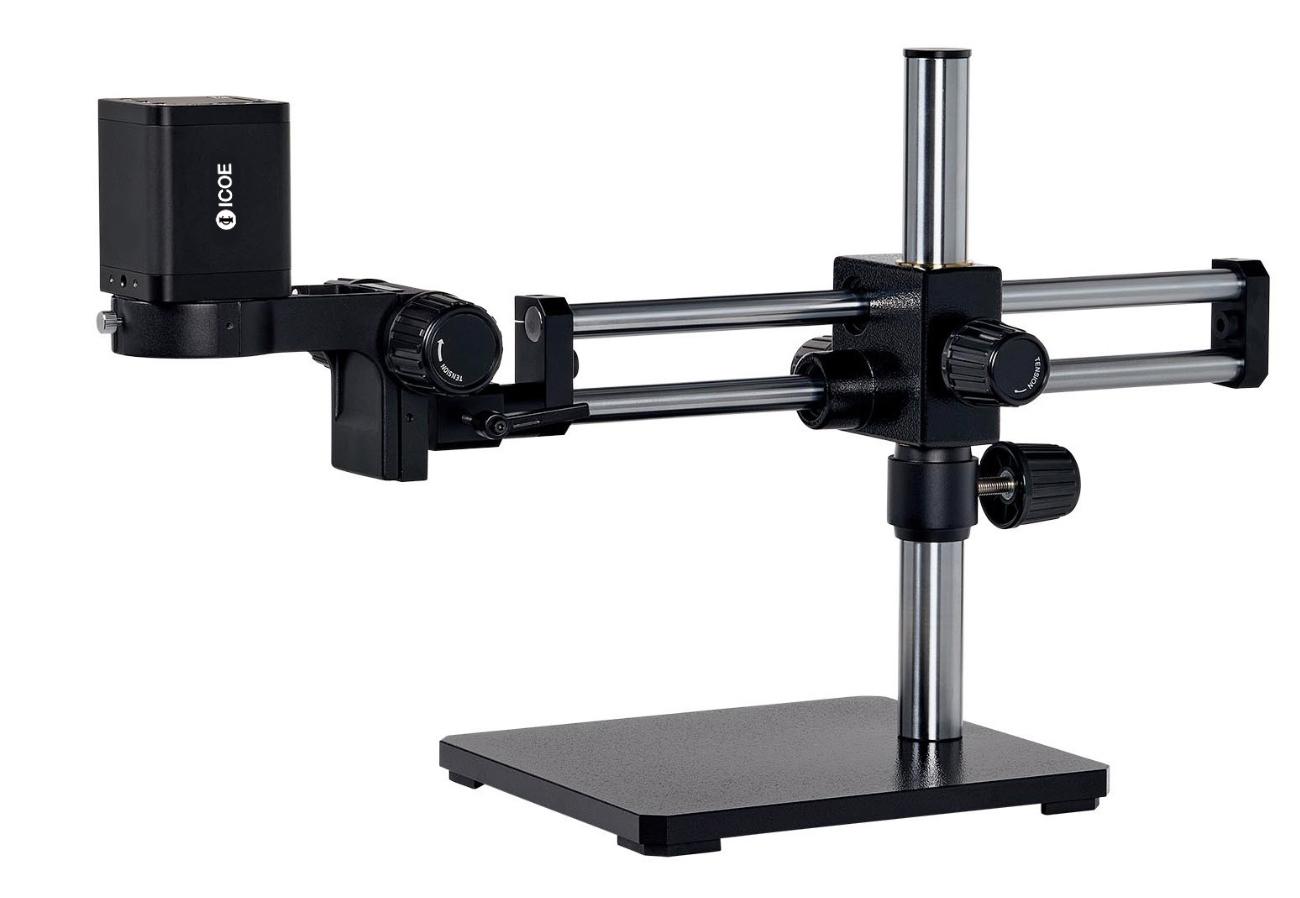

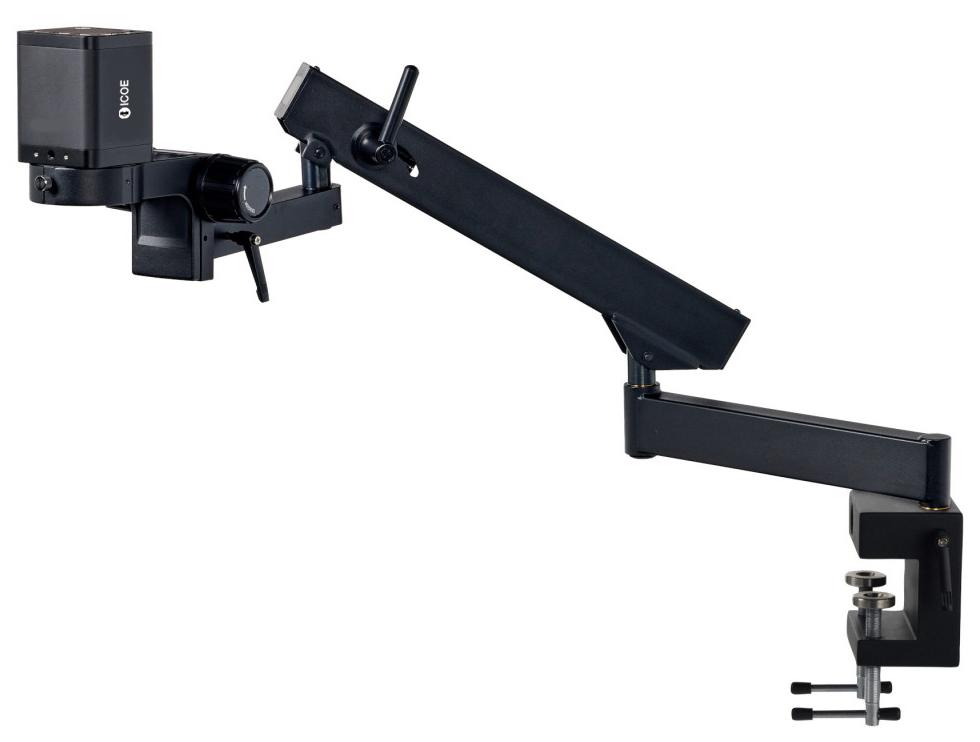

Various stands available
