Description
Introduction

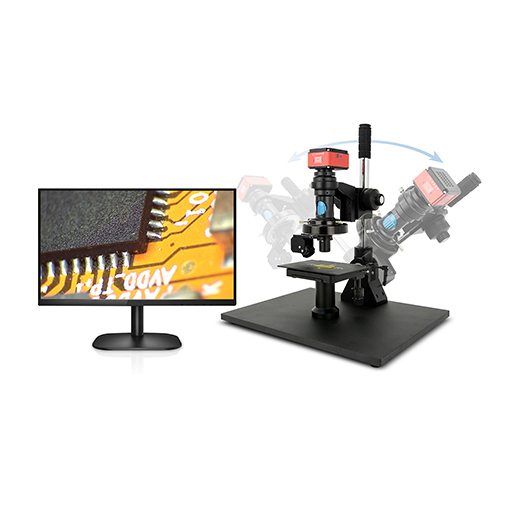

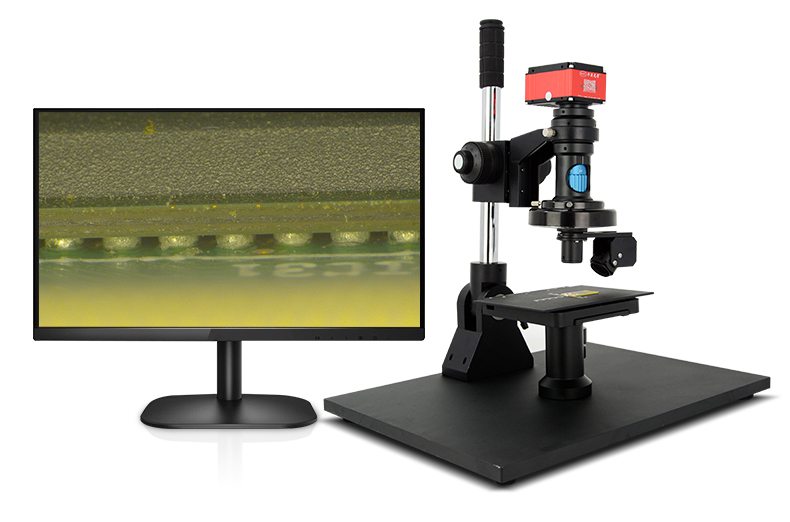

The TR3DE6 series microscope is a high-definition digital video microscope. The microscope system is directly linked to the display, without the need for a computer host, and operates directly on the screen. It also has the function of network transmission link expansion, real-time imaging and photography, picture storage, precise dimensional measurement, and MES data upload and traceability.
E6 is an integrated smart digital video microscope. It can be widely used in microelectronics, semiconductors, automobiles, medical care, scientific research, teaching and other fields to help you complete your work easily and efficiently.
Features
Using ICOE optical system, equipped with 4K high-definition cmos camera, built-in operation, multi-angle observation, the highest resolution can reach 3840x2160P
At the same time, it can be matched with a variety of high-quality optical lenses, with magnification ranges from 15X to 3000 X, to achieve unparalleled high-definition magnification observation. In addition, the system can also easily realize real-time imaging and photography, picture storage, and real-time size measurement. Network expansion and mes data management and other functions.

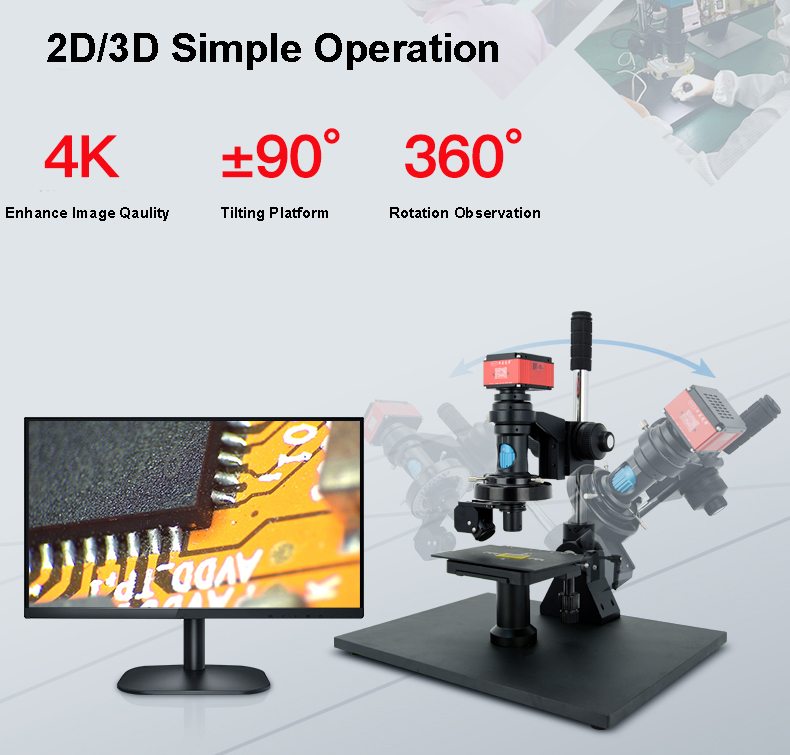

The Z-axis can be observed at +90°, supporting the observation of products from different angles, including oblique observation of the appearance of the inner wall of the product.

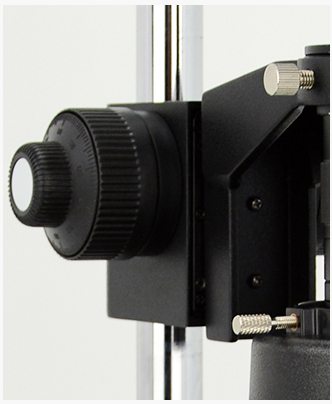

Metal focus bracket
This wheel is fixed in lifting and lowering, stable and wear-resistant. It can be adjusted up and down manually without any obstruction, making observation more convenient.

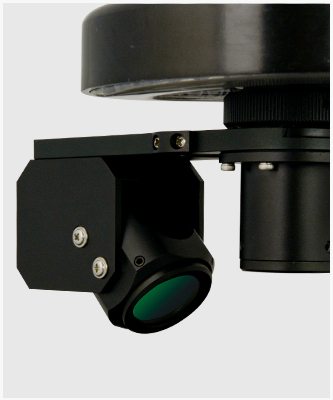

Optical continuous zoom
2D/3D observation angle switching, 360° all-round observation, observation working distance up to 95mm

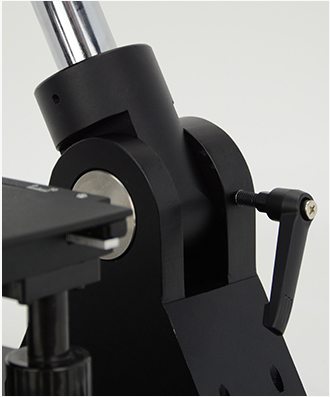

±90° Tilt platform
The knob fixation method is used to easily achieve the full viewing angle (0-180° horizontal tilt observation)
Cases

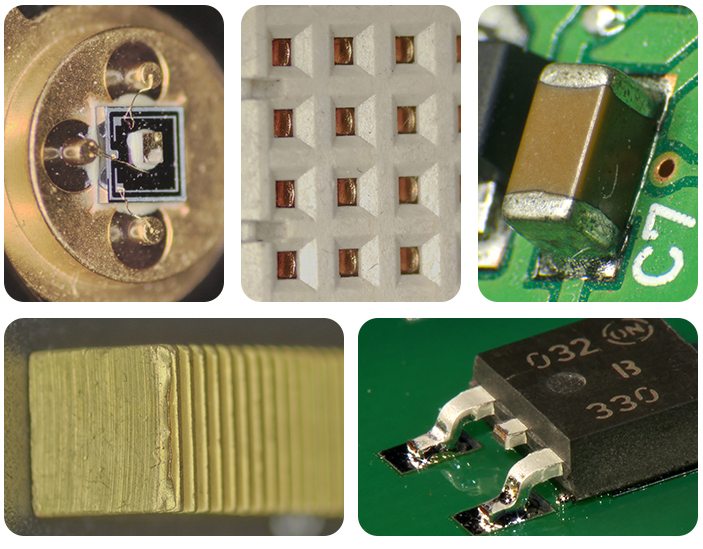

4K resolution ultra-clear imaging, bright and clear, full viewing angle (0-180 horizontal tilt observation), 2D/3D optical switching, suitable for more application scenarios
Models & Specifications
| Model | TR3DE6-2D | TR3DE6-2DP | TR3DE6-3D |
| Magnification | 15X-90X | 30X-180X | 24X-168X |
| Observation method | 2D | 2D | 2D/3D |
| Moving Platform | / | / | 4″ rotary table |
| Field of View | 3-21.5mm | 3-21.5mm | 3.2-23.8mm |
| Illumination | LED Ring Light | LED Ring Light | LED Ring Light (Support 4 Divisions Lighting) |
| Pixel | 4K 8.3MP | ||
| Output method | HDMI | ||
| Resolution | 3840x2160P | ||
| Camera function | Plane measurement tools, photo taking function, picture preview, image freezing, storage function | ||
| FPS/Resolution | 60fps@3840×2160 | ||
| Z-axis tilt angle | ±90° | ||
| Z-axis focus stroke | 300mm | ||
| Lift range | 300mm | ||
| Working distance | 95mm | ||
| Size of stand base | 450x335x490mm | ||
| Monitor | 27″ Displayer | ||
| Network transmission function | Transfer pictures/data through the network, and can be connected to the factory mes system | ||
