Description

Introduction

DGS20 Series Gel Documentation and Analysis System is designed for the detection and documentation of nucleic acids and proteins. It adopts a high resolution and high sensitive scientific CCD-Camera, which enables the instrument to capture utter weak signals under extremely low illumination condition. The automatic controls and the intuitive software we offered can help the researchers to get rid of the complicated operation process and increase therefore the experiment efficiency.

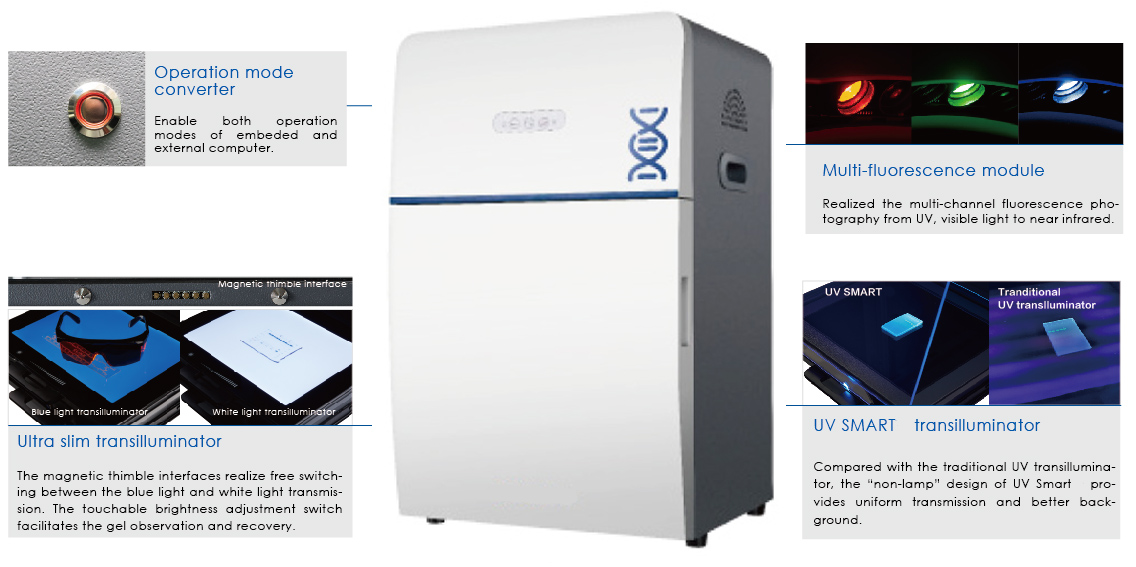

General features of Gel Documentation Imaging Systems

1. Operation mode converter:
Enable both operation modes of embeded and external computer.

2. Ultra slim transilluminator:
The magnetic thimble interfaces realize free switching between the blue light and white light transmission. The touchable brightness adjustment switch facilitates the gel observation and recovery.

3. Multi-fluorescence module:
Realized the multi-channel fluorescence photography from UV, visible light to near infrared.

4. UV SMART transilluminator:
Compared with traditional UV transilluminator, the “non-lamp” design of UV SMART provides uniform transmission and better back ground.

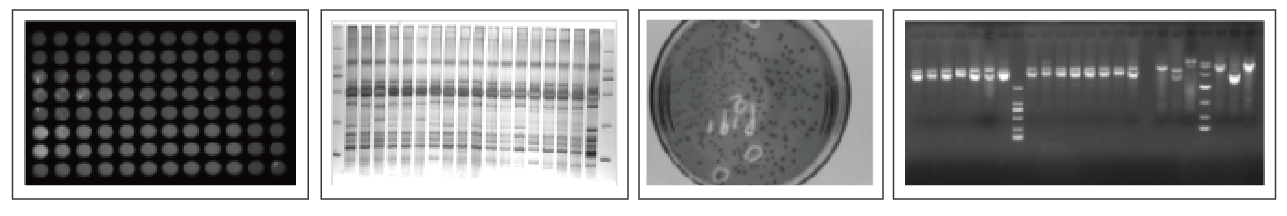

Application

Gel Inspection

Diverse dyes,  e.g.: Ethiduim Bromide, SYBR™ Gold, SYBR™ Green, SYBR™Safe, GelStar™, Texas Red, Fluorescein, marked DNA/RNA detection.

Protein Inspection

Commassie Brilliant Blue, Silver Staining and Fluorescent dyes, e.g.: Sypro™ Red,  Sypro™ Orange，Deep Purple, Pro-Q Diamond etc.

Others

Others:  ELISA Plate, Petri Dish Colony Counter, TLC Plate, etc.

Features of gel doc system

Polymer by RIM Molding

The front panel and door is designed by Reaction Injection Molding. It is environment friendliness.

Upgrading easily

Select one configuration for your applications now, and upgrade later when your applys different applications with adding other tray or hardware module:

a)      UV transmission

b)      UV+BLUE light transmission

c)      UV+BLUE+White light transmission

Better user experience

Base on application, only use arabic numerals ,which is matched on different applications automatically, instead of the professional parameter of aperture and focus.

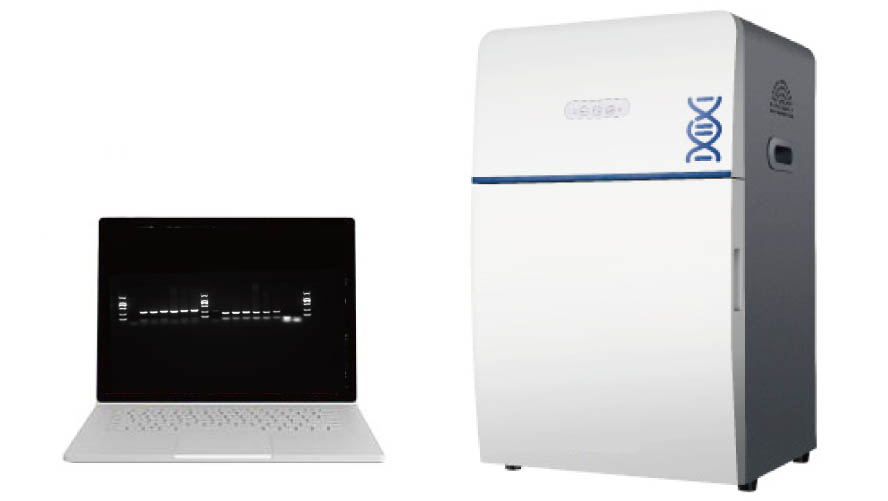

Switchable operation mode

You can use your machine by stand alone PC or embedded touch screen PC, Only you press the “switch button” easily.

UV SMART transilluminator

Compared with the traditional UV transilluminator, the “non-lamp” design of UV Smart provides uniform transmission and better background.

Blue and white Light transilluminator

The magnetic thimble interfaces realize free switching between the blue light and white light transmission. The touchable brightness adjustment switch facilitates the gel observation and recovery.

Parameters

Main System

Lens

F1.2 mortorized lens

Sample tray

Super Slim white LED Transilluminator

Super Slim blue LED Transilluminator（470nm）

UVSmart™ UV Transilluminator（302nm)

8 Sockets filter wheel

Multi-fluorescence light module
