Cscope60 Series Fluorescence/Chemiluminescence Imaging System

Home Gel Documentation System Cscope60 Series Fluorescence/Chemiluminescence Imaging System

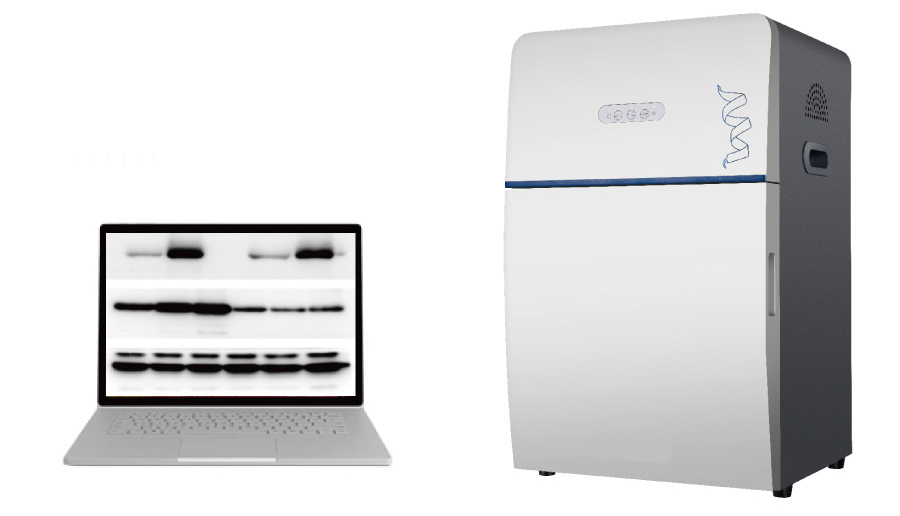

Cscope60 Series Fluorescence/Chemiluminescence Imaging System

Gel Documentation System2022-04-04n50

Description

Introduction

Different from traditional technology of dark room and toxic reagent used on Western Blot experiments, Cscope60 Series are equipped with the latest detection system and human-computer interactive program, providing gel documentation, visible light detection, RGB-fluorescence and chemiluminescence imaging application.

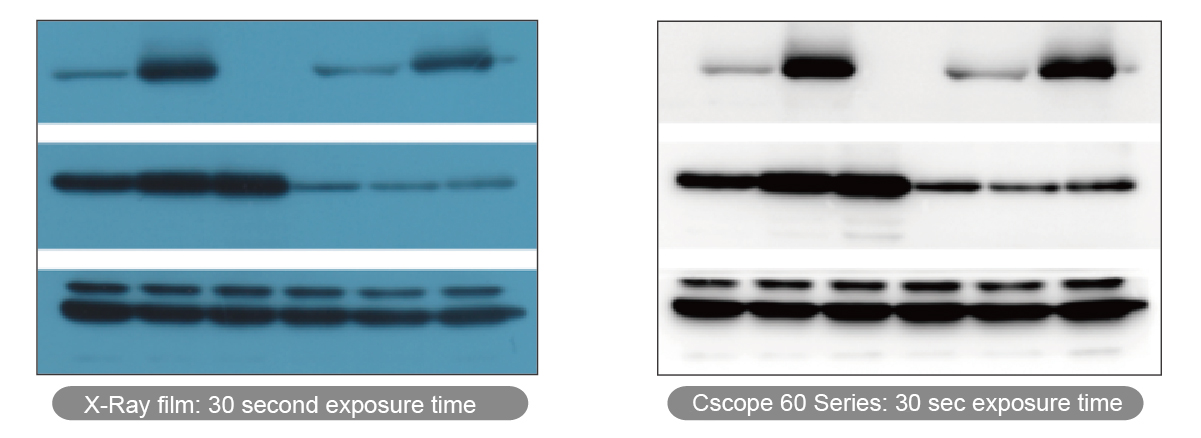

Comparison between ChemiScope and X-Ray Film:

Cscope60 Series is able to detect far weaker signal and offer higher sensitivity and wider linear range During the same exposure time, with higher detecting sensitivity and wider linear range, Cscope 60 series imaging systems can detect the weaker signal, avoiding data loss due to underexposure or overexposure.



General features of Fluorescence/Chemiluminescence Imaging System

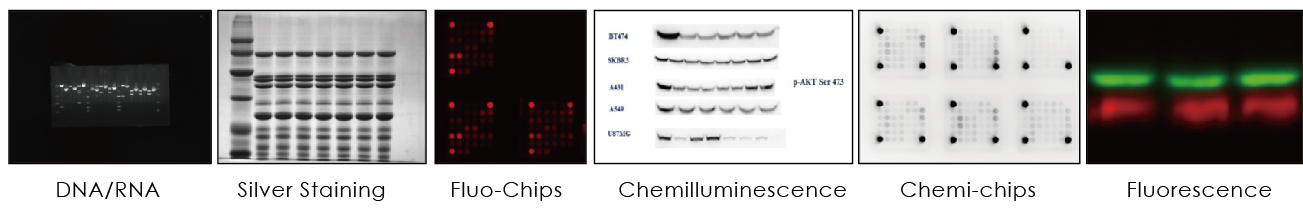

Application

Nucleic Acid Detection

Membranes/gels labeled with different fluorescent dyes, such as Ethiduim Bromide, SYBR™ Gold, SYBR™ Green, SYBR™ Safe, GelSignal™ Red, GelSignal™ Green, etc.



Protein Detection

Coomassie brilliant􀀀blue gel, silver staining gel and Membranes/gels/chips labeled with Sypro™ Ruby,Sypro™ Orange,Pro-Q Diamond, etc.



Blotting Membrane

Southern Blot, Northern Blot, Western Blot, etc.



Others

Colony counts in petri dishes, imaging analysis of well plates, etc.



Features

Dark Room

The face panel is one-step moulded with ABS material, lined with light-shielding aluminum sheet, and the case is formed with the material of stainless steel, ensuring the light tightness and anti-interference performance, and meanwhile guaranteeing the cabinet consistency and reliability.



Ultra-high Sensitivity Cooled CCD Camera

The SNR is high, ensuring the detection o f very weak signal and quantitation accurately.



Large Aperture Lens

F0.8 lens is optional, ensuring the capture of the very weak signal.

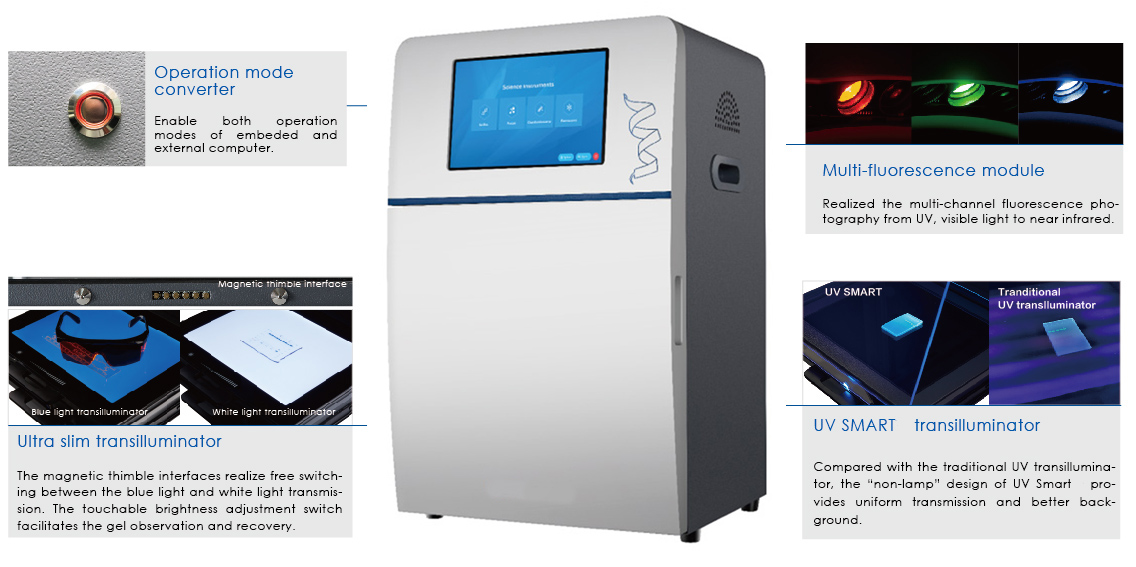

Modular Design

Cscope60 Series Fluorescence/Chemiluminescence Imaging Systems have a variety of configurations and modules to meet different needs, and a future upgrade is available. Below modules are optional:

A. fluorescent module

With an 8-socket motorized filter wheel, it can carry up to 5 sets of fluorescence modules, and the excitation light source and filter are automatically matched.

B. UVSmartTM ultra-thin UV transilluminator

The“ no shadow” design makes the brightness and uniformity much better, and with the gel cutting protective device, it can prevent human body from UV damage.

C. blue LED sample tray/ white LED sample tray

The magnetic thimble interface and the touch light intensity adjustment brings an excellent operating experience.



Free Switching of Data Interface

Innovative switching solution of touch screen and external computer much improve the operational flexibility.



Software

Image Capture Software

1. Expose accurately, one touch and shoot, and save automatically;

2. Accumulate images (1~99 frames) automatically and continuously and capture images in time series;

3. Take a Marker image and superimpose it with the chemiluminescence image;

4. Adopt pixel binning technology, including 1*1, 2*2, 3*3 and 4*4, to improve sensitivity and SBR;

5. Optimize the image, such as image rotation, cropping, invert color, etc.;

6. Navigate the image browsing by adjusting window width and position;

7. Save and read shooting parameters, avoiding repetitive settings during shooting.



Image Analysis Software

1. Automatically identify electrophoretic bands, and add, delete and adjust bands;

2. Automatically calculate the optical density integral value and display peak graph of each band;

3. Calculate the optical density of the designated area, suitable for protein quantitative anal ysis;

4. Automatically remove background signal value to get optimized image analysis data;

5. The color image synthesis function can display images of different palettes, and combine the fluorescence images of multiple lanes into color images according to the fluorescence emission spectrum;

6. The analysis result can export the designed area to Excel File.



Parameters

Main System

Model Cscope61 Cscope61 Touch Cscope62 Cscope62 Touch
Touch Screen / Embedded industry computer with touch screen 10.1 inch / Embedded industry computer with touch screen 10.1 inch
Camera Scientific cooled CCD camera Scientific cooled CCD camera Scientific cooled CCD camera Scientific cooled CCD camera
CCD Sensor: 12.49mmx9.99mm 12.49mmx9.99mm 12.49mmx9.99mm 12.49mmx9.99mm
Resolution 6.05 Megapixel, 2750×2200 6.05 Megapixel, 2750×2200 6.05 Megapixel, 2750×2200 6.05 Megapixel, 2750×2200
Pixel size: 4.54×4.54um 4.54×4.54um 4.54×4.54um 4.54×4.54um
Pixel density: 16bit (65536 gray scales) 16bit (65536 gray scales) 16bit (65536 gray scales) 16bit (65536 gray scales)
Quantum effciency ≥75% ≥75% ≥75% ≥75%
Cooling thermoelectric semiconductor refrigeration thermoelectric semiconductor refrigeration thermoelectric semiconductor refrigeration thermoelectric semiconductor refrigeration
Absolute cooling temperature: -30°C, adjustable -30°C, adjustable -30°C, adjustable -30°C, adjustable
Lens Motorized F0.95 ultra fast lens Motorized F0.95 ultra fast lens Motorized F0.8 ultra fast lens Motorized F0.8 ultra fast lens



Sample tray

Super Slim white LED Transilluminator

Super Slim blue LED Transilluminator(470nm)

UVSmart™ UV Transilluminator(302nm)



8 Sockets filter wheel



Multi-fluorescence light module

Excitation Light Filters
UV Light Ex365 Em460/30F, for UV excited dye
Blue Light Ex470 Em460/31F, for blue light excited dye
Green Light Ex530 Em460/32F, for green light excited dye
Red Light Ex630 Em460/33F, for red light excited dye
Near infrared Ex660 Em460/34F, for NIR excited dye
Near infrared Ex770 Em460/35F, for NIR excited dye
