Description
Descriptions

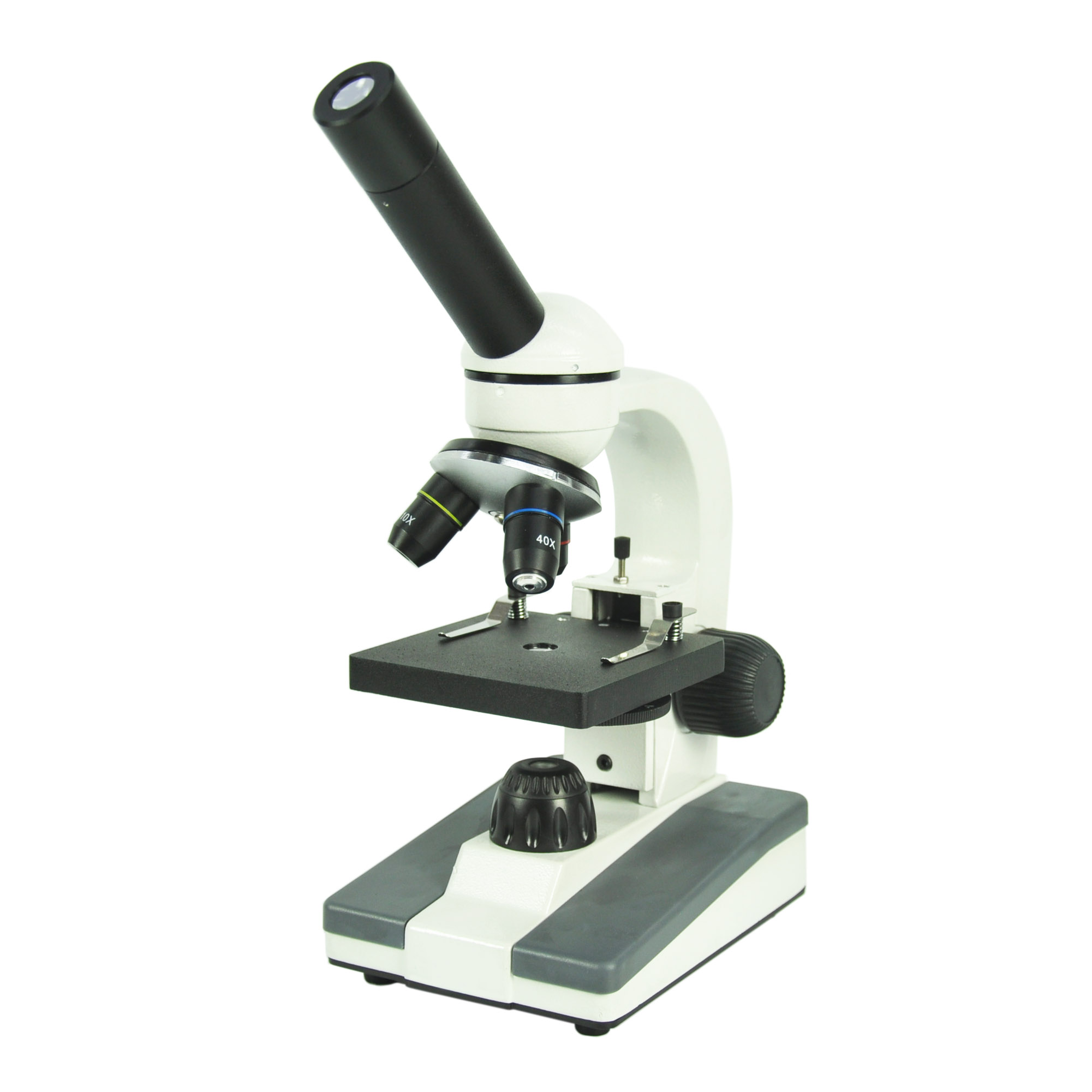

FT10A student microscope has everything necessary for the middle school or high school classroom. This is a proven design with student proof features such as locked-in eyepieces, and a durable disk diaphragm. Clear DIN optics, coarse and fine focus, illumination and stage options make this scope a guaranteed winner. Included accessories: Dust cover, one fuse, spare bulb, manual and warranty card.
–
Product Details

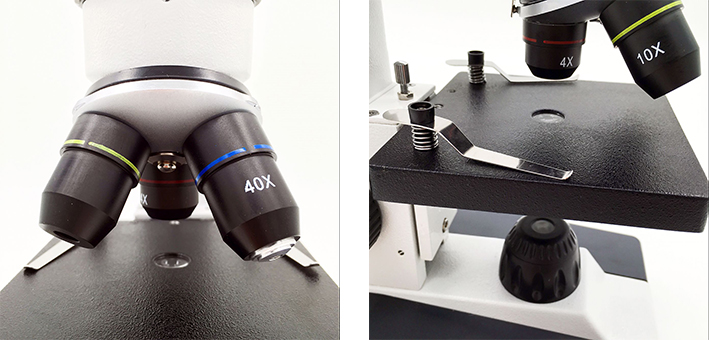

Triple Nosepiece for Achromatic Objectives
4X, 10X, 40X (Spring), Plain stage with paired clips, stage size 90mmx90mm
–
–
–
–
Product Model
 |
 |

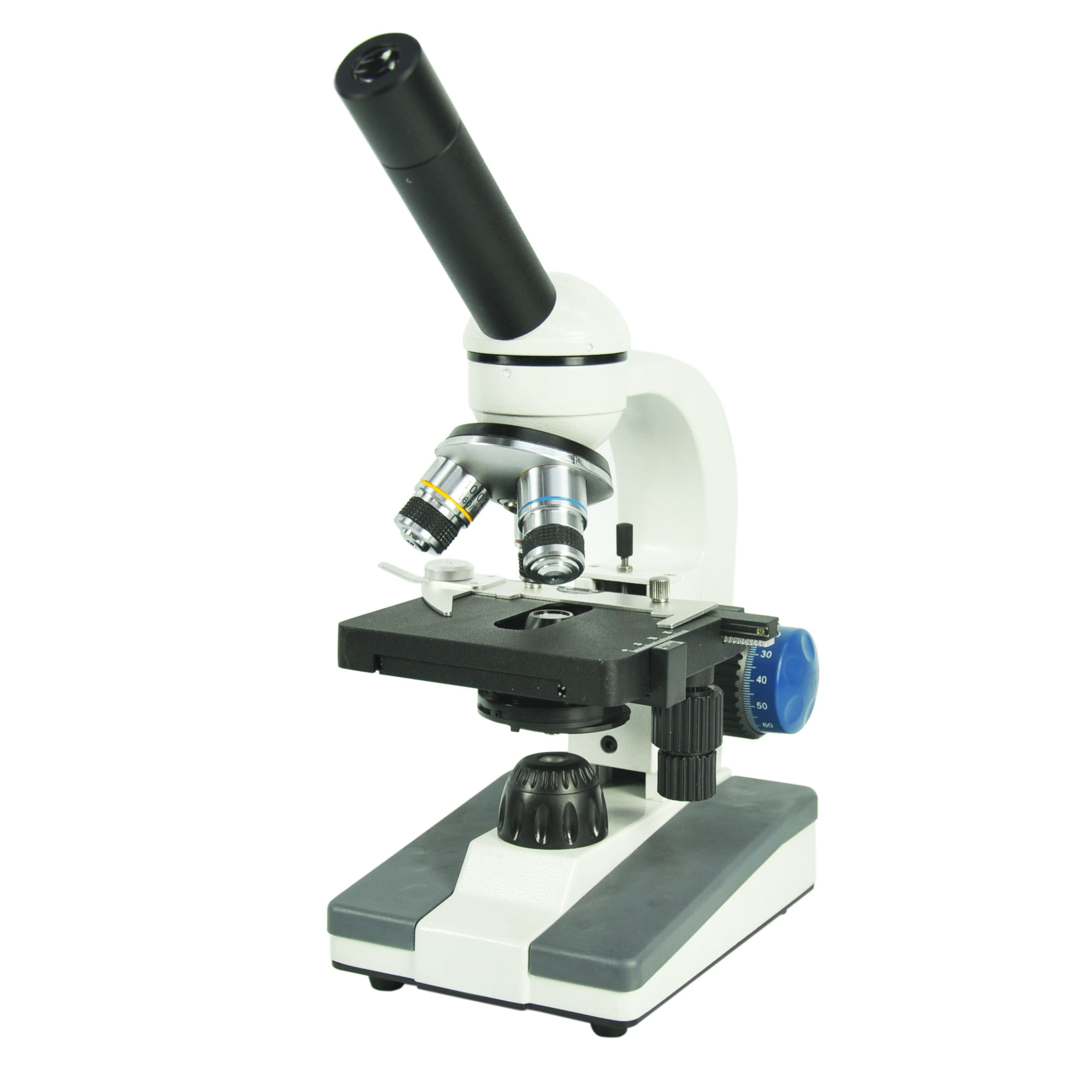

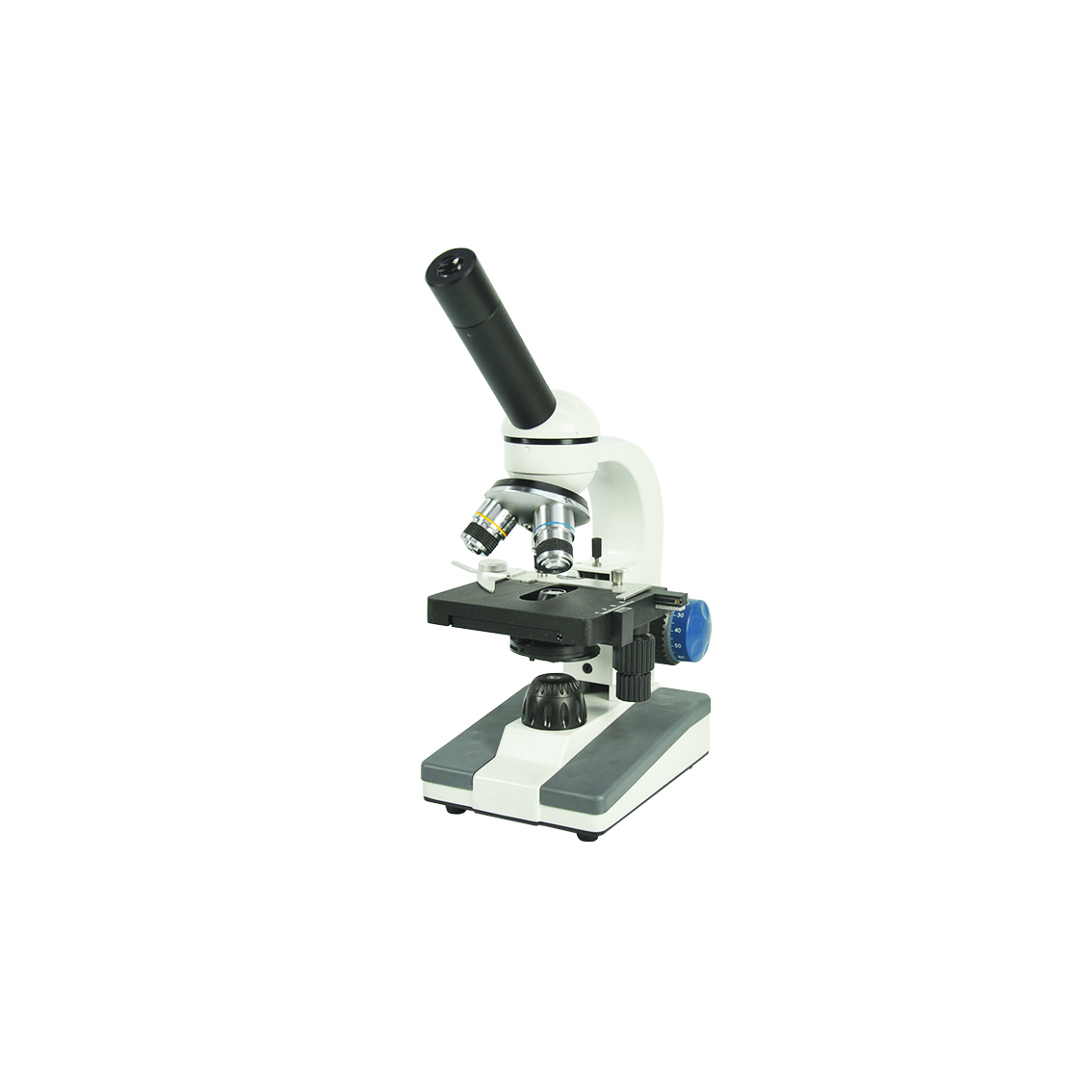

| FT10A | FT10C |
–
Product Specifications
| Model | FT10A | FT10C |
| Viewing head | Monocular head, inclined at 45°, 360° Rotation | |
| Eyepiece | WF10x/18 eyepiece, 1pc | |
| Objective | Achromatic objective 4x, 10x, 40x | |
| Condenser | N.A 0.65 with disc diaphragm | N.A 0.65 Abbe Condenser with Φ2-Φ30mm iris diaphragm, Φ32 filter |
| Nosepiece | Triple nosepiece | |
| Stage | Plain stage with slide clip 110x120mm | Double Layer Mechnical Stage 110x125mm, X/Y moving range 60x/20mm |
| Illumination | 1W LED illumination | |
| Focusing System | Coaxial coarse adjustment | Coaxial coarse and fine adjustment |
| Dimensions | 356(H)x178(L)x134(W)mm | |
–
Options
| Cat No. | Descriptions | Picture |
| M11011001 | Eyepiece 25x | |
| M11011005 | Cordless Rechargeable LED Base | |
| M11011003 | Digital Eyepiece 2mp | |
| M11011004 | Digital Eyepiece 5mp |
