EL Series Education LED Screen Microscope

Home Microscopy Biological Microscopes Educational Microscopes EL Series Education LED Screen Microscope

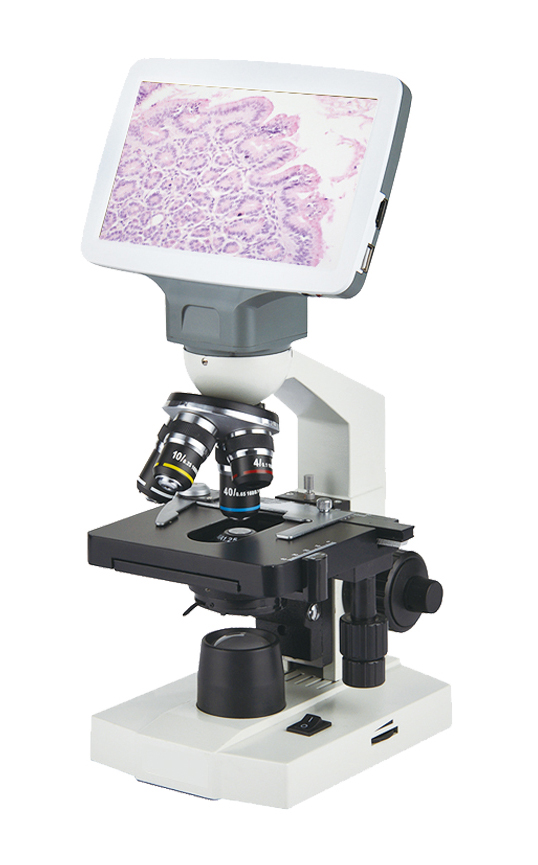

EL Series Education LED Screen Microscope

Educational Microscopes, Digital Biological Microscopes, Digital Microscopes, Tabletop Digital Microscope2020-06-04n50

Description



Optimization of the human-computer relationship, high-eye backward LED screen

IT10 and SX10 biological microscopes are upgraded to integrate optical imaging, digital image acquisition and data transmission. And a new generation of digital microscope EL series is introduced. Retained IT10 and SX10 microscope excellent optical imaging system and ergonomic design, imaging bright reduction high, comfortable to use. And this is a further optimization of the human-computer relationship, high-eye backward LED screen changed the traditional microscope observation, more convenient and easy, more suitable for long-term microscope workers and popular science education of children and adolescents.



Product Specifications

  • Model: EL10E
  • . 7-inch IPS full view screen, size 1024x600mm

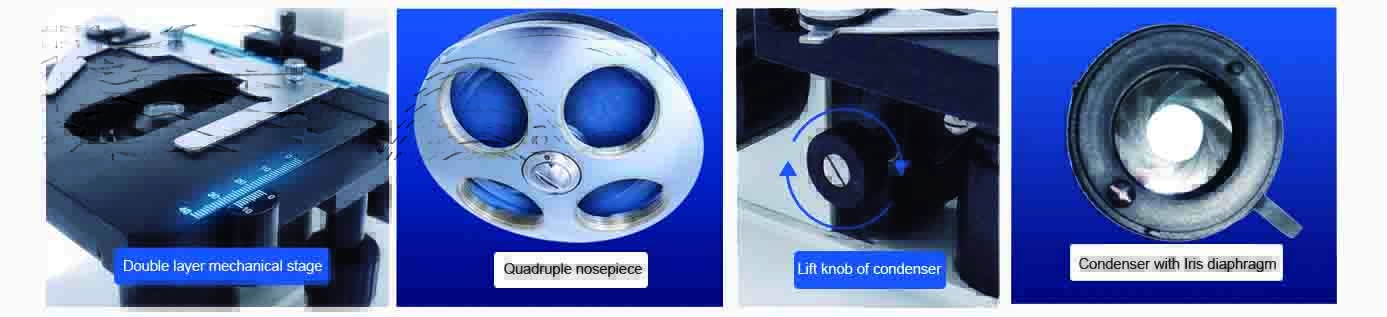

  • . Four-hole nosepiece
  • . 195 achromatic objective 4x, 10x, 40x, 100x
  • . Double-layer stage with 110x120mm, moving range 60x30mm
  • . Coaxial coarse & fine adjustment, upper limit mechanism with stage
  • . Abbe NA 1.20 condenser
  • . LED illumination, brightness adjustable



  • Model: EL01A
  • . 7-inch IPS full view screen, size 1024x600mm
  • . Three-hole nosepiece
  • . 185 achromatic objective 4x, 10x, 40x
  • . Plain stage with slide clip 95x95mm
  • . Coaxial coarse & fine adjustment, upper limit mechanism with stage
  • . NA 0.65 condenser

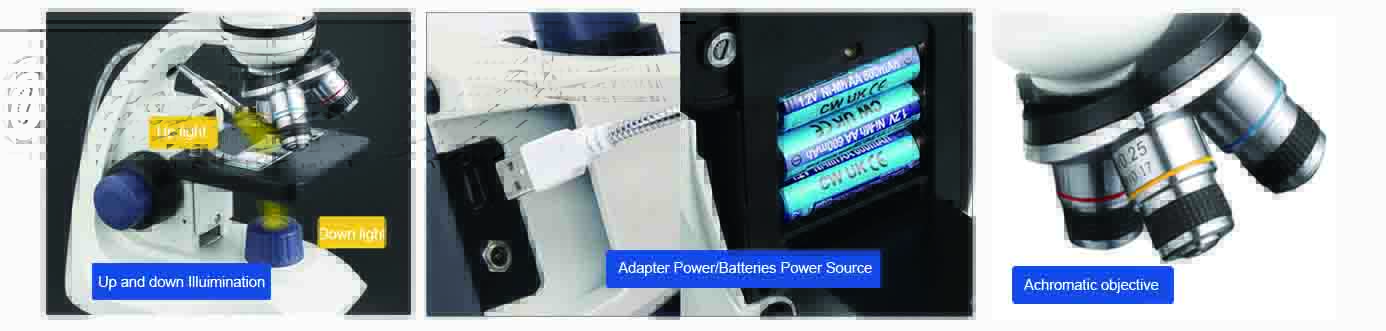

  • . Up and down LED illumination, brightness adjustable



Powerful Digital Image Acquisition Equipment

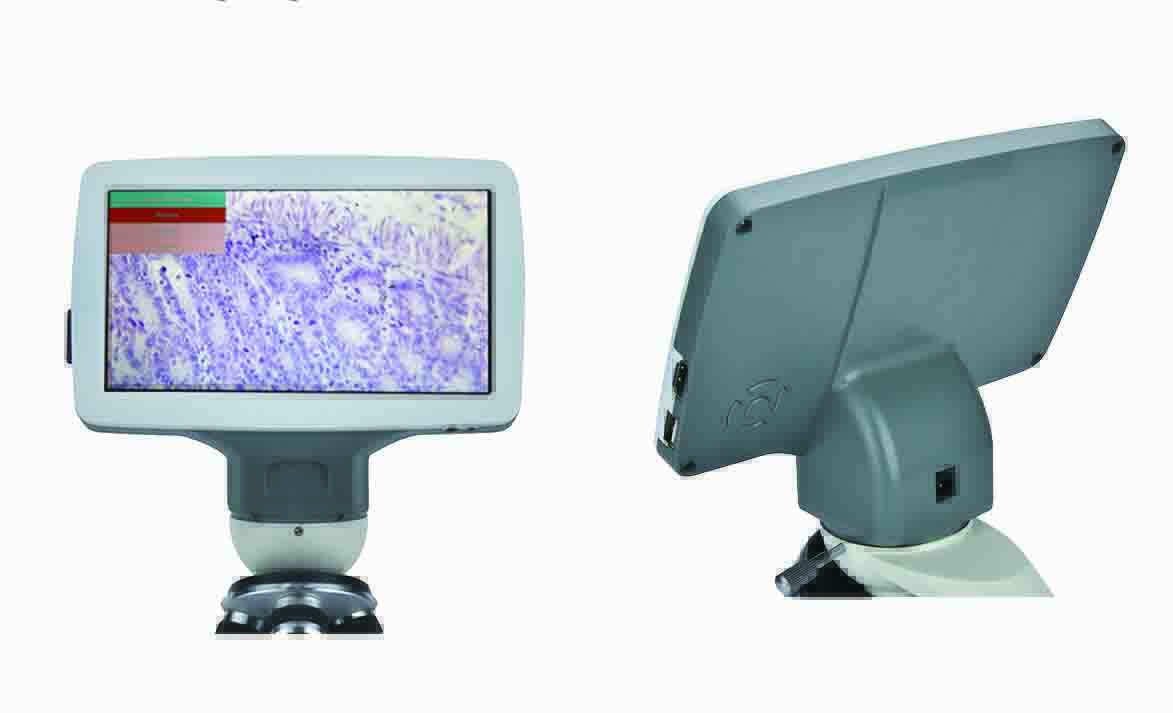

  • Display:
  • 7 inch IPS full view 1024x600mm



  • Image Sensor:
  • Built-in 5 pixel color CMOS
  • Size: 5346(H) x 3003(V)um
  • Pixel: 2.75(H) x 2.75(V)um
  • Resolution: 1920 x 1080

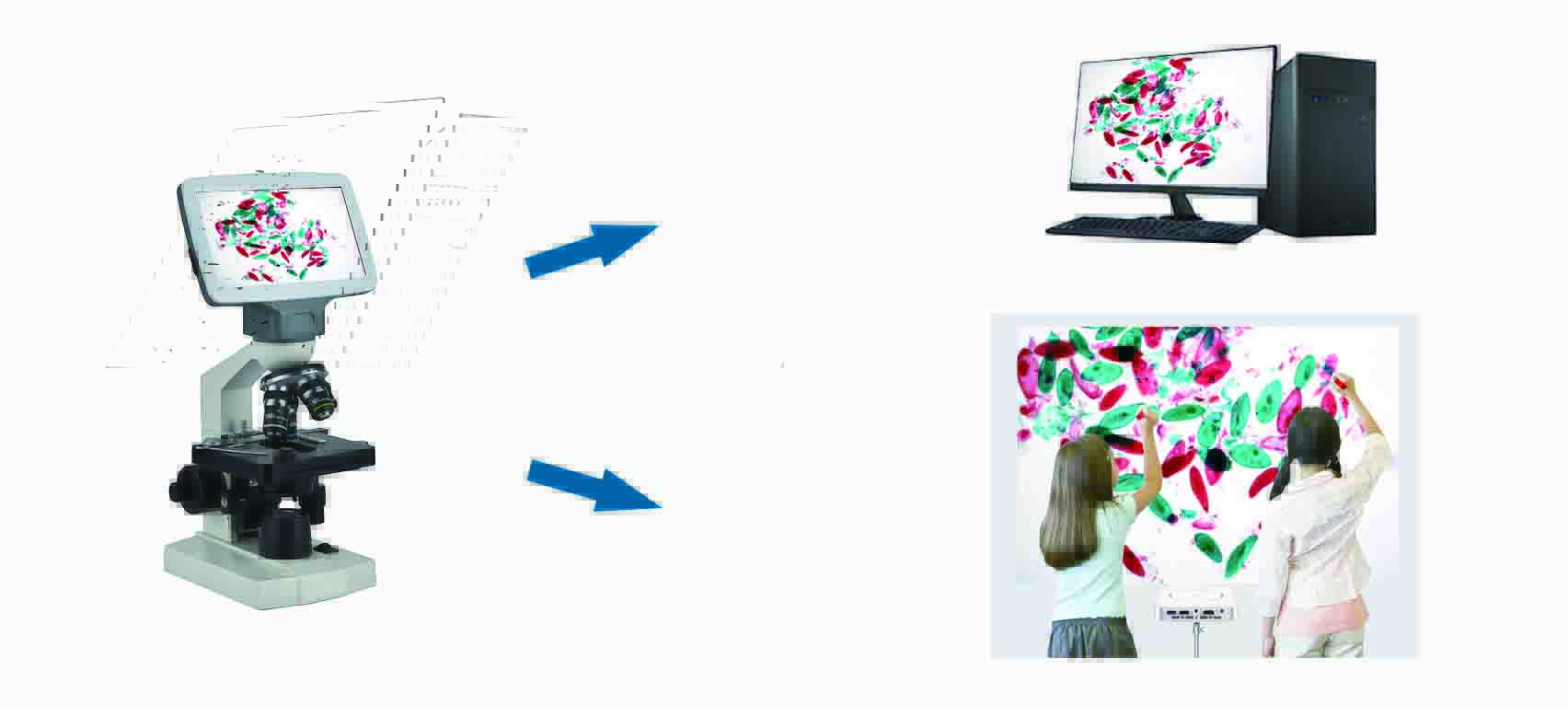

Rich Interfaces to Meet Diverse Data Transfer Requirements

  • A USB external interface
  • Providing HDMI high-defintion interfaces

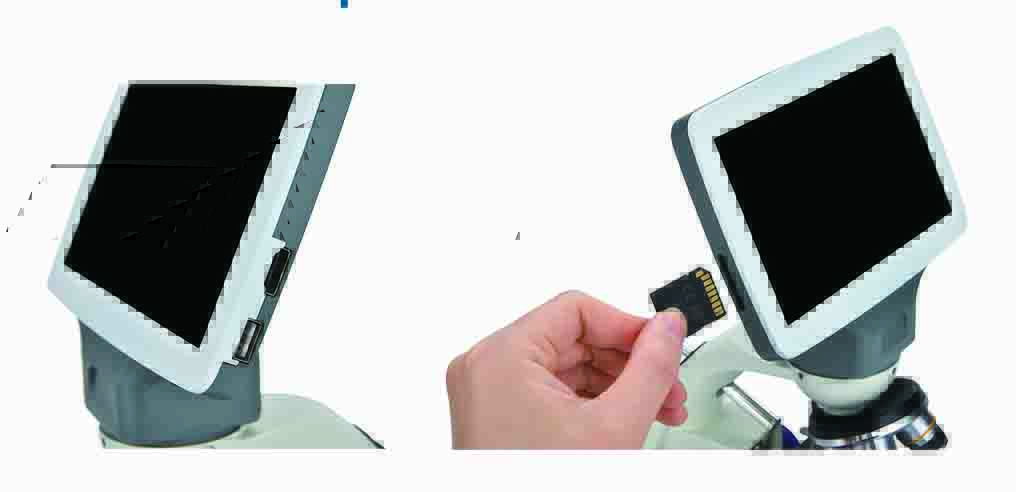

  • Built-in SD card interface to facilitate data presentation.
