FL-20 Series Digital Cooling Camera, USB3.0, 20MP

Home Microscopy Digital Cameras & Tablets Cooling Camera FL-20 Series Digital Cooling Camera, USB3.0, 20MP

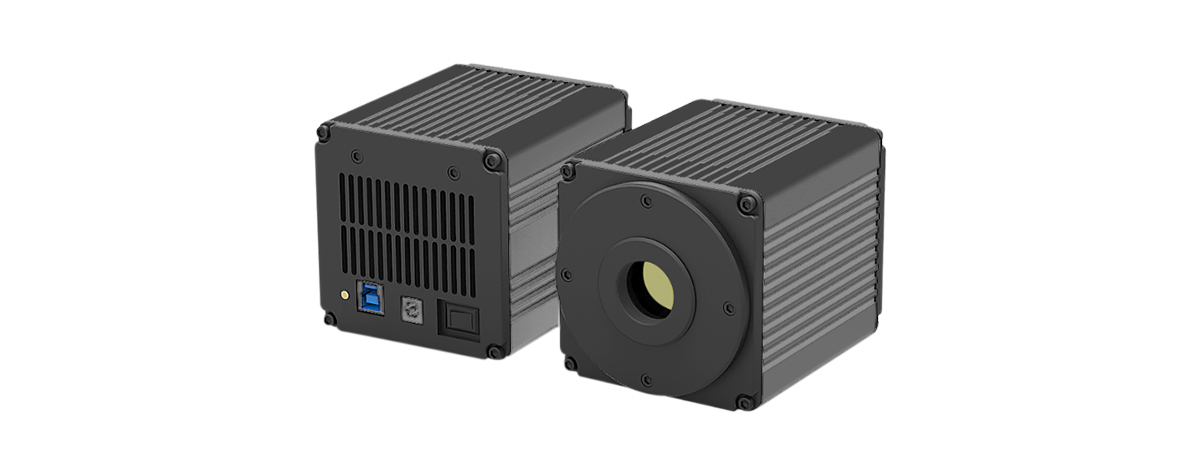

FL-20 Series Digital Cooling Camera, USB3.0, 20MP

Cooling Camera, USB3.0 CMOS Cameras2020-03-17n50

Description

1). 20 megapixels, capturing high-definition detailed images in one shot

The FL 20’s 1-inch sensor image can cover the most uniform central area of the image plane, with a resolution of up to 20 megapixels, you can capture the high definition details of your samples in one shot.



2). FL-20’s Thermoelectric cooling noise reduction technology to meet more professional color fluorescence imaging needs

As with the top-level sCMOS camera technology from ICOE, the FL-20 cooled camera operates at -15 °C and can ensure long-term reliable operation, significantly reducing the hot pixels caused by the accumulation of dark current, and obtaining a purer fluorescent background image. More than twice the sensitivity of a CCD, to meet the needs of professional fluorescence imaging.

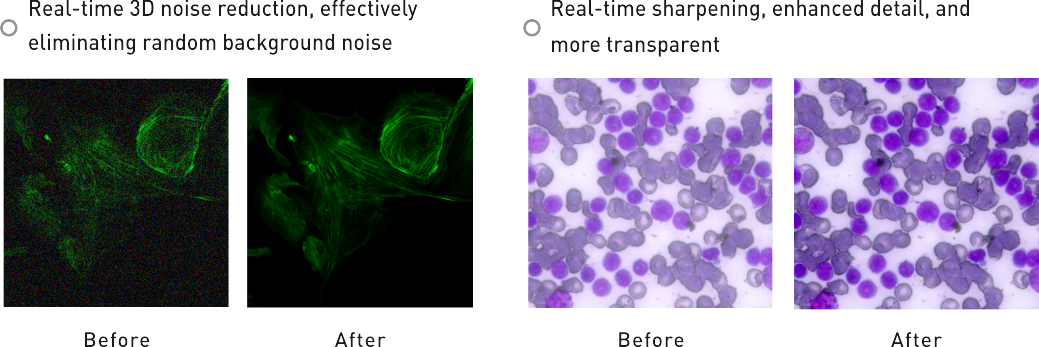

3). Real-time intelligent image processing, focused on improving image quality

Without sacrificing speed and image information, the FL-20 offers a variety of real-time intelligent image processing capabilities that allow you to view and capture flawless sample images in real time with the push of a button.



4). >50 frames per second high speed video

With a guaranteed field of view, the FL 20 offers a variety of high-speed imaging modes that can be adjusted for fast focus and positioning for an efficient image capture experience.



5). Revolutionary PC Computing Imaging Software Capture V2.1

Unique from the cumbersome process of traditional technology to obtain images after processing, the Capture V2.1 provides real-time image stitching and real-time depth of field fusion. This can automatically complete the image while the operator moves the stage – productivity at its best.



Product Specifications

Model FL-20
Color/mono Color
Sensor model Sony
Quantum efficiency 84%@535nm
Resolution 5472(H)x3648(V)
Pixel size 2.40μmx2.40μm
Sensor size 15.86mm; 1inch
Shutter mode Rolling
Read noise <1e-
Cooling Forced air(Ambient at +25℃): -15 ℃
Frame rate 14fps @5472×3648
53fps @2736×1824
67fps @1824×1216
Binning 2×2, 3×3, 4×4
Exposure setting Auto/Manual
Exposure time18us-1hour Manual/Auto
Picture format JPG/PNG/TIFF/DICOM
Data interface USB3.0
Bit depth 16bit/8bit
Camera size 85mmx85mmx109mm
Power supply 12V
Camera weight 980g
PC software Capture 2.1
Operating system Windows, Mac
Operating environment Temperature: 0-40℃ Humidity: 10%-85%
