DZ756U Series All-in-one HDMI Digital Monocular Zoom Microscope 0.7x-5.6x

Home Microscopy Industrial Monocular Microscope Digital Monocular Zoom Microscope Series DZ756U Series All-in-one HDMI Digital Monocular Zoom Microscope 0.7x-5.6x

DZ756U Series All-in-one HDMI Digital Monocular Zoom Microscope 0.7x-5.6x

Digital Monocular Zoom Microscope Series2022-02-19n50

Description

Features

  • 1. Lens, camera and light source all in one
  • 2. 0.7X-5.6X continuous zoom lens
  • 3. Multiple objectives available
  • 4. Magnetic adjustable wireless light source
  • 5. Sony back-illuminated high-sensitivity sensor
  • 6. USB camera module with different resolution
  • 7. With software for easy control and measurement



DZ756U series all-in-one zoom monocular USB digital microscope is shown in Figure. It has a continuous zoom lens “DZ756-W100-V050” including 8x continuous zoom lens with zoom objective 0.7x-5.6x, with auxiliary objective 1x and 0.5x TV lens, and with built-in USB camera module with different resolution and LED ring light source DRL-NPC.

The USB camera module can directly complete the video and image acquisition with a computer, and the LED ring light source module is directly connected to the USB camera module through the main body of the optical continuous zoom lens with no need of the external power supply.

DZ756U series meets the digital imaging observation, inspection and measurement in the fields of modern electronic equipment, semiconductor, laser, led, LCD, industrial on-line detection and biology.

The current models of DZ756U series all-in-one zoom monocular USB digital microscope are shown in the table below:

Order Code The Main Zoom body Camera Module Illumination Module
DZ756U8 DZ756-W100-V050 U8 LED Direct Ring Light with NPC (DRL-NPC)
LED Direct Ring Polarization Light with NPC (DRPL-NPC)
Coaxial Light Module with NPC (CL-NPC)
DZ756U5 DZ756-W100-V050 U5



The Specifications of DZ756U Main Zoom Body, order code DZ756-W100-V050

Optical Parameters
Zoom Lens DZ756-W100-V050 zoom lens,0.7X-5.6X zoom range
Working Distance 37.5mm-160mm (Determined by the auxiliary objective)
NA 0.018-0.092(With W100,1x auxiliary objective)
Resolution 18.6um-3.65um(With W100,1x auxiliary objective)
Field 0.99mm-34.28mm
Optional Objective 0.50x,0.75x,1.00x,1.50x,2.00x(Optional)
Other Optional Objective Infinite microscope objective (Both biological microscope objective and metallographic microscope objective can be used)

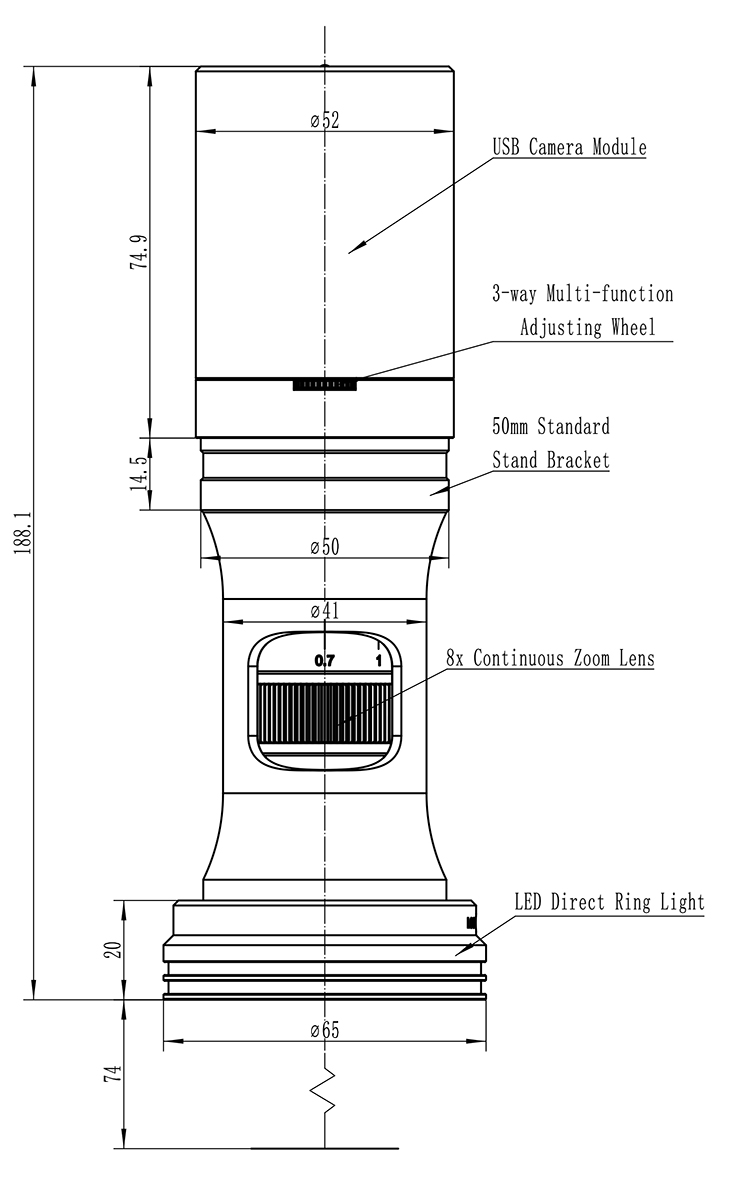

Dimensions 188mm x 52mm
Bracket Interface Standard 50mm



The Optional Objectives Wxxx for DZ756-Wxxx-V050

Auxiliary Objective Specification TV Lens TV050 for 1/3″ Sensor
Low High
W100,1.0X(80mm WD) PMAG 0.35X~2.80X
FOV 17.14mm 2.14mm
NA 0.018 0.092
W050,0.5X(160mm WD) PMAG 0.18X~1.40X
FOV 34.28mm 4.28mm
NA 0.009 0.046
W075,0.75X(105mm WD) PMAG 0.26X~2.10X
FOV 20.81mm 2.86mm
NA 0.013 0.069
W150,1.5X(51.5mm WD) PMAG 0.53X~4.20X
FOV 11.43mm 1.43mm
NA 0.026 0.138
W200,2.0X(37.5mm WD) PMAG 0.70X~5.60X
FOV 8.57mm 1.07mm
NA 0.035 0.182
Remarks

When using coaxial lighting, low magnification may produce vignetting.
When using infinity objectives as Auxiliary Lens Module (adapter available), the PMAG、FOV and NA of the DZ756 depends on the parameters of the objectives.

WD: Working Distance; NA: Numerical Aperture;  PMAG: Primary Magnification; FOV: Field of View in the object side;

Note: Infinity corrected objectives limit system’s usable zoom range due to uneven illumination. The maximum sensor format is 2/3″.



The specifications of integrated USB Digital Camera Modular

Order Code Sensor & Size(mm) Pixel(μm) G Sensitivity
Dark Signal
FPS/Resolution Binning Exposure
U8 8.3M/IMX415(C)
1/2.8″ (5.57×3.13)
1.45×1.45 300mV
70dB
44dB
30@3840×2160
30@1920×1080
30@1280×720
30@960×540
1×1
1×1
1×1
1×1
0.1~2000ms
U5 5.1M/IMX335(C)
1/2.8″(5.18×3.89)
2.0×2.0 505mV
73dB
43dB
26@2592×1944
26@1280×960
26@640×480
1×1
1×1
1×1
0.1~2000ms



Hardware Configurations

Spectral Range 380-650nm (with IR-cut Filter)
White Balance Auto/ROI/Manual White Balance (New Model), Auto (Products before 2020)
Color Technique Ultra-Fine Color Engine/NA for Monochromatic Sensor
Capture/Control SDK Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)
Recording System Still Picture and Movie
Cooling System* Natural



Operating Environment
Operating Temperature(in Centidegree) -10~ 50
Storage Temperature(in Centidegree) -20~ 60
Operating Humidity 30~80%RH
Storage Humidity 10~60%RH
Power Supply USB DC 5V/1A Adapter



Software Environment
Operating System Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)
OSx(Mac OS X)
Linux
PC Requirements CPU: Equal to Intel Core2 2.8GHz or Higher
Memory:2GB or More
WiFi Adaptor: Support 802.11 b/g/n
Display:17” or Larger
CD-ROM



Light Module

LED Ring Light LED direct ring light with adjustable brightness(No power cable), (DRL-NPC)
LED Ring Polarization Light LED direct ring polarization light with adjustable brightness(No power cable), (DRPL-NPC, optional item)
Coaxial Light Module LED Coaxial Light Module with adjustable brightness(No power cable),(CL-NPC, optional item)
Power Supply Integrated power supply, no power cable winding trouble, sample observation more freely
Installation Method Express second-level suction type installation, convenient and simple
Brightness Control Through the 3-way multi-function adjusting wheel or software GUI, both the hardware and software can adjust the light intensity synchronously with no hassle
