DZ756H2 Series All-in-one HDMI Digital Monocular Zoom Microscope 0.7x-5.6x

Home Microscopy Industrial Monocular Microscope Digital Monocular Zoom Microscope Series DZ756H2 Series All-in-one HDMI Digital Monocular Zoom Microscope 0.7x-5.6x

DZ756H2 Series All-in-one HDMI Digital Monocular Zoom Microscope 0.7x-5.6x

Digital Monocular Zoom Microscope Series2022-02-19n50

Description

Features

  • 1. Lens, camera and light source all in one
  • 2. 0.7X-5.6X continuous zoom lens
  • 3. Multiple objectives available
  • 4. Magnetic adjustable wireless light source
  • 5. Sony back-illuminated high-sensitivity sensor
  • 6. Real-time 1080P@60FPS HDMl output
  • 7. Record 1080P@60FPS HD video
  • 8. With software for easy control and measurement



DZ756H2 all-in-one zoom monocular HDMI digital microscope is shown in figure as below. It has a continuous zoom lens “DZ756-W100-V050” that includes 8x continuous zoom lens with zoom objective 0.7x-5.6x, with auxiliary objective 1x and 0.5x TV lens, and with built-in 2MP HDMI camera module and LED ring light source.

The 2MP HDMI camera module can directly complete the video and image acquisition without a computer, and the LED ring light source module is directly connected to the 2MP HDMI camera module through the main body of the optical continuous zoom lens with no need of the external power supply.

DZZ756H2 meets the digital imaging observation, inspection and measurement in the fields of modern electronic equipment, semiconductor, laser, led, LCD, industrial on-line detection and biology.

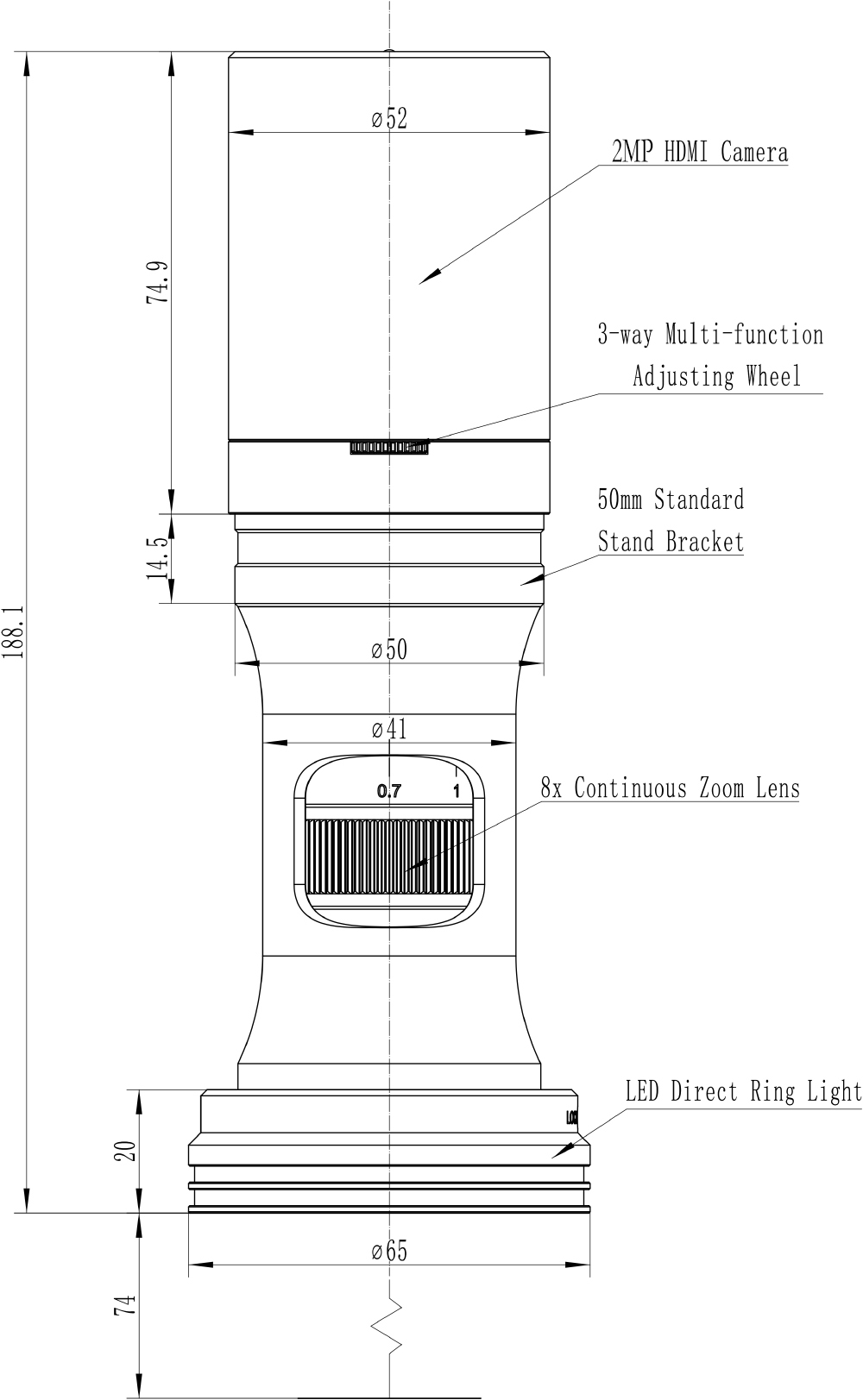

The Specifications of DZ756H2 Main Zoom Body, order code DZ756-W100-V050

Optical Parameters
Zoom Lens DZ756-W100-V050 zoom lens,0.7X-5.6X zoom range
Working Distance 37.5mm-160mm (Determined by the auxiliary objective)
NA 0.018-0.092(With W100,1x auxiliary objective)
Resolution 18.6um-3.65um(With W100,1x auxiliary objective)
Field 0.99mm-34.28mm
Optional Objective 0.50x,0.75x,1.00x,1.50x,2.00x(Optional)
Other Optional Objective Infinite microscope objective (Both biological microscope objective and metallographic microscope objective can be used)
Dimensions 188mm x 52mm
Bracket Interface Standard 50mm



The Optional Objectives Wxxx for DZ756-Wxxx-V050

Auxiliary Objective Specification TV Lens TV050 for 1/3″ Sensor
Low High
W100,1.0X(80mm WD) PMAG 0.35X~2.80X
FOV 17.14mm 2.14mm
NA 0.018 0.092
W050,0.5X(160mm WD) PMAG 0.18X~1.40X
FOV 34.28mm 4.28mm
NA 0.009 0.046
W075,0.75X(105mm WD) PMAG 0.26X~2.10X
FOV 20.81mm 2.86mm
NA 0.013 0.069
W150,1.5X(51.5mm WD) PMAG 0.53X~4.20X
FOV 11.43mm 1.43mm
NA 0.026 0.138
W200,2.0X(37.5mm WD) PMAG 0.70X~5.60X
FOV 8.57mm 1.07mm
NA 0.035 0.182
Remarks

When using coaxial lighting, low magnification may produce vignetting.
When using infinity objectives as Auxiliary Lens Module (adapter available), the PMAG、FOV and NA of the DZ756 depends on the parameters of the objectives.

WD: Working Distance; NA: Numerical Aperture; PMAG: Primary Magnification; FOV: Field of View in the object side;

Note: Infinity corrected objectives limit system’s usable zoom range due to uneven illumination. The maximum sensor format is 2/3″.



The specifications of integrated 2MP HDMI Digital Camera Modular

Interface and Button Description
HDMI Comply with HDMI1.4 standard. 1080P format video output for standard FHD monitor
LED LED status indicator
USB Mouse Connect USB mouse for easy operation with embedded XCamView software
DC12V Power adapter connection (12V/1A);
SD Comply with SDIO3.0 standard and SD card could be inserted for video and images storage;



Camera Hardware Function Description
HDMI 2MP Camera Comply with HDMI1.4 standard; 60fps@1080P
Sensor Sony IMX307(C),1/2.8″(5.57×3.13),Pixel size 2.9×2.9um
G Sensitivity/Dark Signal/Dynamic Range/SNR 1300mv with 1/30s/NA/NA/NA
FPS/Resolution 60@1920*1080(HDMI)
Exposure Time 0.01~1000ms



The Software of Digital Camera Modular

Software Function Description
Video Saving Video format:2M(1920*1080) H264 encoded MP4 file;
Video saving frame rate:50~60fps (related with SD card performance);
Image Capture 2M (1920*1080) JPEG image in SD card
Measurement Saving Measurement information saved in different layer with image content;
Measurement information is saved together with image content in burn in mode.
ISP Function Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Contrast Adjustment, Brightness Adjustment, Gamma Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker Function
Image Operations Zoom In/Zoom Out, Mirror/Flip, Freeze, Cross Line, Overlay, Embedded Files Browser, Video Playback, Measurement Function
Restore Factory Settings Restore camera parameters to its factory status
Multiple Language Support English / Simplified Chinese / Traditional Chinese / Korean / Thai / French / German / Japanese / Italian / Russian



Light Module

LED Ring Light LED direct ring light with adjustable brightness(No power cable), (DRL-NPC)
LED Ring Polarization Light LED direct ring polarization light with adjustable brightness(No power cable), (DRPL-NPC, optional item)
Coaxial Light Module LED Coaxial Light Module with adjustable brightness(No power cable),(CL-NPC, optional item)
Power Supply Integrated power supply, no power cable winding trouble, sample observation more freely
Installation Method Express second-level suction type installation, convenient and simple
Brightness Control Through the 3-way multi-function adjusting wheel or software GUI, both the hardware and software can adjust the light intensity synchronously with no hassle
