Description

Introduction

The DMS745L series integrated zoom optical module with high definition camera. It can be conveniently used in a narrow and small space. According to ergonomic principles, its internal optical corner design and angle adjustment of the display screen, allow the operator to look at the display in a flat view. Through the HDMI HD interface, it can connect to another display simultaneously.

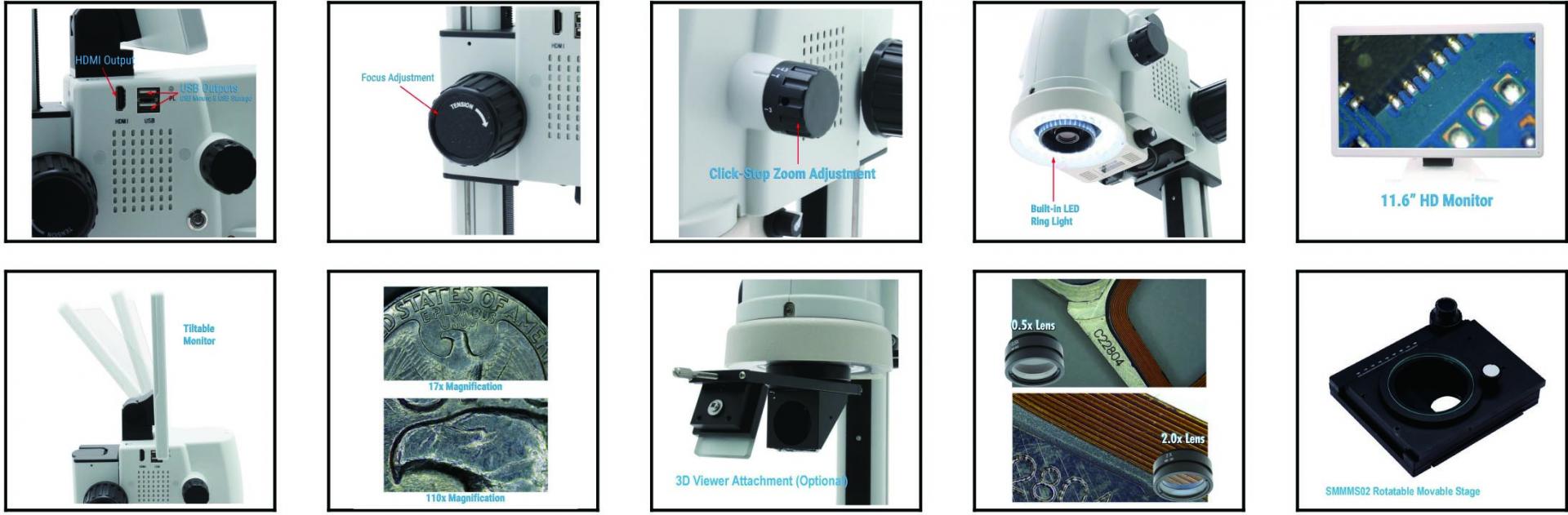

Features

Built-in 11.6″ monitor for ergonomic viewing
17x – 110x magnification (on the built-in 11.6″ monitor) without optional lenses
8.6x To 221x Magnification Range With Optional Lenses
HDMI output for external monitor viewing
Built-in measurement capabilities
Save image/video files to USB storage device
USB included
Compact design saves bench top space

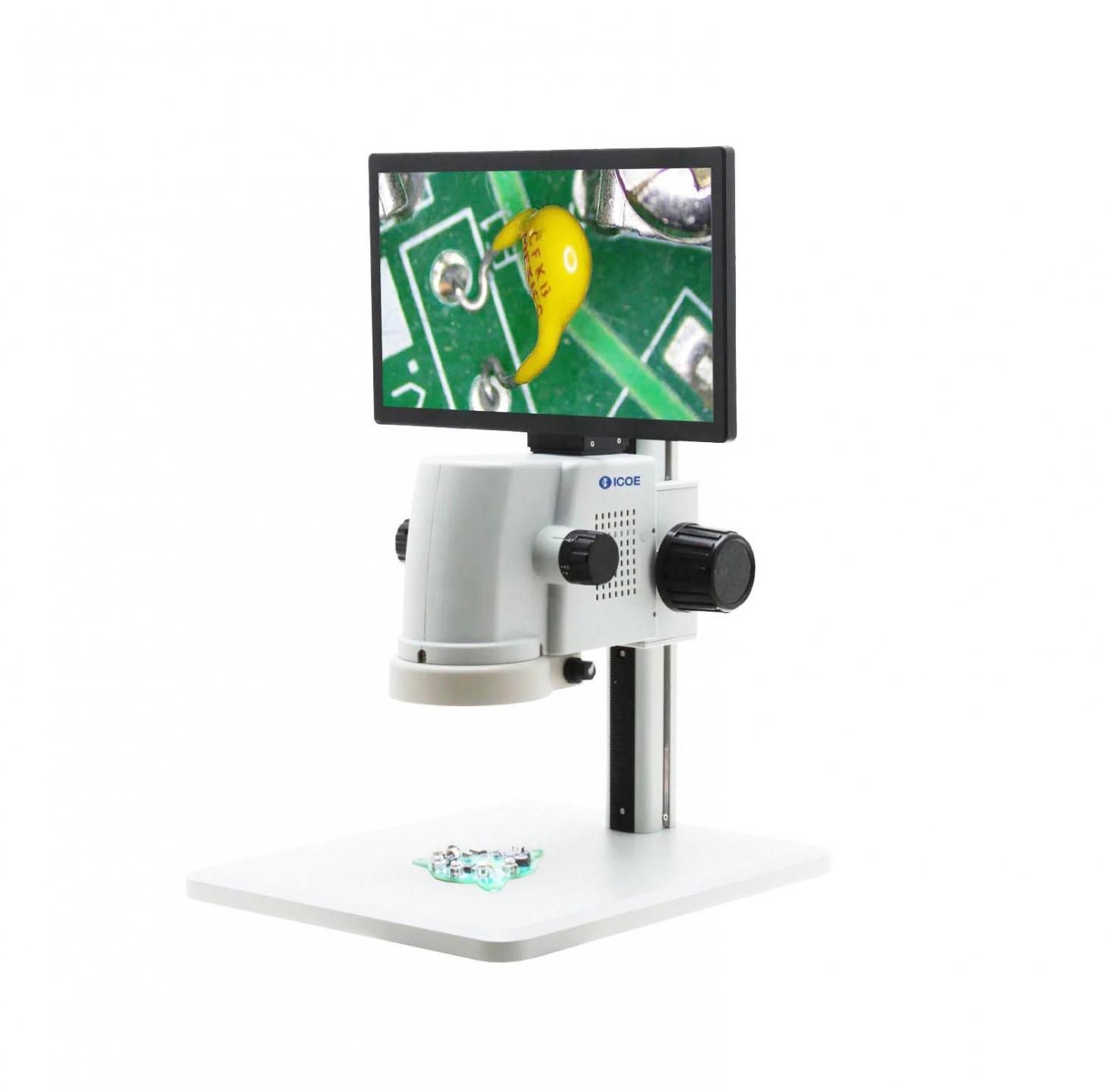

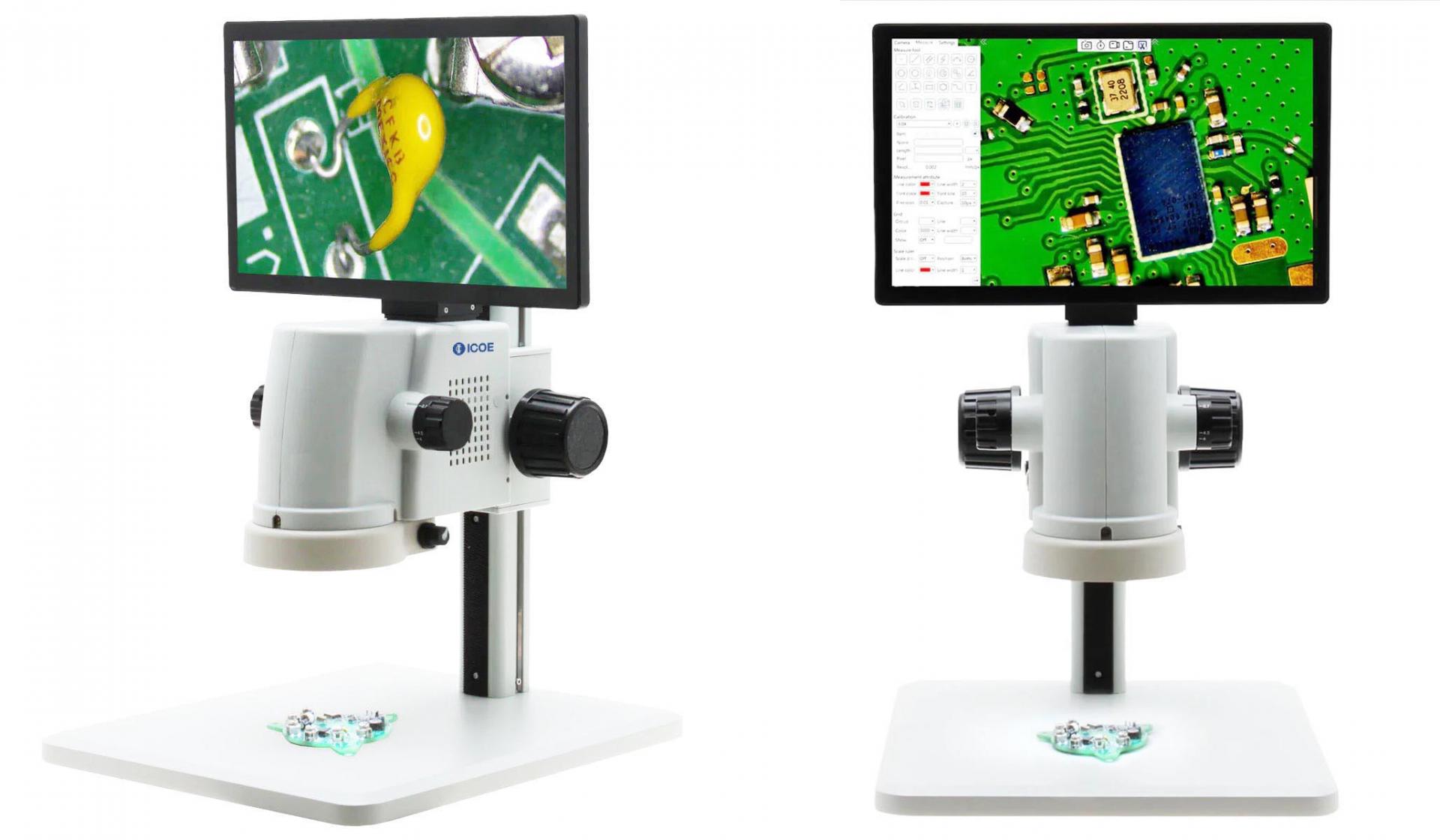

1. All-In-One Digital Microscope

Discover the power of precision with ICOE DMS745L Digital Microscope, your all-in-one solution for detailed inspection and analysis. This advanced system is designed not only to enhance your viewing experience but to integrate seamlessly into any workspace with its ergonomic and compact design.

2. Crystal-Clear Monitor, Up to 110x Magnification

Featuring a generous 11.6″ built-in monitor, the DMS745L offers exceptional ergonomic viewing, allowing for comfortable extended use without sacrificing on detail. Experience crisp, clear magnification ranging from 17x to 110x directly on the built-in monitor. For those seeking even greater detail, optional lenses extend the magnification capabilities from 8.6x to a remarkable 221x, opening a world of microscopic details.

3. HDMI Output, Real-Time viewing from an external monitor

The DMS745L doesn’t stop at superior magnification. It comes equipped with an HDMI output, enabling the option of external monitor viewing for an expanded visual workspace or for sharing your findings with a team.

4. Built-In Measurement Capabilities, No Computer Required

Built-in measurement capabilities ensure precise analysis and documentation, enhancing the utility and efficiency of your research or quality control processes.

5. Easy Image Capture, Save Directly to USB Storage

Saving and sharing your discoveries is as straightforward as it gets. With the ability to save image and video files directly to a USB storage device, the DMS745L simplifies the process of capturing and transferring data. Plus, a USB is included to get you started right away.

6. Compact Design
Saving and sharing Designed with your space in mind, the DMS745L boasts a compact footprint, ensuring that even the most limited benchtop spaces can accommodate this powerful tool without compromise.

7. Optional Lenses

0.5X Lens: The 0.5x lens is designed to increase working distance, as well as increase the field of view on the screen for additional viewing area. 2.0X Lens: increases the magnification range to 34.4x-221x. These lenses easily attach to the standard DMS745L lens.

8. Optional XYR Stage, Scan X and Y axis, and Rotate 360 degrees

This gliding stage has been optimized for use with inspection systems where work space is limited. The compact design makes it easy for operators to add the stage to an existing microscope setup, and easily set aside when not in use.

9. Optional 3D Viewer

The 3D Viewer Attachment’s unique design gives operators a new perspective on objects being viewed. The 35 degree angled mirror is ideal for looking around multi-layered parts such as circuit boards, medical tools, industrial parts, and more. The attachment can be rotated 360 degrees to display the part from various angles.

When in the On Position the 3D Viewer displays the angled on-screen image with a reduced 0.5x magnification applied.
When in the Off Position the screen displays an overhead image with no added angle and no magnification reduction.

Technical Specifications

Software functions

Optional Accessories

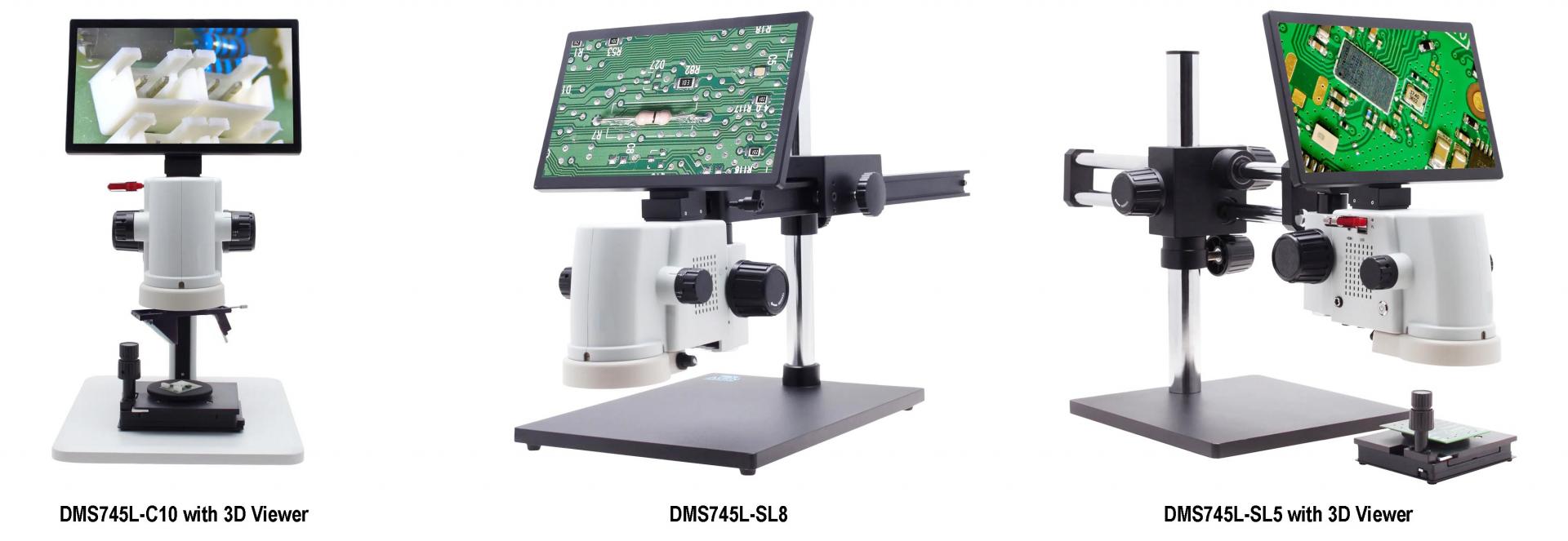

More Configurations Reference
